The line consists of the following components:

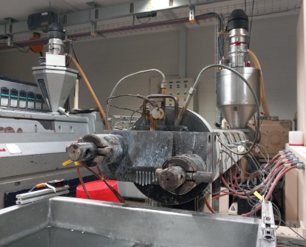

1 - Single-Screw Extruder (Ankle)
- Type :Single-screw extruder (Ankle)
- Description : Gentle compression through optimized screw design.
Output up to 120 kg per hour. Original manufacturer drawings
available.
- L/D Ratio : 60/30
- Motor Type MDFQARS 132-32 with insulated B bearing
- Gearbox Type : FZ 600.2-Z-ED 60

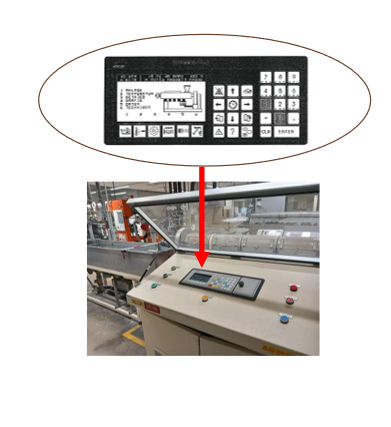

- Control System: EXTRUSION PACK control unit by RESOTEC. Has
functioned very well in operation.

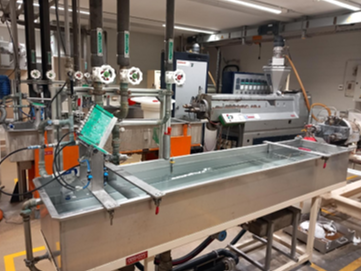

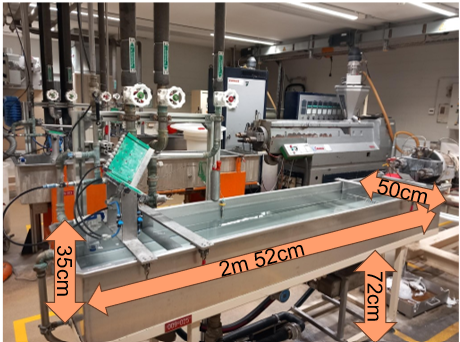

2 - Water Cooling Bath
- Description :Water bath cooling line with continuous cooling water
supply. High-capacity plate heat exchanger included.
- Tank Capacity : 440 liters (at full fill)
- Cooling Control :Controlled via continuous cooling water feed
- Width : 50 cm
- Depth : 35 cm
- Length : 252 cm
- Height-Adjustable Feet (current setting) : 72 cm

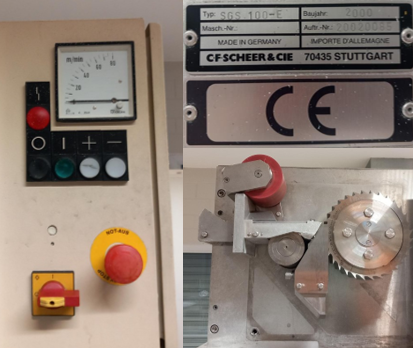

3 - Granulator
- Manufacturer : C.F. Scheer and Cie - 70435 Stuttgart, Germany
- Model : SGS 100-E
- Year of Manufacture : 2000
- Certification : CE
- Spare Parts : Many new spare parts available on request.
4 - Granulate Mixer (Cyclone Type)
- Manufacturer : Zyklos by Schwelm
- Type : Cyclone granulate mixer
- Capacity : 0.5 tonne (500 kg)
- Description :Fast and reliable mixing of large quantities of
granulate.
5 - Steel Containers and Plastic Pallets with Lids
- Frame Material : Stainless steel, suitable for production use
- Lid Material : Impact-resistant polypropylene (PP), custom designed
and manufactured for these frames
- Suction Lance Opening Closable
