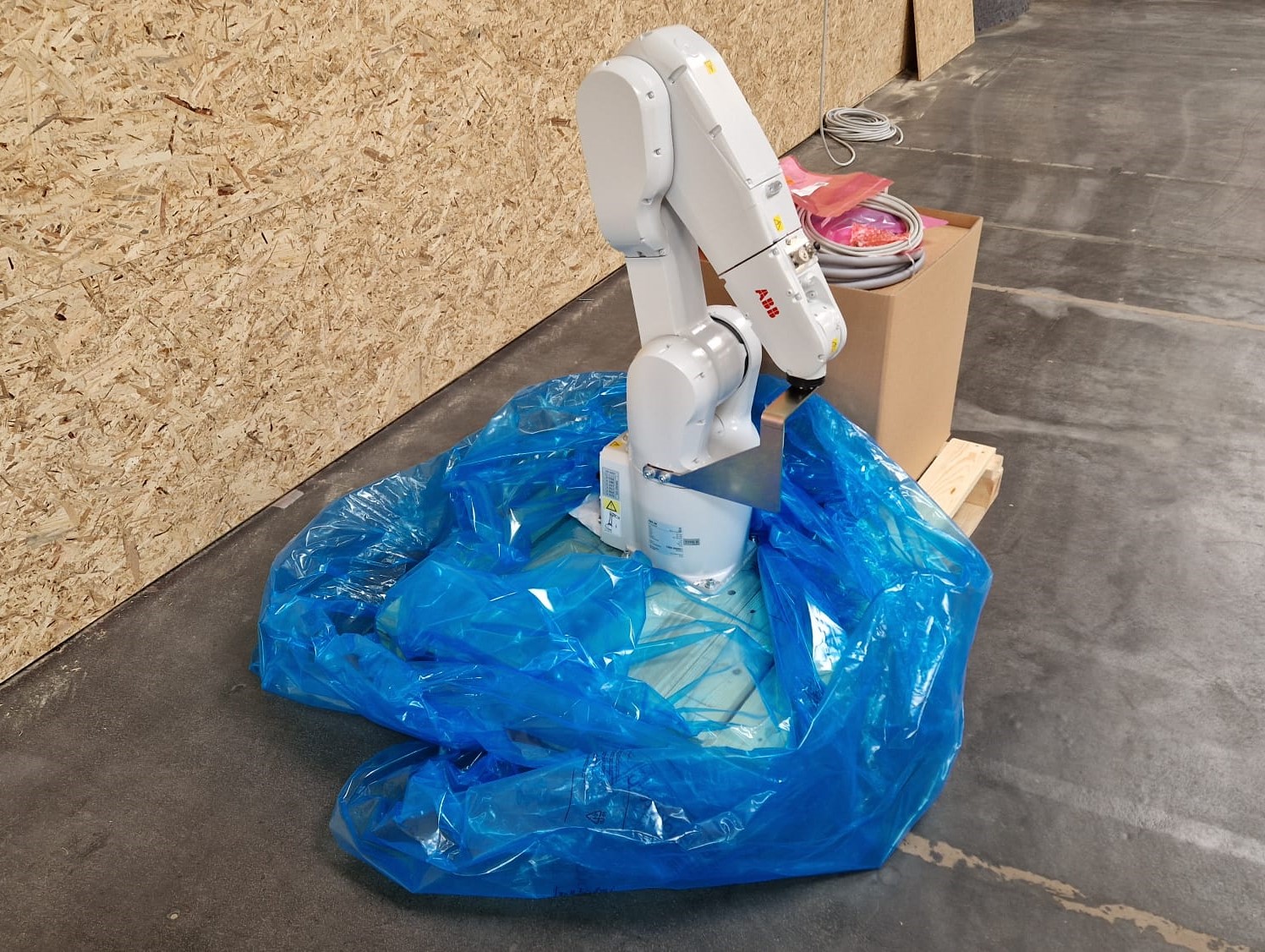

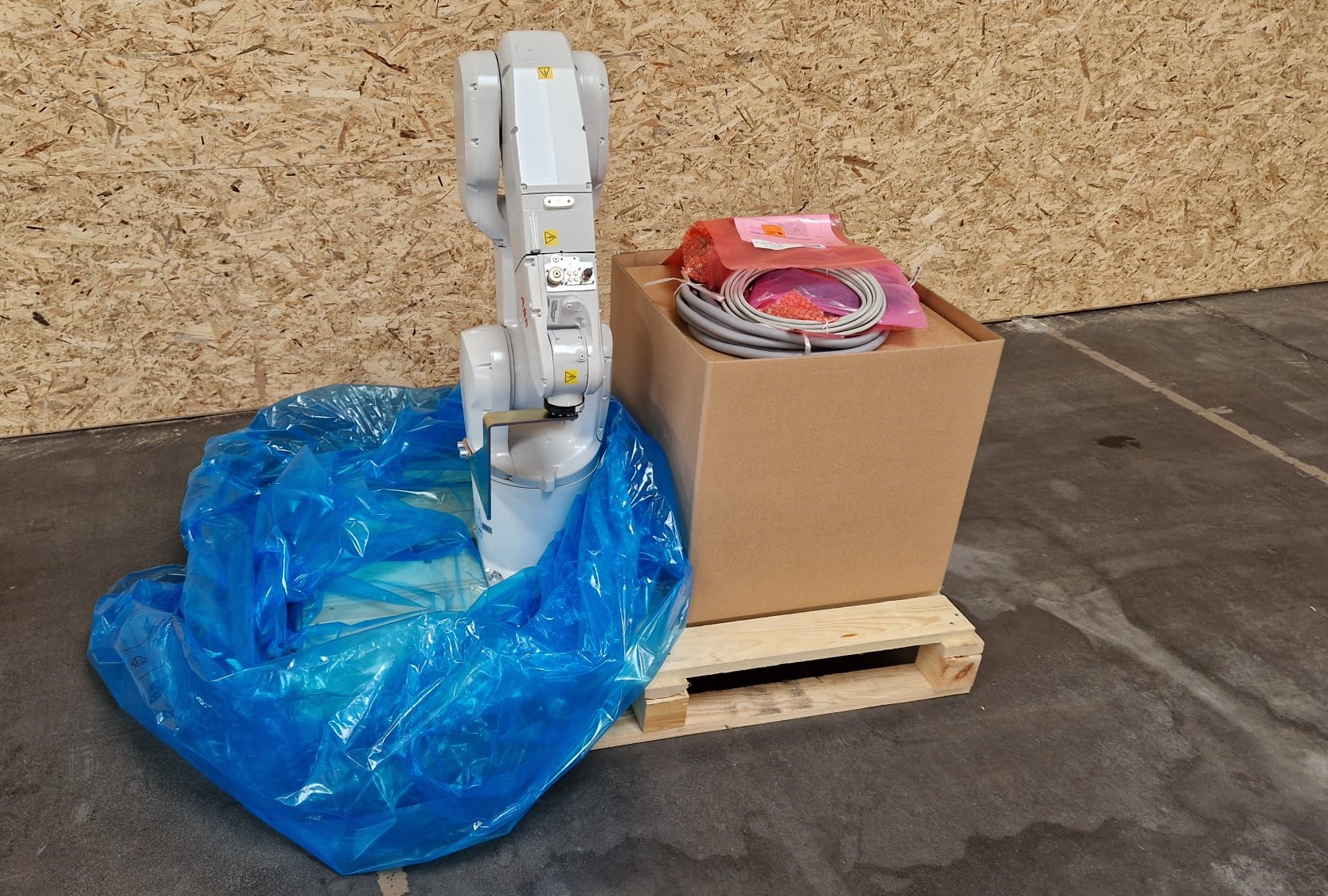

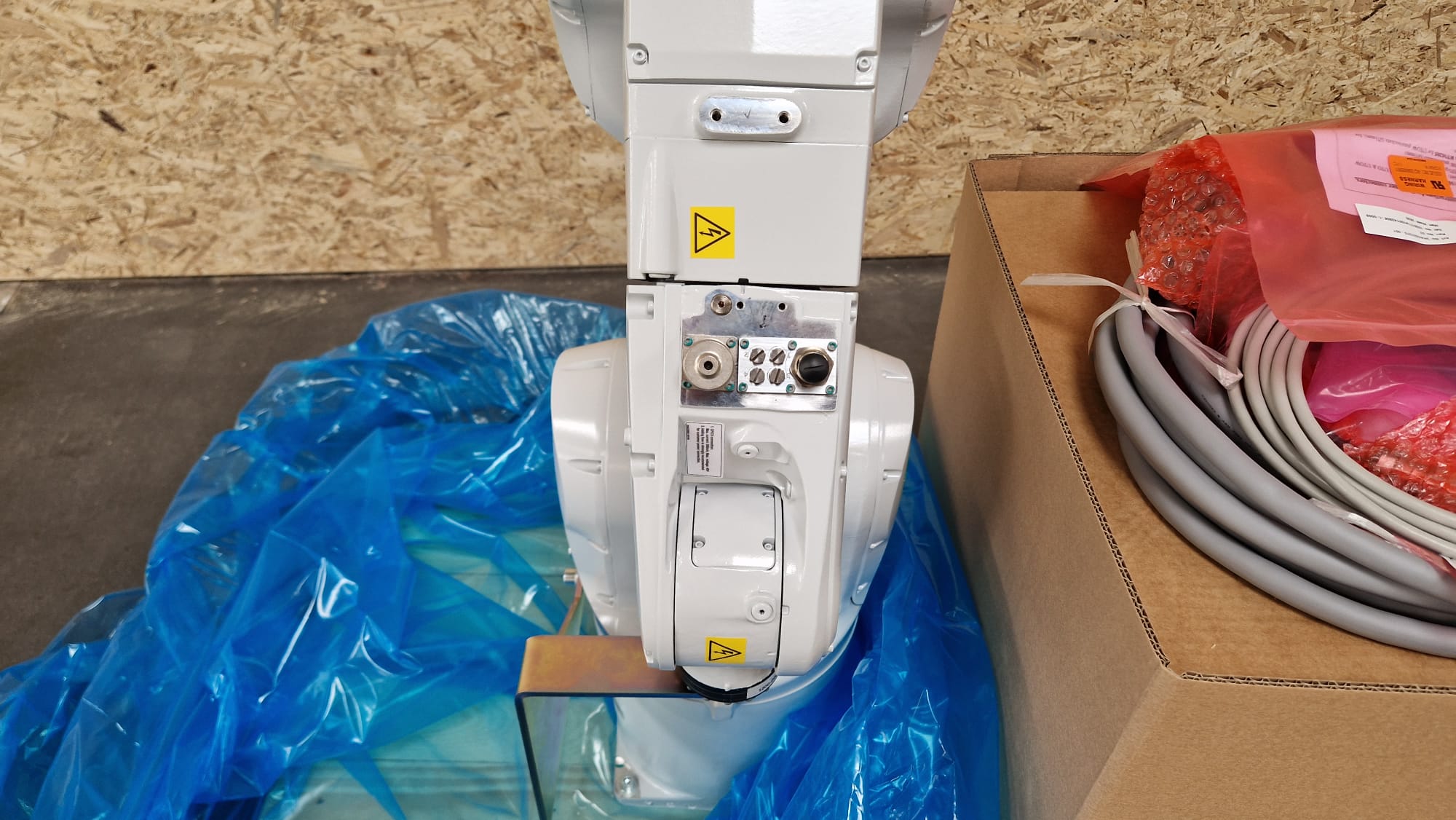

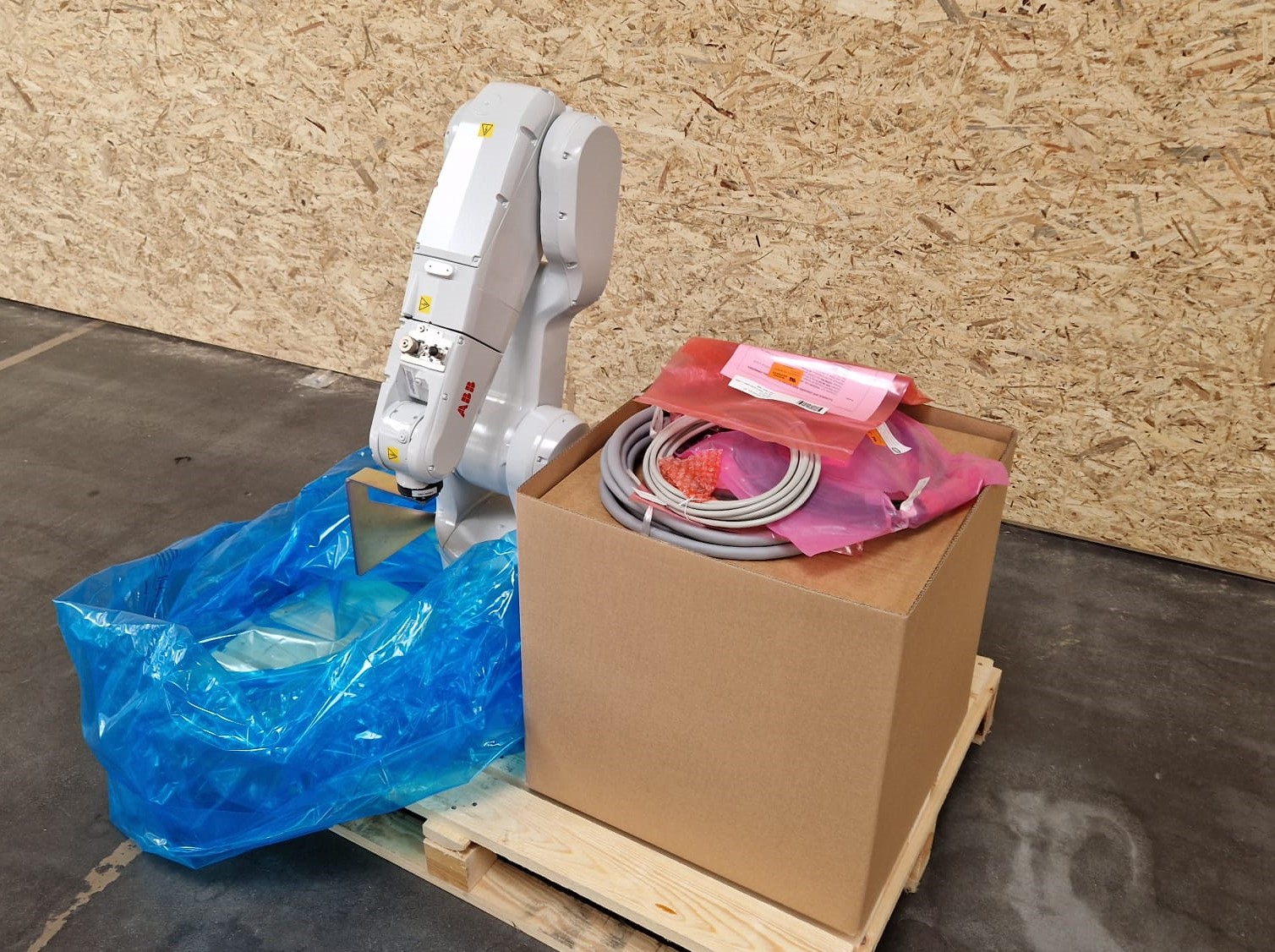

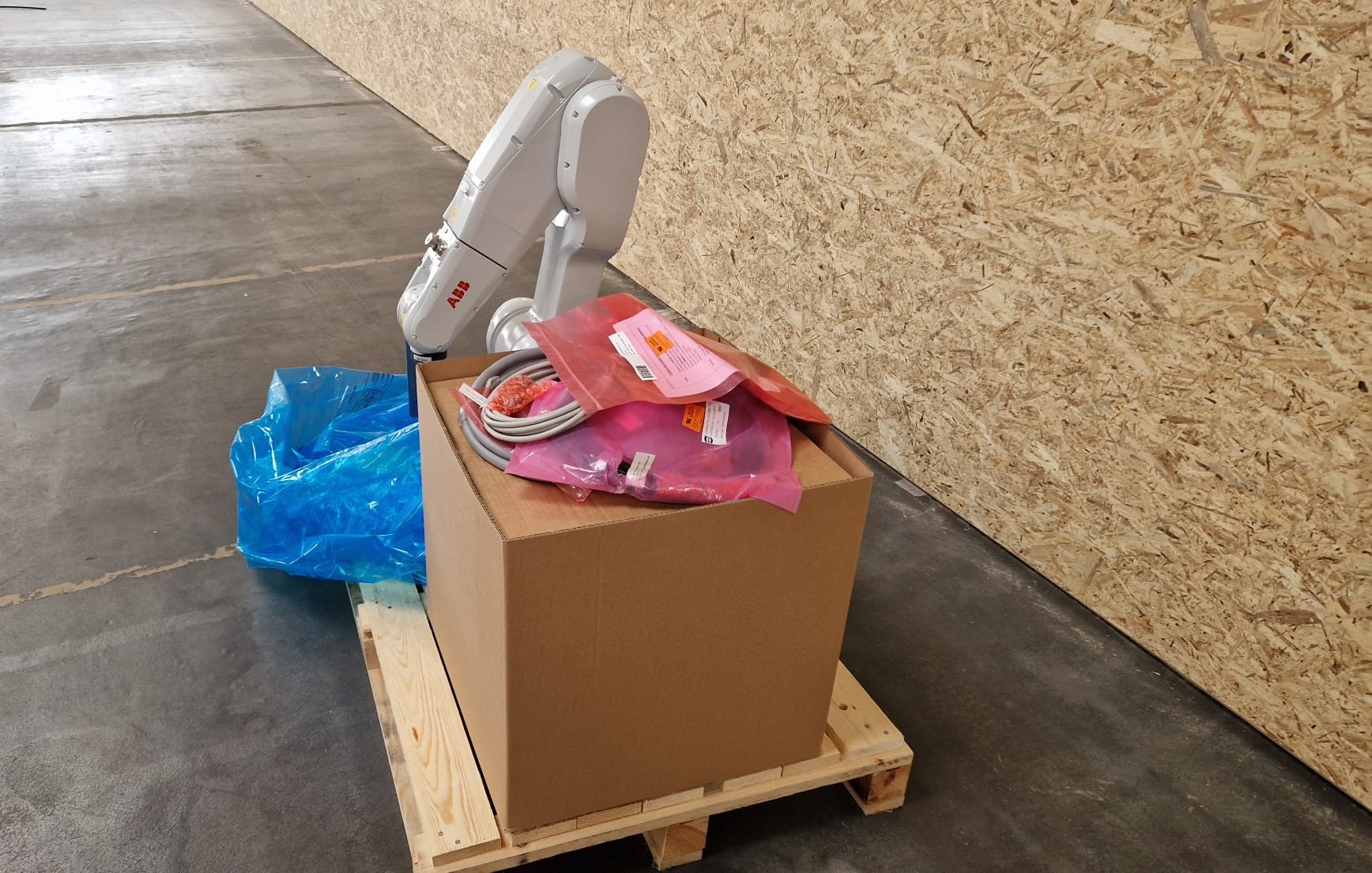

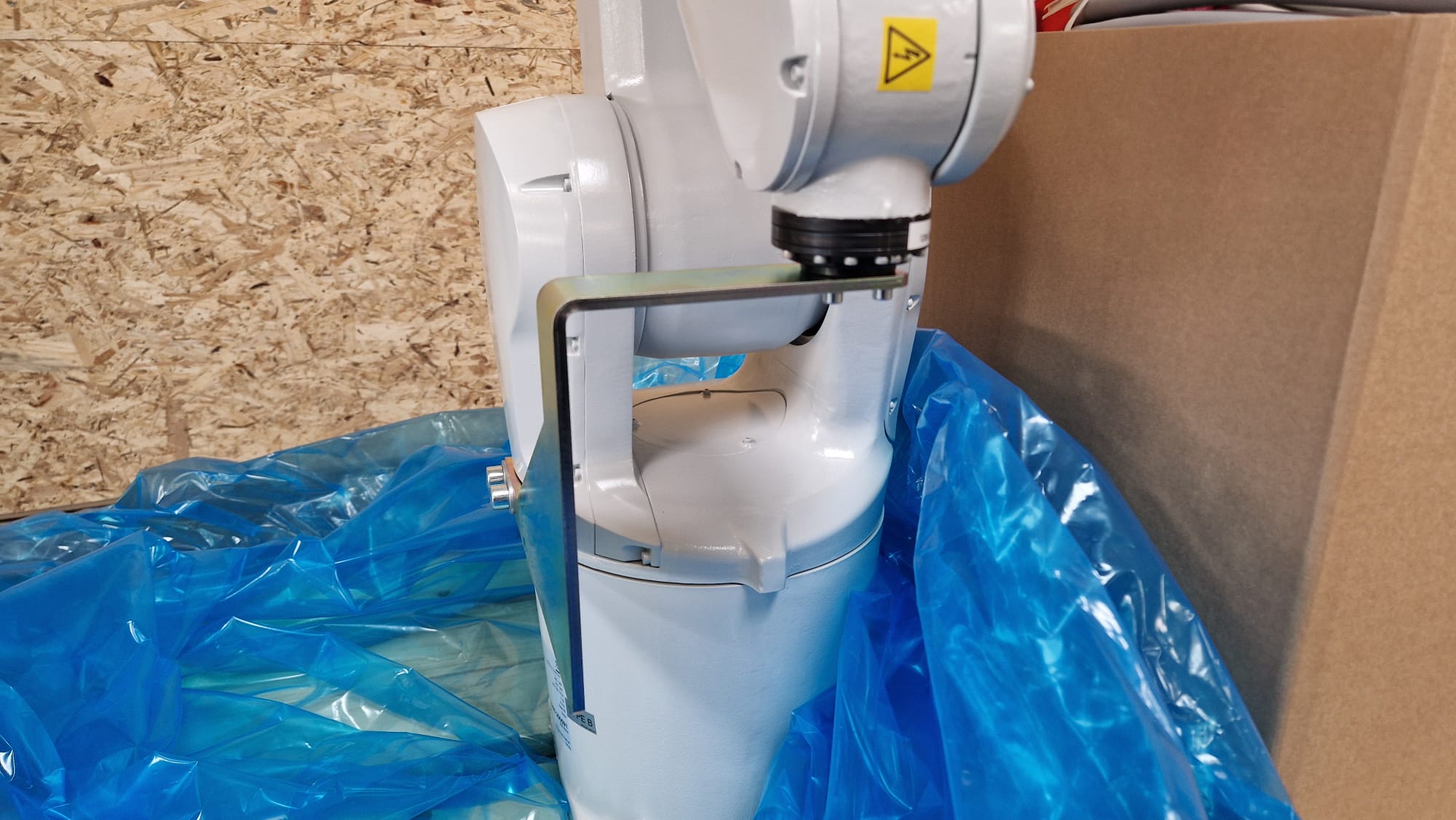

ABB IRB 1200-7/0.9 Omicore

Manufacturer: ABB

Model: IRB 1200-7/0.9 Omicore

Warranty until 23.09.2026

Reach 901 mm

Load capacity 7 kg

Additional arm load 0.5 kg

Axles 6

Robot controller: Omicore C30

Position repeatability: 0.013 mm

Cycle time 7 kg version

1 kg pick & place cycle 25 x 300 x 25 mm: 0.4 s

Maximum TCP speed: 7.3 m/s

Max. TCP acceleration: 35 m/s²

Acceleration time: 0 –1 m/s 0.06 s

Robot footprint: 210 x 210 mm

Weight: 54 kg

MANIPULATOR

- Manipulator variant: IRB 1200-7/0.9
- Manipulator color: ABB Graphite White std
- Manipulator protection: Base 40
- Robot cabling: From the base side

STEERING

- Control variant: OmniCore C30
- Control Housing: Base
- inch rack mounting kit: Yes
- Operating temperature: max. 45 °C
- Mains voltage: 220–230 V AC +10%/-15%
- Connected Services: Wired LAN
- Ethernet Switch: 5-port Ethernet switch
- Additional logic 24 V power supply: 24 V, 8 A
- FlexPendant: FlexPendant 10 m
- PROFINET-SW device: PROFINET device
- Basic Digital 16 Inputs/16 Outputs: Basic Digital 16 Inputs/16 Outputs 1
- Operating mode selector switch: 3 modes, keyless

FLOOR CABLE

- Manipulator Cable – Length: 7 m
- Power cable: EU power cable, 3 m

ROBOTWARE

- World Zones: World Zones
- Path Recovery: Path Recovery
- RobotStudio Connect: RobotStudio Connect
- FlexPendant Basic Apps: Essential App Package
- FlexPendant-independent apps: Software package

APPLICATION

- Media and Communication: Ethernet, Parallel, Air
- Connector set axis 4: CP/CS bus, Proc 1 axis 4
- parallel cable – length: 7 m
- Ethernet cable – Length: 7 m
