Erodiermaschinen AGIE CHARMILLES Form30

Excellent condition - Fully operational - Loading / Transport possible!

Positioning resolution : 0.5 a

Tool changer
Number of electrodes places: 4
Max. Electrode dimension : 75 mm
Max. electrode length Electrode length : 280 mm
Max. Electrode weight : 5 kg
Max. Total weight : 20 kg
The tool changer runs sluggishly and would have to be checked.

Machining table
Usable area : 800 x 600 mm
Load capacity : 1000 kg
Number of T-slots for mounting : 5 pcs.
Dimension of the grooves : 12 mm

Working container
Max. Internal dimensions : 1200 x 800 x 500 mm
Capacity : 475 L

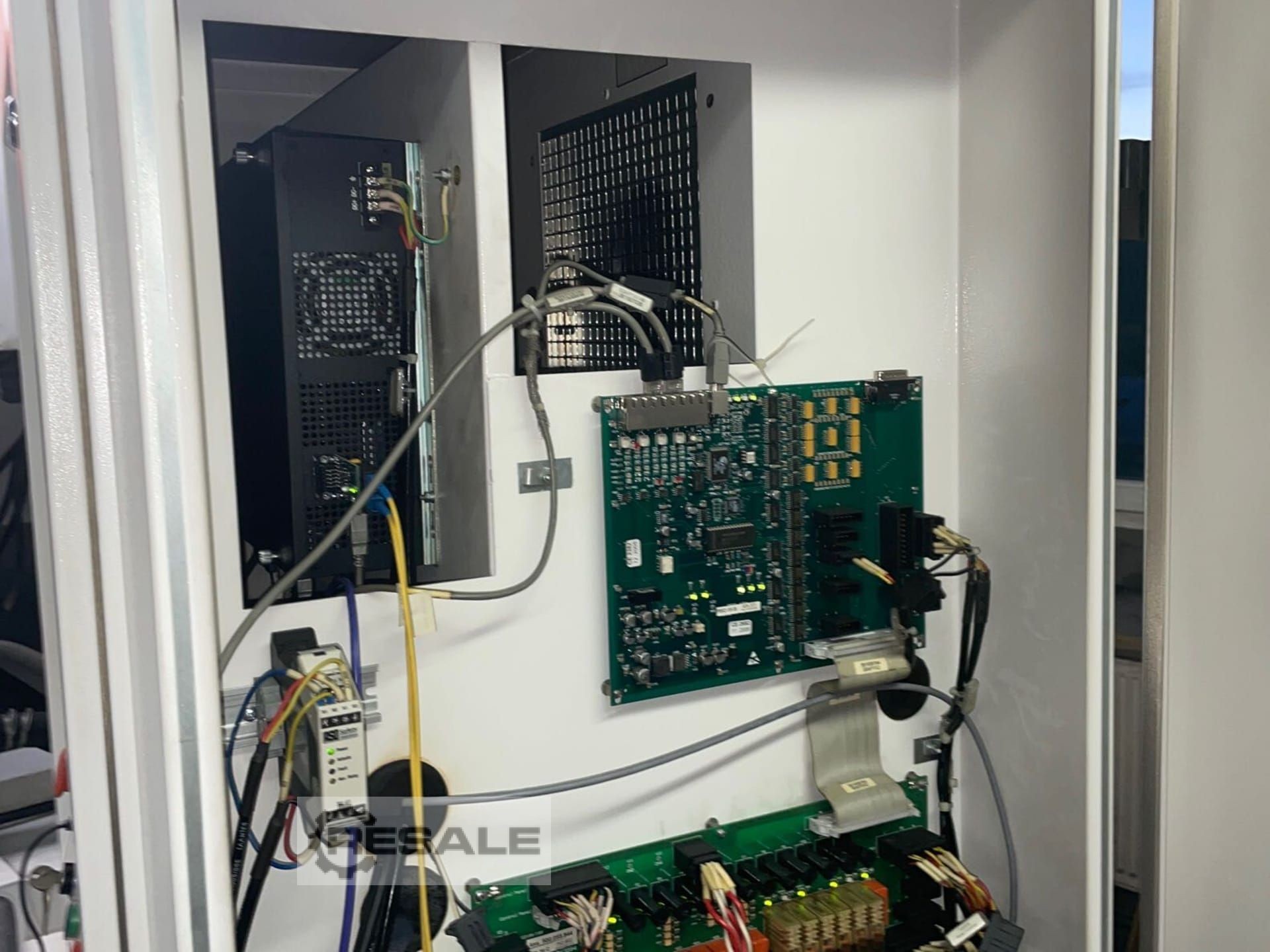

Fuse box
Cabinet dimensions : 900 x 750 x 1950 mm
Cabinet weight : 300 kg
Protection class of the cabinet : IP 32

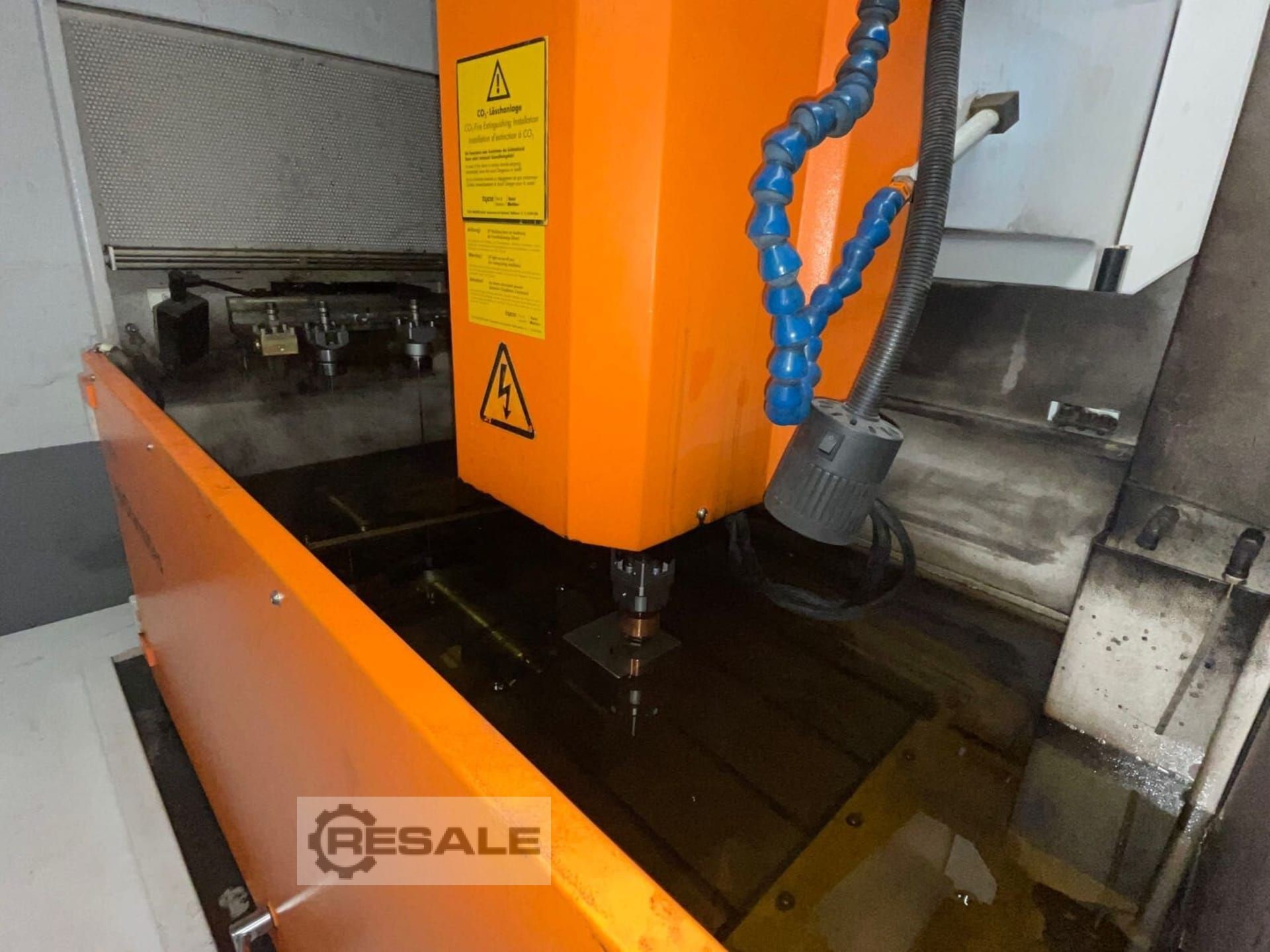

Processing head with high rigidity
Max. electrode weight : 100 kg
Insulated interface : 250/650 mm
Verkäufer Angebot Nr. resale 169482770
