2017 Andritz KMPT GmbH DCF312 / 16 / 4
Andritz - Dynamic membrane filtration
Dynamic Crossflow Filter cpl. with control unit
Model: DCF312 / 16 / 4
Manufacturer: Andritz KMPT GmbH
Year of manufacture: 2017
Condition: As good as new
Description:
Crossflow processes are used to separate substances that are difficult

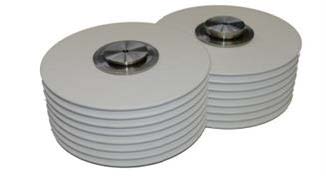

to filter. In this process, rotating ceramic discs (alternatively:
polymer) generate a turbulent differential velocity. With dynamic
crossflow filtration, a high degree of separation can be realised,
especially with a concentration of the retentate of up to 700 mPas.
Ceramic filter discs are available on the market in a wide range of
pore sizes from 7 nm to 2 μm.
Areas of application:
- Colour extraction (e.g. pigments)
- Separation of biomass - e.g. in the extraction of enzymes, proteins,
proteins, polysaccharides, antibiotics
- Recovery of valuable substances - e.g. hydroxides - coloids
- Concentration of suspensions - e.g. juices, flavourings
- Liquid processing - recycling of high-quality liquids
- Other liquids
Technical data:
Filtration area: 16 m2 Number of shafts: 4 Membrane: Ceramic / Polymer
Number of membranes: 128 Filtration area per membrane: 0.13 m2 Design
pressure: 0 - 6 bar g Max. permissible temperature: 0 - 90° C Design
basis: Pressure Equipment Directive 2014/68/EU, AD 2000, Module A2,
Cat. II
Internal dimensions of the container: D= 765 mm Useful volume of the
container: approx. 245 litres Cylindrical height of the container:
approx. 679 mm Wall thickness of the container: 8 mm Operating modes:
Continuous or batch operation Total weight with control unit: 3,500 kg
Dimensions: L=2,700 mm; W=1,400 mm; H=2,500 mm Required room height:
min. 3,500 mm Operating speed: 300 - 400 1/min Power: 45 KW Connected
voltage: 400 V Frequency: 50 Hz Connecting plug: CEE plug 5 plig, 125
A, TN-S mains
Scope of delivery:
Complete system, consisting of 1x crossflow filter 1x base frame 1x

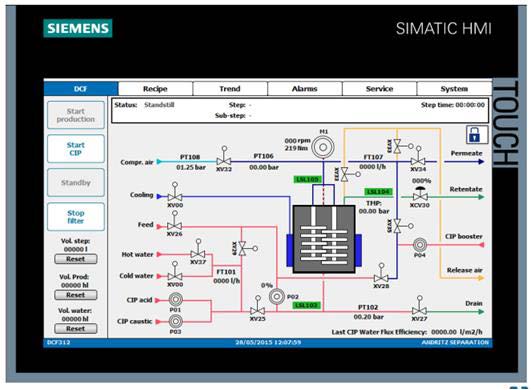

control unit / control panel / frequency converter Touch panel for
operating the complete unit.
