Used complete line for still wine - 8000 BPH Technical Specifications
& Performance Data Runs at 8,000 bottles/hour on 0.75 L glass with

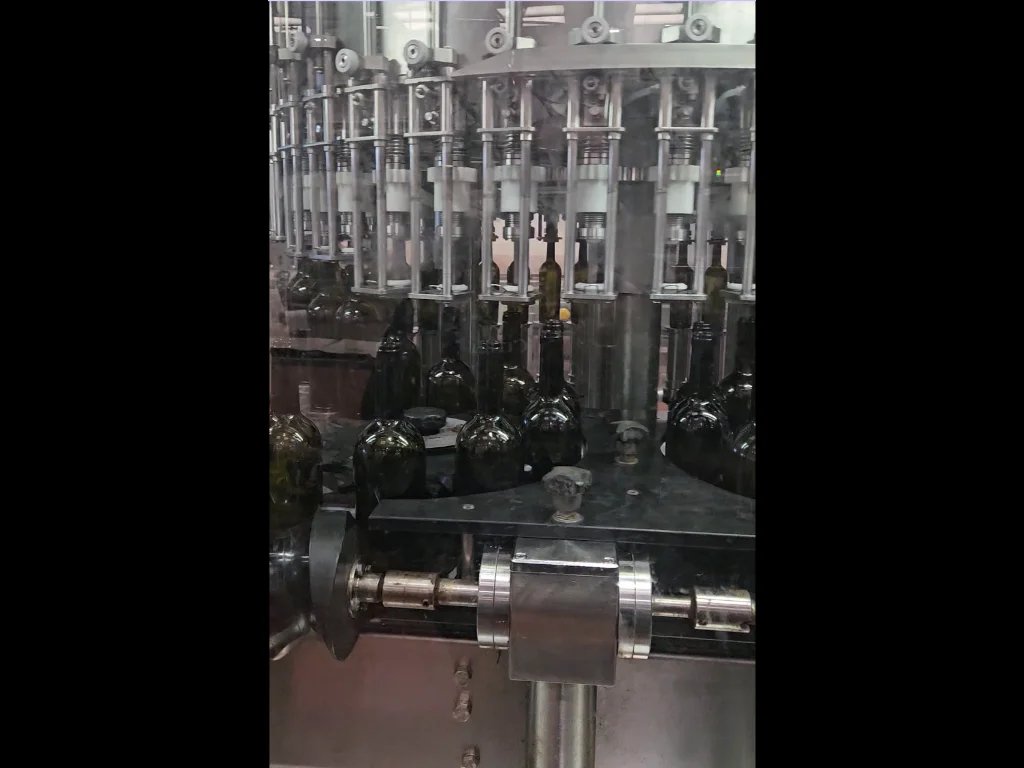

straight-cork (flush-to-mouth) closure. The layout centers on a
filling monoblock (2002) combining rinser, filler, and capper,
followed by a capsuling/shrink unit (2002), Kosme labeling, and APE
Impianti case handling. Built as wine bottling machinery for still
wine, the configuration supports consistent fill levels, reliable
sealing, and integrated downstream packing. Production speed: 8,000
bottles per hour Filling Monoblock: Model 36/1440.40/1440LV.6/360 RSX
(Year 2002) – Rinser, Filler, Capper Capping System: Straight cork

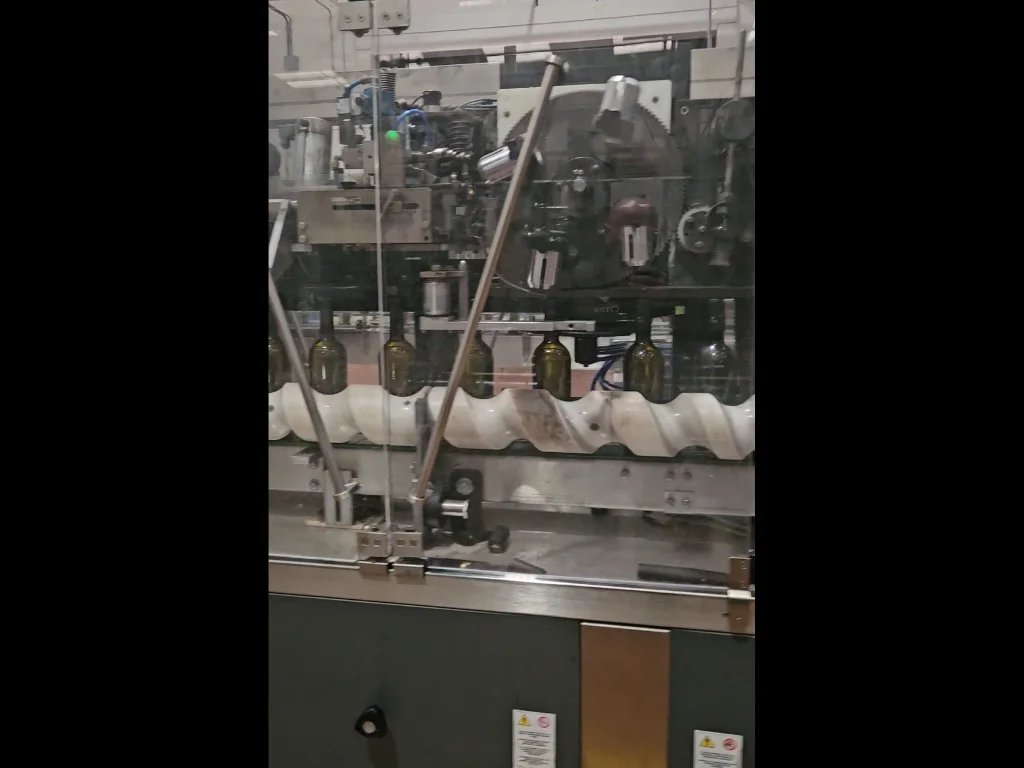

(flush-to-mouth) Capsuling/Shrinkage: Model POKER Z 6/8 (Year 2002)
Compatible formats: Typical case pack pattern 12 x 0.75 L; additional
formats with change parts Containers: Glass bottle handling

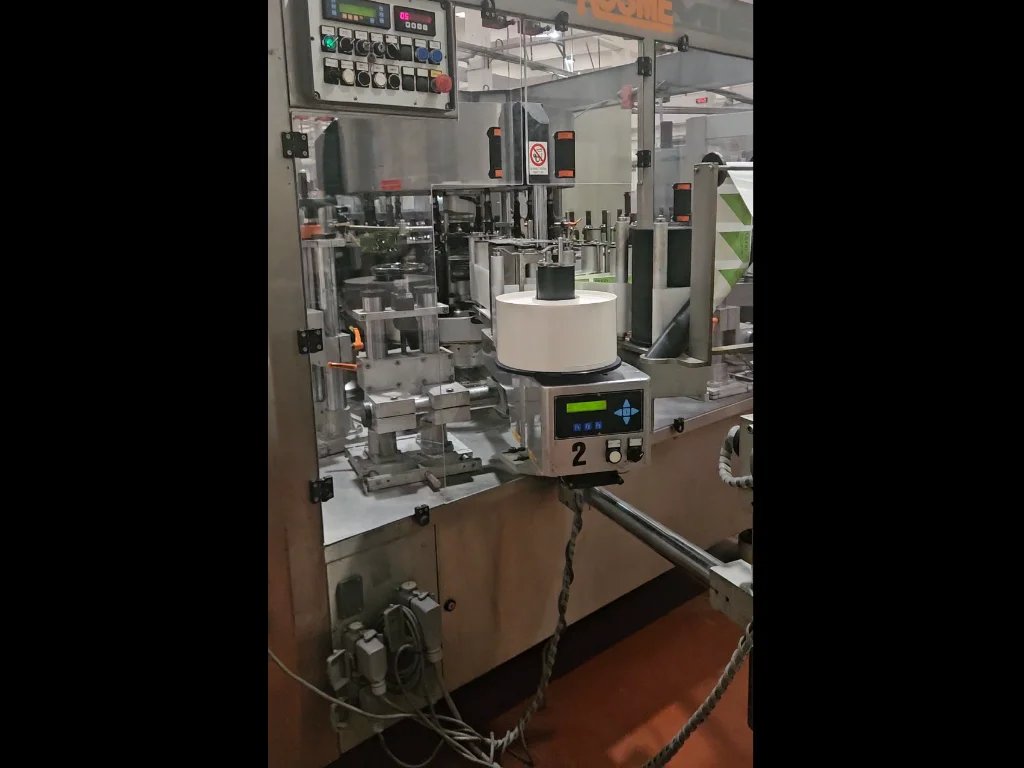

(cylindrical containers) Labeling modules: KOSME STAR 720 12T (cold
glue) and KOSME EXTRA ADHESIVE 12T S3 E3 (self-adhesive) Labeling
capabilities: Front, back, and neck label (neck collar) application
Packaging modules: APE Impianti FORMA 2000 JM (case erector, Serial
no. 438), APE Impianti INCA 2010 (case packer; typical 12 x 0.75 L),
APE Impianti INSER 2001 (divider inserter) Electrical (Filling
Monoblock): 380 V, 50 Hz; installed power 17 kW Electrical (Labelers):
400 V 3/N/PE, 50 Hz; installed power 4 kW (STAR) and 8 kW (EXTRA
ADHESIVE) Pneumatics (Filling Monoblock): 0.6 MPa (6 bar); air
consumption 200 Nl/1 Weights: 9,000 kg (Filling Monoblock), 2,650 kg
(STAR 720 12T), 2,000 kg (EXTRA ADHESIVE 12T S3 E3) Compliance:
CE-marked components Advanced Automation & Control Systems Modular
automation coordinates filling, straight corking, capsule finishing,
labeling, and case handling to maintain the 8,000 bph cadence. The
filling monoblock manages fill control and closure synchronization;

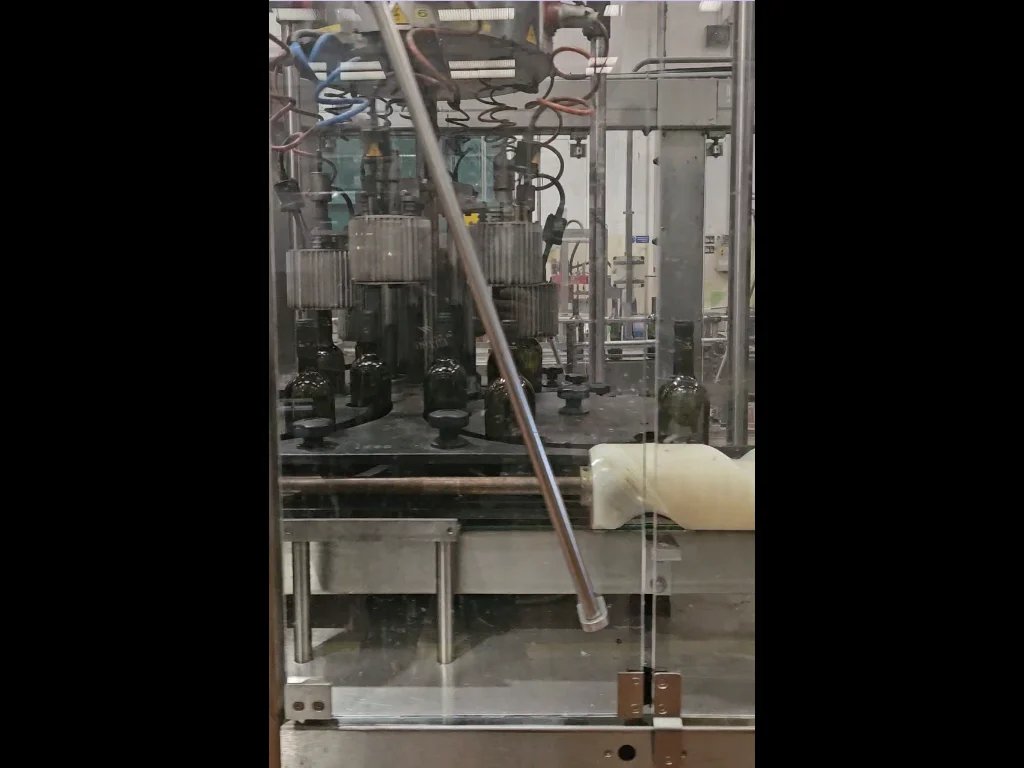

the capsuling/shrink unit completes capsule application in step. Kosme
STAR 720 12T (cold glue) and EXTRA ADHESIVE 12T S3 E3 (self-adhesive)
run separately or in tandem for complex dress-out, including
front/back and neck labels. Operator interfaces on each module support
quick setup, format changeover, and interlocked safety. APE Impianti
packaging modules link via synchronized conveyors and shared safety
circuits for stable downstream flow. Production Line Integration
Capabilities The line operates inline with conveyors and accumulation
matched to the 8,000 bph throughput. The filling core supports
hygienic handling; straight corking precedes immediate capsule
application. Dual-label architecture—cold glue plus
self-adhesive—covers paper and film stocks with neck collar and
wrap-around or front/back positioning. APE Impianti modules complete
case forming, partition insertion, and packing for the 12 x 0.75 L
pattern. This wine bottling machinery can integrate with an existing
bottling station or be deployed as a compact, fully connected unit
subject to layout constraints. Inline configuration with seamless
handoff from filling to capsuling Straight corking with premium
capsule finishing Advanced labeling flexibility for front, back, and
neck label applications Case erecting, divider inserting, and packing
for 12 x 0.75 L Multiple bottle sizes possible with the correct change
parts Machine Condition & Maintenance History Pre-owned line with
component build years from 1998 to 2016; the primary filling and
capsuling core dates to 2002. All major elements are CE-compliant and
reflect European construction for beverage processing. Standard
preventive maintenance applies (lubrication points, belts, knives,
corker heads, wear kits), enabling reliable recommissioning after site
preparation and FAT/SAT as required. Installation Requirements & Site
Preparation Layout corresponds to industrial bottling standards
(typical 1:100 scale). Utilities include three-phase power and plant
air at the specified pressures. Floor anchoring and correct routing of
power, control, and pneumatics are recommended, particularly for the
9,000 kg filling unit. Power: 380/400 V, 50 Hz (17 kW for the filling
monoblock; additional loads for labelers/packaging) Compressed air:
0.6 MPa (6 bar); 200 Nl/1 to the filling monoblock, plus distribution
for case handling Space: Provide conveyors, accumulation, and service
aisles for access and cleaning Level floor: Anchoring points with
cable and air trays for segregated utility runs Safety Standards &
Compliance Certification Major equipment is CE-marked and fitted with
interlocked guards, emergency stops, and safety-rated access.
Product-contact and labeling areas use corrosion-resistant materials
to support beverage-quality requirements. Documentation can be
supplied for conformance within standard food and beverage safety
practices.
