Schrumpffolie mit 90 Grad 15 verwendete Schrumpffolie ATLANTA Combigiotto 90-M

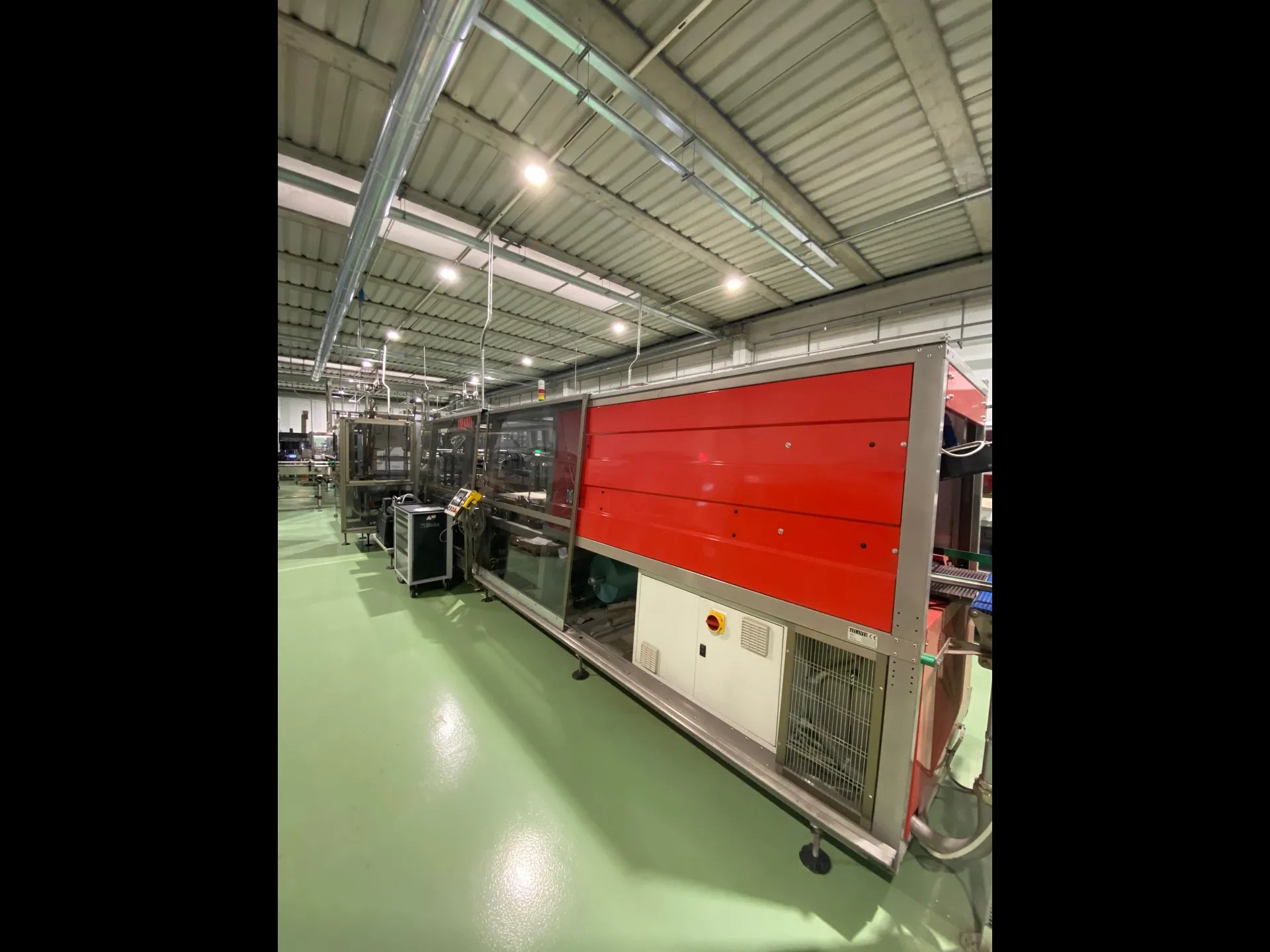

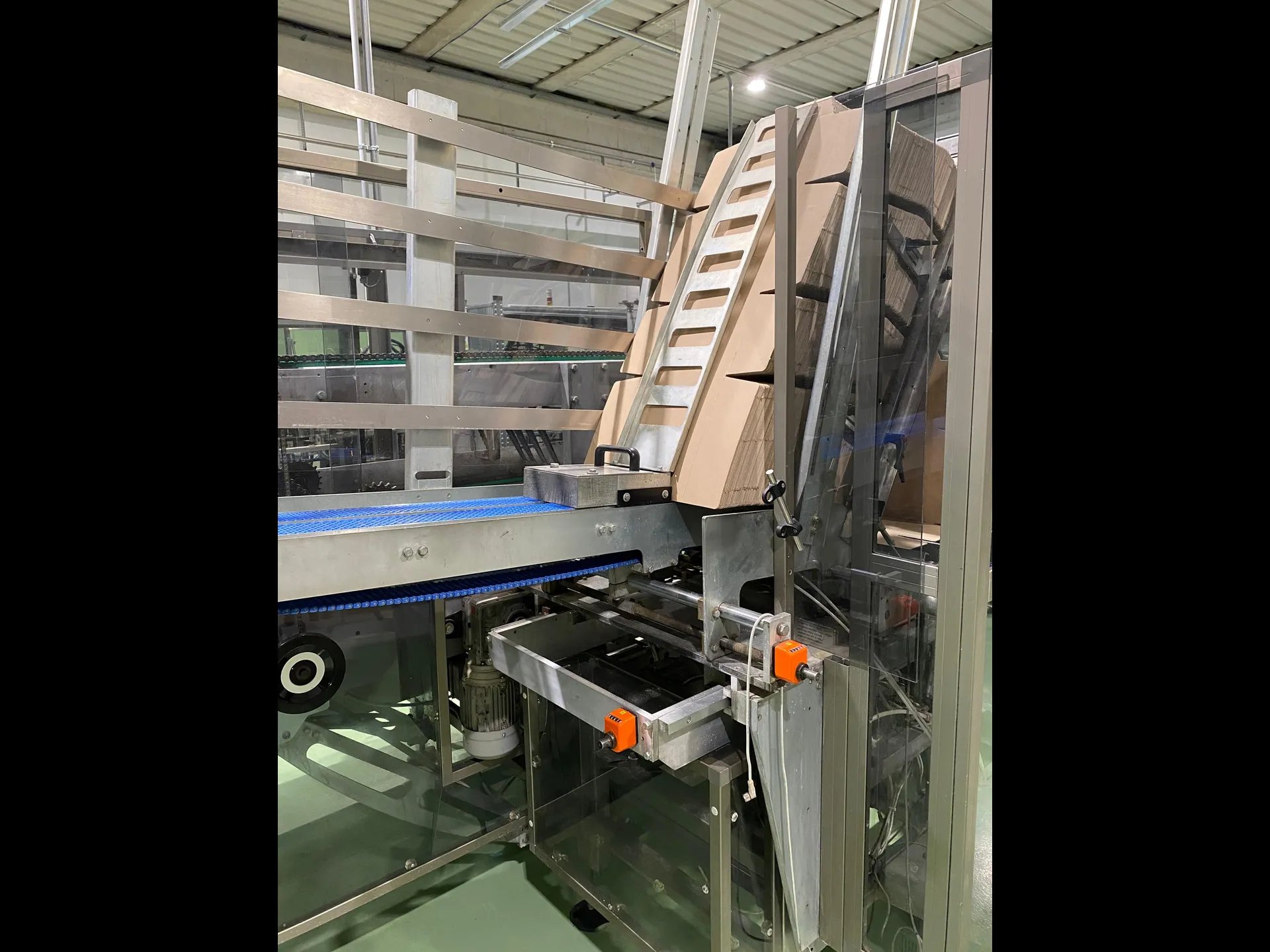

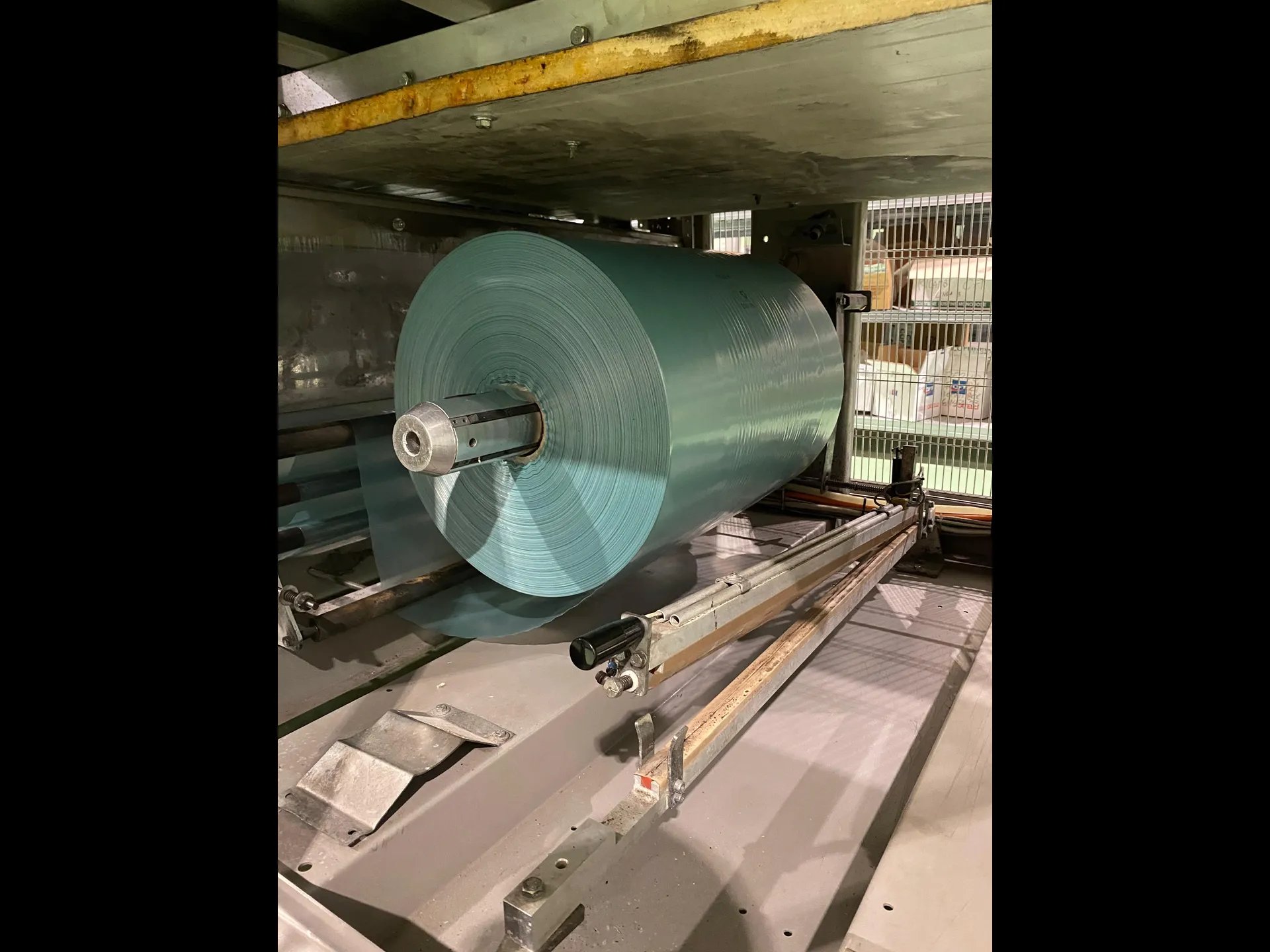

Machine Overview Automatic tray plus film packer ATLANTA COMBIGIOTTO 90-M designed for secondary packaging of bottles with 90° side infeed. The machine forms a corrugated tray and wraps the product with neutral shrink film, then conveys it through a shrink tunnel to obtain stable, retail-ready bundles. Ideal for beverage lines handling PET, glass or HDPE bottles. Reference No. FA56. Year 2008, overhauled in 2022. Condition: Ready for operation. Indicative output up to 25 packs/min, depending on product and format. Operating concept: automatic grouping of bottles, tray forming/loading, film wrapping and shrink-tunnel consolidation. Packaging configuration: Tray + neutral film (shrink). 90° infeed enables compact layouts and easy connection to existing conveyors. Key Technical Data Make / Model: ATLANTA COMBIGIOTTO 90-M Operating type: Automatic Infeed orientation: 90° side infeed Packaging: Tray + film (neutral) Tray magazine/formation: Available Nominal capacity: up to 25 bundles/min (format and product dependent) Year: 2008 (overhauled 2022) Condition: Ready for operation PLC: SIEMENS S7 E 300 Automation & Control Industrial PLC-based control with operator HMI for recipe selection, speed setpoints and diagnostics. Inverter-controlled drives for smooth acceleration and product handling. Photoelectric sensors for product presence, jam and film detection. Temperature-controlled shrink tunnel for consistent film performance. Interlocked access doors with safety monitoring for guarded zones. Line Integration Upstream: accepts bottles from conveyor with 90° transfer to the infeed section; integrated selection/divider to create pack patterns before tray loading. Downstream: discharge conveyor after shrink tunnel for connection to inspection, case handling or palletizing. Signals and handshakes typically include start/stop, fault, emergency stop circuit integration and speed reference. Mechanical interface and layout drawings available on request for line engineering. Condition & Maintenance General overhaul performed in 2022. Machine presented as ready for operation. Preventive maintenance recommended: periodic checks of film path, knife/sealing components, tray magazine/erector, lubrications and conveyor wear parts. Performance & Versatility Suitable for a wide range of cylindrical or square bottles commonly used in beverages. Typical pack patterns achievable for bottles (e.g., 2×2, 3×2, 4×3, etc.) depending on container size and tray dimensions. Neutral shrink film for clear presentation; tray provides rigidity and stacking strength. Consistent bundle quality via controlled film wrapping and thermal shrink process. Site Requirements Electrical supply: 400 V ±5%, 50 Hz ±1%, 3P + N + PE (separate neutral and earth). Auxiliaries: 24 V DC. Instrumentation voltages: 24 V AC – 230 V AC. Electrical enclosure protection: IP54; motor protection: IP54. Ambient conditions: temperature +5 °C to +40 °C; relative humidity 30%–80% non-condensing; altitude up to 1000 m a.s.l.; no harmful gases or explosive atmospheres. Compressed air and exact consumption: to be confirmed according to configuration. Machine footprint and utilities layout: available on request. Safety & Compliance Fixed and interlocked guards around moving and hot zones; emergency stop circuits on accessible sides. IP54 electrical design suitable for typical bottling environments. Safety functions include access interlocks, tunnel thermal protections and fault diagnostics. To be installed and operated in non-explosive environments only, per the specified ambient limits.
Verkäufer Angebot Nr. resale FA56
