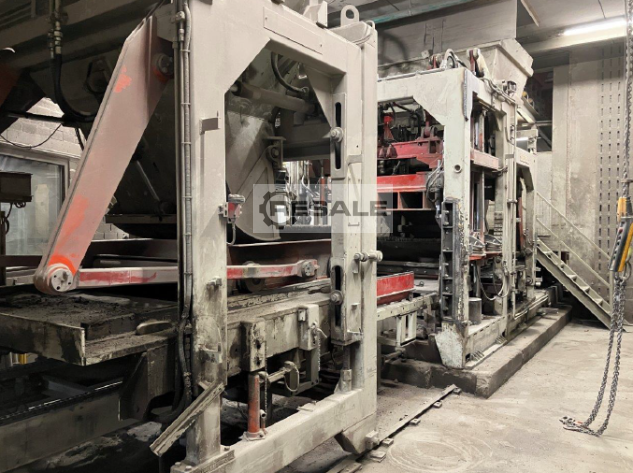

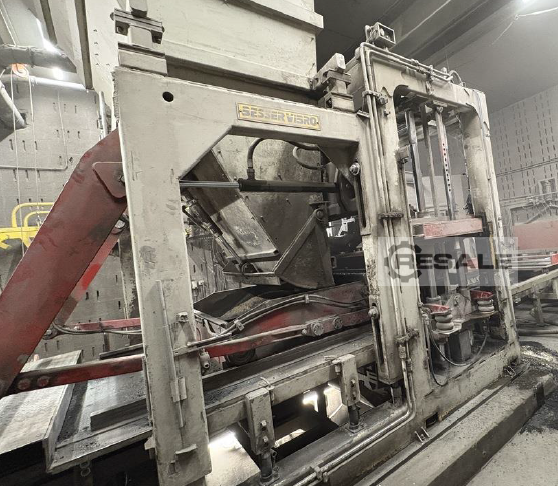

Machine 1 Vibroblock
Machine 2 Vibroblock
Year of production 1989
Controls Blockmachine and fingercar : Siemens S5
Packingline : Siemens S7-314
Rest of the wet & dry line : Siemens S5
Boardsize 1.450x1.100x50 mm
Number of boards n/a. Boards are not available
Vibrationsystem Vibro 1: Gearbox with two motors
Vibro 2: Masa system with 4 x MSE50-2
Max product height 8 cm pavers without having to adjust the fingercar.
Curbstones up to 1
meter long and 30 cm high can be held between the fingers without
adjustment of the fingercar. Longer products higher than 14 cm require
manual adjustment of the fingers.
Board buffer 2.880 boards. 24 boards per stack. 120 stacks

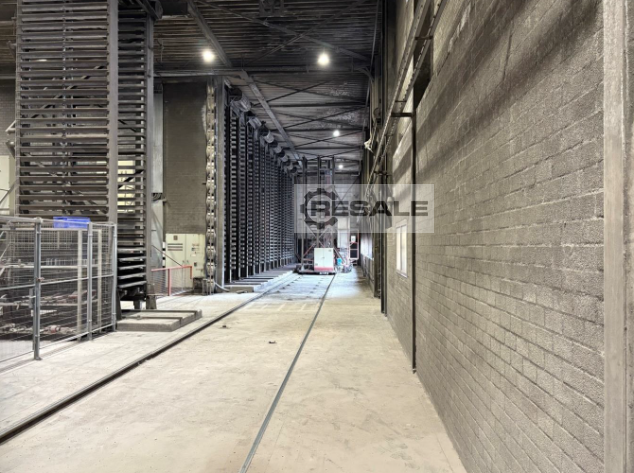

Curing chamber Rotho. Freestanding
Height curing chamber 28 stories. Highest board is at 630 cm. Total
height chamber: 765 cm.
Storyheight 20 cm
Fingecar adjustable Yes
Number of chambers 14
Positions per chamber 21
Total positions 8.232

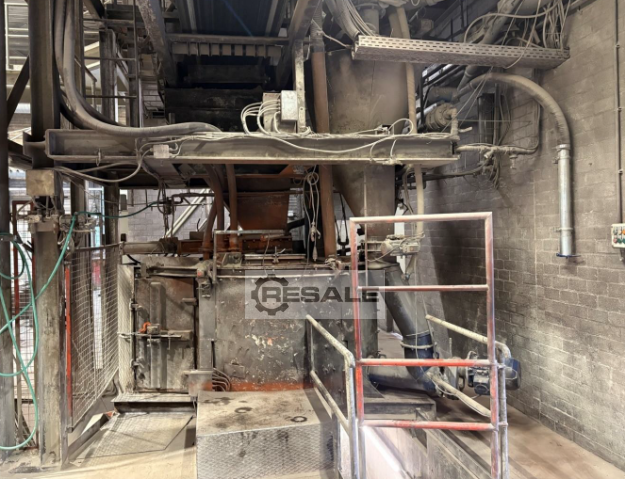

Mixer 1 Demler MDL 120. 1500 litres
Mixer 2 Demler MDL 120. 1500 litres
Pigment dosing Finke granulate
Additive dosing 2 types

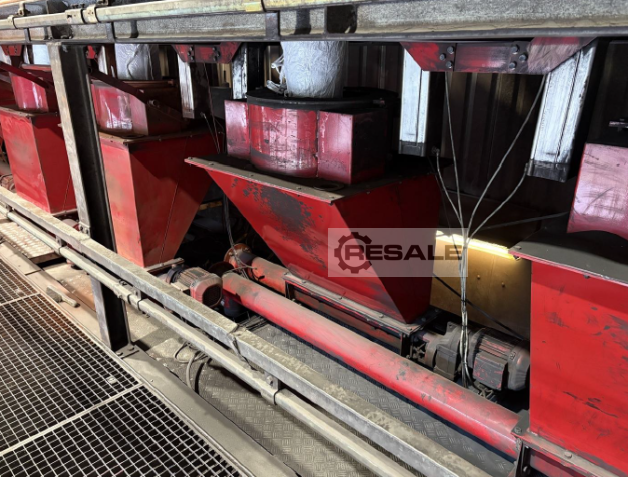

Aggregate silo’s 6 silo’s: 40, 60, 80, 100, 120 and 140 m3
Cement silo’s 3 silos 180 tonnes each
Cycle time pavers 16 sec.
Output per 8 hrs 1.500 m2 of regular pavers 10,5x21x8 cm 80%

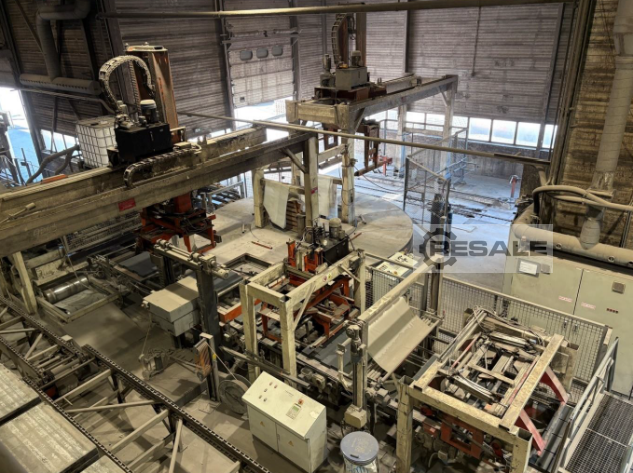

Pallet system Automatic pallet destacker
Horizontal strapping Sander variomaster 9490
Product transport automatic placement onto 4-cart system
Moulds included Pavers 10,5x21x8, 10 and 12 cm
Pavers 21x7x8 cm
20x30x6 cm
30x30x4,5 cm
and numerous other sizes
