CNC lathe BIGLIA B750 YS
TECHNICAL FEATURES:
Year: 2015
NC Type: FANUC series 32i-B
Maximum diameter Rotation: 680 [mm]
X-axis travel: 305 [mm]
Y-axis travel: 140 [mm]
Z-axis travel: 860 [mm]
X-axis fast feed speed: 18000 [mm/min]
Z-axis fast feed speed: 24000 [mm/min]
Y-axis fast feed speed: 7500 [mm/min]
Spindle Nose: ASA 8"
Maximum diameter in bar: 80 [mm]
Spindle Bore: 91 [mm]
Maximum speed Spindle: 3500 [rpm]
C-axis indexing accuracy: 0.001 [°]
Spindle power: 22 [kW]
Spindle torque: 700 [Nm]
Counter Spindle Nose: ASA 5"
Sub-spindle bore diameter: 55 [mm]
Counter-spindle stroke: 895 [mm]
Maximum speed Spindle: 5000 [RPM]
C-axis sub-spindle indexing accuracy: 0.001 [°]
Sub-spindle power: 25 [kW]
Spindle torque: 159 [Nm]
Max. section Tool holders: 25 x 25 [mm]
Number of turret stations: 16
Turret Index Time: 0.3 [s/pos]
Number of powered turret stations: 16
Maximum speed Rotating Tools: 6000 [RPM]
Power of rotating tools: 17.5 [kW]
Irrigation tray capacity: 300 [l]
Flow rate garden pump: 60 [l/min]
Rated Current: 60 [A]
Supply voltage: 400 [V]
Number of cutting hours: 5674 [h]
Dimensions: 5070 x 2030 x 2220 [mm]
Weight: 7600 [Kg]
EQUIPMENT INCLUDED:
1 LNS bar feeder type Quick Load Servo III
1 x 3-jaw chuck Ø250 [mm]
1 mandrel 3 jaws Ø165 [mm]

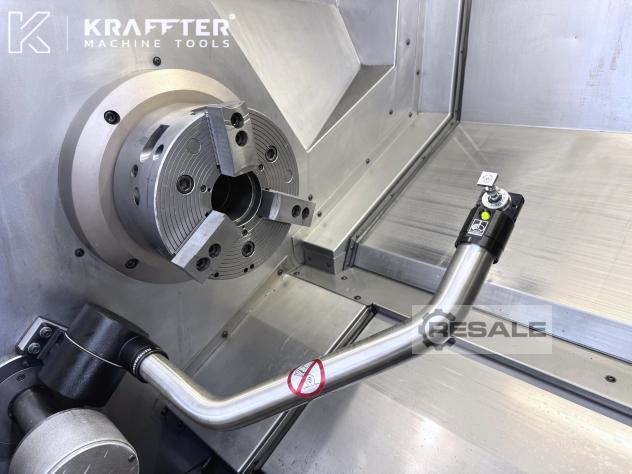

1 RENISHAW tool probe arm (automatic)
2 motorized axial tool holders
1 motorized radial tool holder
11 fixed tool holders
11 sets of soft jaws
1 x 20 [bar] high-pressure coolant pump
1 chip conveyor
1 coin collector
1 parts conveyor belt
Machine visible under tension for testing at our premises, by
appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as
internationally.
More photos and details on request.
Technical description for information purposes only, without
obligation on our part.
