BOBST 160 A-Matic and Flexo 160

Reference ID PP-47933
Category Flexo Printer
Manufacturer Bobst
Model 160 A-Matic and Flexo 160
Year Built 1994
Color 2
Impression -
Working Hours -
Speed 6500 sheets/h
Max. Size 1.600 x 1.100 mm
Min. Size 600 x 520 mm
Condition Good
Location Europe
Availability -
Machine Description

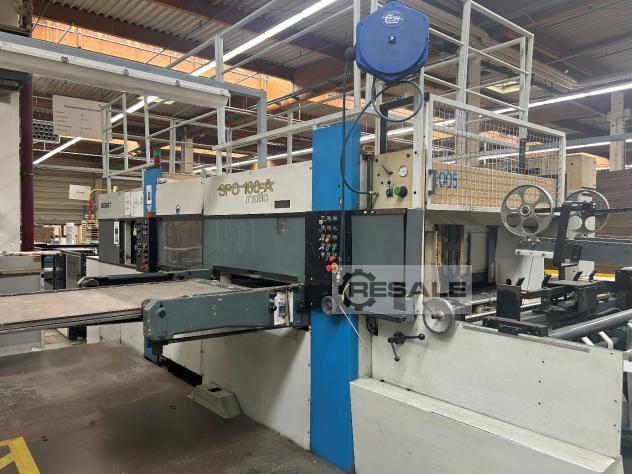

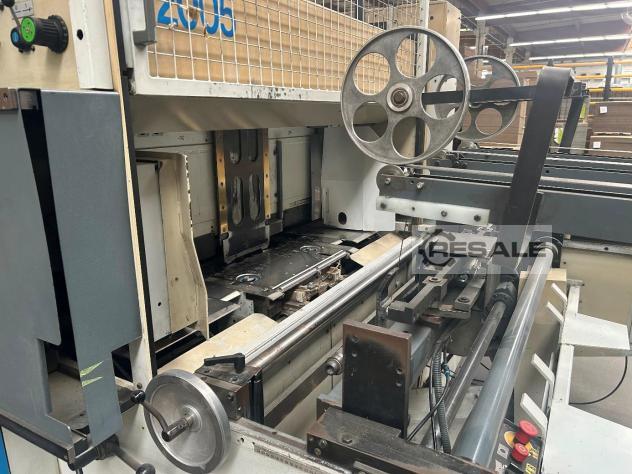

BOBST 160 A-MATIC CUTTING MACHINE
Sheet sizes:
- Maximum cutting size: 1.600 x 1.100 mm
- Minimum cutting size: 600 x 520 mm
Cutting size with front waste:
- Maximum cutting size: 1.600 x 1.075 mm
- Minimum cutting size: 580 x 492 mm
- Gripper margin adjustable: 15 +/- 3 mm
- Thickness of corrugated board up to 9mm
- Thickness of solid board from 1mm
- Cutting force, maximum: (400 tons) 4MN
- Production speed: up to 6.500 sheets per hour
Construction year: 1994
Production country: SWITZERLAND
Voltage: 480 V
Frequency: 50 Hz

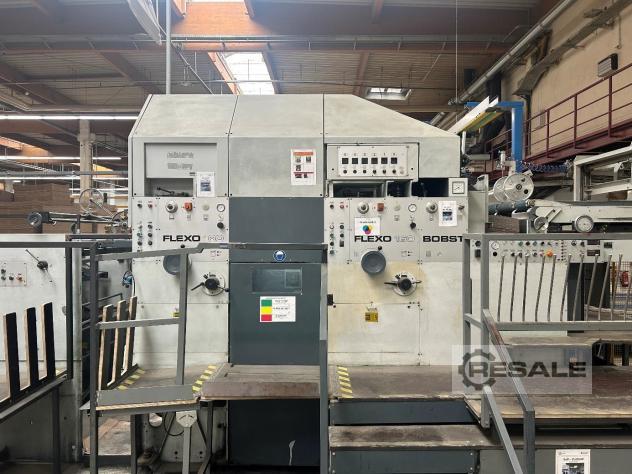

2 COLORS UNIT BOBST FLEXO 160
Sheet sizes:
- Maximum cutting size: 1.600 x 1.100 mm
- Minimum cutting size: 600 x 520 mm
- Maximum printing size: 1.600 x 1.100 mm
- Printing diameter: 440mm
Thickness of printing plates:
- Maximum: 8 mm
- Minimum: 3 mm
Verkäufer Angebot Nr. resale PP-47933
