CNC Drehmaschinen BOLEY BE42

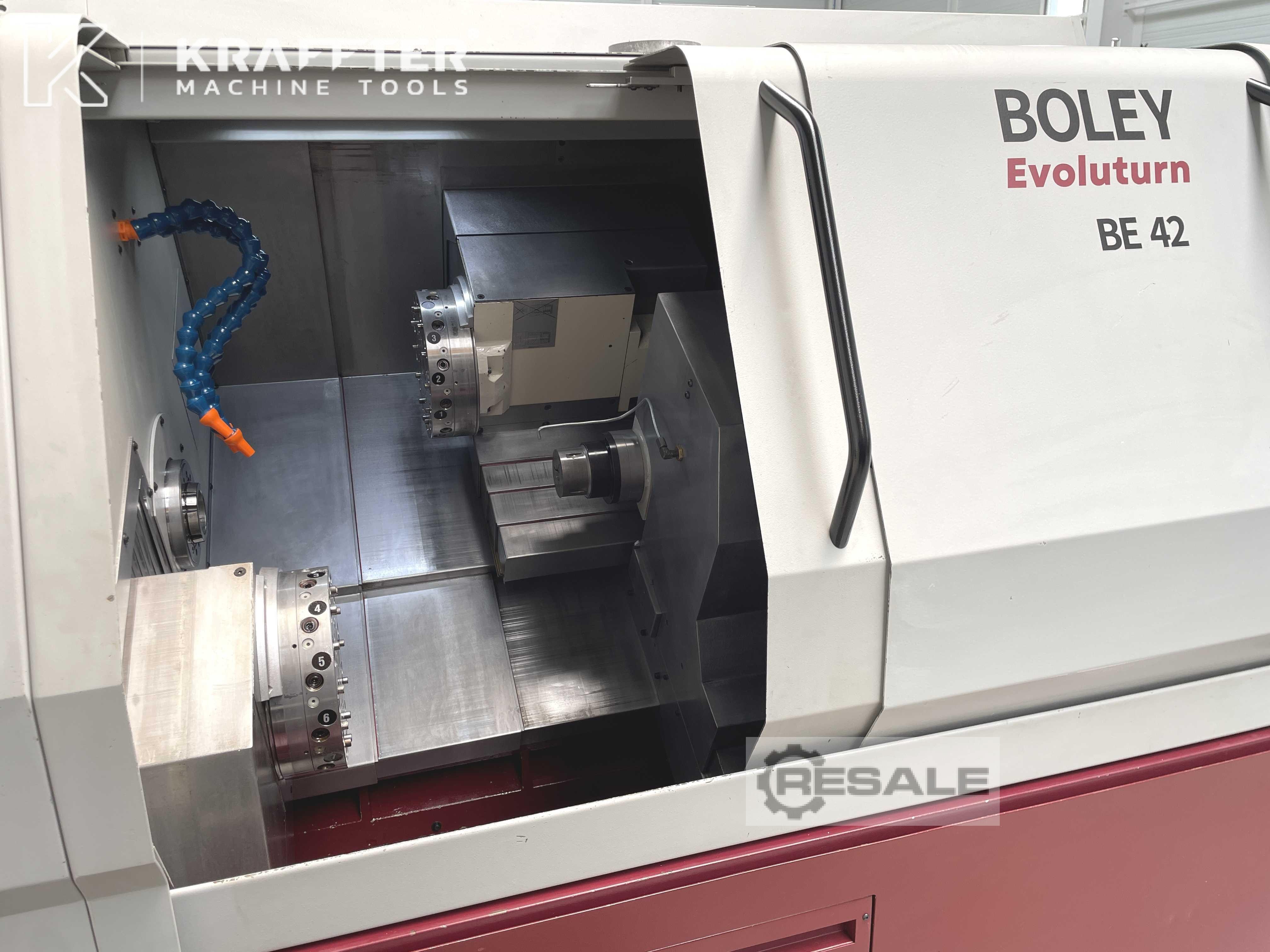

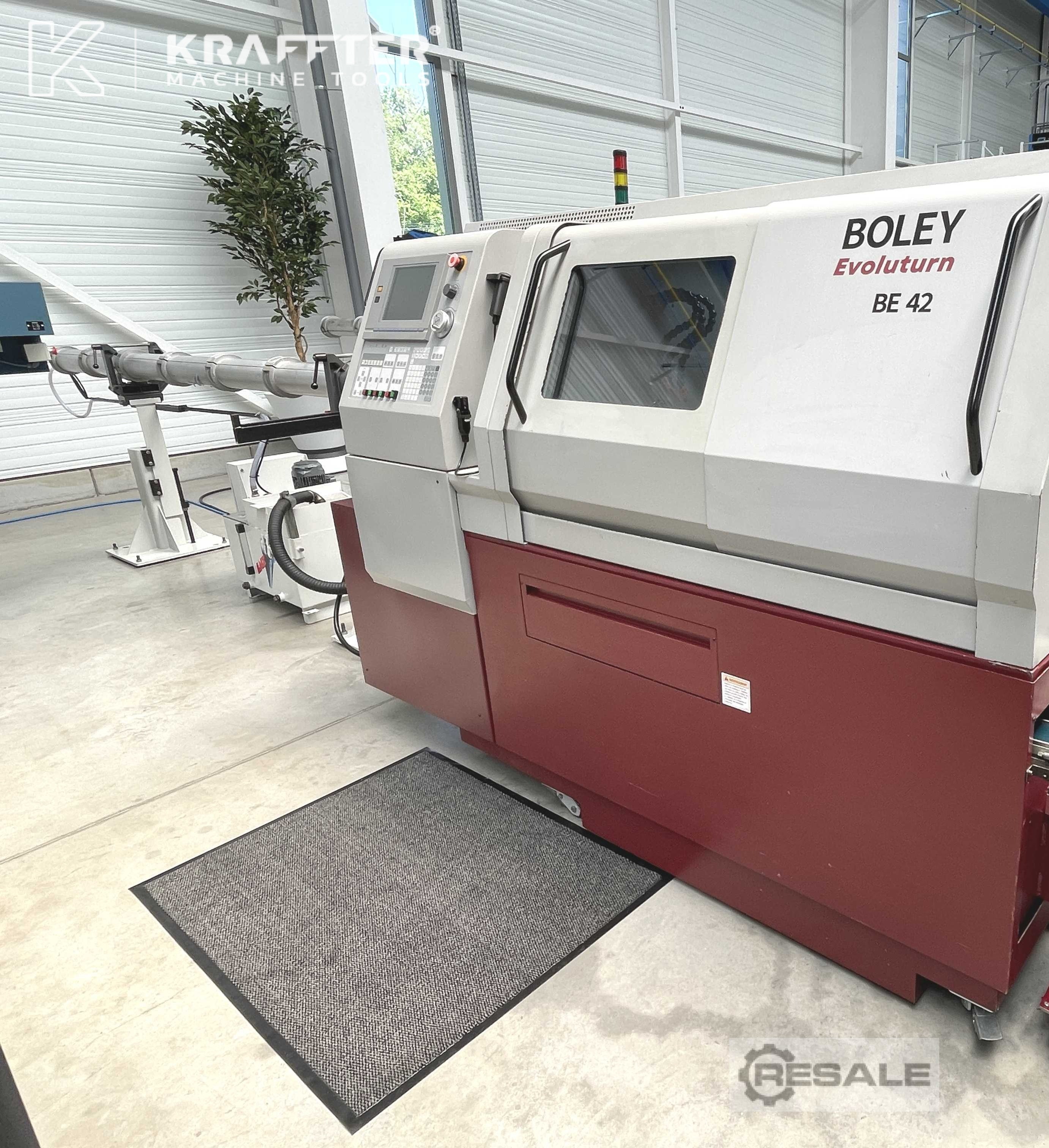

BOLEY BE42 CNC lathe

TECHNICAL FEATURES:

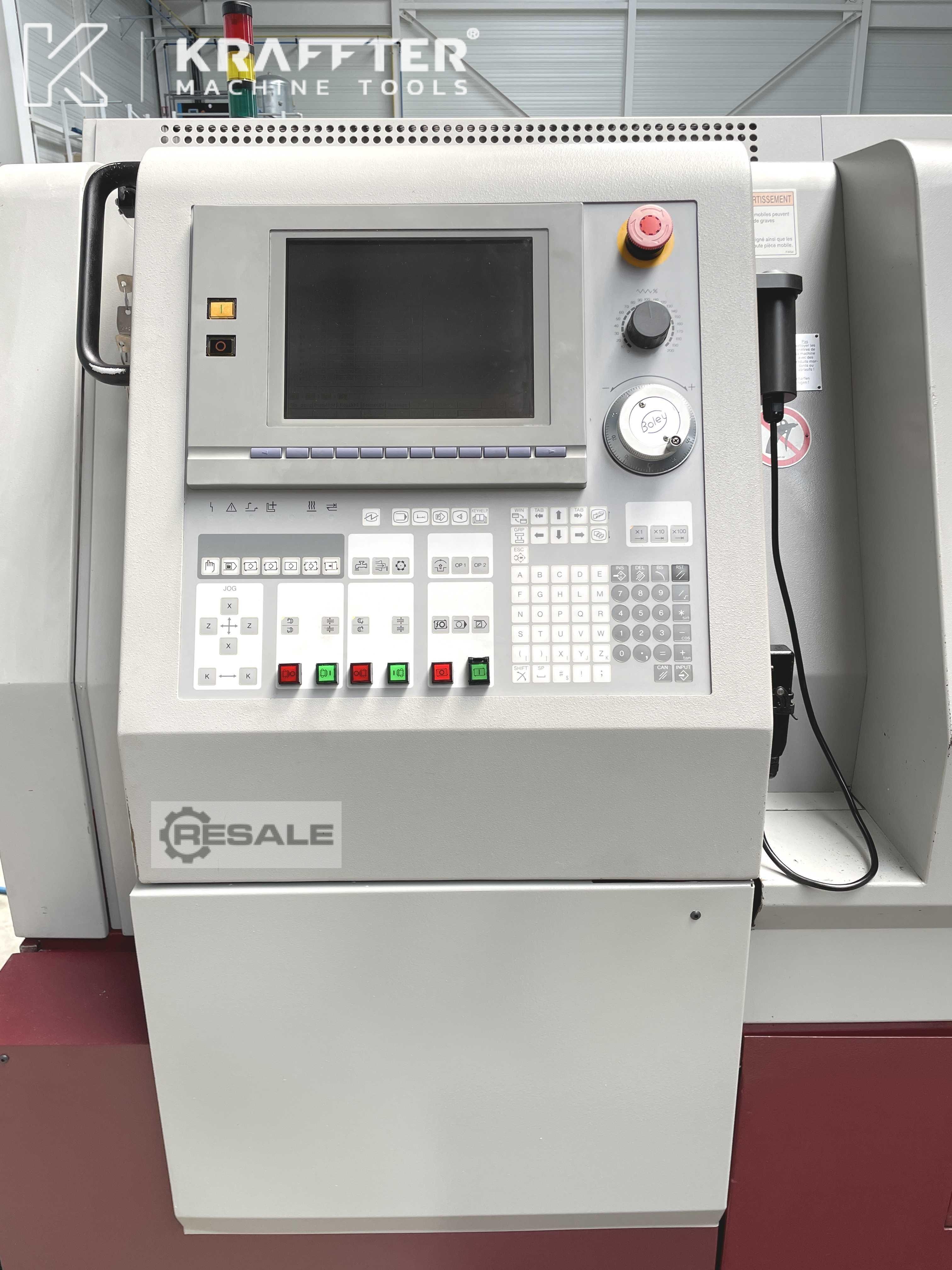

NC Type: MITSUBISHI Meldas 635LCC
Maximum diameter Machinable :140 [mm]
Z1 axis stroke: 200 [mm]
X1 axis stroke: 170 [mm]
Z2 axis stroke: 395 [mm]
X2 axle stroke: 110 [mm]
Z3 axle stroke: 170 [mm]
X3 axis stroke: 110 [mm]
Spindle for collets: Size 48 DIN 6343
Spindle Bore: 42 [mm]
Minimum speed. Spindle: 80 [rpm]
Maximum speed Spindle: 8000 [rpm]
C-axis indexing accuracy: 0.001 [°]
Spindle power: 7.5 [kW]
Counter-spindle bore diameter: 42 [mm]
Minimum speed. Spindle: 60 [RPM]
Maximum speed Spindle: 6000 [rpm]
C-axis sub-spindle indexing accuracy: 0.001 [°]
Spindle power: 2.2 [kW]
Toolholder type: VDI 20

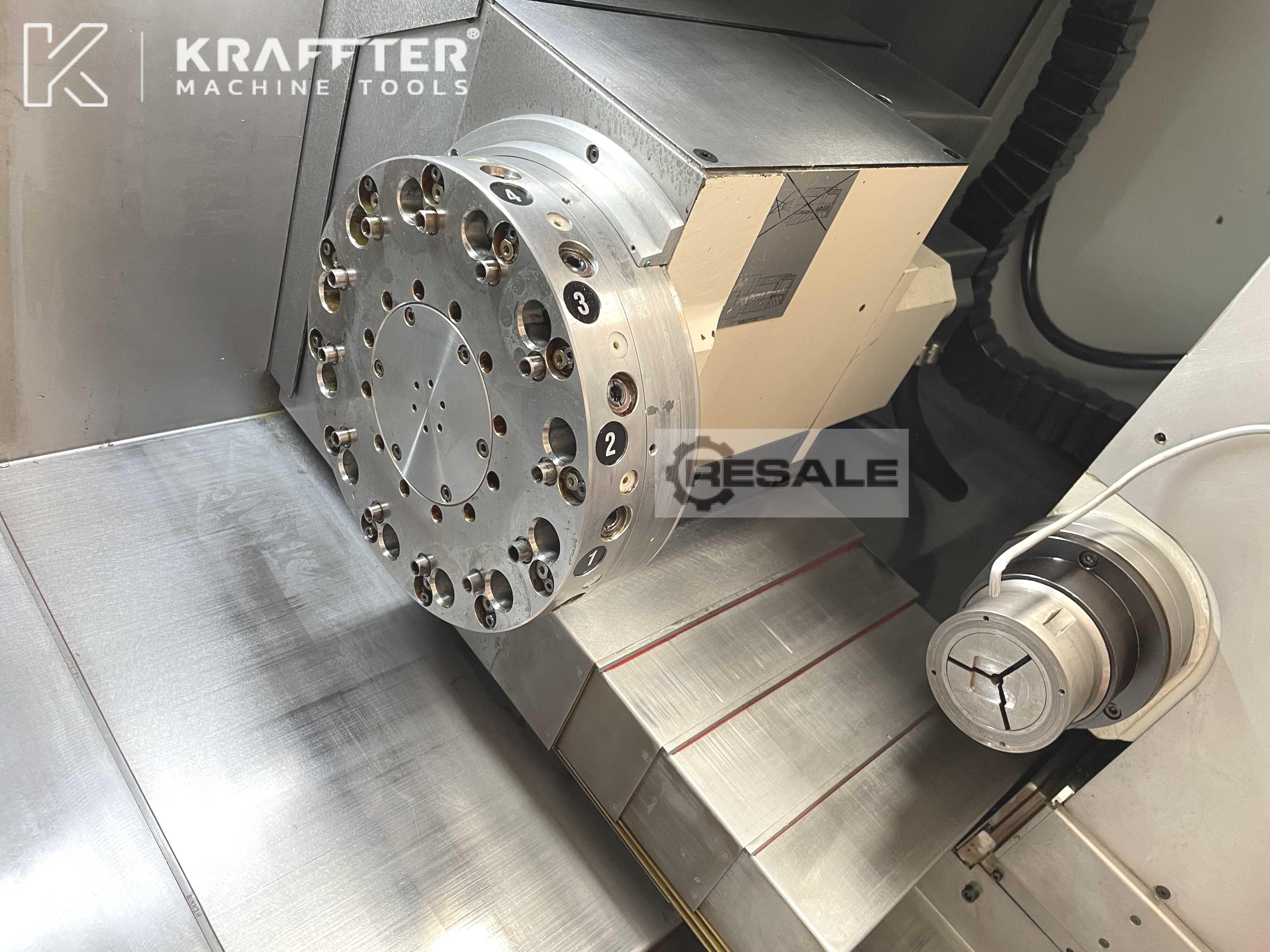

Number of stations - Turret 1 : 12
Number of motorized stations - Turret 1 : 12
Maximum speed Rotating Tools - Turret 1: 4500 [RPM]
Number of stations - Turret 2 : 12
Number of motorized stations - Turret 2: 12
Maximum speed Rotating Tools - Turret 3: 4500 [RPM]
Irrigation tray capacity: 210 [l]
Installed power :14 [kVA]
Rated Current: 20 [A]
Supply voltage: 400 [V]
RS232 Port: Yes
Dimensions: 2350 x 1590 x 1730 [mm]
Weight: 3300 [Kg]

Technical description for information purposes only, without obligation on our part. More information on request.
