Type: Ultrix 800 RT
The Ultrix 800 RT is a
multifunction machining center with 5 interpolated axes and a
moving
gantry for high-speed milling, turning, grinding, drilling,
tapping,
finishing, deburring, and roughing of complex parts.
When used for turning gt; vertical lathe:
- swivel range: 1100 mm
- maximum weight of the workpiece: 700 kg
- 40/30 kW on the table
- max. torque on the table: 1500 Nm
- maximum speed of the table: 1000 rpm
- hydraulic clamping on table

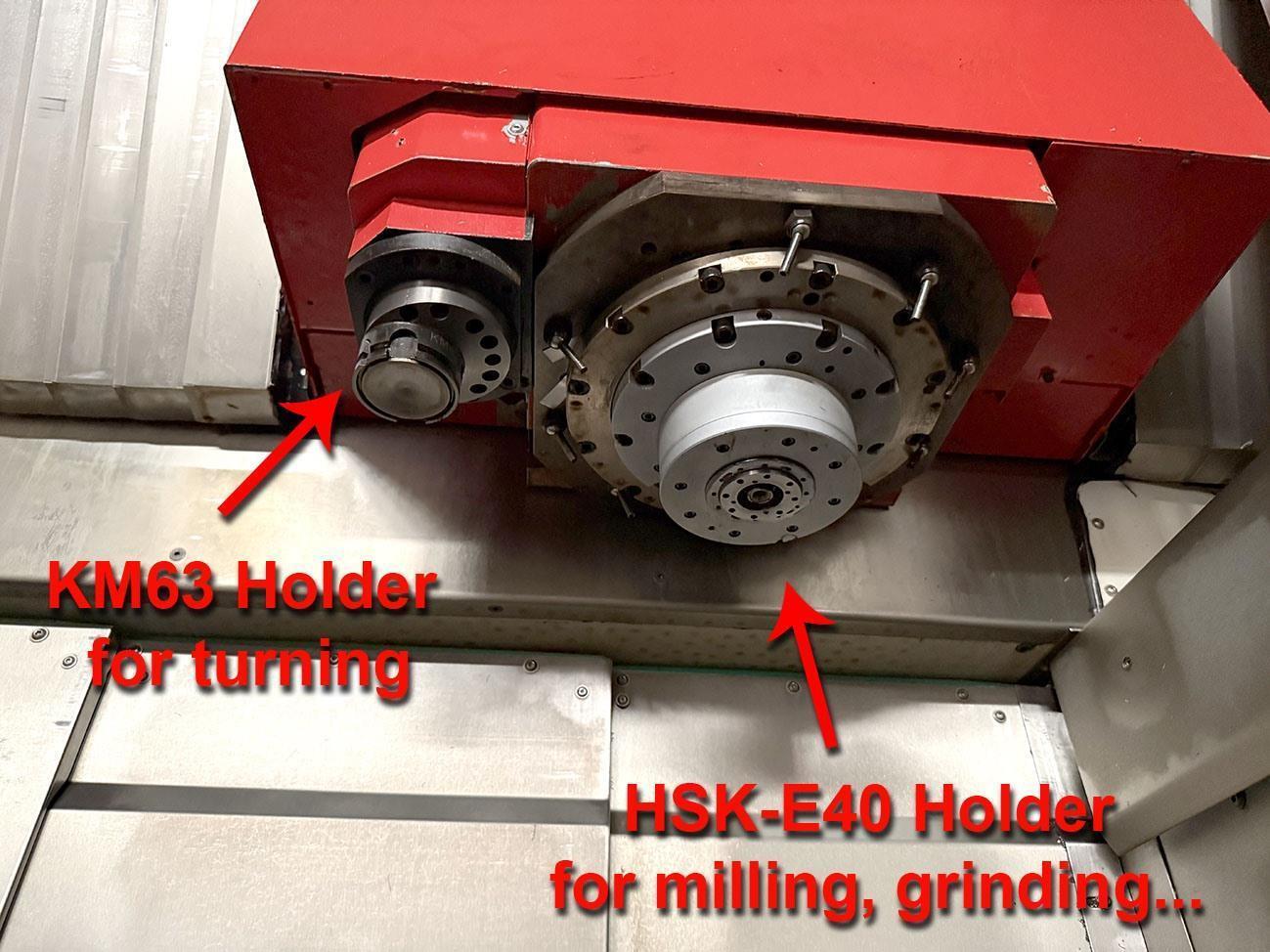

- tool taper for turning: KM63

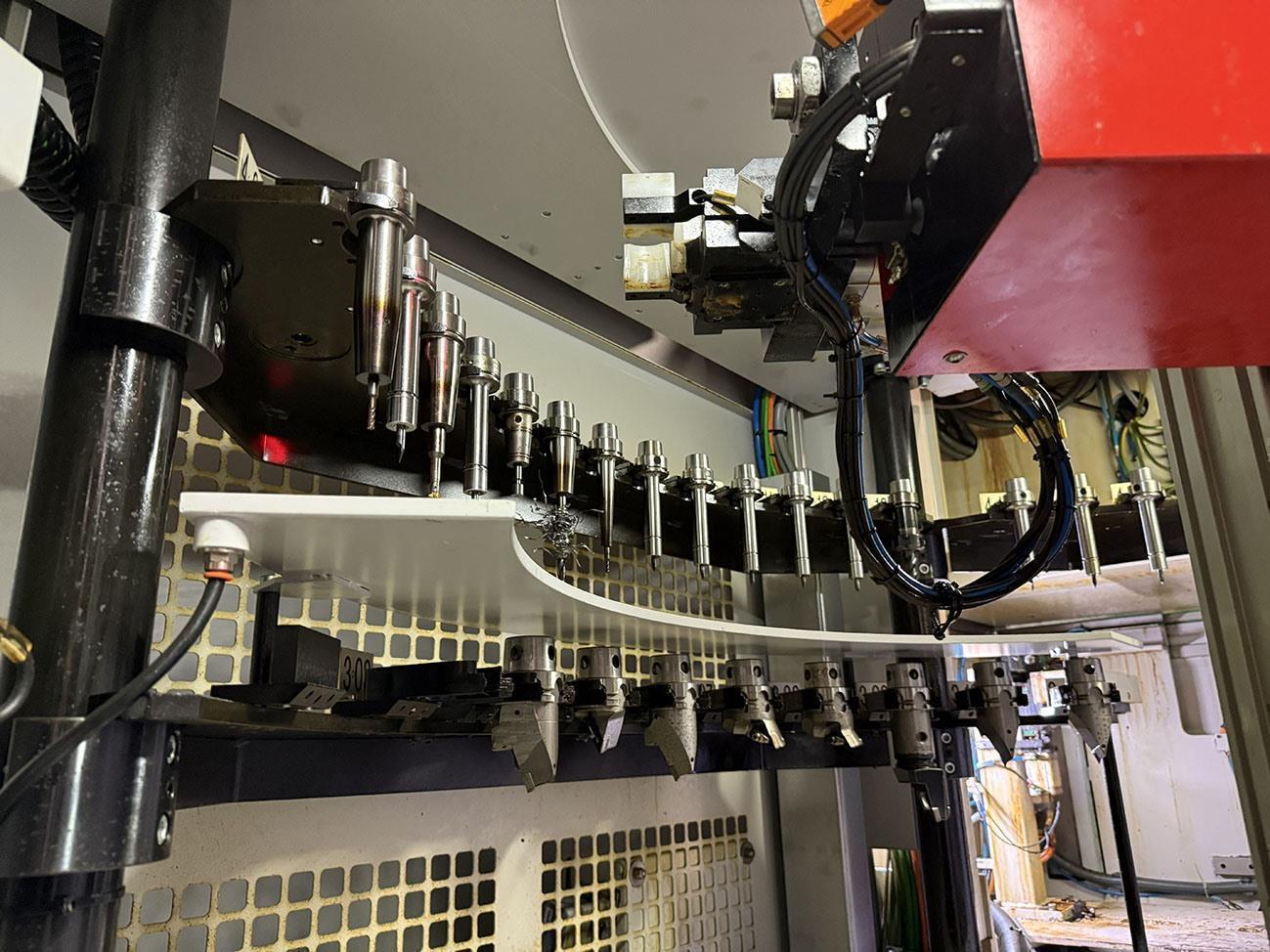

- 150-position tool changer with 24 tool positions for turning
When used for milling, grinding, drilling, ... gt; machining
center:
- X-axis: 800 mm
- Y-axis: 900 mm
- Z-axis: 600 mm
- A-axis: -30° / 110°
- C-axis: continuous
- maximum weight of the workpiece: 700 kg
- 55/40 kW on spindle
- max. torque on the spindle: 22 Nm
- max 40,000 rpm
- tool taper for milling: HSK-E40
- 150-position tool changer with 126 tool positions for milling,
grinding, drilling
List of options mounted on the machine:
1 - 40,000 rpm high-speed spindle

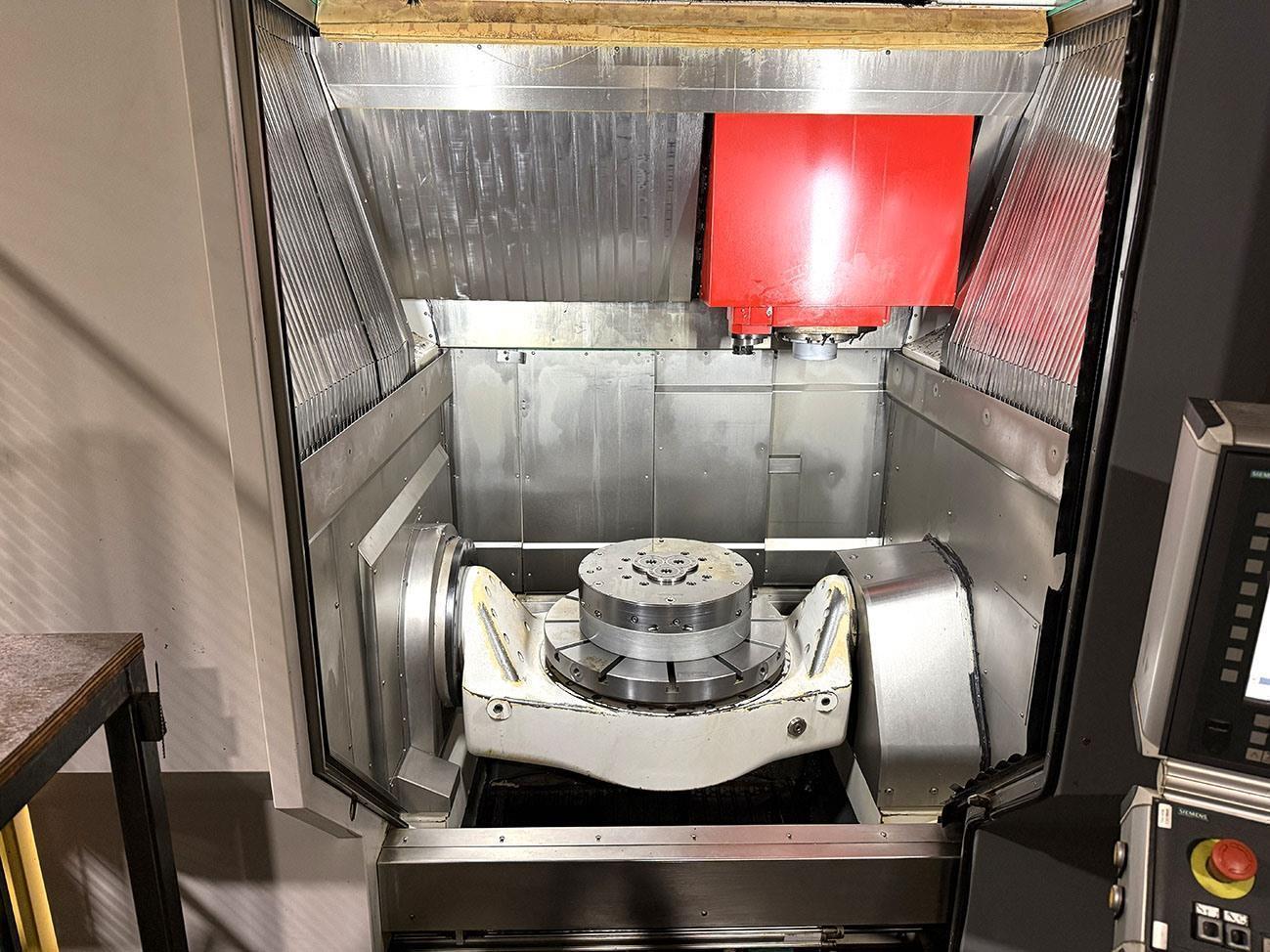

2 - table dia 700 mm with hydraulic clamping

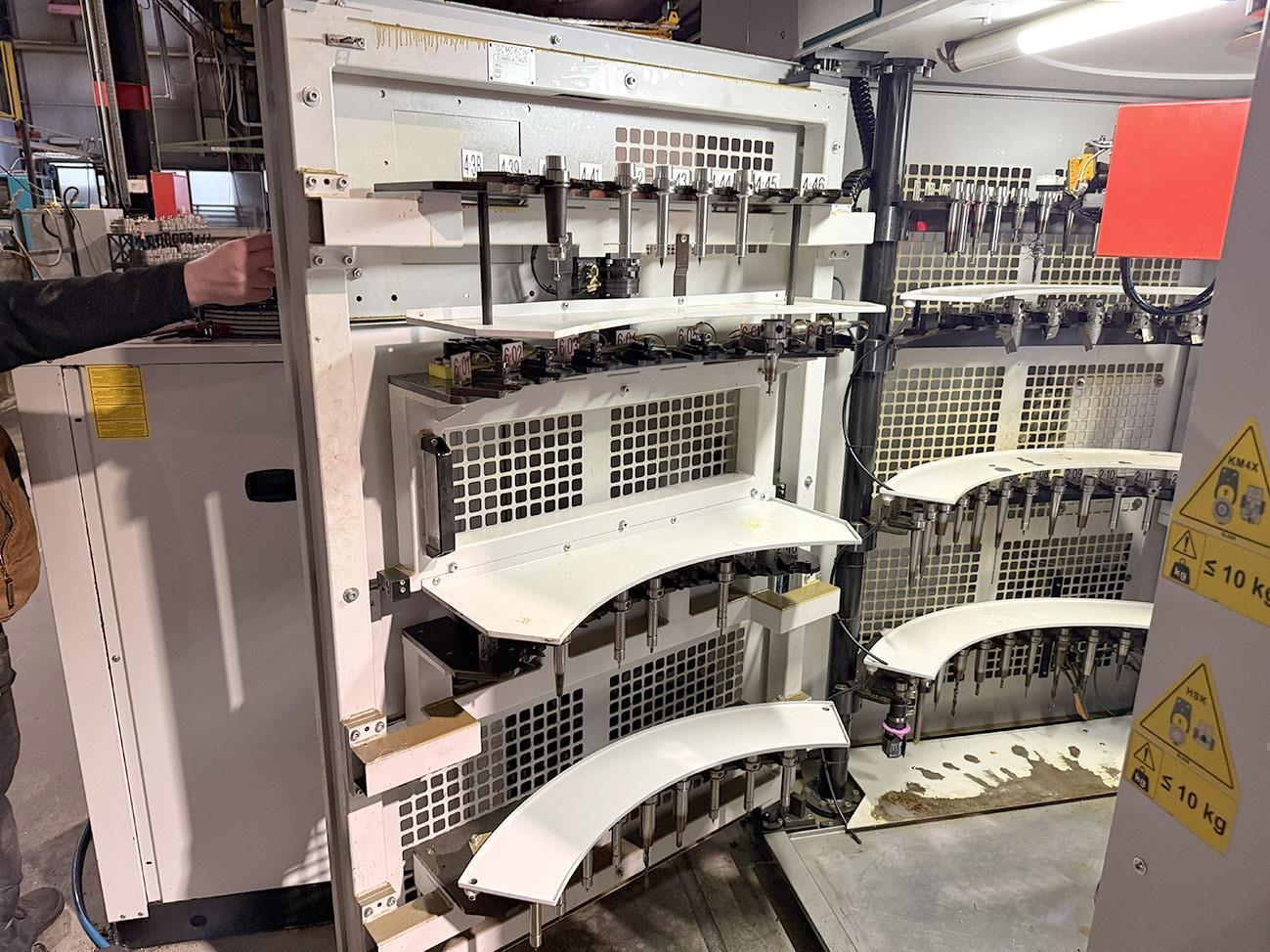

3-150-position tool changer
4 - chip conveyor belt
5 - cooling system with recovery
6 - coolant temperature control
7 - high pressure cooling (40 to 70 bar) by spindle
8 - smoke extraction system
9 - chip collection box
10 - Presetting system and tool integrity: laser and mechanical probe
for measuring tools
11 - Renishaw probe
Chuck dia.: 700 mm
Max turningdia -- passage: 1100 mm
Power on the spindle: 40/30 kW
Command: Siemens 840D Solution Line
Long : 4655 mm
Wide: 5890 mm
Height: 3415 mm
Weight: 17 ton
Turret: yes
Qty Tools: 150 positions
Coolant pump: yes
Belgien
Deinze
