Door panel postforming line Kraft / Costa / IMA / Bürkle / Homag
Coating line consisting of:
Gantry feeder
Brand: Kraft
Year of manufacture: 2019
Technical specifications
- With vacuum lift
- 2 feed roller conveyors
- One transport roller conveyor for onward transport

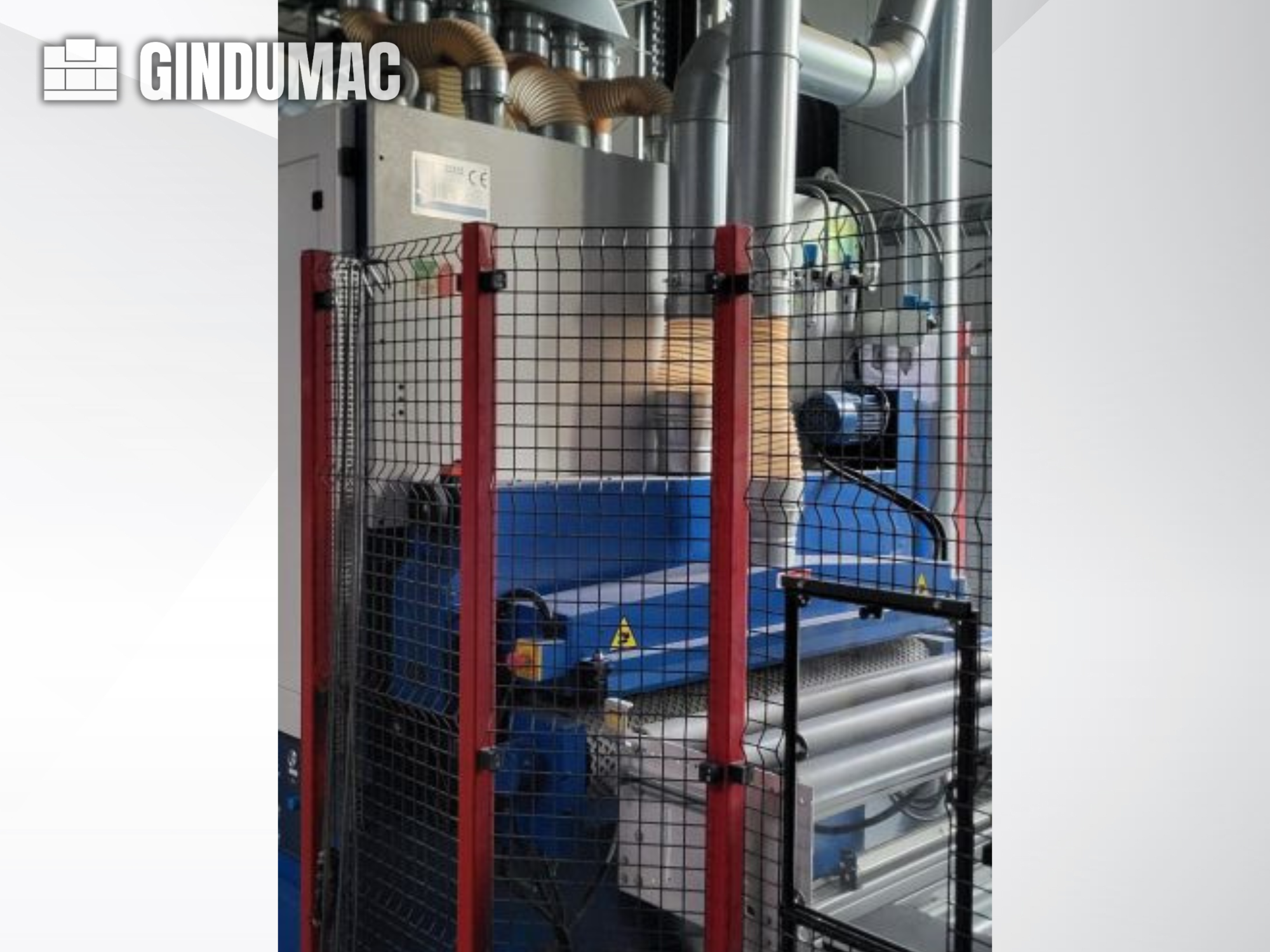

Wide-belt sanding machine
Brand: Costa
Type: KK7 CT CT 1350
Year of manufacture: 2018
Consisting of:
Wide belt sander (sanding from below)
Technical specifications
- Contact roller
- Electronic shoe sanding unit
- Cleaning brush
- Intermediate conveyor belt, length approx. 3000 mm
Wide-belt sander (sanding from above)
Technical specifications
- Identical equipment
Complete formatting, laminating, and postforming line
Consisting of:
Roller conveyor system
Brand: Kraft
Year of manufacture: 2019
Technical specifications
- 3 individual elements
- Centering station
Double-end profiler
Brand: IMA
Type: FBA/II/740/A
Year of manufacture: 2018
Technical specifications
- Equipped with feed conveyor and alignment station
- Scoring saw at the bottom
- Splitter
- Flazer
- Prism cutter
- Joining cutter
- Cross-edge milling unit
- 3 profiling milling units
- Brushes
Laminating system
consisting of:
Feed conveyor belt
Brand: Kraft
Year of manufacture: 2019
Glue applicator
Brand: Bürkle
Type: DAK1300
Year of manufacture: 1992
Technical specifications
- With infeed table, manufacturer: Kraft
- Steel platform with stairs and various pumps
- Glue melting unit GWK Eco 03A
Infeed Table for Laminating Machine
Brand: Kraft
Year of manufacture: 2019

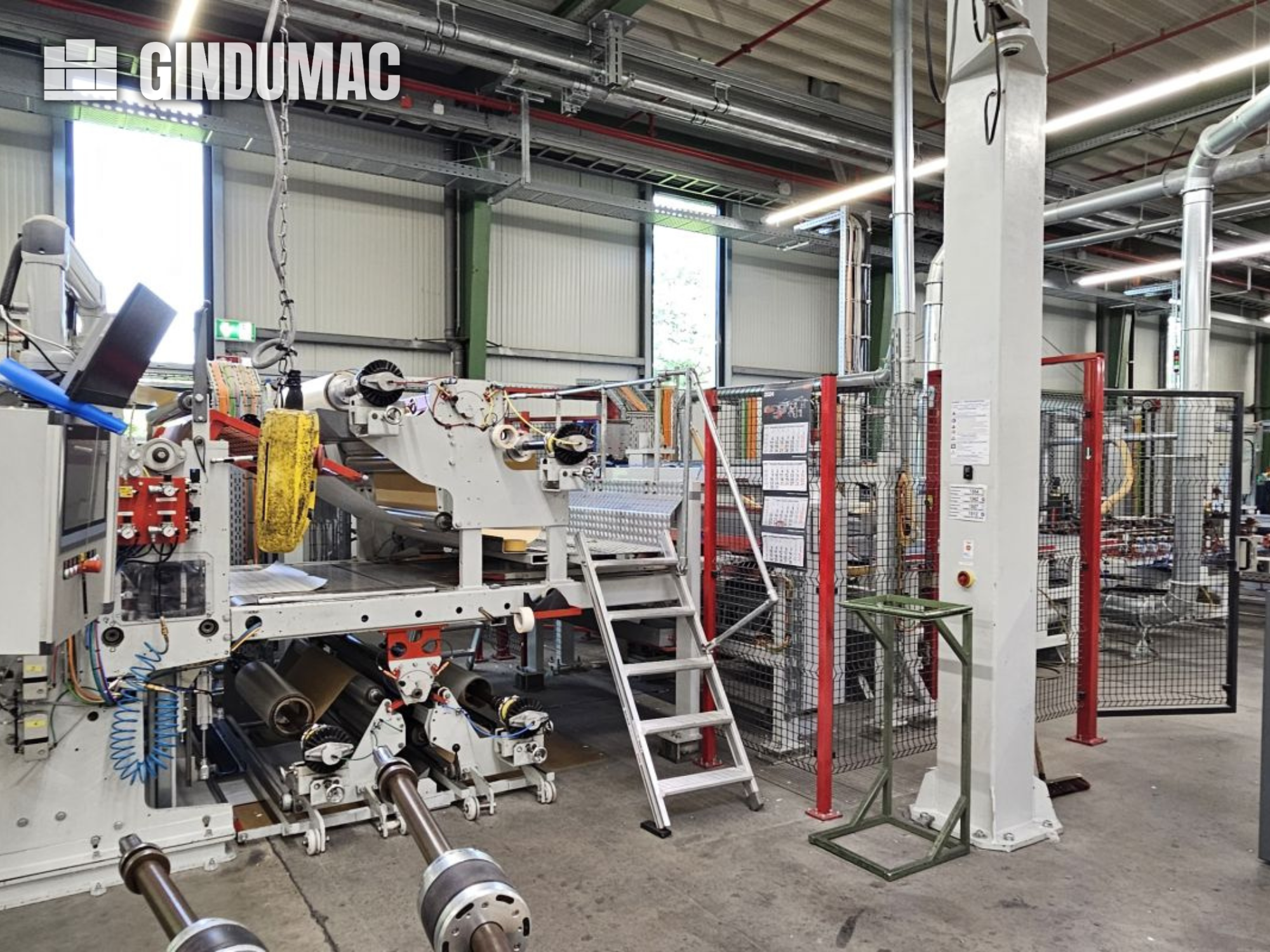

Laminating Machine
Brand: Bürkle
Type: EKMH 1300
Year of manufacture: 1998
Technical Specifications
- New Siemens Simatik KMG Touch control system
- Bürkle GLK calender
- Includes film holder and saw for trimming excess material
- Working width 1300 mm
- 2 GWK temperature control units
- Column-mounted swivel crane for loading paper rolls
- Unloading conveyor belt
Postforming machine
Brand: Homag
Technical specifications
- Infeed table
- With 2 saw units (horizontal and vertical)
- Intermediate buffer with 4 levels
- Infeed to the postforming machine
- 2 identically configured processing sides with gluing
- PU pre-melting unit Nordson / VersaBlue, built in 2020 and 2004
- Pressure zone with turret magazine for various profiles
- Various milling units and buffing brushes
- 2 cooling units BEKO Bekoblizz LC, built in 2020
Conveyor belt with inspection system
- Swivel arm with vacuum suction cup
- Inspection station for visual inspection of the workpiece
Portal destacking
Brand: Kraft
Technical data
- With vacuum portal and 3 destacking stations
Automatic cross-transport cart
Brand: Kraft
Year of manufacture: 2018
Technical specifications
- Roll width: approx. 1400 mm
- Roll length: approx. 2800 mm
