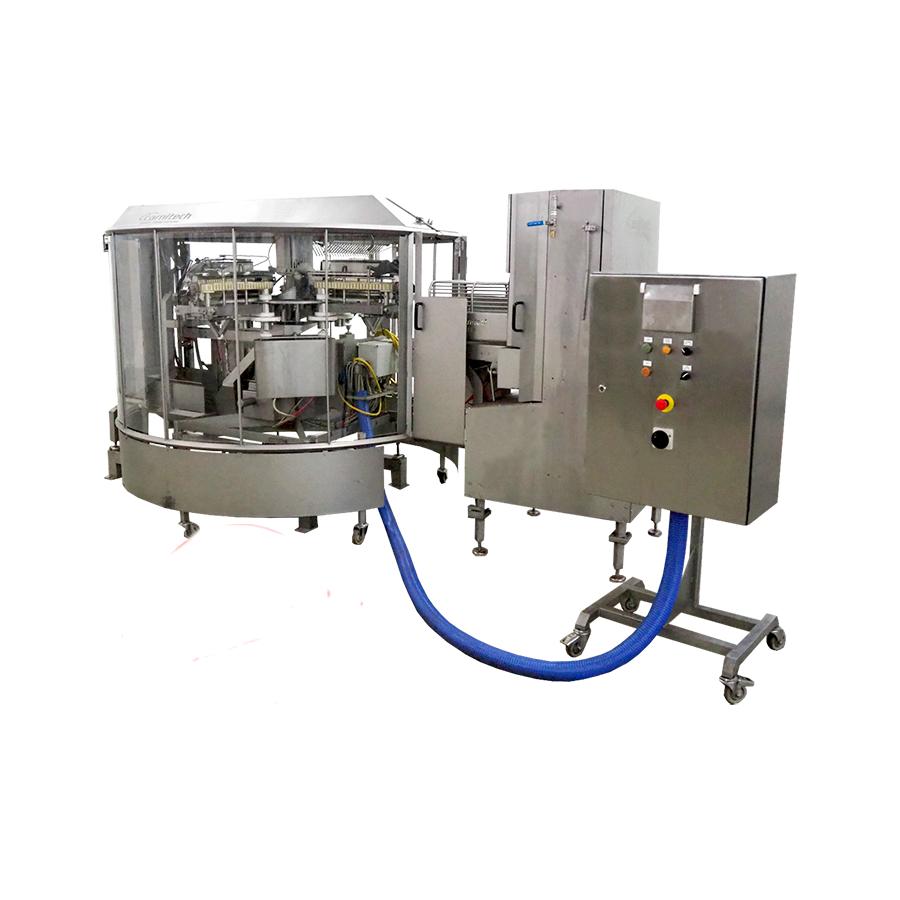

HEADING AND FILLETING MACHINE FOR SALMON AND MORE, CARNITECH TYPE:
CT2620 + CT2630
Technical description:
Heading machine CT2620
Power supply: (3x) 400 V, 50 Hz, 8 A
Machine number: 08-0081
Year: 28/08/08
Dimensions: 4200 x 2100 x 1800 mm

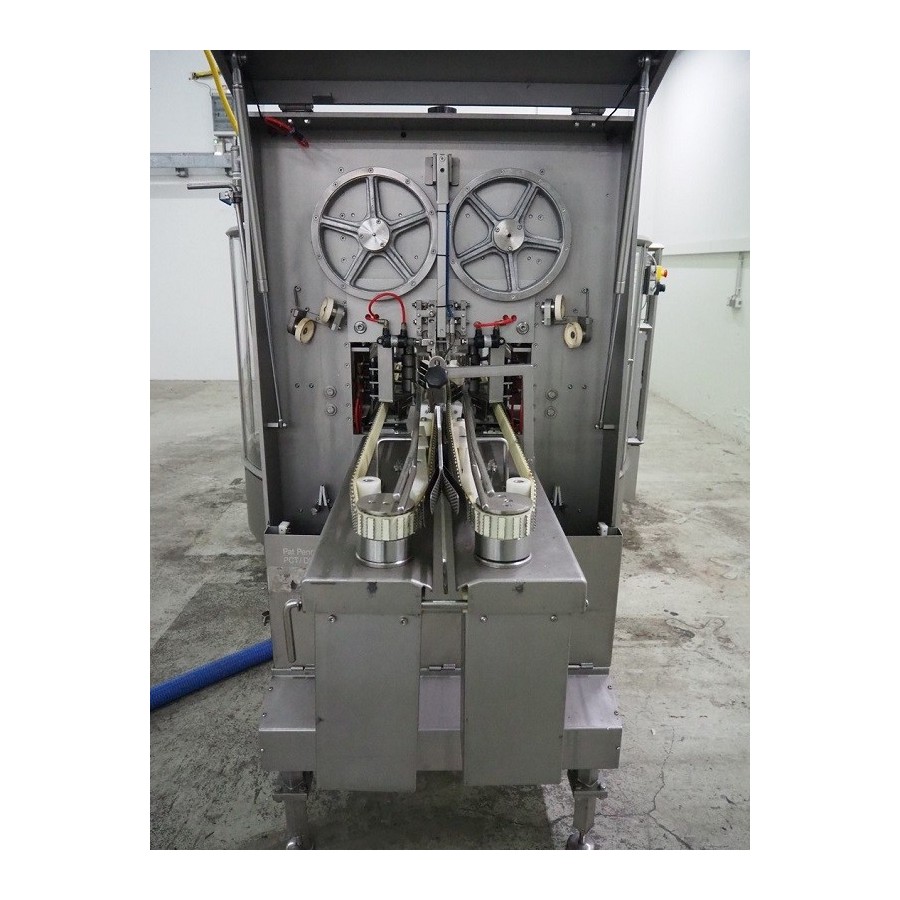

Filleting machine CT2630
Machine number: 08-0067
Year: 18/06/08
Power supply: (3x) 400 V, 50 HZ, 11 A
Dimensions: 1800 x 850 x 2000 mm

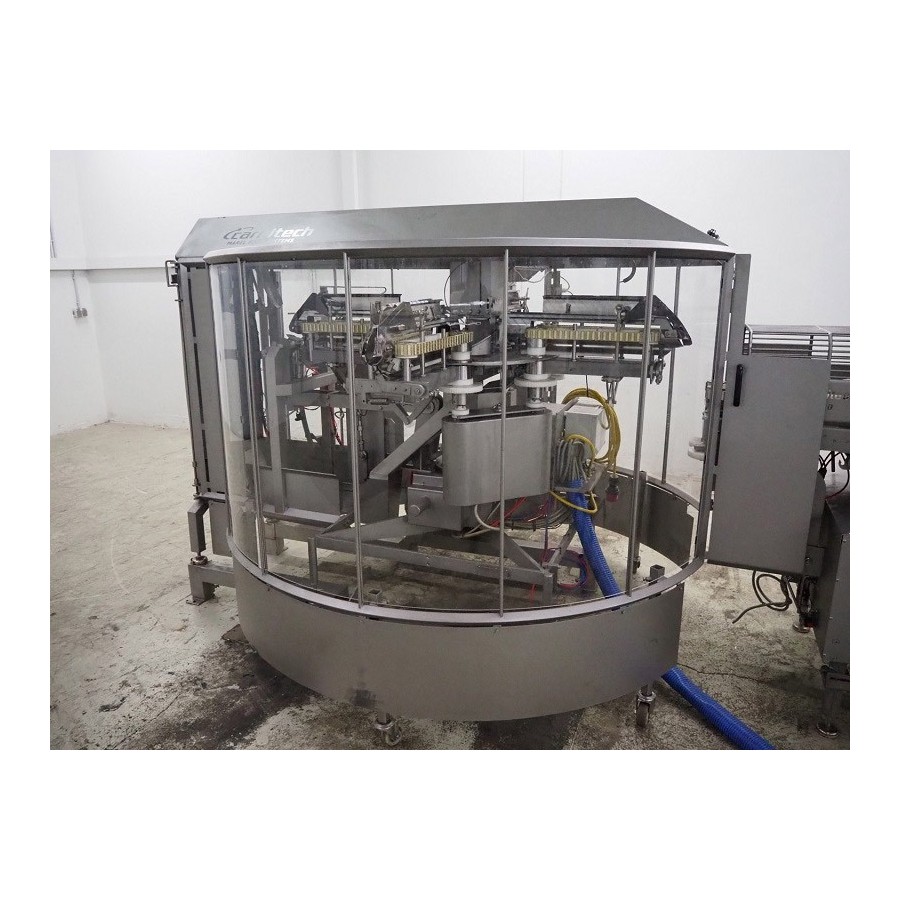

CT 2620 has been designed for head and tail cutting of salmon fish
from 2 to 7 kg. The product is fed to the machine via a feeding chute,
after which several operations are carried out on the fish, as the

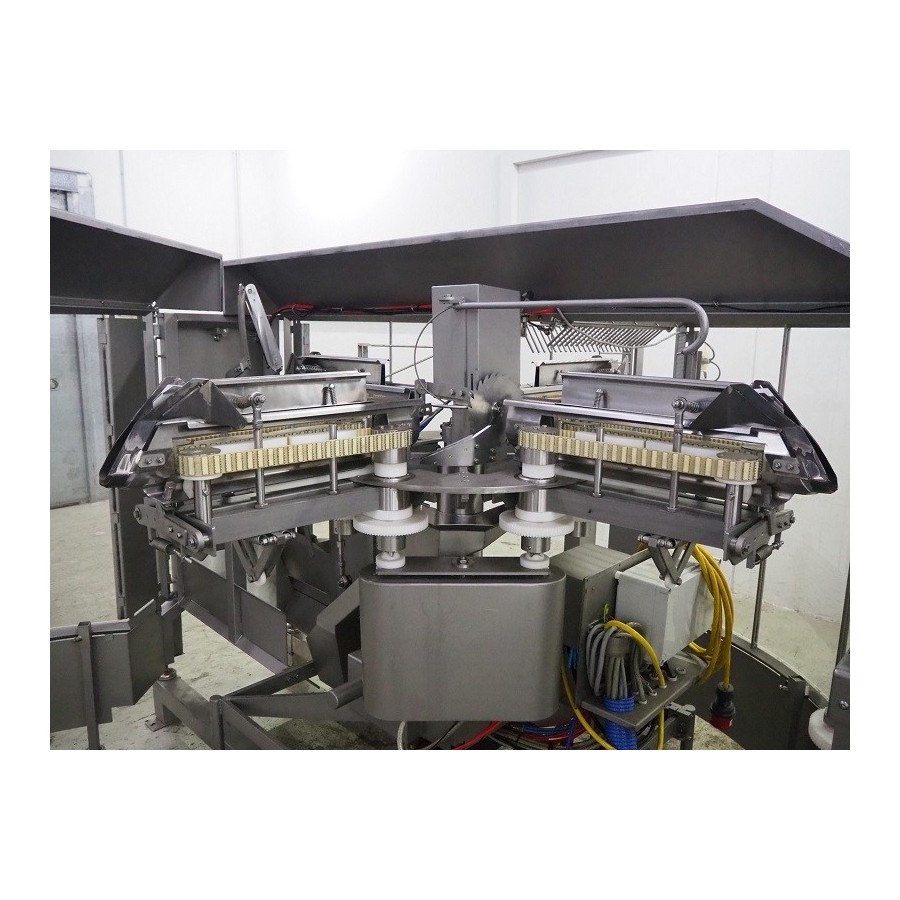

round attachment rotates one quarter of a revolution for each push on
the button on the operation panel, see section 3.0 for further
details. During initial operation, the occiput is sawed through with a
round knife, where upon a guillotine knife tilts down to cut off the
head, which then lands in the waste carrier and is transported to a
box or a wagon. The next operation has the fish positioned for tail
cutting (the tail-cutting feature can be connected and disconnected on
the touch display). The last operations include tail cutting that
takes places during the rotation, after which the fish is led out of
the head cutter and finally into a filleting machine or to the table,
etc.
