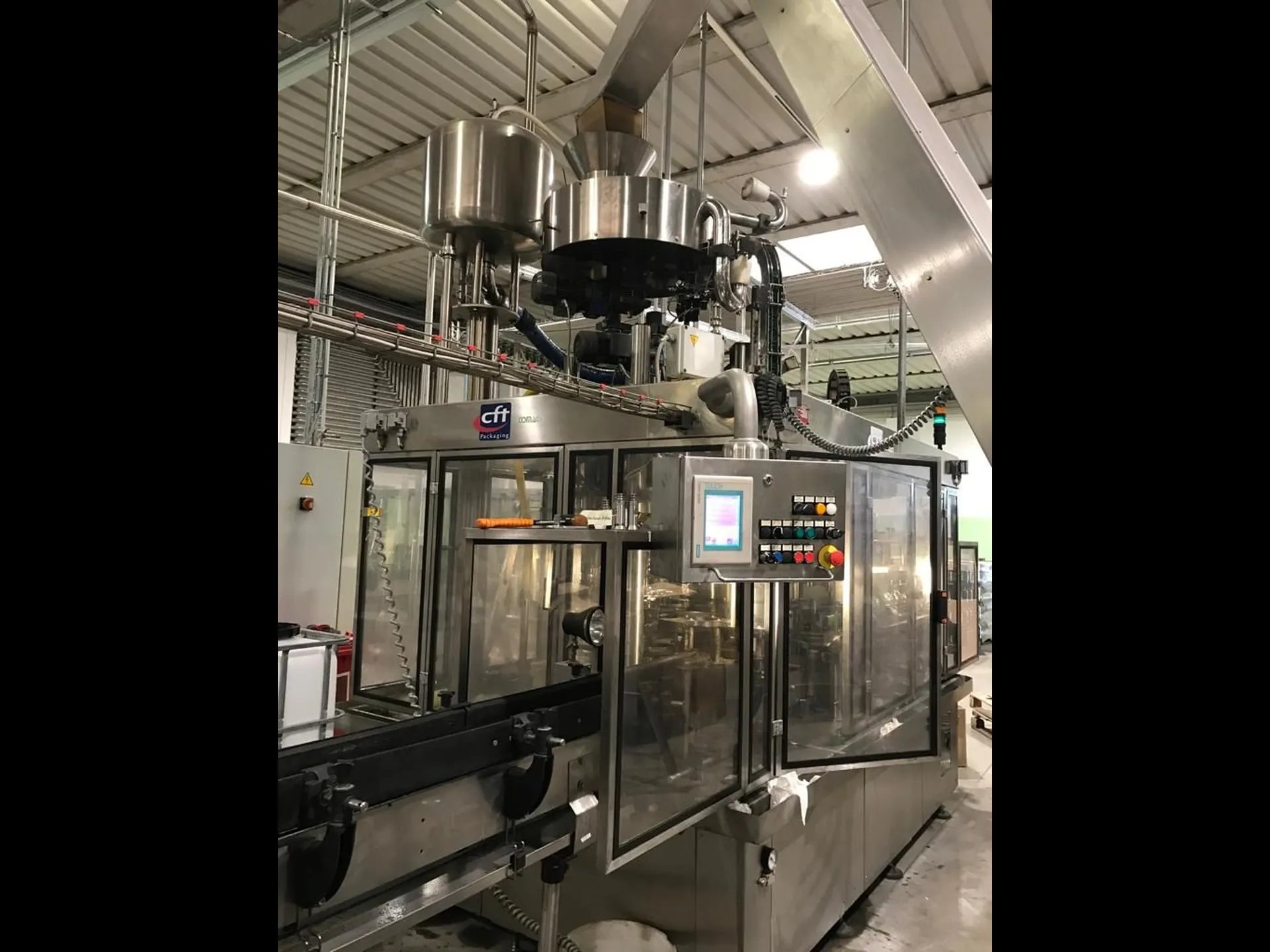

Used CFT Oil Filling Monoblock – Comaco 6000 bph – Overview This
second-hand CFT–COMACO RVAR 6/10 + TA/3 is a volumetric piston
filling and press-on capping monoblock engineered for edible oil.
Built in 2008 and currently in production, it is a proven asset for
industrial packaging environments looking to expand or upgrade a used
bottling line. We can sell it as-is (see and like) or with revamping
and preventive maintenance operations to prepare the monoblock for
production. Revamping & Preventive Maintenance Activities If required,
the following revamping activities can be carried out to ensure
reliability and readiness for production: Assembly of machine parts at
KBB workshop General machine cleaning General lubrication (greasing,
oil level check and possible replacement) Inspection of rubber parts
(belts and gaskets) with replacement if necessary Machine start-up:
check of circuit integrity and correct functioning in manual/automatic
modes Verification of format change equipment availability and
integrity Technical Specifications & Performance Data Filler –
CFT/COMACO RVAR 6/10 (volumetric) Product: Edible oil (filling
temperature 10–30 °C) Filling system: 6 volumetric dosing groups
(cylinders & pistons, plug valves), out-of-neck filling; max dose
10,500 cc Nozzles: 6 + 6 + 6 patented nozzles dedicated to edible oils
Accuracy: 1σ = 0.6 g Mechanical data: filler pitch 377 mm; pitch
circle diameter 720 mm; max container diagonal 220 mm; max height 460
mm Construction: painted steel base fully clad in AISI 304 stainless
steel; AISI 304 product hopper with convex bottom and float level

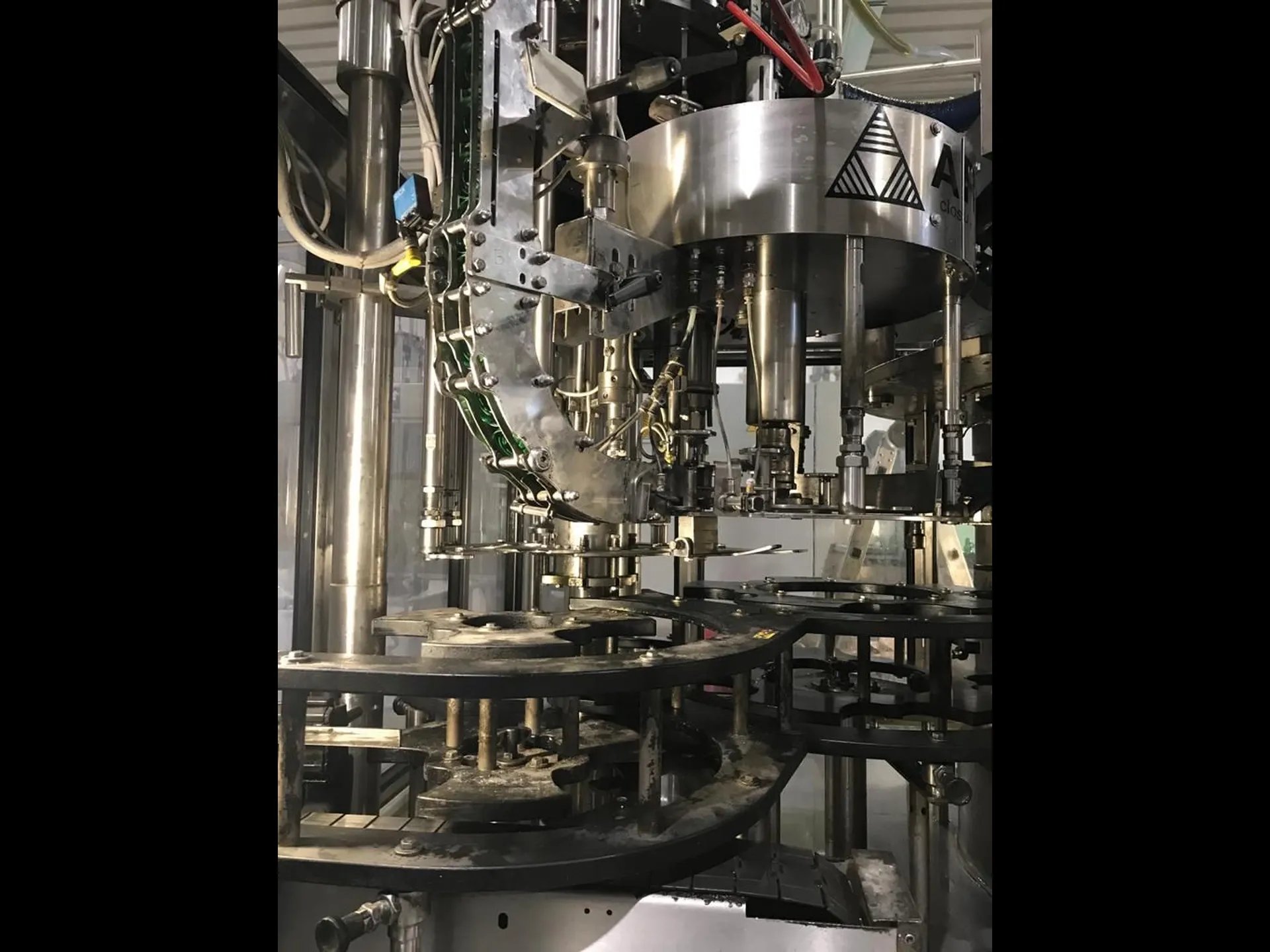

control Capper – TA/3 (press-on) 3 capping heads with PP320 press-on
heads and positive pick (vacuum-assisted) Rated capacity: up to 6000
cph for PET press-on caps Pitch circle diameter 360 mm; machine pitch
377 mm Pick & place cap transfer; hardened steel cam for head pistons
Automatic electric turret height adjustment; centralized lubrication
shared with filler Two cap elevators, each with 300 L covered hopper,
cleated belts, and low-level control; mobile stainless steel frames on
wheels Formats, closures and indicative speeds PET: 1 L (Ø20), 2 L
(Ø28), 3 L (Ø40), 5 L (Ø40), 10 L (Ø40) Tinplate: 1 L (Ø32), 3 L
(Ø32), 3 L/Gallon/5 L (Ø32) Press-on caps: 31/17 (1 L PET), 38/24 (2
L PET), 51/24 (3–5–10 L PET); flex-spout common to all tinplate
formats Approx. filler outputs: up to 3500 bph (1 L PET Ø20), 3000
bph (2 L PET Ø28), 2500 bph (3 L tinplate Ø32), 2500 bph (5 L PET
Ø40), 2200 bph (5 L tinplate Ø32), 1100 bph (10 L PET Ø40) Advanced

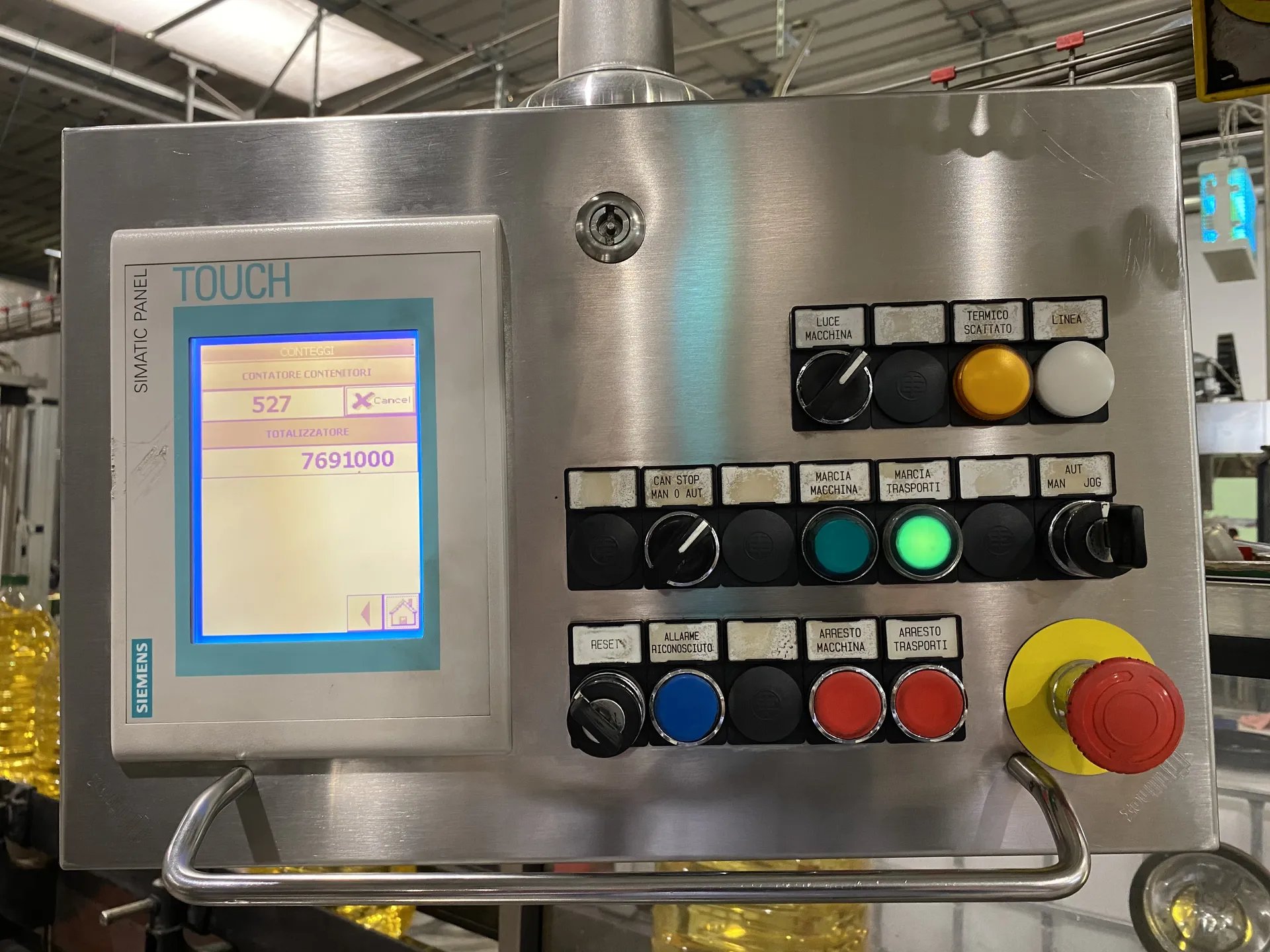

Automation & Control Systems Siemens PLC: SIEMENS S7 E300 with
operator controls for automatic and manual modes; inverter-driven main
motion with increased power to drive the capper via gears Automatic
turret height adjustment (filler and capper) Micrometric volume
adjustment via cam reducer; adjustable even during machine motion
Volume compensation versus product temperature (automatic correction
for ±2 °C delta) Per-doser volume fine correction NO CAN–NO FILL
device prevents valve opening without a container Product level
control in hopper with min/max/emergency signals; emergency level
triggers machine stop Pneumatic system with pressure reducer group and
pressure switch for automatic stop on low air pressure Cap presence
control on outfeed and capping-completed verification Container
presence/reading control and tinplate container orientation system at
infeed Internal machine lighting for enhanced visibility Production
Line Integration Capabilities Designed to slot into a used bottling
line for edible oil within industrial packaging settings: Integrated
container conveyor in stainless steel with synchronization screws,
infeed extension and loading table Transfer starwheel between filler
and capper Product changeover system with recovery tank beneath the
track, stainless discharge piping and coupling to plant lines;
dedicated pump included Standard electrical interfaces and signaling
via Siemens PLC for upstream/downstream equipment Note: monoblock
includes filler and press-on capper; no rinser or blowing machine is
included Machine Condition & Maintenance History Status: In production
at the time of listing Year: 2008; Model: CFT–COMACO RVAR 6/10 +
TA/3 Documentation: Supplied with original use and maintenance manual
Preventive care features: centralized automatic lubrication to all
points; IP-rated electricals Operational Performance & Versatility
Optimized for edible oil with out-of-neck filling to minimize aeration
and drips Quick-access pistons for fast extraction without extensive
disassembly; hygienic AISI 304 contact parts Equipped for 5 L PET;
supplied change parts: 7 sets total/partial for different containers
and 3 sets for press-on caps Handles PET and tinplate containers up to
460 mm height and 220 mm diagonal Installation Requirements & Site
Preparation Mains: 400 V ±5%, 50 Hz ±1%, 3P + N + PE (separate
neutral and earth) Auxiliaries: 24 V DC; instrumentation 24/230 V AC
IP
