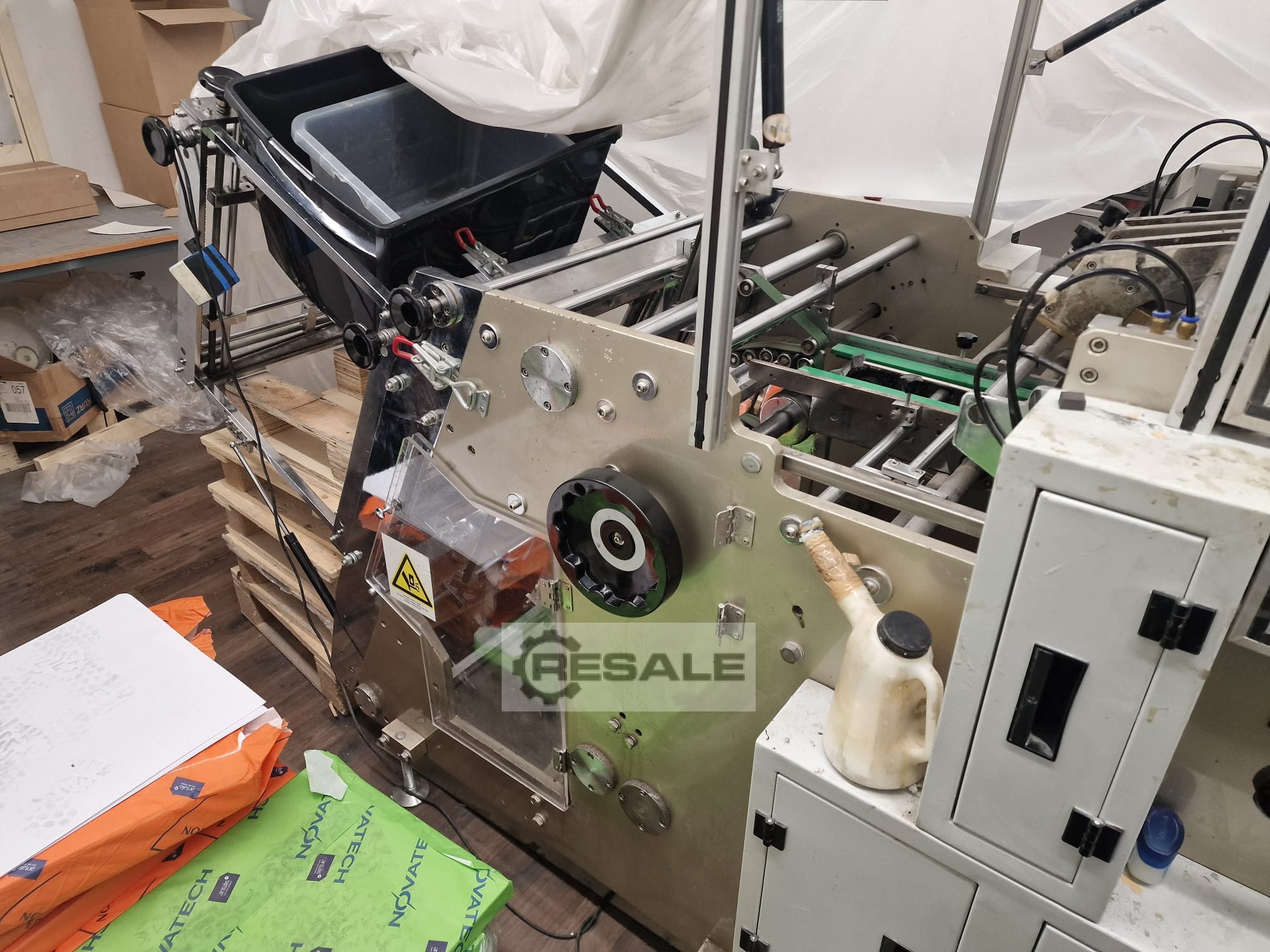

Champion CHBM 600 Eco Single Tray Burger Box Making Machine.
1. This new generation of three-dimensional moulding box machine
features: with stable quality, high efficiency, speed up to
160pcs/min.
2. In the same machine, you only need to change different moulds to
create different specifications of the boxes, hamburger boxes, boat
shaped box, food packing box, carton products such as fried chicken
box.
3. It adopts the hot air device, can achieve high efficiency, high
accuracy and make PE-coated paper box.
4. This machine is mostly using high quality seal bearings, long
service life, good stability.
5. The machine uses the PLC intelligent control system, PLC control
with automatic stop.
6. The main moulds are manufactured with pine which is economical for
mould replacement.
7. Can automatically collect data inventory of finished goods.
8. High quality Synchronous belt makes no error when it is running.
Machine Offered Specification:
2016 Champion CHBM 600 Eco Single Tray Burger Box Making Machine.
Technical Specification
Paper Size : 150 x 150-500 x 380mm
Raw Material : Whiteboard and other similar PE coated paper
(200-600g/m2)
Max thickness : 1.5mm
Rated Productivity : 30-160 pcs/minute
Unfold paper width : max 550mm
Motor Power : 4KW
Total Weight : 1800 Kg
Package Size : 3500 x 1200 x 1200mm
