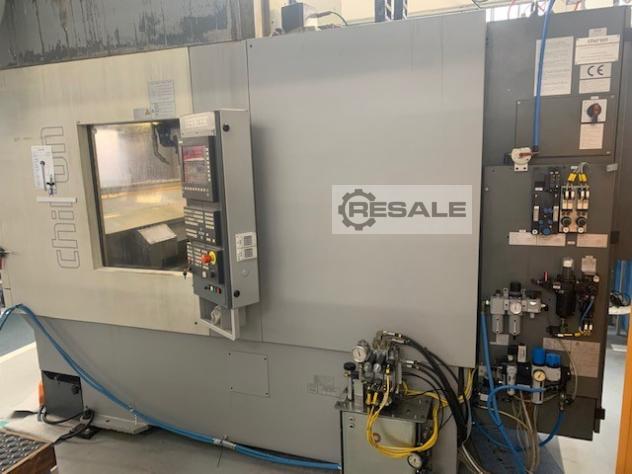

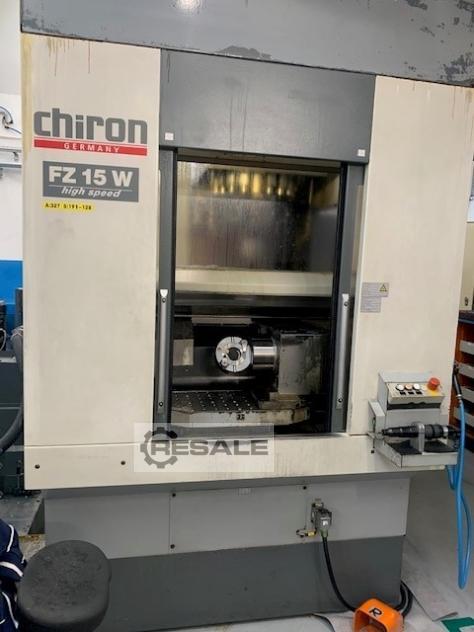

CNC Bearbeitungszentren CHIRON FZ 15 W HI SPEED

x-Weg:550 mm

y-Weg:450 mm

z-Weg:500 mm

Machine-Details
Stock-No. 1105-03698
Type of machine Machining Center - Vertical
Make CHIRON
Type FZ 15 W HI SPEED
Year of manufacture 2001
Type of control CNC
Storage location FRANKREICH
Country of origin france
Delivery time ready for delivery
Freight basis EX WORK
Price

Technical details
x-travel 550 mm
y-travel 400 mm
z-travel 425 mm
control SIEMENS 840 D
table surface area 600 X 350 mm
tool taper ISO SK 40
spindle turning speed - stepless 20 - 12.000 U/min
feed stepless 0 - 60.000 mm/min
rapid traverse 60 m/min
feed force X/Y axis 5.000 N
feed force Z axis 10.000 N
tool magazin: 20
diameter of tools max. 65 mm
tool diameter with 2 vacant positions 150 mm
tool length - max. 220 mm
spindle diameter in front bearing 70 mm
max. torque on the spindle max. 180 Nm
distance between table/spindle 280 - 705 mm
distance between spindle/column 480 mm
milling capacity 250 cm³/min
drilling capacity diameter max. 36 mm
thread dia. M24
total power requirement 30,00 kW
weight of the machine ca. 7.5 t
Additional information

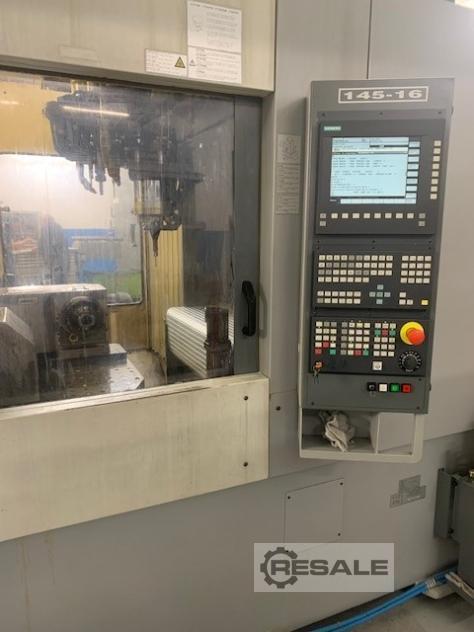

Control SIEMENS 840 D 4th/5 AXIS SIMULTAN IN table.
WitH coolant unit
Machine can be inspected under power.
WITH CHIP CONVOYER
ISO 40
12000 RPM
