Bohrer CINCINNATI PF 32VM

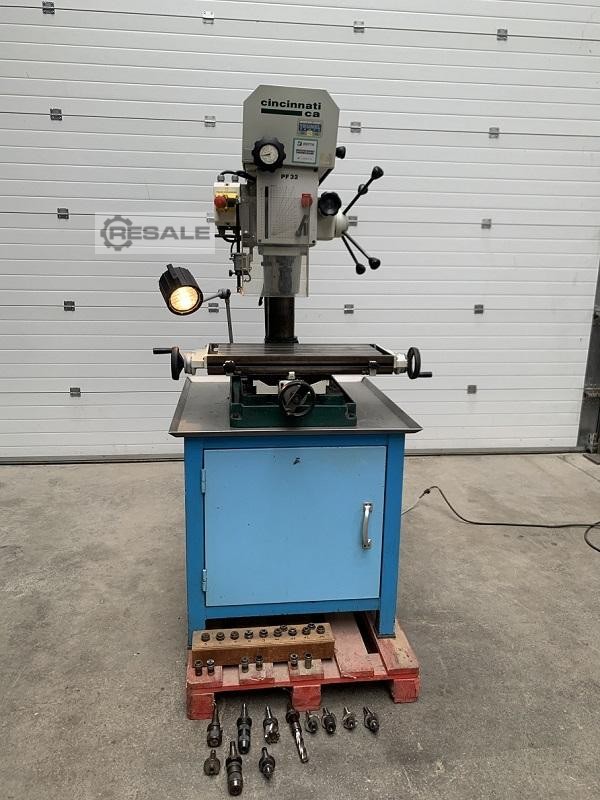

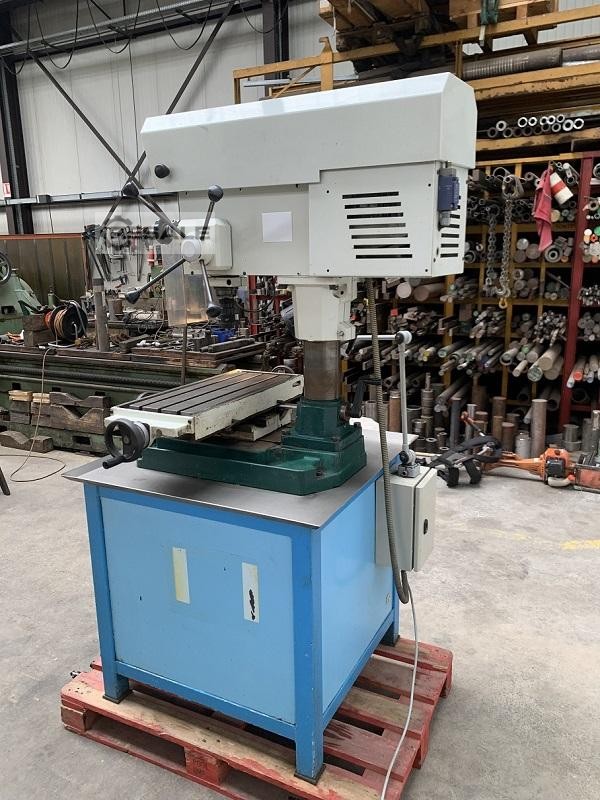

Drilling Milling Machine CINCINNATI PF 32VM
Travel X: 420 mm
Travel Y: 230 mm
Spindle sleeve: Ø 80 mm
Cone: SA30
Spindle exit: 150 mm

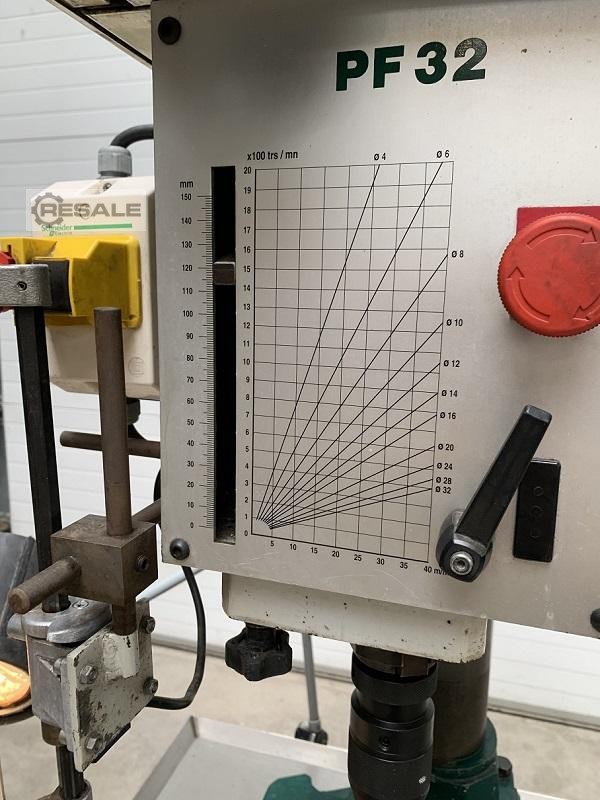

Variable spindle speed: 120 to 5000 RPM in 2 ranges

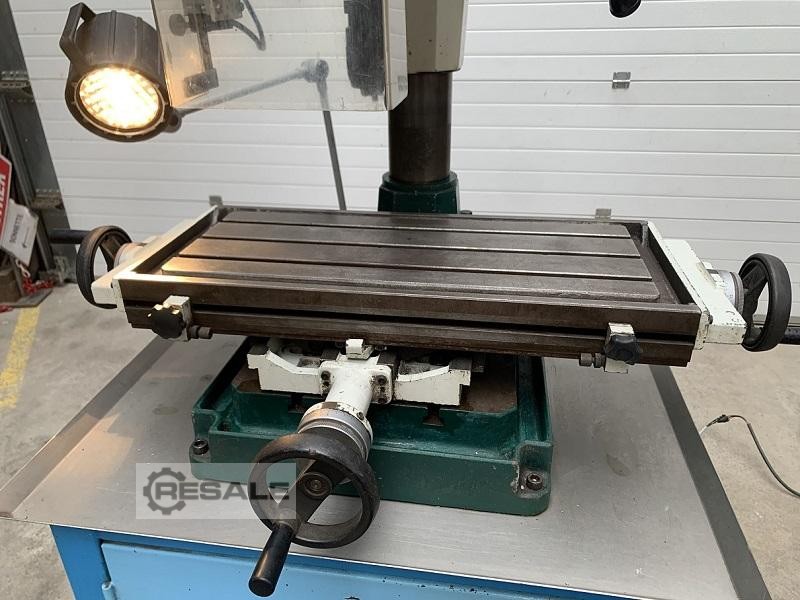

Cross table
Table size: 680 x 295 mm
Max drilling Capacity: Ø 32 mm
Tapping capacity: M22 / M24
Column diameter: Ø 110 mm
Maxi distance spindle nose/table: 450 mm
Mini distance spindle nose/table: 205 mm
Throat depth: 300 mm

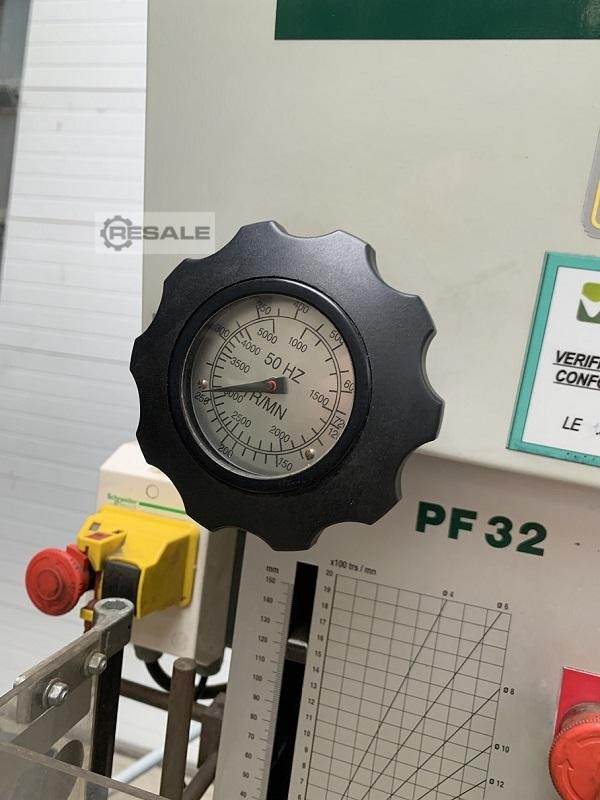

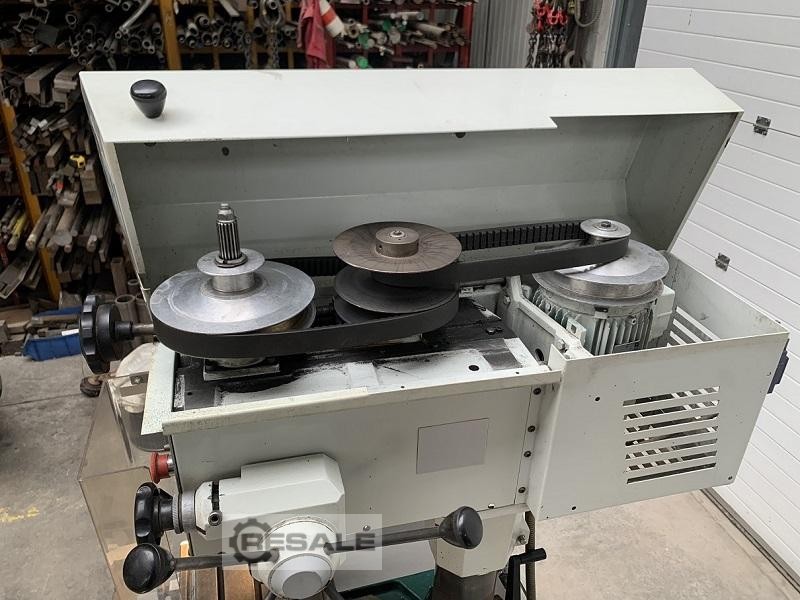

Speed adjustment by mechanical variator

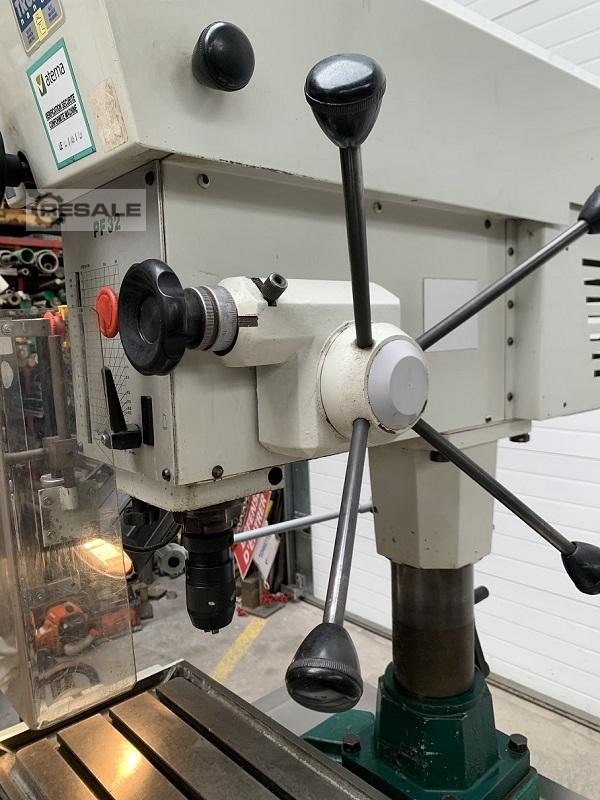

Manual micrometric sensitive descent

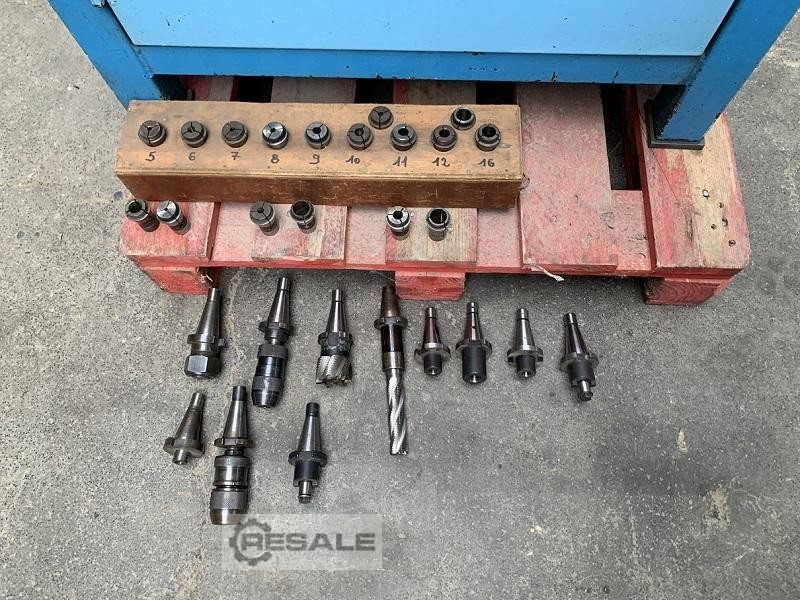

Supplied with some cones SA30 + clamps holders
Voltage: 380 V
Width: 1100 mm
Depth: 1300 mm
Total height: 2000 mm
Weight: approx 500 kg
Verkäufer Angebot Nr. resale 167487537
