Excellent condition - Fully operational - Loading / Transport
possible!
Operating voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Power: 14 kVA
Rated current: 20 A
Travels (axes stroke):
X1: 170 mm
Z1: 200 mm
X2: 110 mm
Z2: 395 mm
X3: 110 mm
Z3: 170 mm
Y: +/-40 mm
Rapid traverse speed:
X1: 24 m/min
Z1: 24 m/min
X2: 18 m/min
Z2: 24 m/min
X3: 20 m/min
Z3: 24 m/min
Y: 12 m/min
Max. Shank diameter of the tool with the tool holder driven:
Drill shank cutter Tap: diameter 7 mm, diameter 10 mm, diameter 13 mm,
diameter 63 x diameter 16 mm for slotting cutter.
Max. Tapping diameter of the rotating tool: M10
Tool spindle speed: 45 - 4500 rpm

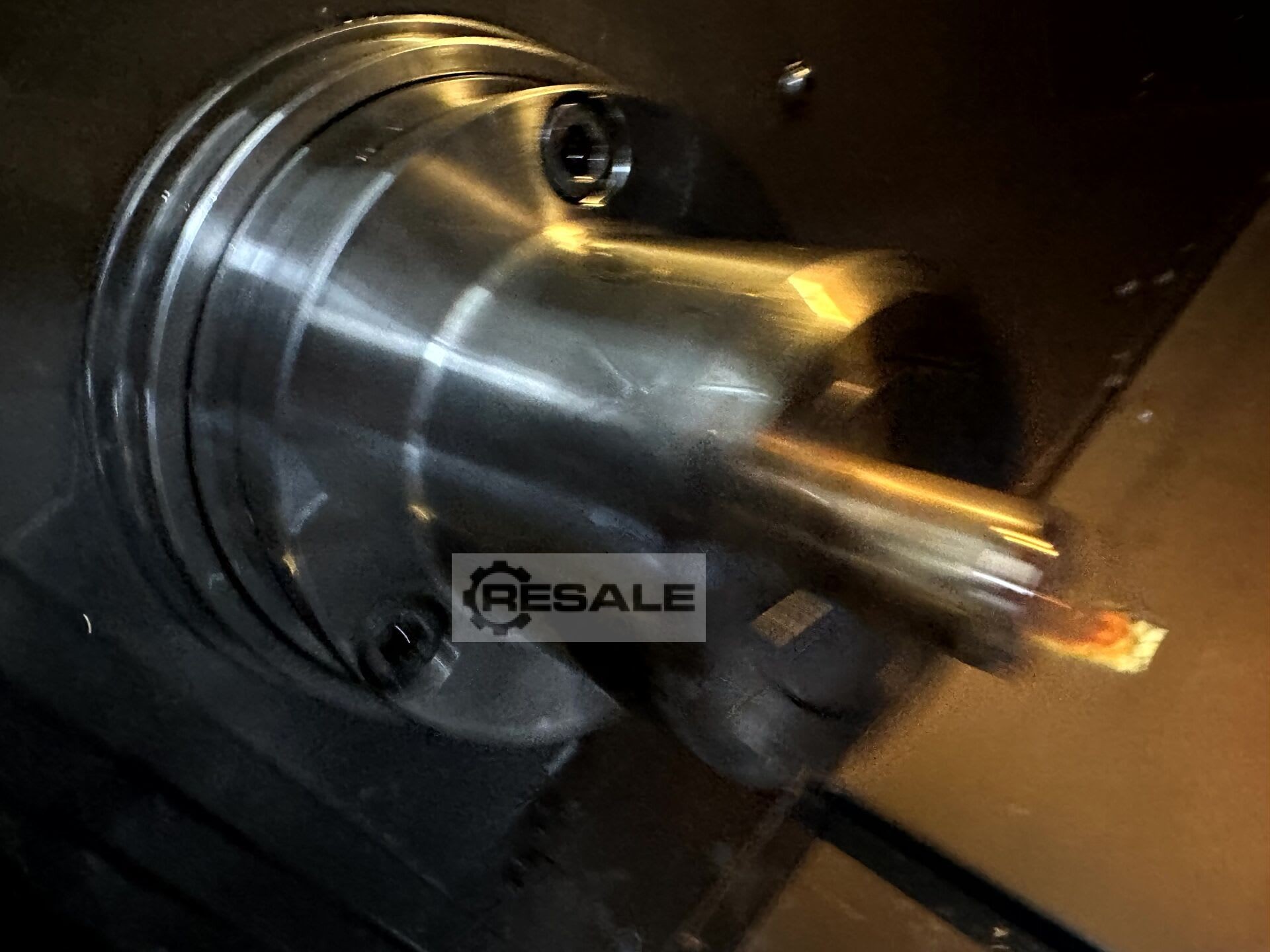

Max. Clamping diameter of counter spindle: 42 mm
Max. workpiece length for front side machining in counter spindle: 120
mm
Max. Workpiece length projection from counter spindle: 80 mm
Max. Axial tapping diameter, backworking: 12 mm diameter
Max. Tapping diameter, backworking: M10
Counter spindle speed: 60 - 6000 rpm
Counter spindle speed step feed: stepless
Counter spindle C-axis accuracy: 0.001°.
counter spindle indexing angle: 15

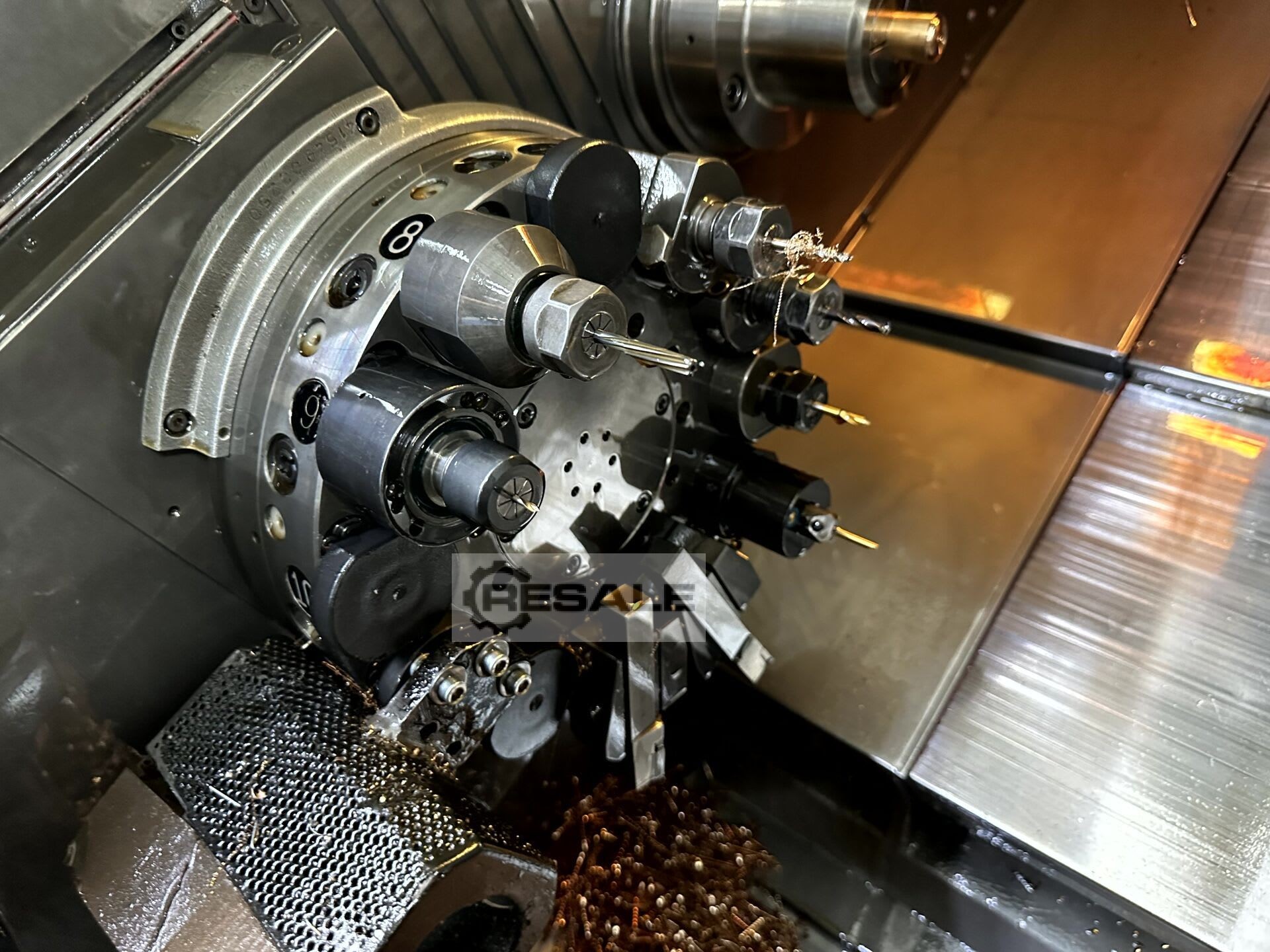

Number of mountable tool holders per turret: 12 pieces
Number of turret indexing: 36
All tool stations of the turret are driven
Tool size: 16 x 16 x 90 mm
Tool holder: VDI 20
Max. Machining diameter: 42 mm diameter/ 140 mm diameter
Min. material diameter: 10 mm
Max. Machining length: 75 - 120 mm depending on part shape
Max. Axial drilling diameter front: 16 mm diameter
Max. Axial tapping diameter front: M12
Spindle through hole diameter: 43 mm diameter
Main spindle speed: 80 - 8000 rpm
Accuracy of the main spindle: C axis: 0.001°.
Max. Drilling diameter of the rotating tool: 10.5 mm diameter
In addition to the C axis, there is also a 15° pitch which is then
programmed with the S axis. The machine is equipped with a KNOLL chip

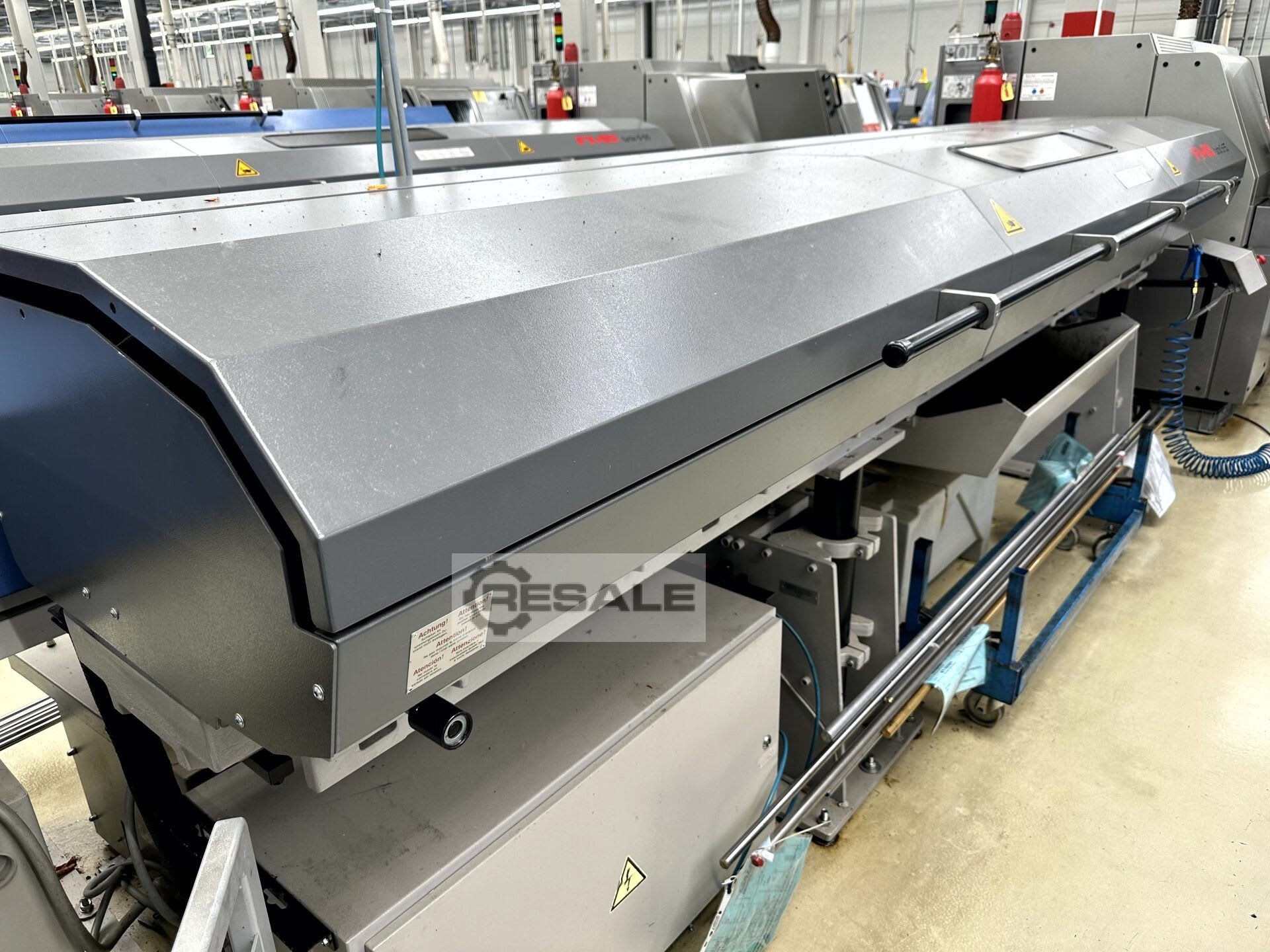

conveyor and a FMB TURBO 5-55 bar feeder.Also a lot of VDI 20 tool
holders consisting of approx. 10 driven tool holders.
Deutschland
58285 Gevelsberg
