Presse COLOMBO AGUSTINO WN29/ WPC-ELT-001-0248

Manufacturer:

Year of Manufacture:

Model: WN29/ WPC-ELT-001-0248

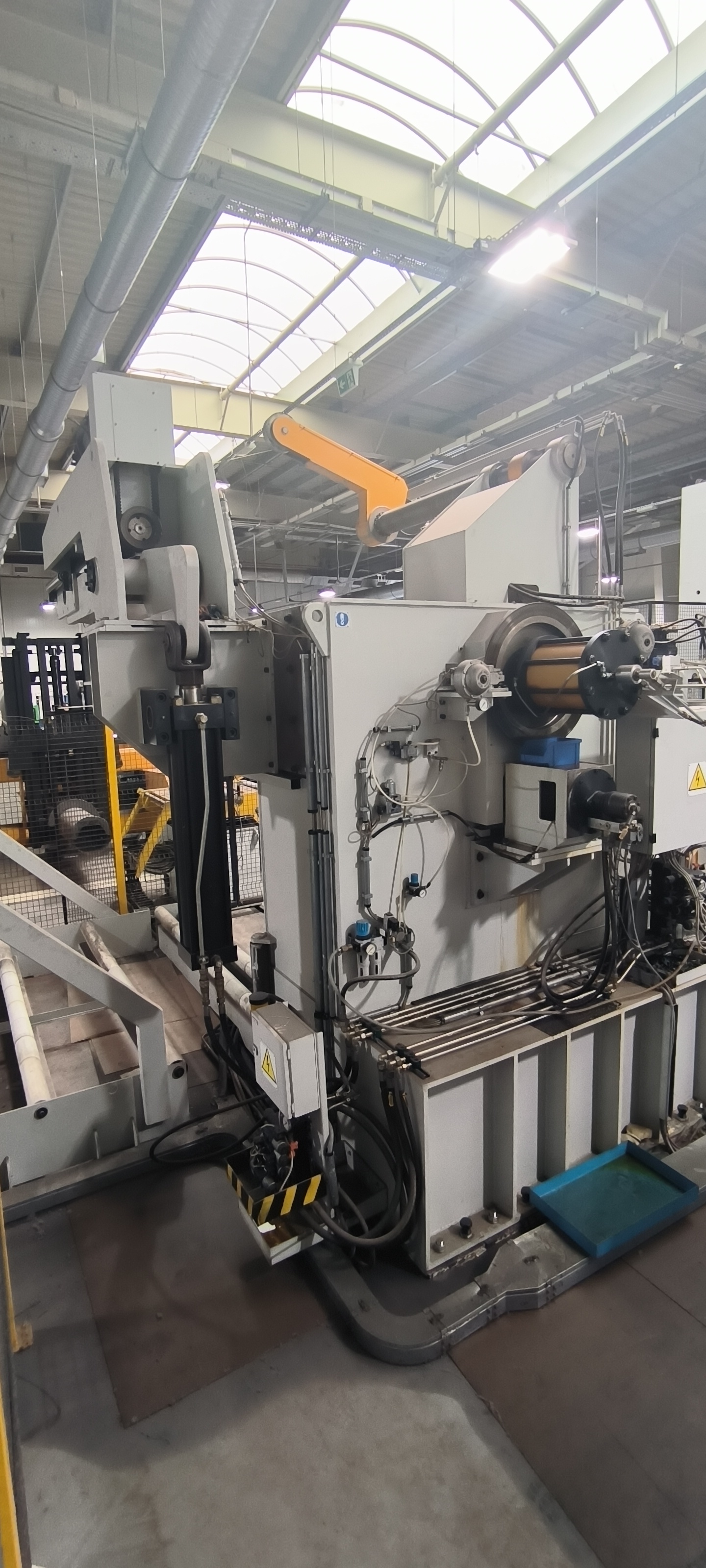

Type of Machine: 400 Ton Hydraulic Press

- Press Model: 225.400
- Weight (Net): 75,000 Kg
- Maximum Force: 4000 KN
- Nominal Distance from Bottom Dead Center: 12 mm
- Normal Stop Position of Crankshaft: Top Dead Center

Tooling and Capacity:

- Maximum Tool Dimensions (Height x Width x Depth): 700 x 2500 x 160 mm
- Maximum Weight of Upper Tools: 7000 Kg
- Maximum Permissible Flywheel Speed: 489 RPM

Operational Parameters:

- Continuous Stroke Rate (Min/Max): 12 - 30 Strokes/Min
- Maximum Clutch Engagements per Minute: 20 Strokes/Min
- Maximum Effective Clutch Engagements per Minute: 10 Strokes/Min
- Stroke Range (Min/Max): 200 mm
- Slider Adjustment Stroke: 300 mm
- Maximum Tool Speed (Adjustable Stroke): 700 mm

Power and Pneumatics:

- Electrical Supply (Voltage/Frequency): 400V / 50Hz
- Installed Electrical Power: 40 KW
- Pneumatic Pressure (Min/Max): 5 - 6 bar
- Stop Time: 0.16 sec

Safety:

- Safety Distance: 260 mm
