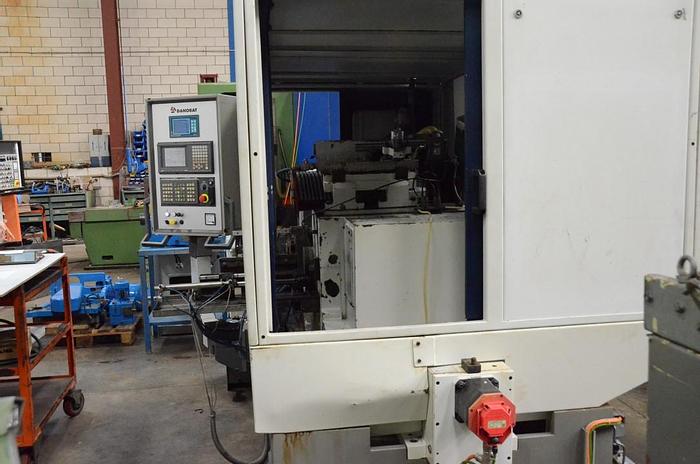

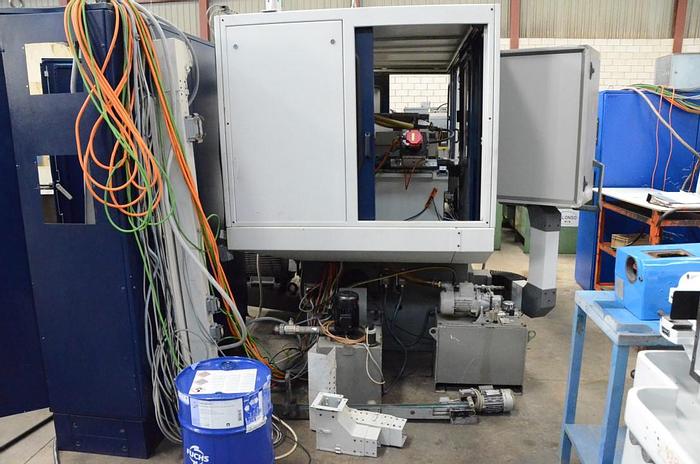

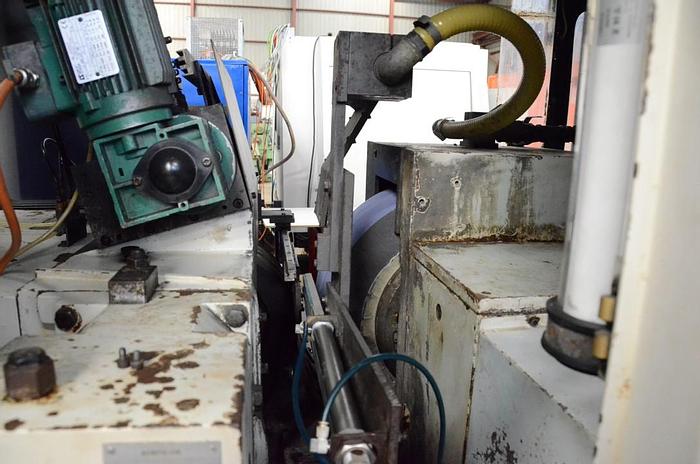

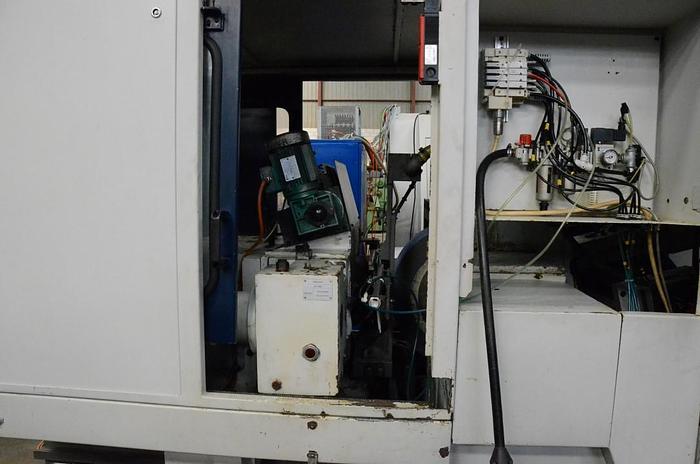

ESTARTA CNC Spitzenlose Schleifmaschine # 4389 DANOBAT ESTARTA 318 MV

CNC, automatic balancer of wheels Balance Systems, speed variator in the grinding wheel, speed variator in the grinding wheel / CNC, automatic balancer of wheel Balance Systems, Speed ​​variator of Grinding Wheel, Speed ​​variator of Regulating Wheel,, Ø grinding wheel dimensions (od x id x width): 610 mm, Ø min / max to grinding: 1.5 - 120 mm, Peripheral grinding wheel speed (m / s): 35 m / sec, Regulating wheel width: 254 mm, Min / max regulating wheel speed (r.p.m.): 10-300 RPM, Cnc brand: FANUC, Cnc model: Power Mate - iH, Cnc axes nº: 3 + spindle, Regulating wheel dimensions (od x id x width): 305 x 127 mm x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Motor power grinding wheelhead: 22 kW, Total power: 35 kW, Voltage: 220/380 V, Long: 4,795.5 mm, Width: 3.806 mm, High: 2.355 mm, Weight: 6.450 kg, Accessories included: CNC, automatic balancer of wheels Balance Systems, speed variator in the grinding wheel, speed variator in the grinding wheel / CNC, automatic balancer of wheel Balance Systems, Speed ​​variator of Grinding Wheel, Speed ​​variator of Regulating Wheel,
Verkäufer Angebot Nr. resale 4389
