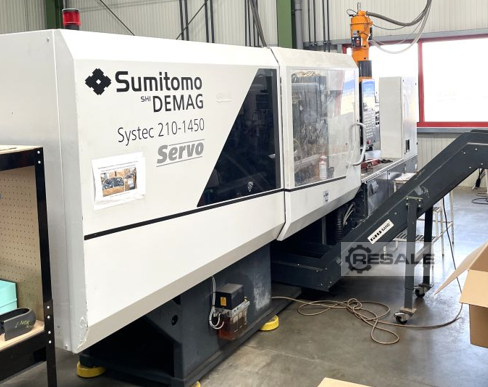

Kunststoffspritzgiessmaschinen DEMAG Systec 210/580-1450 (Servo)

Demag Systec 210/580-1450 (servo)

Closing force: 210t
Year of production: 2021
Injection Weight: 946g
Injection unit .../1450
Screw diameter
70 mm
Specific injection pressure
1400 bar
Injection volume
1039 ccm
Injection weight
946 g
Screw L/D ratio
20
Tool clamping system 210/...
Closing force
210 t
Tool plate dimensions
860 x 860 mm
Clearance between columns
580 x 580 mm
Tool height
Min. 340 mm – max. 790 mm (increased by 100 mm) mm
The way of opening
790 mm
Ejector Stroke
180 mm
year of production
2021
Control
MC5
Equipment:

Pump drive power: 26.0 kW

Cylinder: Bimetallic, Wear-Resistant Screw

Automatic mold height adjustment

Injection with control pump, p+v controlled (closed loop)

Pressure return system (RSP), 3-piece

Ejector with adjustable position, p/F+v independently programmable, synchronous with the movement of the mold

Flexible clamping unit movement with multiple ejector and core movements
