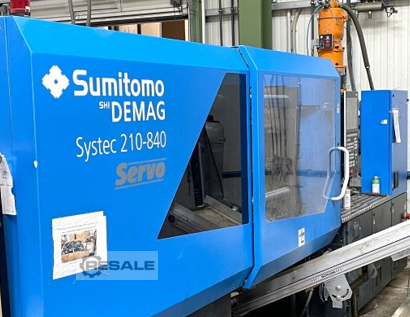

Kunststoffspritzgiessmaschinen DEMAG Systec 210/580-840 (Servo)

Closing force: 210t
Year of production: 06/2019
Injection Weight: 579g

Injection unit .../840
Screw diameter
60 mm
Specific injection pressure
1352 bar
Injection volume
636 ccm
Injection weight
579 g
Screw L/D ratio
20

Tool clamping system 210/...
Closing force
210 t
Tool plate dimensions
860 x 860 mm
Clearance between columns
580 x 580 mm
Tool height
Min. 340 mm – max. 790 mm (increased by +100 mm) mm
The way of opening
790 mm
Ejector Stroke
180 mm
year of production
06/2019
Control
MC5

Equipment:

Pump drive power: 26.0 kW

Servo motor drive

Bimetallic, wear-resistant auger (Verschleißfest)

Flexible movement of the clamping unit, multiple movements of the ejector and cores possible

Position-adjustable ejector, independently programmable, synchronous with mold movement

Injection with control pump (p+v controlled closed loop)

Pressure return system (RSP), 3-piece

Reinforced oil cooling system (inlet up to 35 °C)
Verkäufer Angebot Nr. resale 167892174
