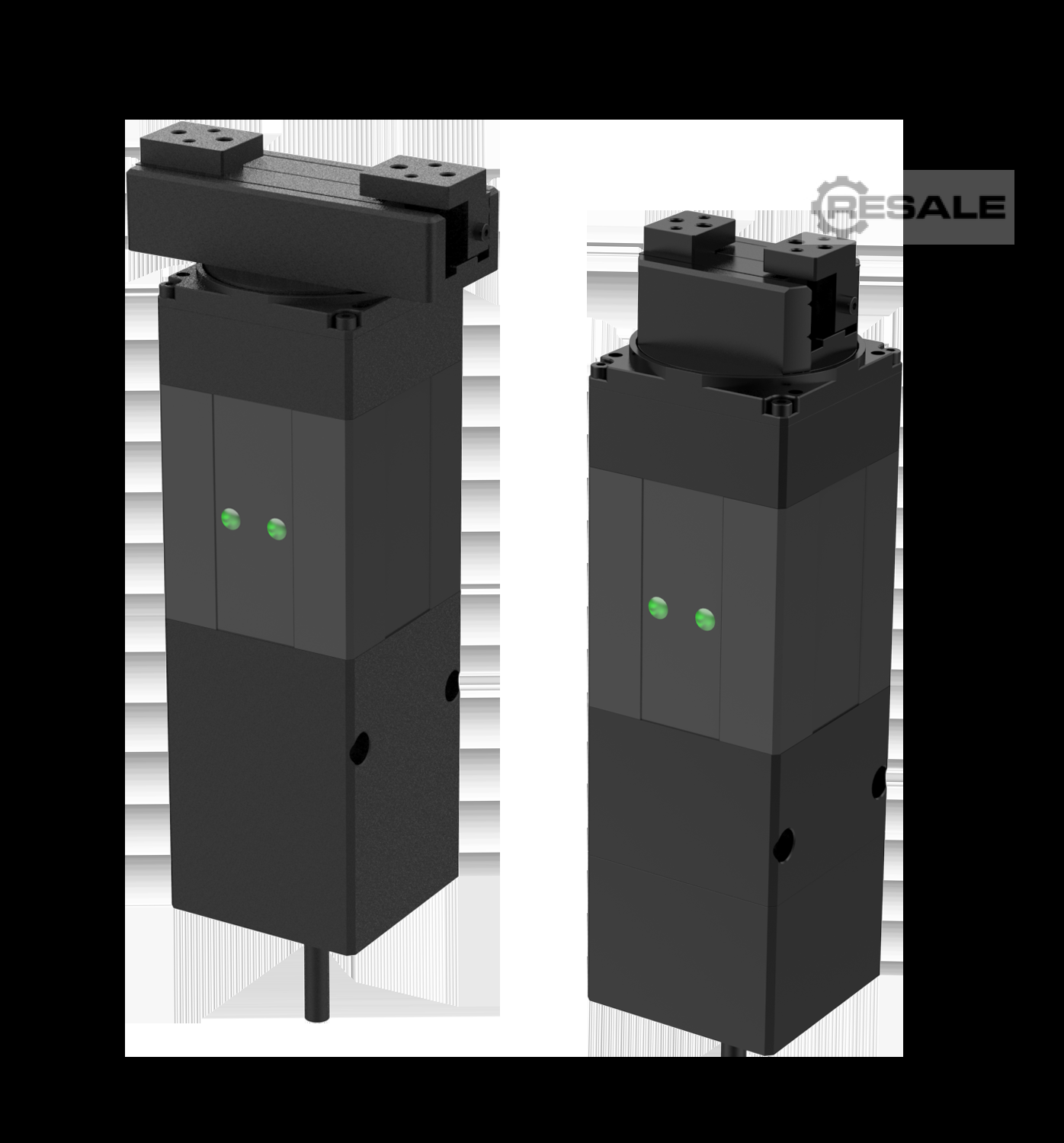

Drehgreifer DH ROBOTICS RGI-100-14

DH Robotics RGI-100-14 Drehgreifer

Gripping force (per jaw): 10~35 N
Stroke (both sides): 14 mm
Rotation torque: 0.25 N.m
Rotation range: Infinite

Mechanical specifications
Maximum speed of rotation: 1500 deg/s
Repeatability of rotation: ± 0.02 deg
Backlash of rotation: ± 1 deg
Position repeatability (gripping): ± 0.02 mm
Opening/closing time: 0.2 s/0.2 s
Weight: 1.1kg

Electrical specifications
Communication interface: Modbus RTU(RS 485), Digital I/O
Nominal voltage: 24 V DC ± 10%
Nominal current: 1.1 A
Peak current: 2 A
Ingress protection rating: IP 20
Recommended operating environment : 0~40°C, <85% RH

Lieferzeit 5-10 Arbeitstage!
Verkäufer Angebot Nr. resale 4262413680491
