Bearbeitungszentrum - Vertikal DMG DMF360/11 KGT

x-Weg: 3600 mm
y-Weg: 1100 mm
z-Weg: 900 mm
Gesamtleistungsbedarf: kW
Maschinengewicht ca.: 30450 kg
Raumbedarf ca.: m
Technicals details CNC controller:

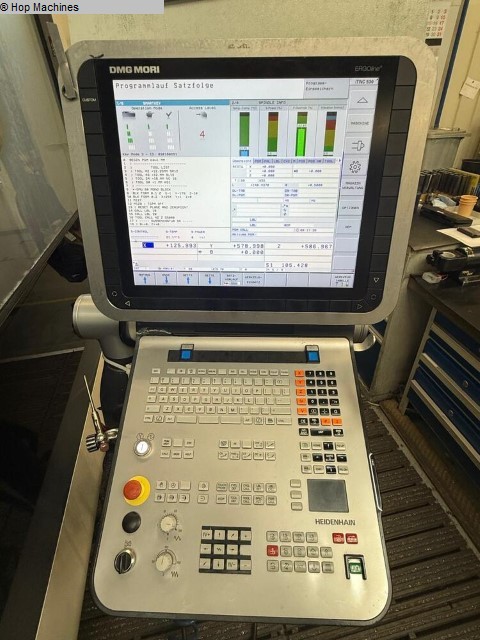

Heidenhain iTNC 530 HSCI
X-axis travel mm: 3.600
Y-axis travel mm: 1.100
Z-axis travel mm:900
B-axis degrees: swivel head (B-axis)
Rapid traverse m/min: 40 Acceleration in the axes m/s2: 4
Worktable Table dimensions mm: 4.200 x 1.100
Spindle Spindle speed rpm: 15.000
Spindle drive power kW: 46 / 30
Tool holder: HSK-A63 Spindle torque Nm: 200 / 130
Tool system Tool magazine slots: 30 Tool changer: Chain - Double gripper
Electronic Handwheel Rotating inspection windows Rinsing gun Blowing air
through spindle center selectable via M-function Workarea light Internal
coolant supply MPC – Machine Protection Control Paper band filter Chip conveyor

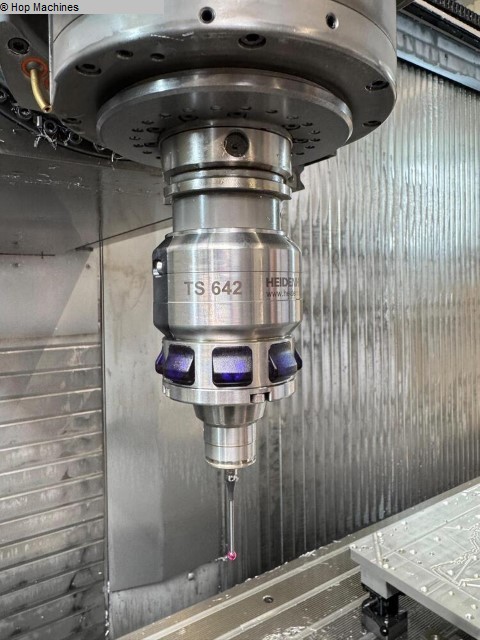

with built-in scraper Infrared Probe Heidenhain TS 642 Cooling Cooling through
the Spindle Center bar: 40 Tank capacity: 980 L
Machine running times Under power: 26.847 Operating Time: 10.395
Basic machine dimensions / weight Weight kg: 30.450
