Drehdurchmesser:400 mm
Drehlänge:620 mm
Machine-Details
Stock-No. 1105-04057

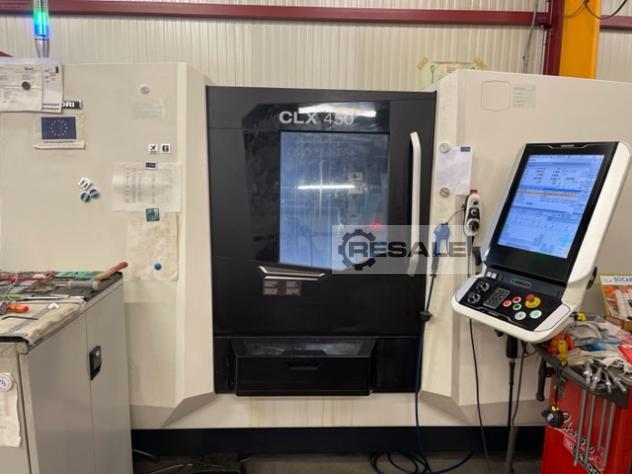

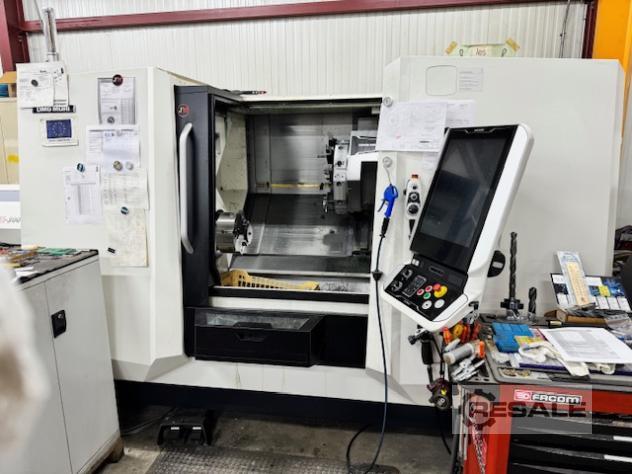

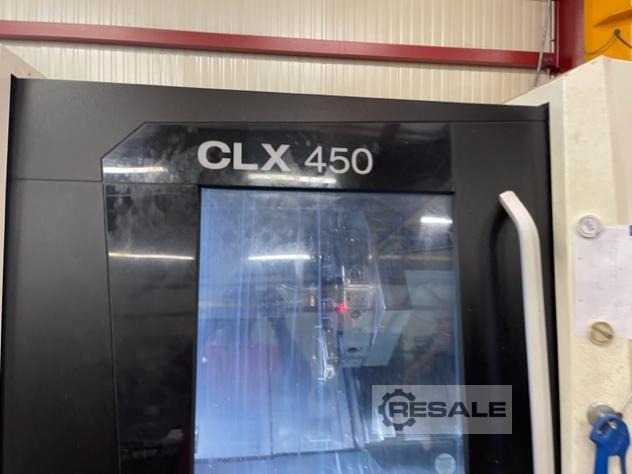

Type of machine CNC Lathe - Inclined Bed Type
Make DMG MORI
Type CLX 450 V4
Year of manufacture 2020
Type of control CNC
Storage location FRANKREICH
Country of origin -
Delivery time to be agreed
Freight basis ex site
Technical details
turning diameter 680 mm
turning length 600 mm
control Sinumerik 840 SLIMLINE
turning diameter 680 mm
greates pass round over bed 650 mm
spindle diameter in front bearing 130 mm
spindle bore 80 mm
spindle taper 140h5
x-axis 220 mm
z-axis 810 mm

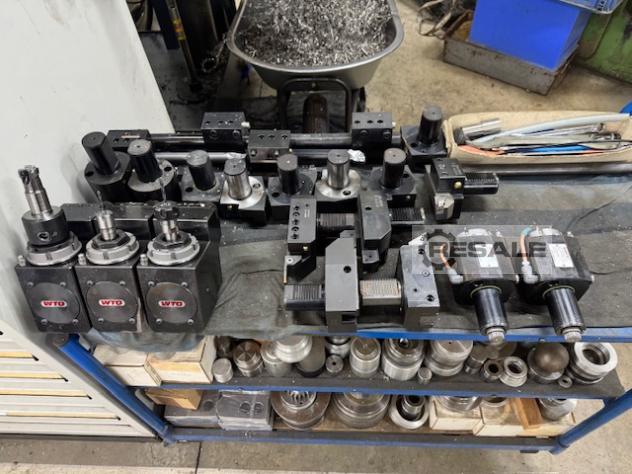

tool taper VDI 40
tailstock adjustment 600 mm
tension force 4 kN
total power requirement 21 kW
weight of the machine ca. 5.3 t
dimensions of the machine ca. 3,8 x 3,0 x 2,1 m
Accessories
Documents
Chip conveyor
Coolantsystem
Turret
Additional information
CNC-Turning- and Milling Center
DMG MORI -CLX 450 V4

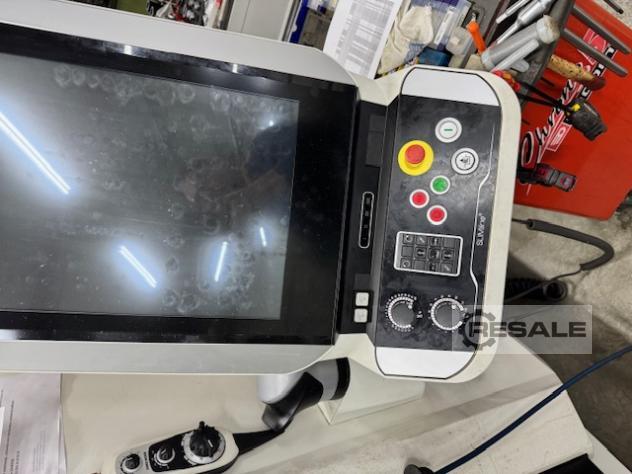

CNC DMG MORI SIEMENS SLIMLINE MULTI-TOUCH
ith c axis live tools and y axis
chip convoyer tailstock chuck
Verkäufer Angebot Nr. resale 166656007
Frankreich
67500 HAGUENAU
