2019 DN200-DN600

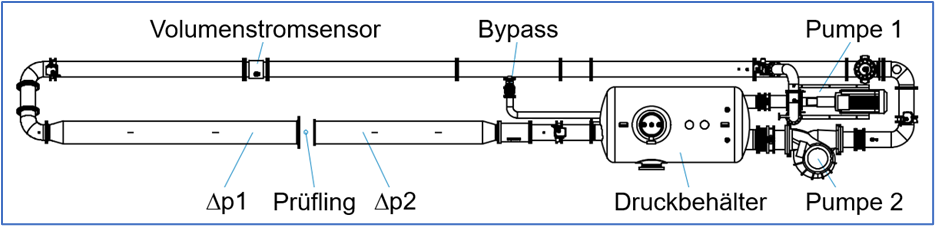

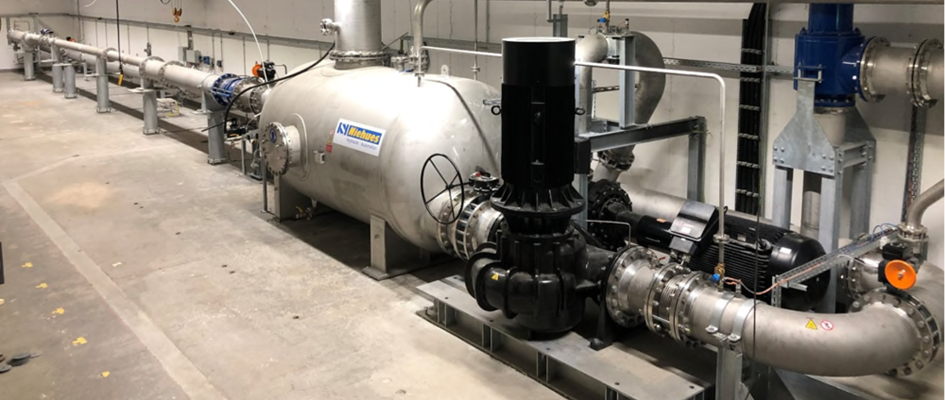

Hydraulic function test bench DN200-DN600 (built in 2019) shown below.
The system is currently in use and is in perfect condition.
Service description
TP Pump (1)
E-Motor: 315 kW
Pump max. liter capacity: 41,833 l/min
Pump min. liter capacity: 13,944 l/min
Max. operating pressure 25 bar
Nominal discharge head 28 meters
NKG Pump (2)
E-Motor: 315 kW
Pump max. liter capacity: 16,833 l/min
Pump min. liter capacity: 5,611 l/min
Max. operating pressure 16 bar
Nominal discharge head 80.7 meters
Container
Volume: 11400 liters
Permissible pressure: - 0.5/10 bar
Min pressure during operation: 1 bar
Max. operating pressure: 5.5 bar
Medium: Drinking water without additives
Min. max. temperature -10/50°C
Permissible load cycle 1000

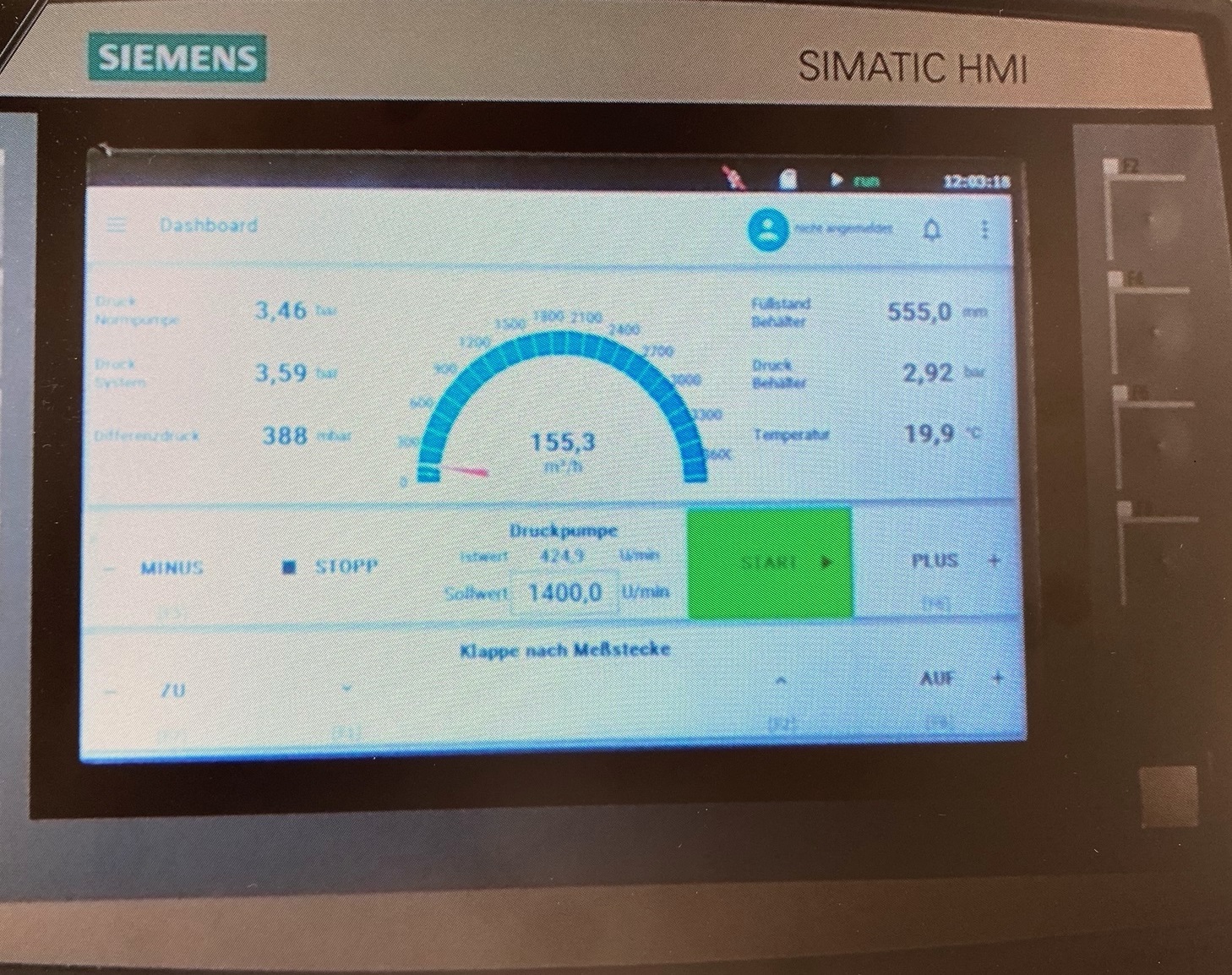

The pumps are operated by means of a frequency converter. This enables
speed control from 500 to 1500 rpm. The pumps can be switched using a
key switch.
The possible speed depends on the NPSH value. The NPSH value depends
on the pre-pressure of the container and the back pressure of the
system. The back pressure of the system is significantly influenced by
the test object and its settings.
Adjustments are made by adjusting the pressure on the container.
