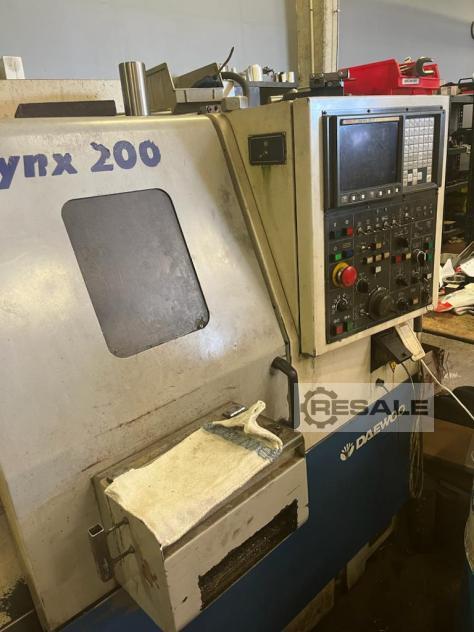

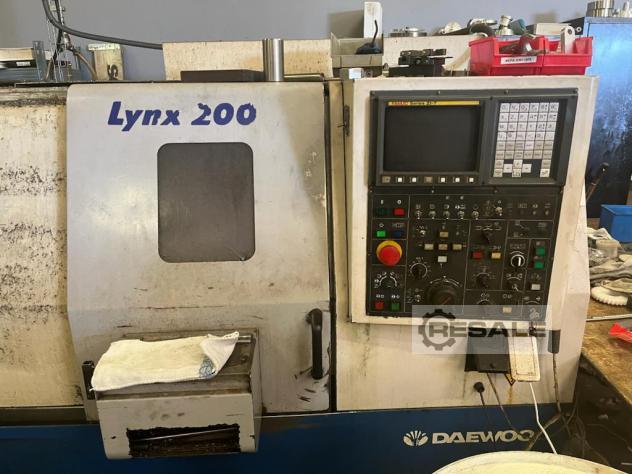

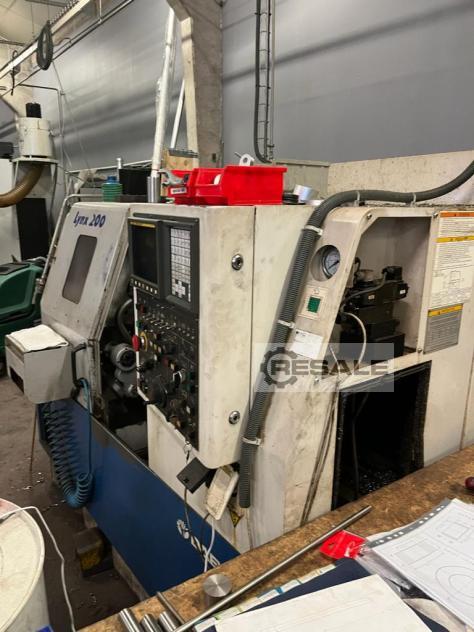

CNC Drehmaschinen DOOSAN DAEWOO LYNX 200LC

achine-Details
Stock-No. 1105-03887
Type of machine CNC Lathe
Make DOOSAN DAEWOO
Type LYNX 200 LC
Year of manufacture 1998
Type of control CNC
Storage location HAGUENAU FRANCE
Country of origin KORREA
Delivery time immediately
Freight basis ex site
Price

Technical details
turning diameter 460 mm
turning length 300 mm
control Fanuc 21-T
turning diameter over bed 460 mm
turning dia. over face-slide 280 mm
travel -x axis 160 mm
travel -z axis 330 mm
centre distance 335 mm
rapid traverse X-axis 12 m/min
rapid traverse Z-axis 15 m/min
turning speed range - main spindle 42 - 4.000 U/min
spindle nose A2-6
spindle passage 51 mm
spindle bore 65 mm
spindle cone 1/20
power capacity - main spindel 7.5 kW
no. of tool upper turret 10 .
Shank diameter 32 (rund) mm
Shank diameter 20 (vierkant) mm
tube diameter max. 50 mm
chucking diameter 200 mm
coolant tank 87 l
total power requirement 15 kW
weight of the machine ca. 3,2 t
dimensions of the machine ca. 1,9 x 1,5 x 1.5 m
Accessories

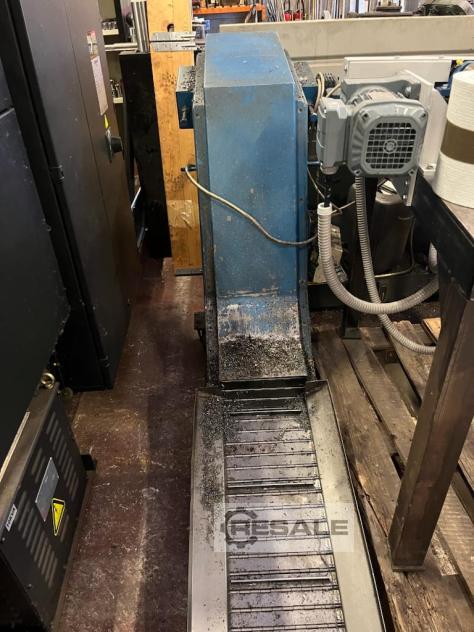

Chip conveyor
Coolantsystem
Additional information
CNC - Lathe
LYNX 200 LC

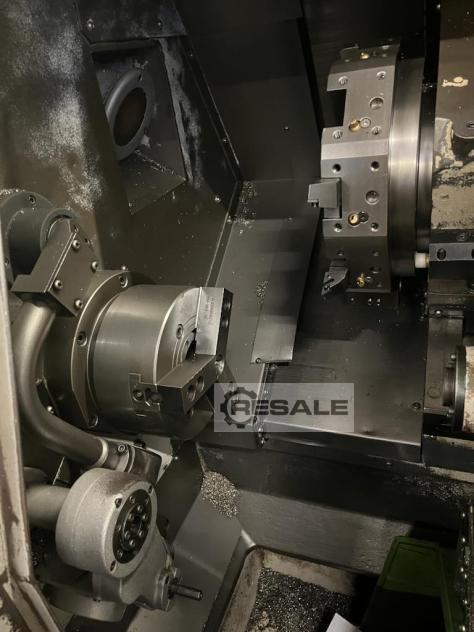

WITH CHUCK TURRET TAILSTOCK AND CHIP CONVOYER
Verkäufer Angebot Nr. resale 161701884
