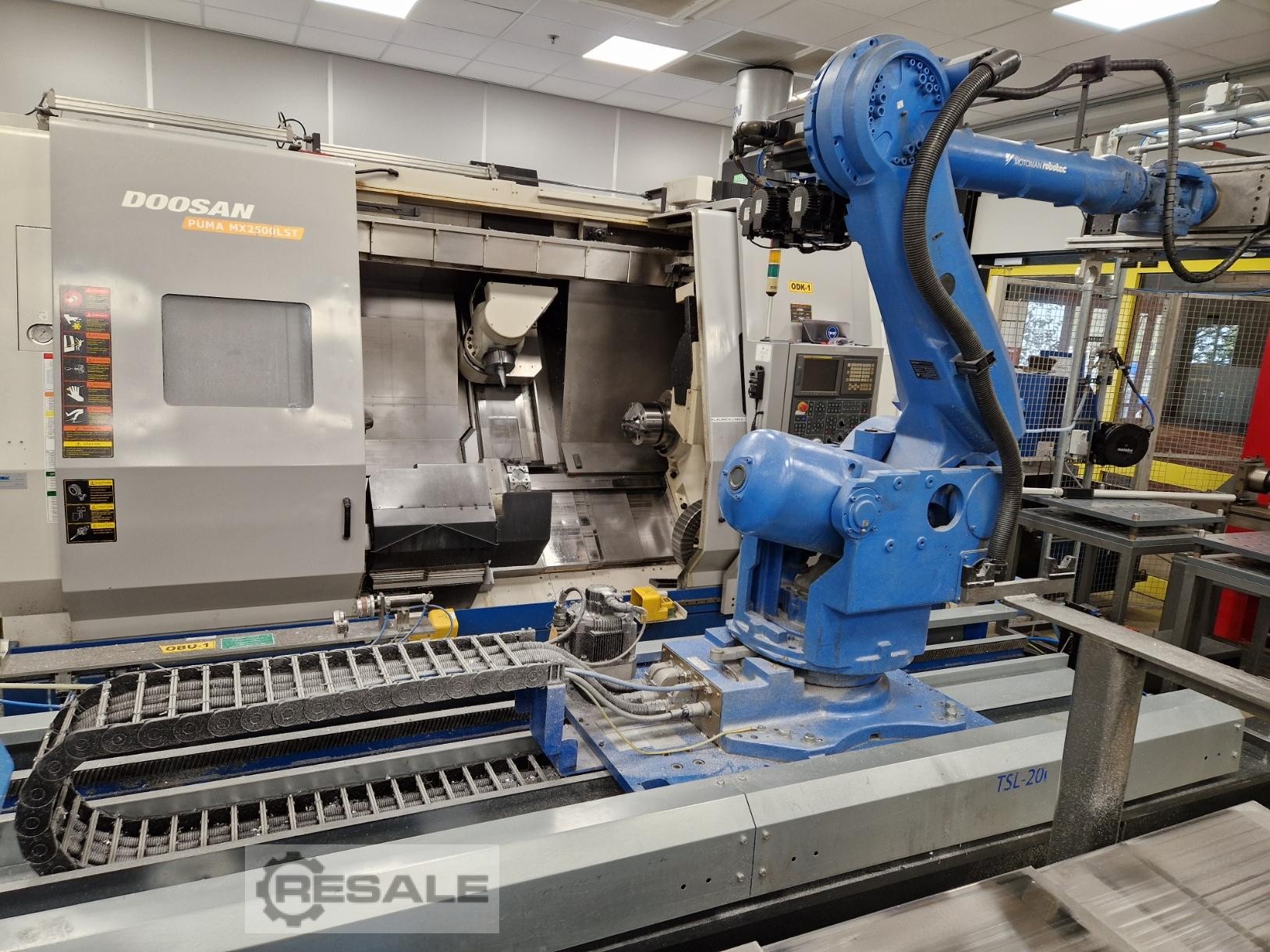

CNC Drehzentren DOOSAN Puma MX 2500 LST

Drehdurchmesser:540 mm

Drehlänge:1520 mm

Distance between centers: 1520 mm
Max turning length: 1520 mm
Max swing over bed: 750 mm
Max swing over slide:
600 mm
Max turning diameter: 540 mm
Bar working diameter: 76 mm
X1-axis travel: 555 mm
X2-axis travel: 185 mm
Z1-axis travel: 1595 mm
Z2-axis travel: 1640 mm
Y-axis travel: 160 (+/- 80) mm
A-axis travel: 1565 mm
C1-C2 axis travel: 360º (0.001)
B-axis travel: 240º (+/- 120)
X1-X2 rapid traverse: 24 m/min
Z1-Z2 rapid traverse: 24 m/min
Y rapid traverse: 16 m/min
A rapid traverse: 24 m/min
C1-C2 rapid traverse: 200 rpm
B rapid traverse: 27 rpm
Left and right spindle speed: 3500 rpm
Left and right spindle power: 26 Kw
Spindle nose: ASA A2 # 8
Bore of draw tube:
77 mm
Milling spindle taper: CAPTO C6
Max speed milling head: 10.000 rpm
Year: 2008
Approx machine weight: 15.500 Kgs
Machine dimensions: 5500x2565x2645 mm
Equipped with:

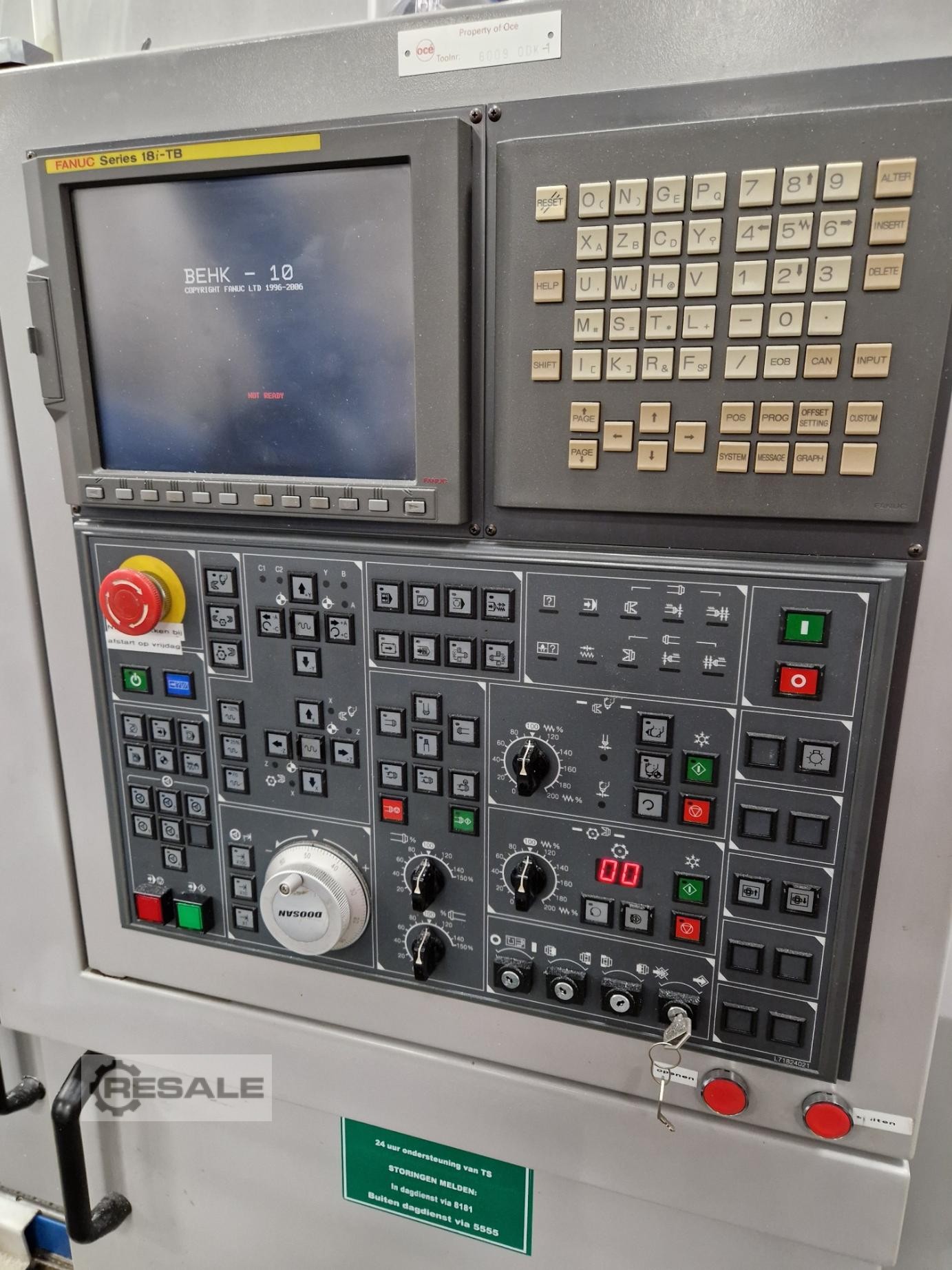

Control: FANUC 18i-TB

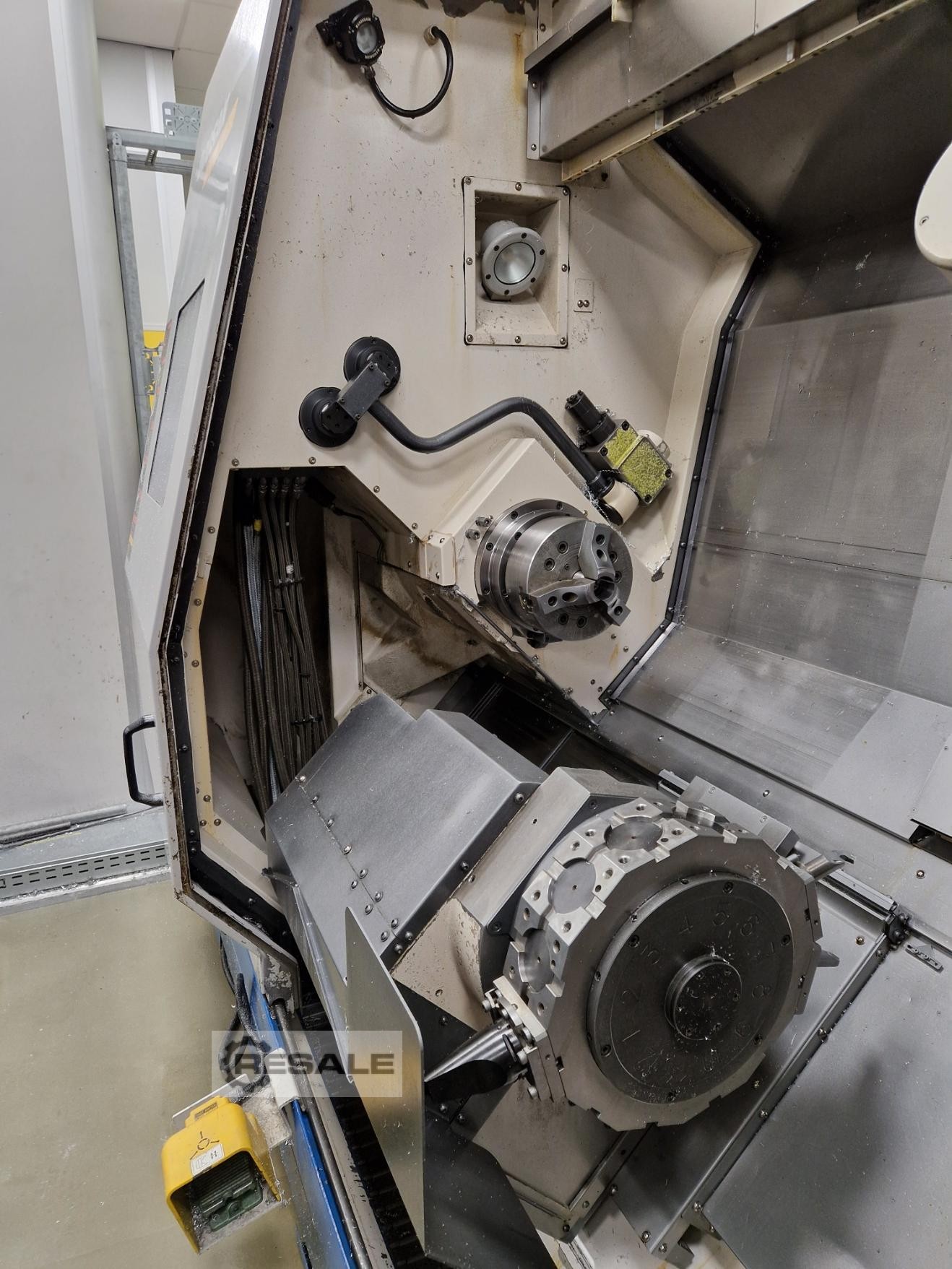

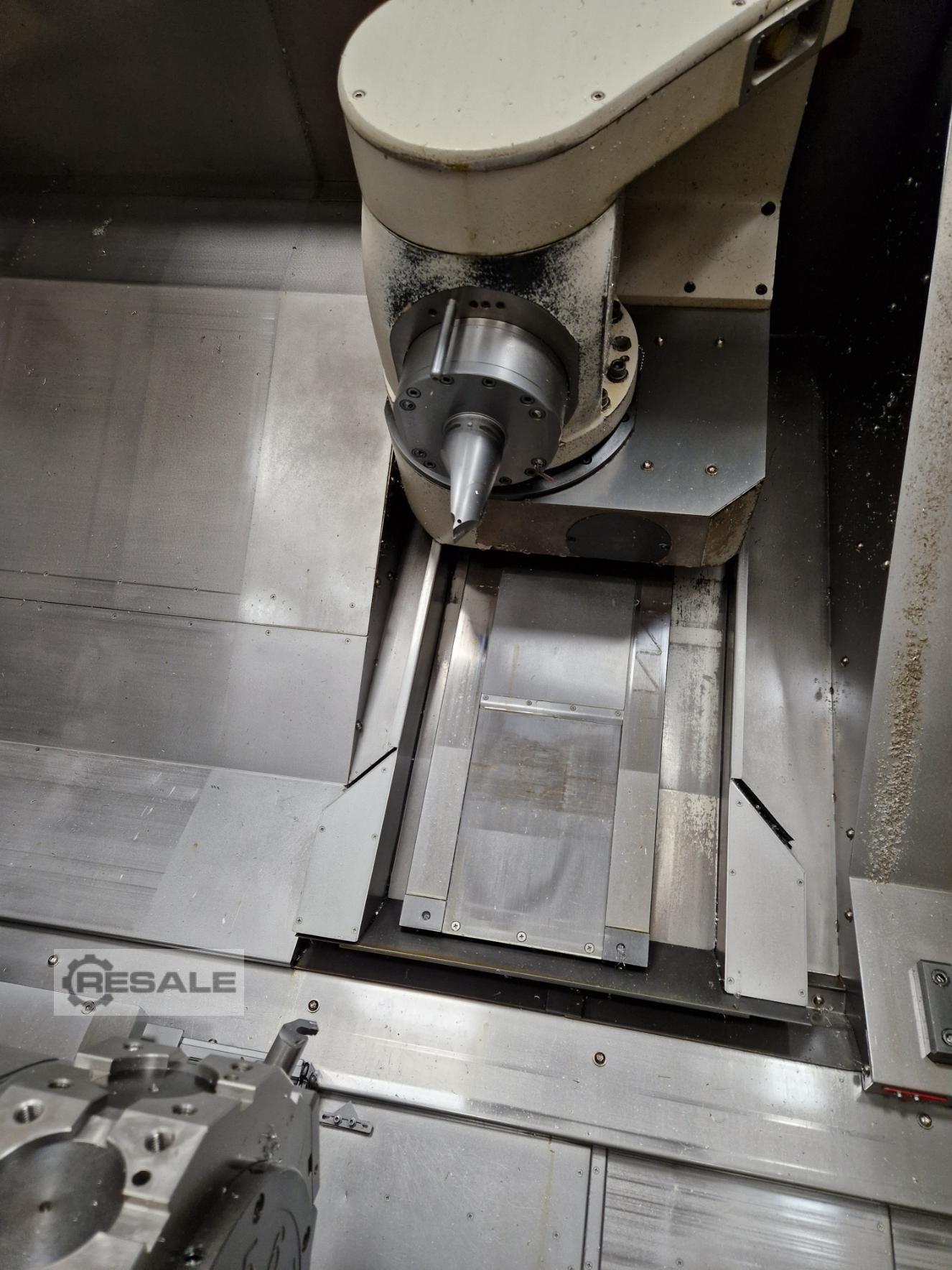

Milling head
Hydraulic left spindle chuck: Ø 250 mm

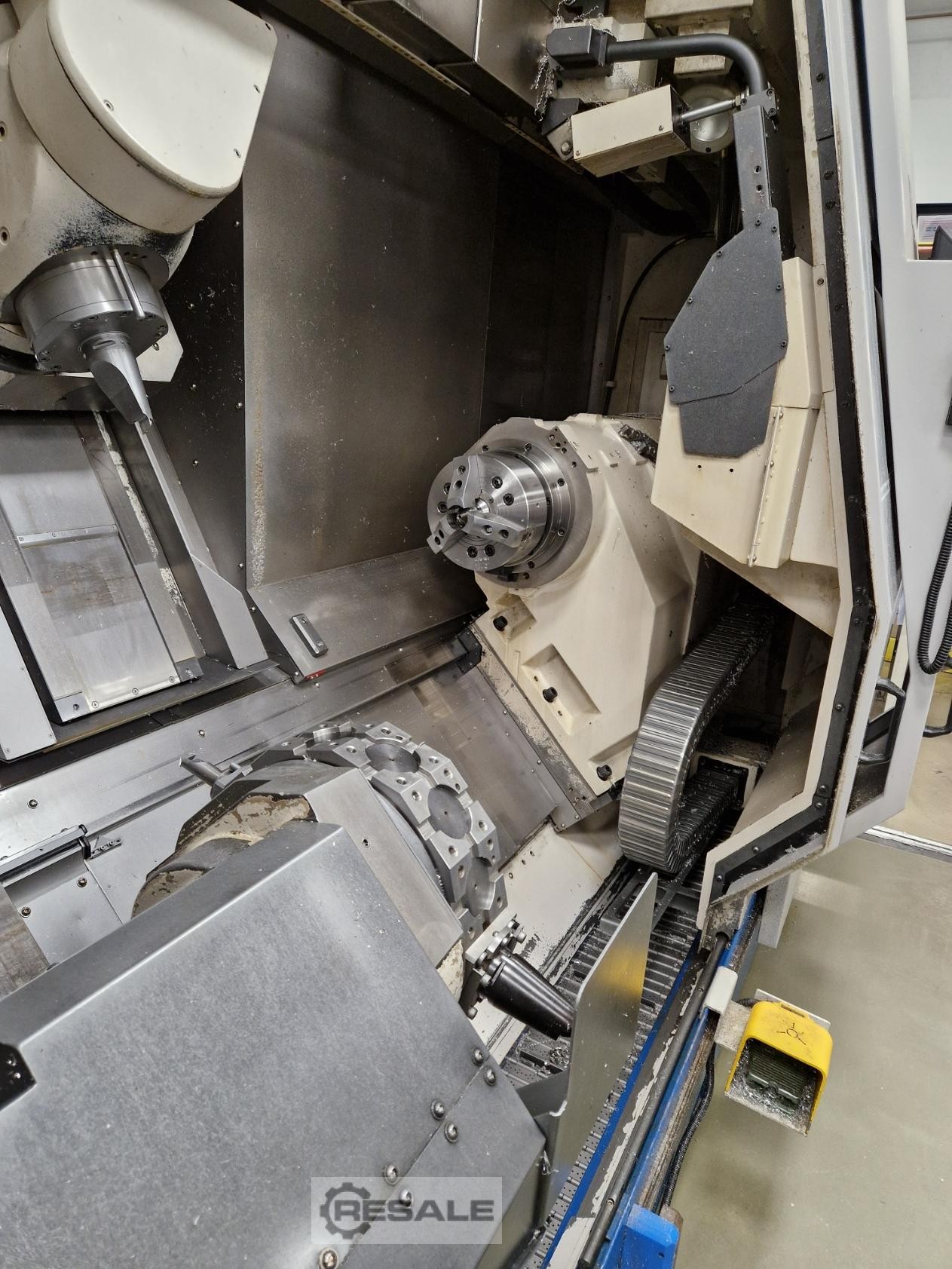

Hydraulic right spindle chuck: Ø 300 mm
Turret: Motorized 12 stations

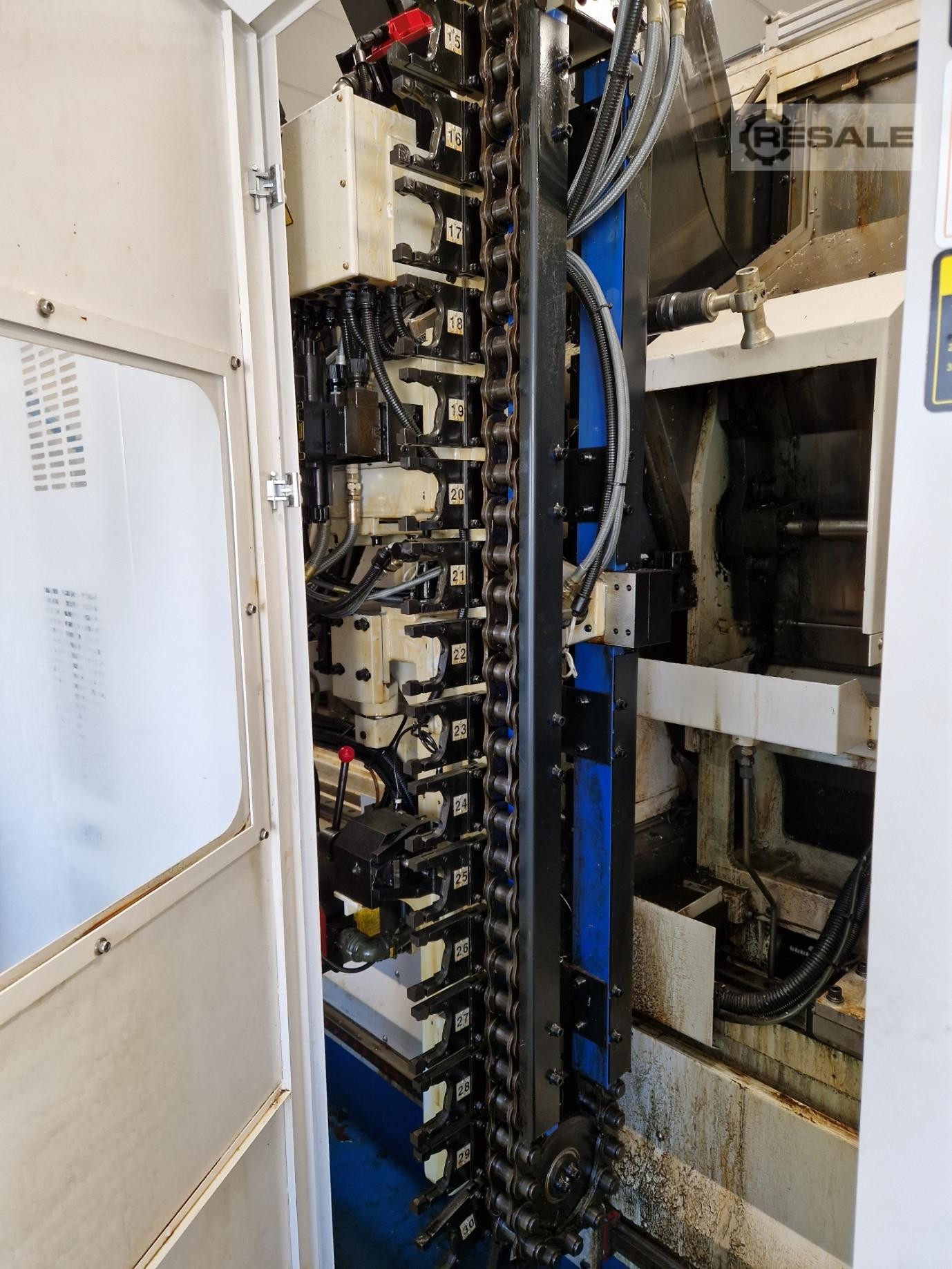

Tool magazine: ATC 30 units
Chip conveyor: Yes

Verkäufer Angebot Nr. resale 167159521
