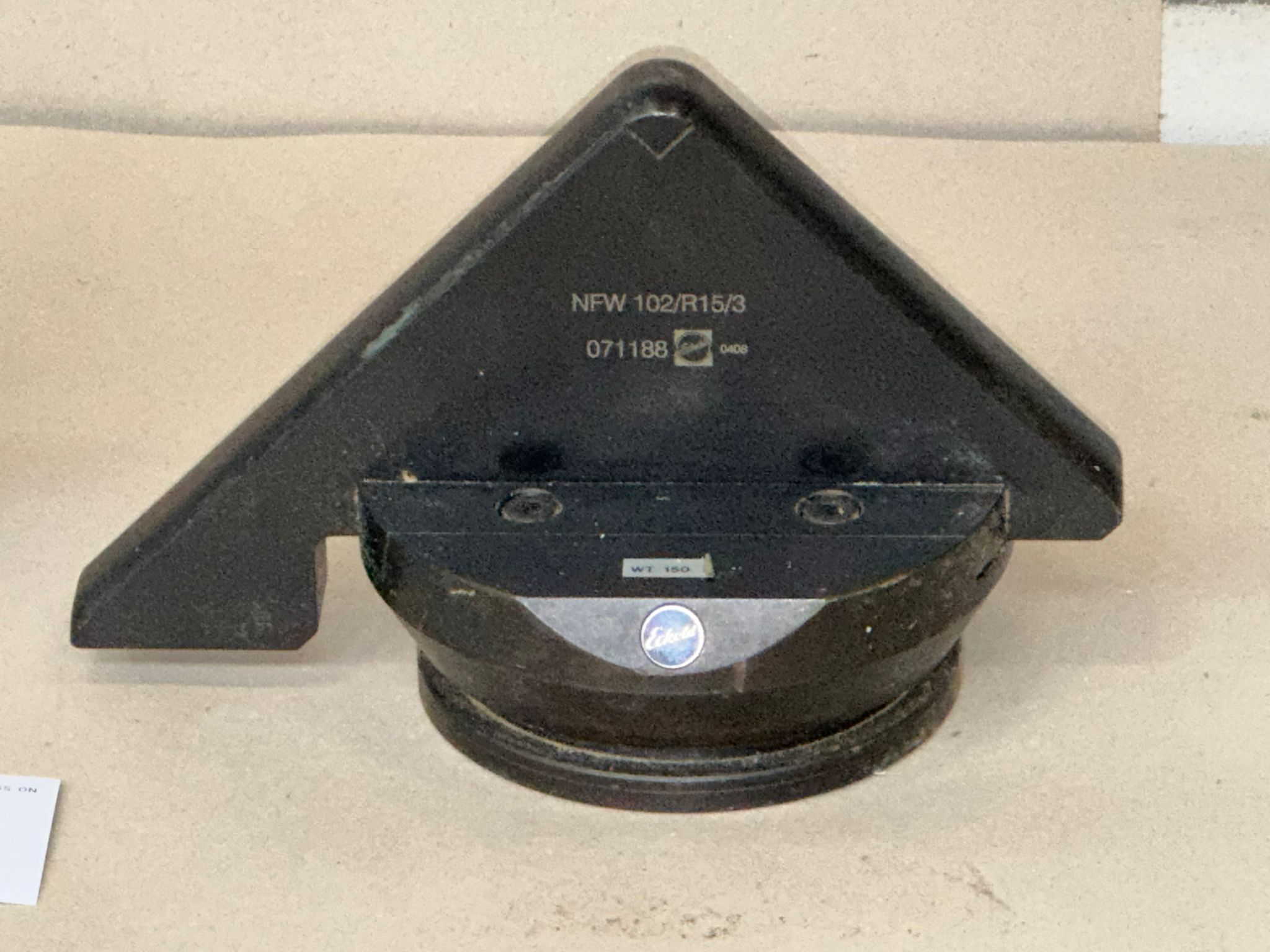

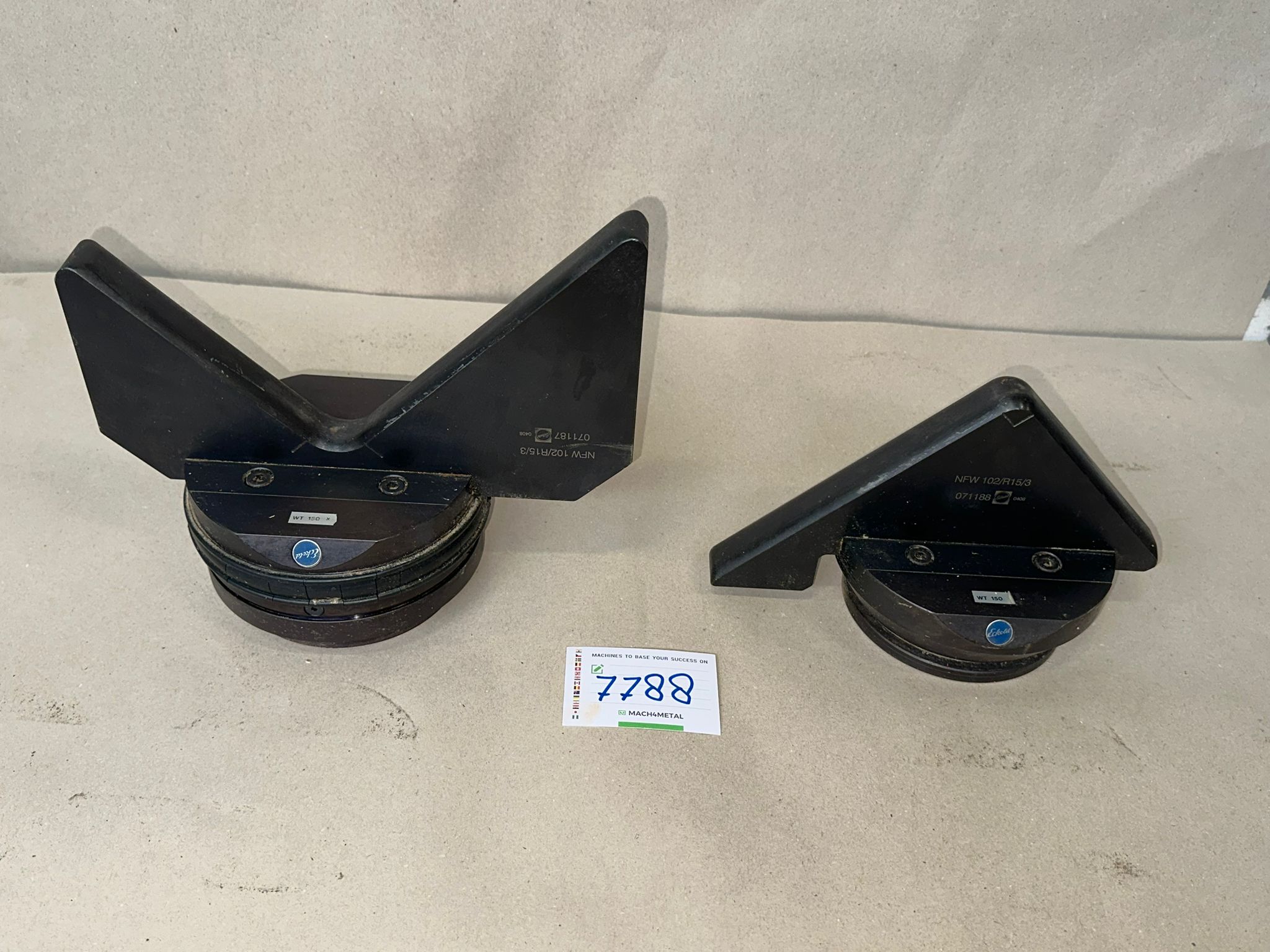

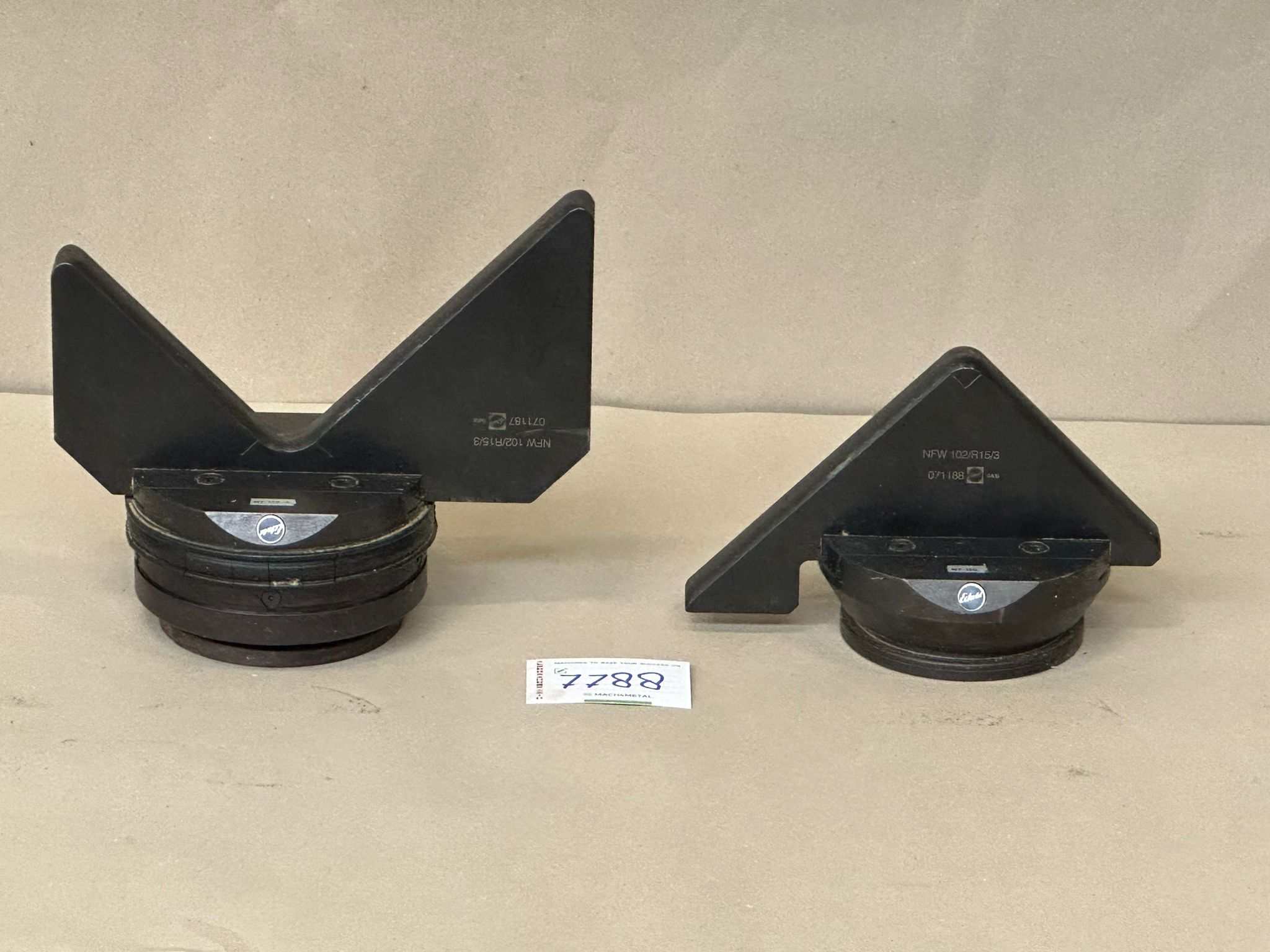

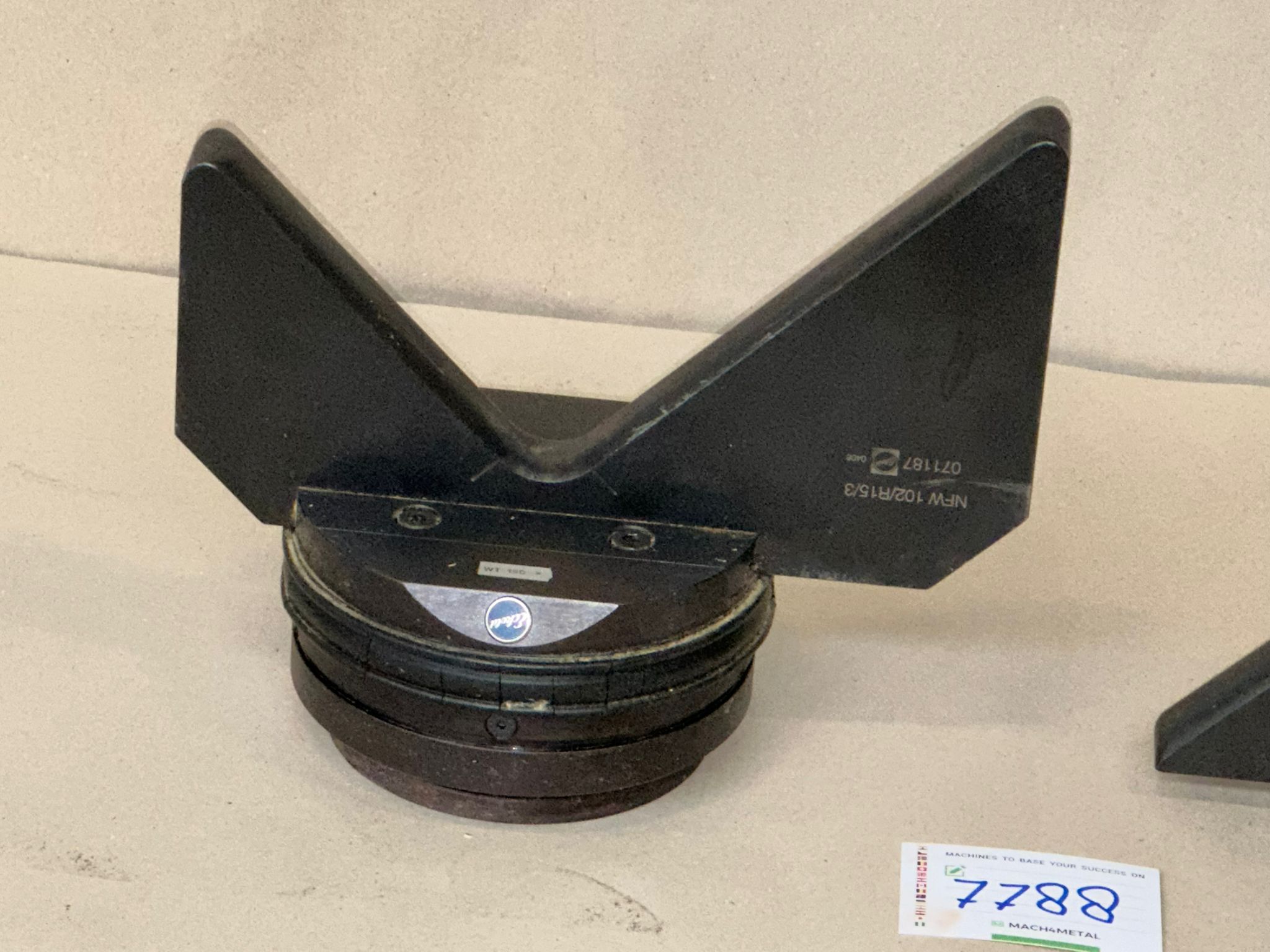

- Reforming Tool type WT/NFW
- Diameter 150 mm
- Weight 16.9
Kg
- Steel 400 N/mm2 = 6,0 mm
- Inox 600 N/mm2 = 6,0 mm
-
Aluminium 250 N/mm2 = 6,0 mm
- For finish forming and calibrating
of preformed components.
- It consists of a tool carrier WT 80 S
and forming inserts N NFW 102
- The forming inserts NFW in
steel quality are designed forone single radius and one single
thickness of material only.
- Different forming inserts can be put
into the sametool carrier WT 80 S.
- But with one set of forming
inserts only one single radius in one single thickness of material can
be reformed.Inserts are available different shapes
