a pelleting machine that we had in operation for only 25 hours. We
would sell this together with the screw conveyor.
only 25 operating hour
Technical data:
- Dimensions: 1.59 m x 0.52 m x 1.36 m
- Weight: 650 kg
- Total electrical power: max. 18.5 kW
- Connected load: 63 CEE (50A pre-fuse required)
- Throughput quantity for wood: up to 300 kg/h / throughput quantity
for feed: up to 500 kg/h
- Daily volume: approx. 2 tons

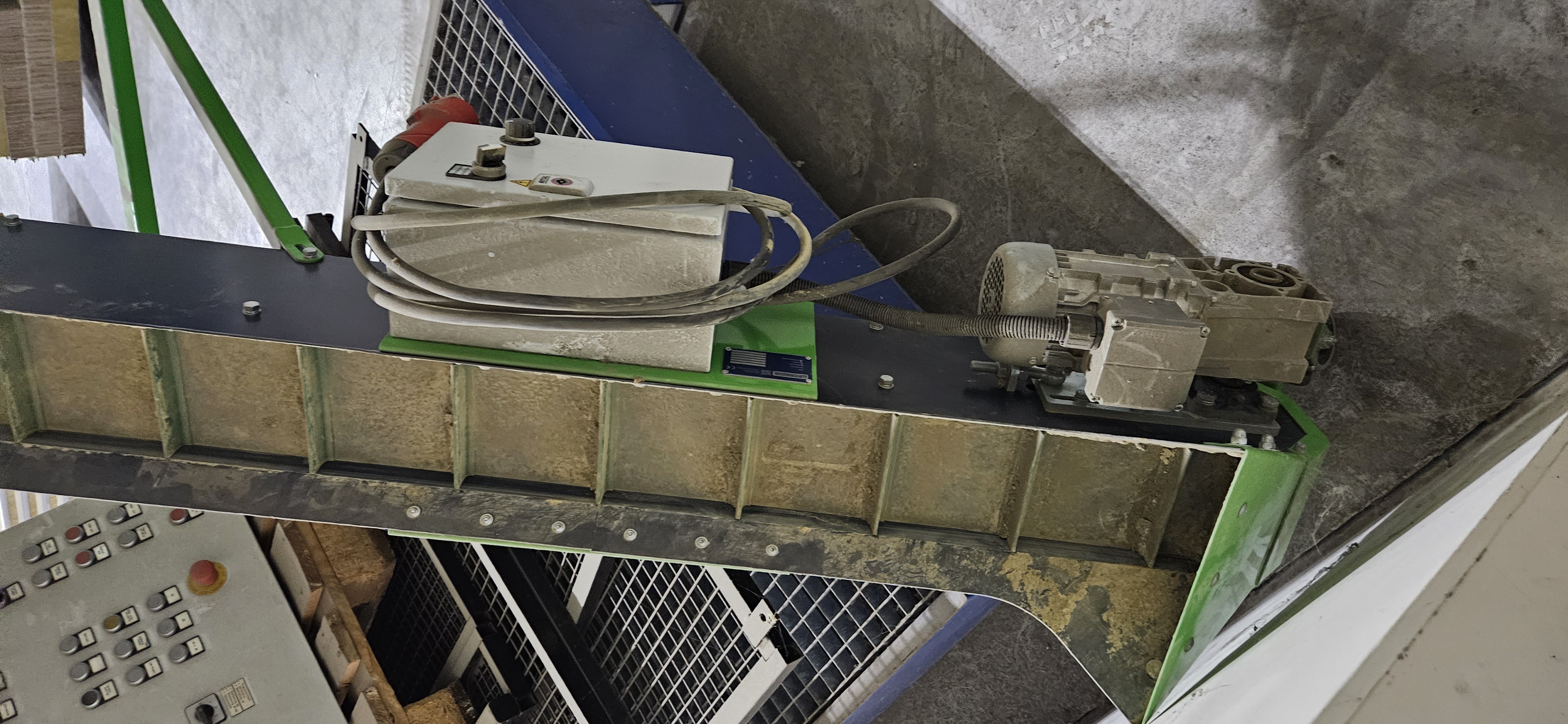

Here are the data of the conveyor belt:
Conveyor belt length: 3,600mm
Discharge height: 2,600mm
Conveyor belt width: 150mm
Number of cleats: 49 pieces
Motor speed: 46 rpm
The ECOKRAFT RP18 was specially developed for processing fine-grained
biomass such as sawdust, wood shavings, fermentation substrates, husks
and fruit pomace. Thanks to the built-in steam extraction from the
pressing chamber and the central lubrication points, the press is
characterized by its compactness and user-friendliness.
Despite its weight of around 650 kg, the ECOKRAFT RP line is extremely
mobile and flexible. It is suitable for a wide range of biomasses and
is characterized by its robustness and productivity. The pan grinder
sets, contact pressure and output are optimally matched to the flat
dies. The pellet diameter or the biomass used can be changed quickly
and easily.
Highlights:
Compact size and simple operation
100% pure pelleting (without chemical binders " purely organic)
High increase in value through conversion of the raw materials
Available with rollers or stacker feet
