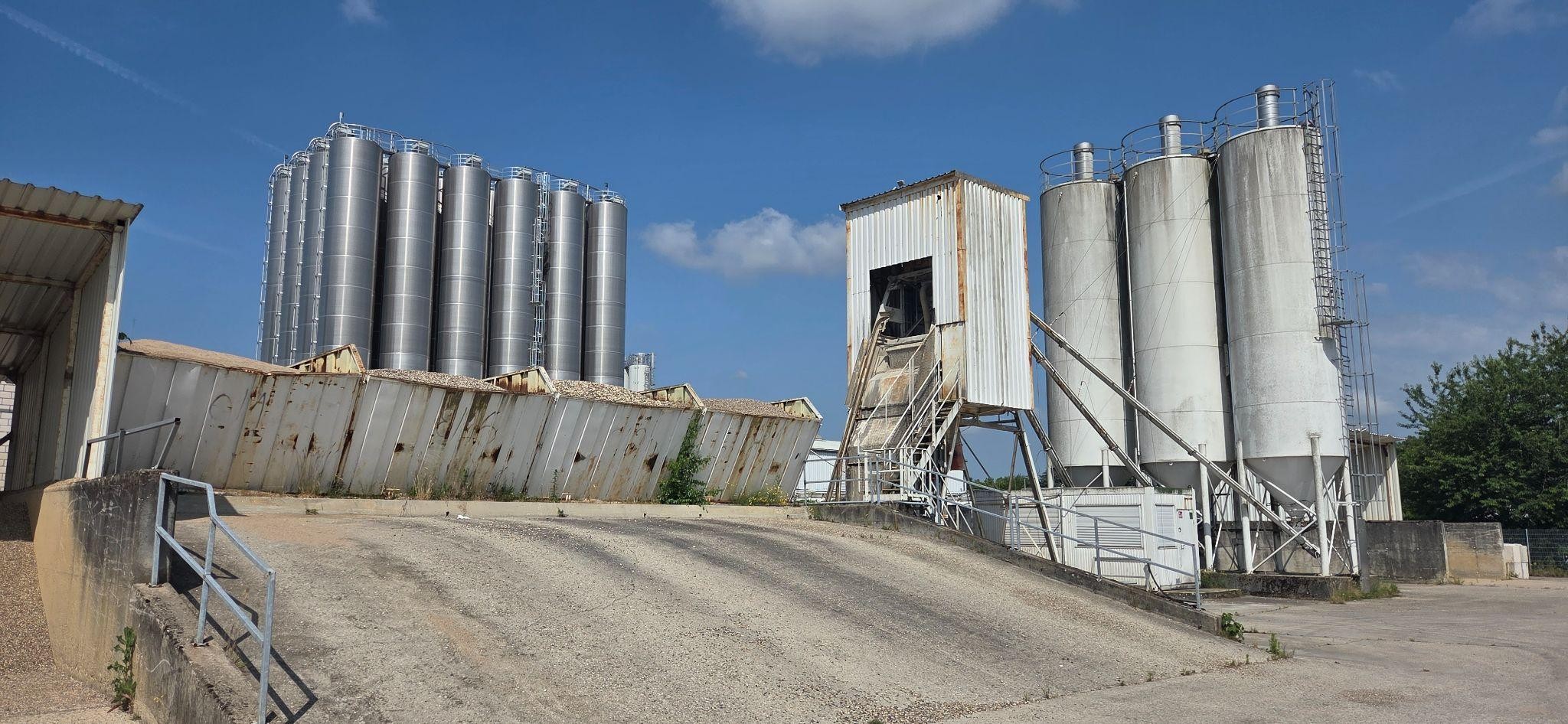

Concrete Mixing Plant 1:
Manufacturer: ELBA-
Model: Supermobil ESM 60
Year of Manufacture: 1998
Status: Decommissioned
Technical Specifications:
- Rated Output: Approx. 30 m³/h
- Dosing Unit:
- Loaded by wheel loader
- Total capacity: 180 m³
- Four chambers: 4 × 45 m³ (25t each)

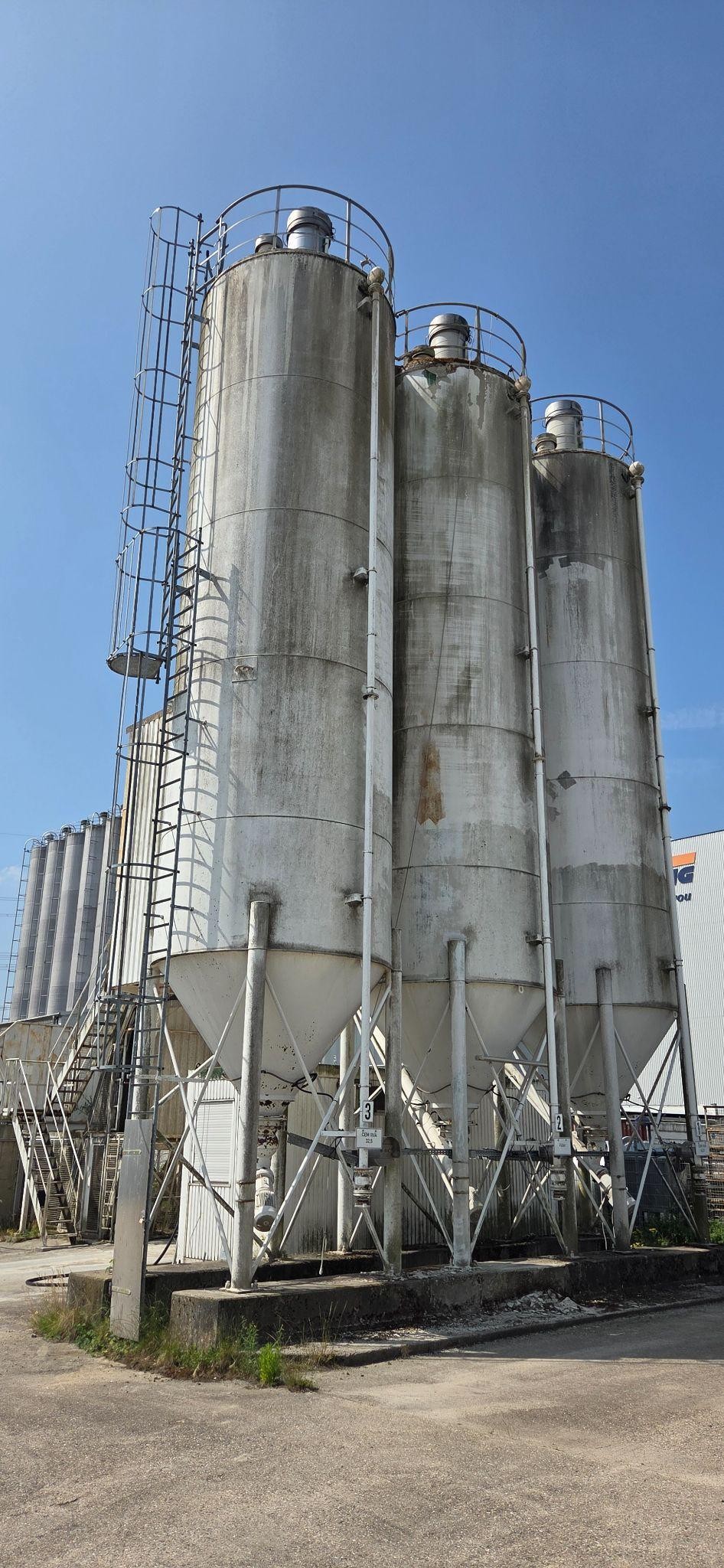

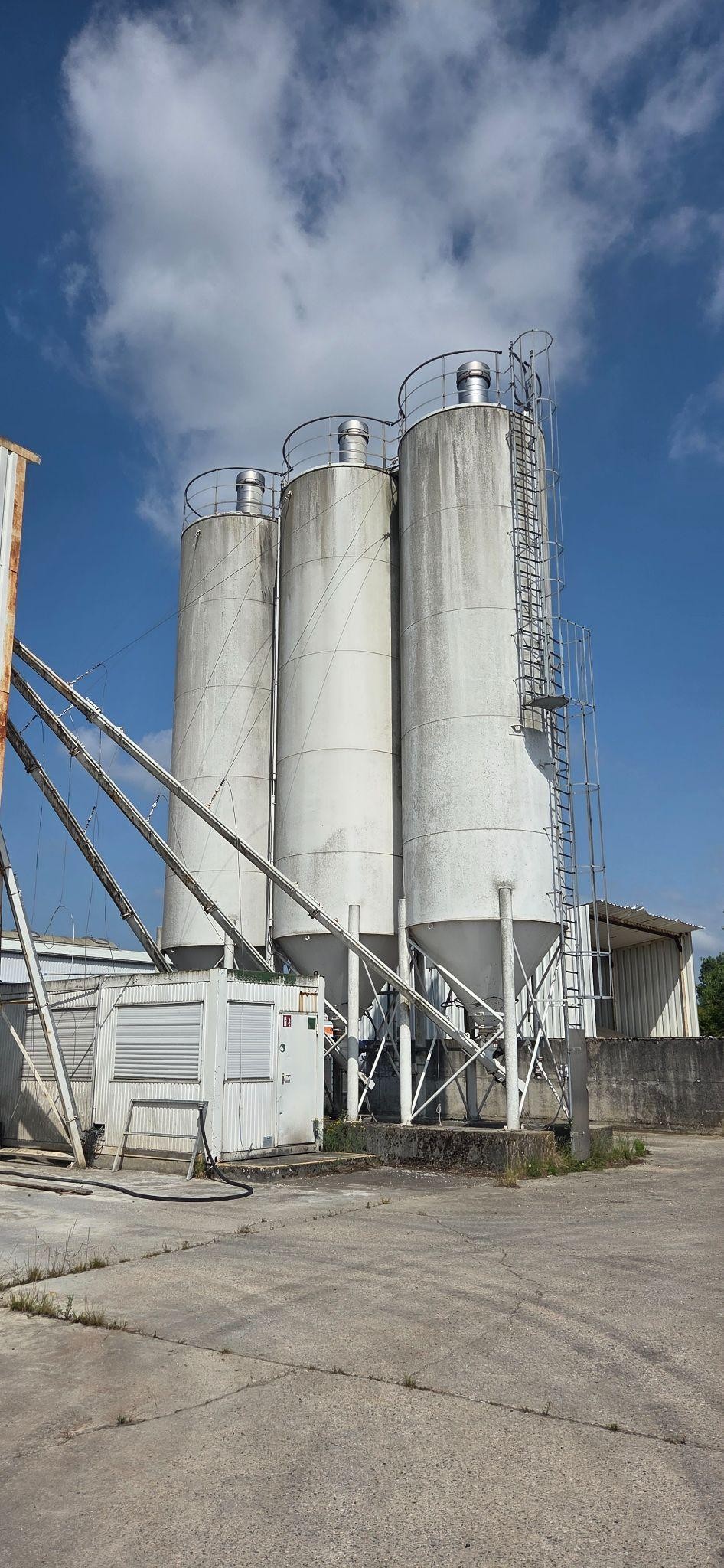

- Binder Storage:
- 3 vertical silos
- Each silo approx. 66 m³ (80t) at a density of 1.2 t/m³
- Dosing System:
- Aggregates: via weighbelt, 2500 kg
- Binder: via container scale, 500 kg
- Water: via container scale, 500 kg
- Additives:
- Two-chamber liquid additive scale, 2 × 12.5 liters, 25 kg total
- Mixing Equipment:
- 1 EMS 1000C single-shaft compulsory mixer
- Concrete discharge: 1,000 liters
- Discharge Height:
- For truck mixer and truck loading: 4.00 m

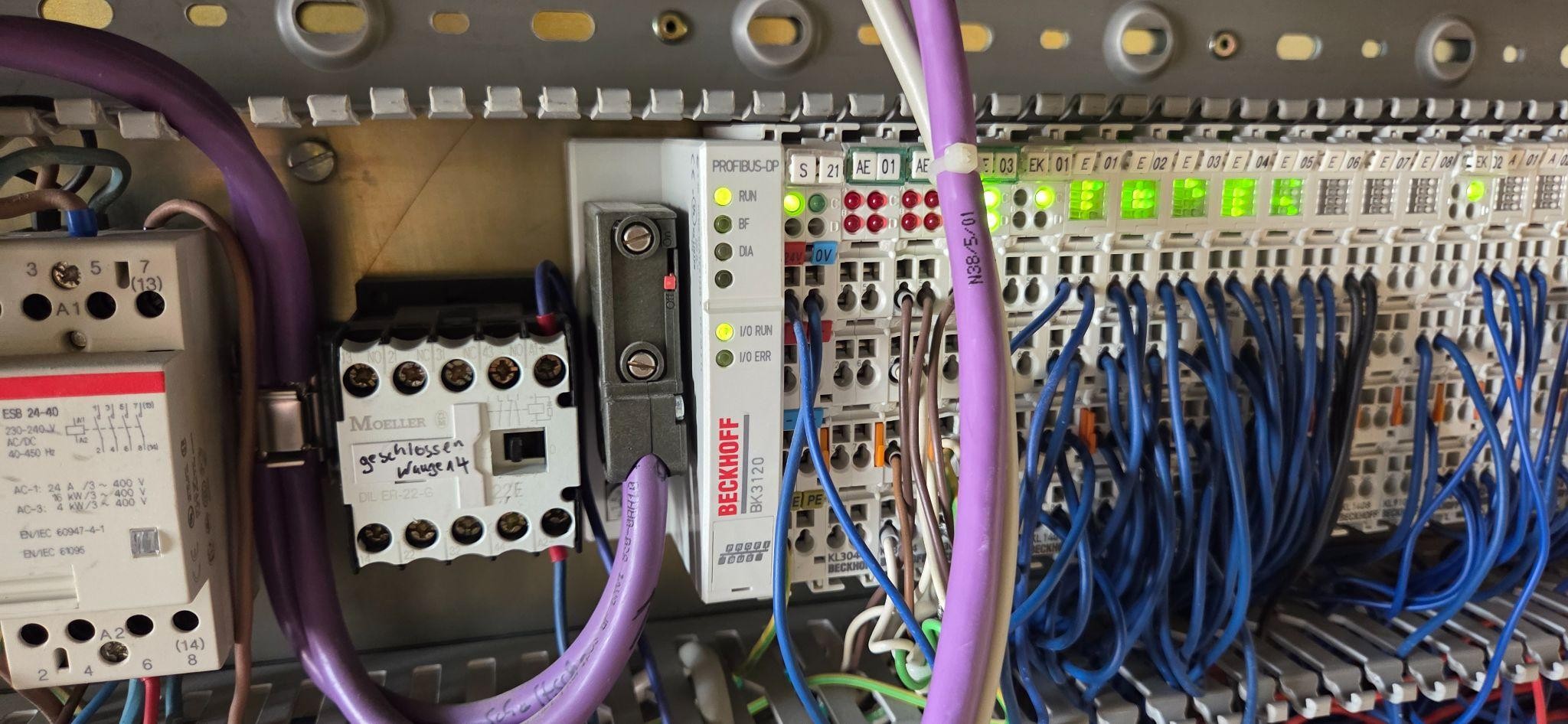

- Control System:
- Fully automatic with computer
- Operator container included
- Electrical supply: 400 V, 50 Hz, 3-phase, 104 A fuse
