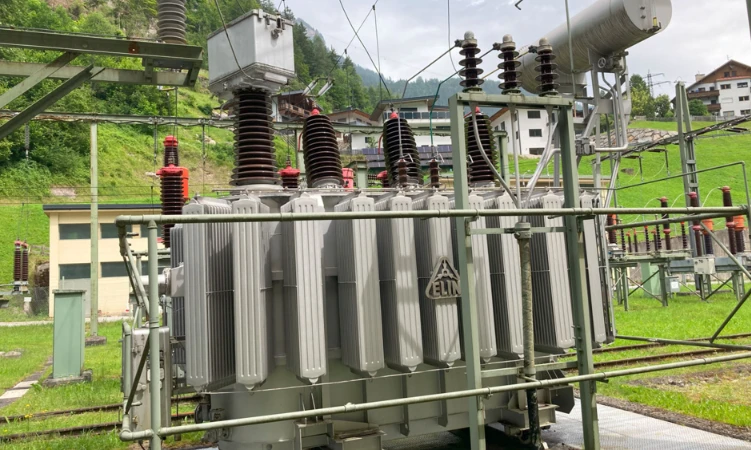

Leistungstransformatoren ELIN JDR 8000/110

Oil-Insulated Power Transformers for Sale

- Manufacturer: ELIN
- Model: JDR 8000/110
- Power Rating: 8 MVA
- High Voltage:
- 124.85 kV (Position 9)
- 110 kV (Position 0)
- 95.15 kV (Position -9)
- Low Voltage: 25 kV
- Current Rating:
- High Voltage: 37.5 A (Position 9), 42.0 A (Position 0), 47.7 A (Position -9)
- Low Voltage: 185 A
- Frequency: 50 Hz
- Cooling: ONAN
- Year of Manufacture: 1960
- Status: Out of service since early 2024
- Notable Condition: Low oil inhibitor content and specific resistance; otherwise, oil is in good condition. Oil treatment with inhibitor replenishment recommended.
