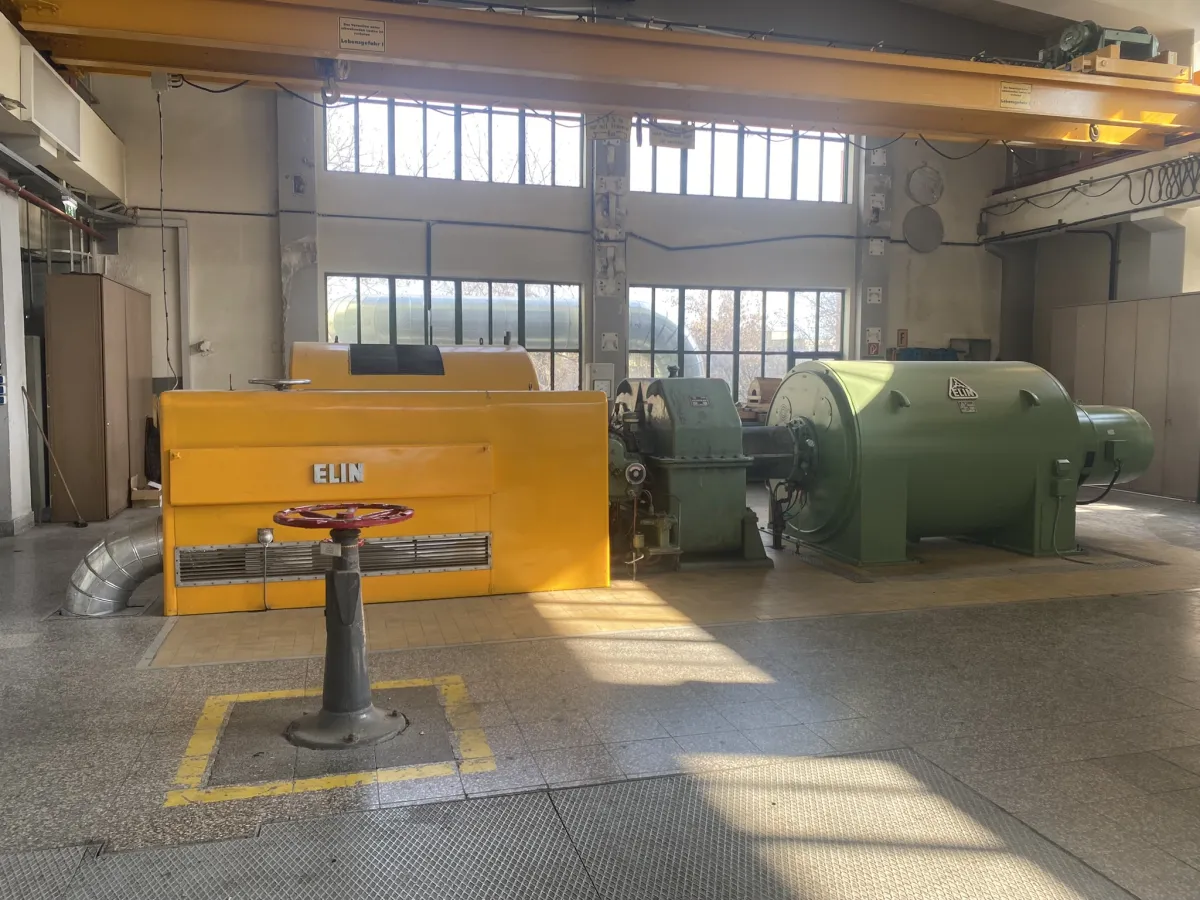

Elin KR 25 steam turbine and Boiler Turbinen

2x Tapping back-pressure turbine with spur gearbox

and generator

Nr1: Turbine Make: ELIN Type: KR 25

Rated power in relation to the generator terminals: 3800 kW

Speed: l0000 rpm

Steam inlet pressure max. : 37

Steam inlet temperature max. 44 degrees

Tapping pressure max. : 24

Tapping temperature : 390 degrees

Evaporation pressure : 2

Normal absorption capacity : 27 t/h

Maximum absorption capacity : 32 t/h

Gearbox

Make Voith, St.Pölten

Type D 64

Rated power: 5,700 HP

Speed 10 OOO/1 5oo rpm

Backpressure steam turbine + gearbox + synchronous generator incl. auxiliaries

Nr2: Turbine Make: ELIN Type: KR 25

Rated power in relation to

the generator terminals: 43oo kW

Speed: 9900 rpm

Steam inlet pressure max. 24 atü

Steam inlet temperature max. 42o 00

Exhaust steam pressure 2 ata

Normal absorption capacity 35 t/h

Maximum absorption capacity 35.7 t/h

Gearbox

Make BHS

Type RP 4ox

Rated power 65oo HP

Speed 99oo/15oo rpm

Generator

Make ELIN

Type Sv 85o x/4

Design B 3

Protection class p 33 r

Terminal power 538o kVA

cos y o,8

Voltage 525o V

Current 592 A

Speed 15oo rpm

The boiler is capable of providing the required steam for ONE turbine.

(customer to ensure broom-clean dismantling)

Maximum operating pressure: 44 bar(g)

Maximum operating temperature: 450°C

Fuel heat capacity (natural gas): 36 MW (round about 40 t/h steam)

The two burners and the associated control system were replaced in 2016.

The weight of the boiler can be estimated based on the dimensional drawings. Dismantling and reassembly would be extremely complex, as the boiler would need to be cut apart and welded back together on-site. It cannot be transported in one piece.
