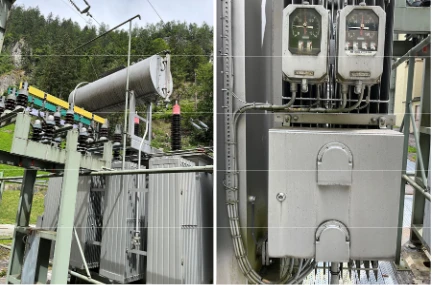

Leistungstransformatoren ELIN TDQ-164A11S9K-99

Oil-Insulated Power Transformers for Sale

Transformer 1

- Manufacturer: ELIN
- Model: TDQ-164A11S9K-99
- Power Rating: 15 MVA
- High Voltage:
- 121.5 kV (Position 0)
- 118.463 kV (Position -1)
- 115.425 kV (Position -2)
- Low Voltage: 6.3 kV
- Current Rating:
- High Voltage: 71.3 A (Position 0), 73.1 A (Position -1), 75.05 A (Position -2)
- Low Voltage: 1375 A
- Frequency: 50 Hz
- Cooling: ONAN
- Year of Manufacture: 1994
- Status: Out of service since 2022
- Notable Condition: Relatively high CO levels (due to oxidation); insufficient oil inhibitor content. Oil treatment with inhibitor replenishment recommended.

Find more here - /

Contact us at -
Verkäufer Angebot Nr. resale 6210333
