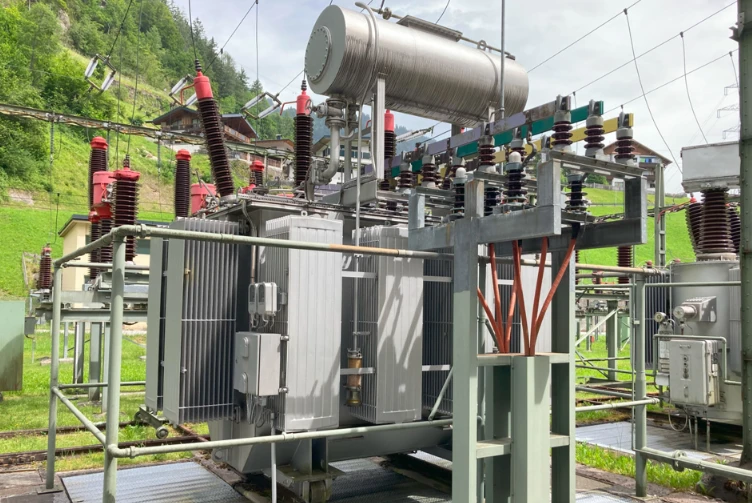

Leistungstransformatoren ELIN TDY-164A11S9K-99

Oil-Insulated Power Transformers for Sale

Manufacturer: ELIN

Model: TDY-164A11S9K-99

Power Rating: 15 MVA

High Voltage:

- 121.5 kV (Position 0)
- 118.463 kV (Position -1)
- 115.425 kV (Position -2)

Low Voltage: 6.3 kV

Current Rating:

- High Voltage: 71.3 A (Position 0), 73.1 A (Position -1), 75.05 A (Position -2)
- Low Voltage: 1375 A

Frequency: 50 Hz

Cooling: ONAN

Year of Manufacture: 1993

Status: In operation until 2025

Notable Condition: High CO levels, insufficient oil inhibitor content. Oil treatment with inhibitor replenishment recommended.
