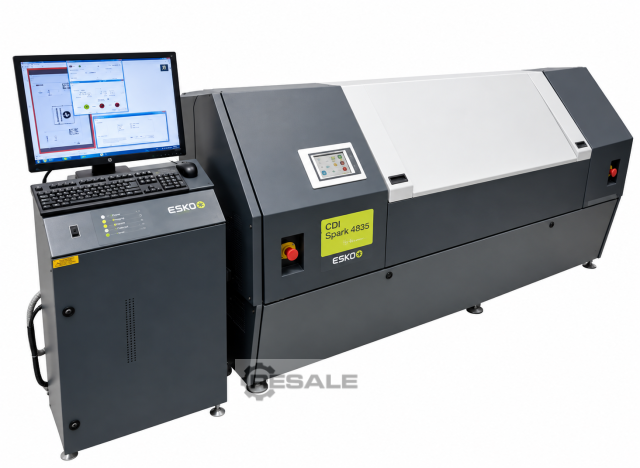

CTP Systeme ESKO CDI Spark 4835 Optics 15

Technical specifications:
Data format: TIFF or LEN
Maximum supported plate size: 1200 × 900 × 1.14 mm
Imaging resolution: 2000–4000 ppi

Optics: R Optics
Maximum screen ruling: 200 lpi
Tonal range: 1–99%
Optics configuration: Optics 15
Productivity: 1.5 m²/h
Dimensions & Weight:
Width: 2090 mm
Depth: 1168 mm
Height: 1223 mm
Weight: approx.1500 kg
Electrical Data:
Power supply: 1/N/PE, 220–240 V AC
Frequency: 50/60 Hz
Power consumption: 2.6 kW
Building fuse: 16 A
Residual current protection: >30 mA
Grounding required
Included Equipment:
• Exhaust system
• Vacuum pump
• Compressor
• Monitor
• Keyboard
• Mouse
• Built-in software
