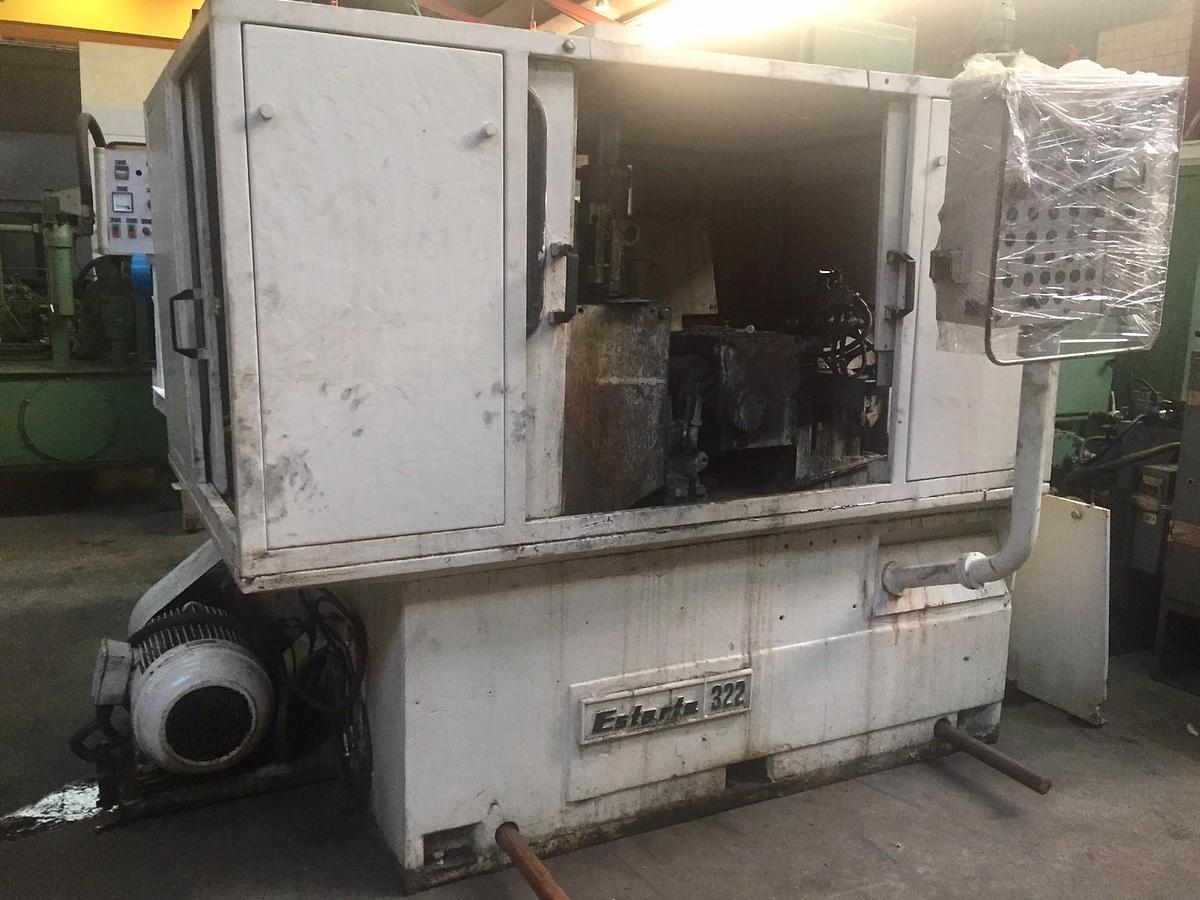

Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm,
Grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø
min / max to grinding: 1.5 / 120 mm, Ø min/max to be rectified: 1.5 /
120 mm, Regulating wheel width: 254 mm, No. of regulating wheel
speeds: Infinite, Regulating wheel speed nº: Infinite, Min/max speed
of regulating wheel (r.p.m.): 10/250 rpm, Min / max regulating wheel
speed (r.p.m.): 10/250 r.p.m., Dimensions of the regulating wheel (OD
x ID x W): 305 x 190.5 x 254 mm, Regulating wheel dimensions (od x id
x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum
infeed grinding length: 254 mm, Maximum length to be rectified in
plongeé: 254 mm, Power hydraulic motor: 0.55 Kw., Hydraulic motor
power: 0.55 Kw., Total power: 27 Kw., Voltage: 220/380V, Long: 1.800
mm, Width: 2.800 mm, High: 1.900 mm, Tall: 1.900 mm, Weight: 6.420 Kg.
Spanien
fuente de cantos
