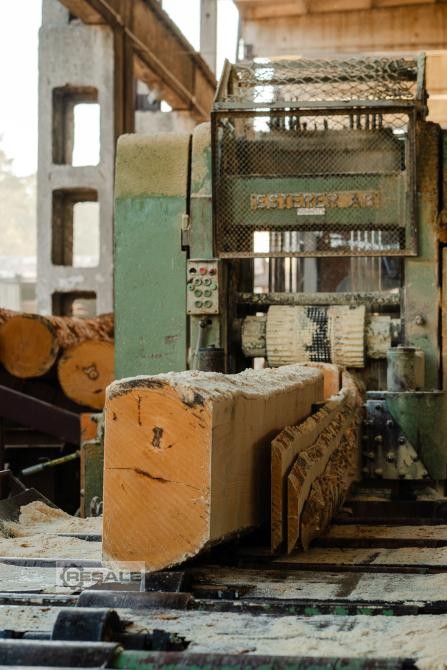

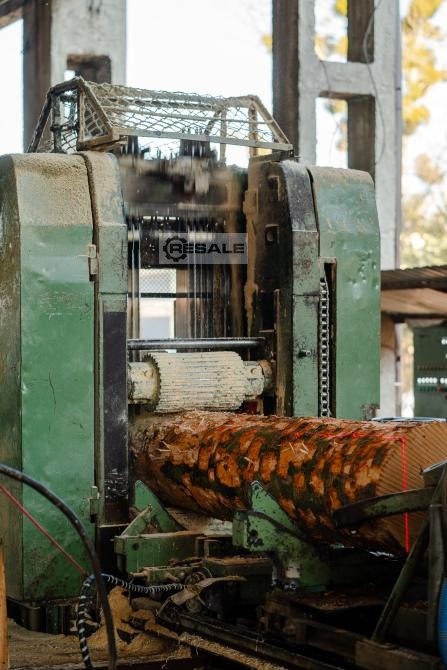

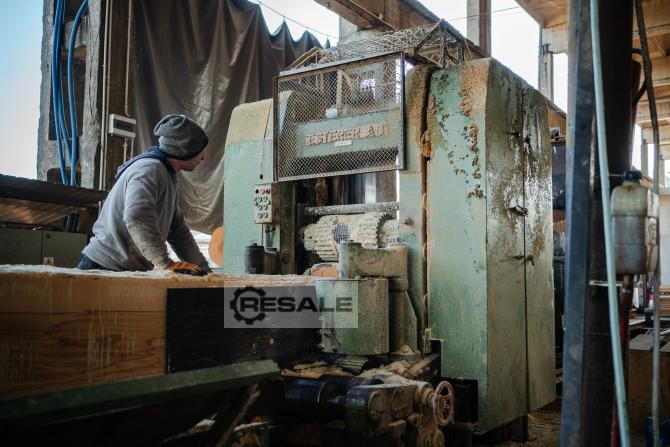

ESTERER HDN 600

Complete Esterer timber sawing line with an HDN 600 frame saw, equipped with a Massenausgleicher (mass balancing system) for reducing vibrations and compensating the inertia forces of the saw frame. The line includes infeed and outfeed handling equipment, roller and timber guiding systems, hydraulic systems, and electric drives. Designed for high-performance industrial processing of logs.
Technical Data – Esterer HDN 600 Sawmill Line

Manufacturer: Esterer / EWD, Germany
Model: HDN 600
Machine type: High-performance oscillating frame sash gang
Stroke: 600 mm
Sash / passage width: approx. 730–735 mm
Sash clearance height: approx. 700–710 mm
Maximum speed: approx. 310 rpm
Feed speed: up to approx. 15 m/min

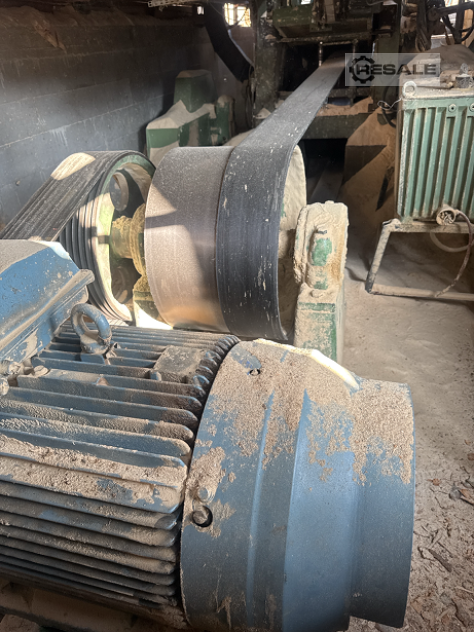

Main drive power: 75 kW
Machine weight: approx. 12,000 kg
Feed system: hydraulic, continuously adjustable
Automatic overhang adjustment
Hydraulic saw tensioning system

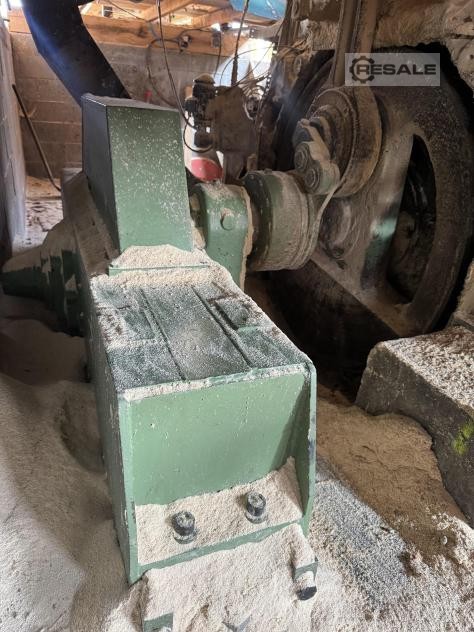

Mass balancing system (Massenausgleicher): included
Mass balancer drive: separate electric drive

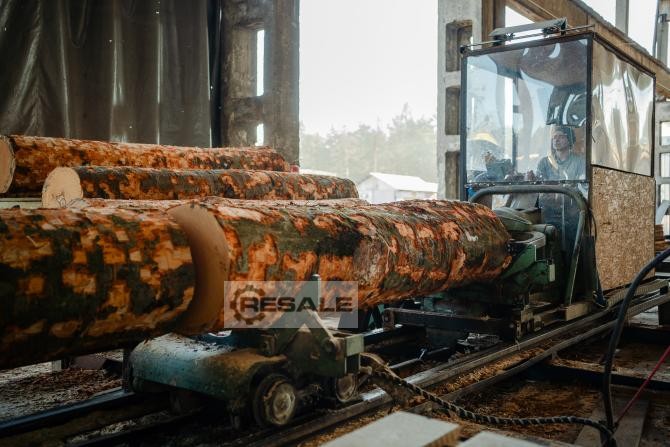

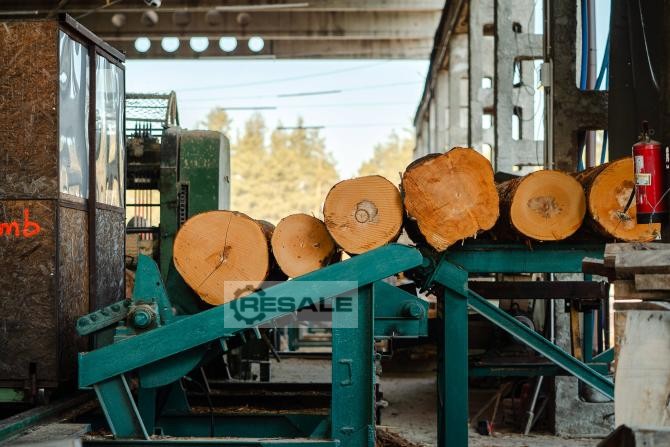

Infeed system: included

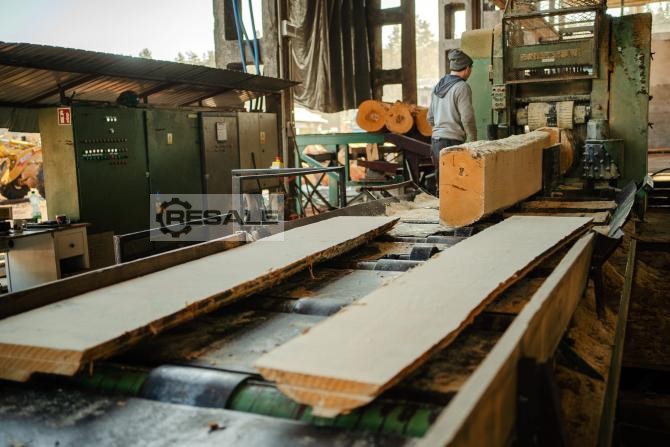

Outfeed / roller conveyor system: included
Hydraulic system: included
Electrical drives: included
Complete sawmill mechanization: included
Verkäufer Angebot Nr. resale 170279563
