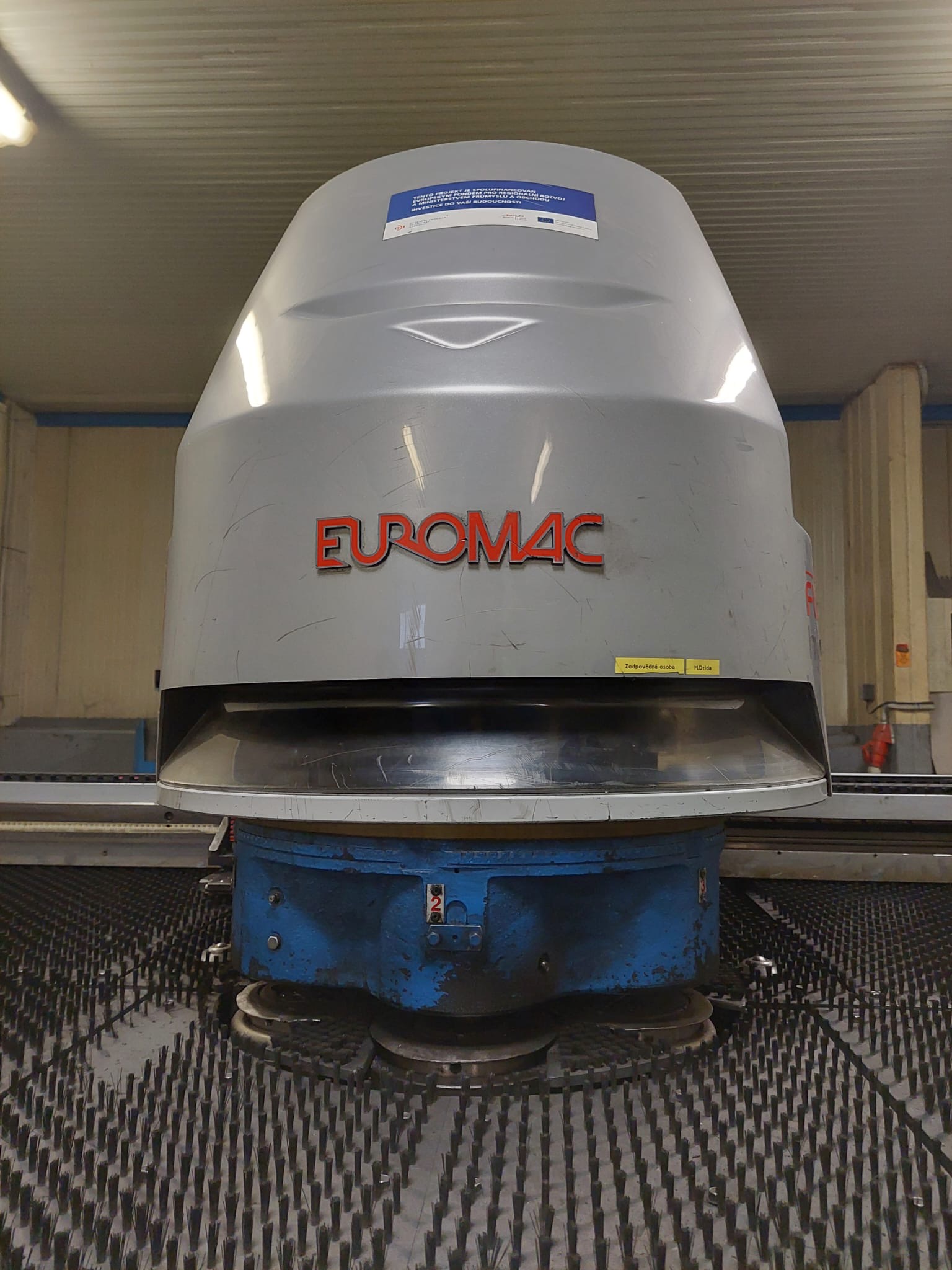

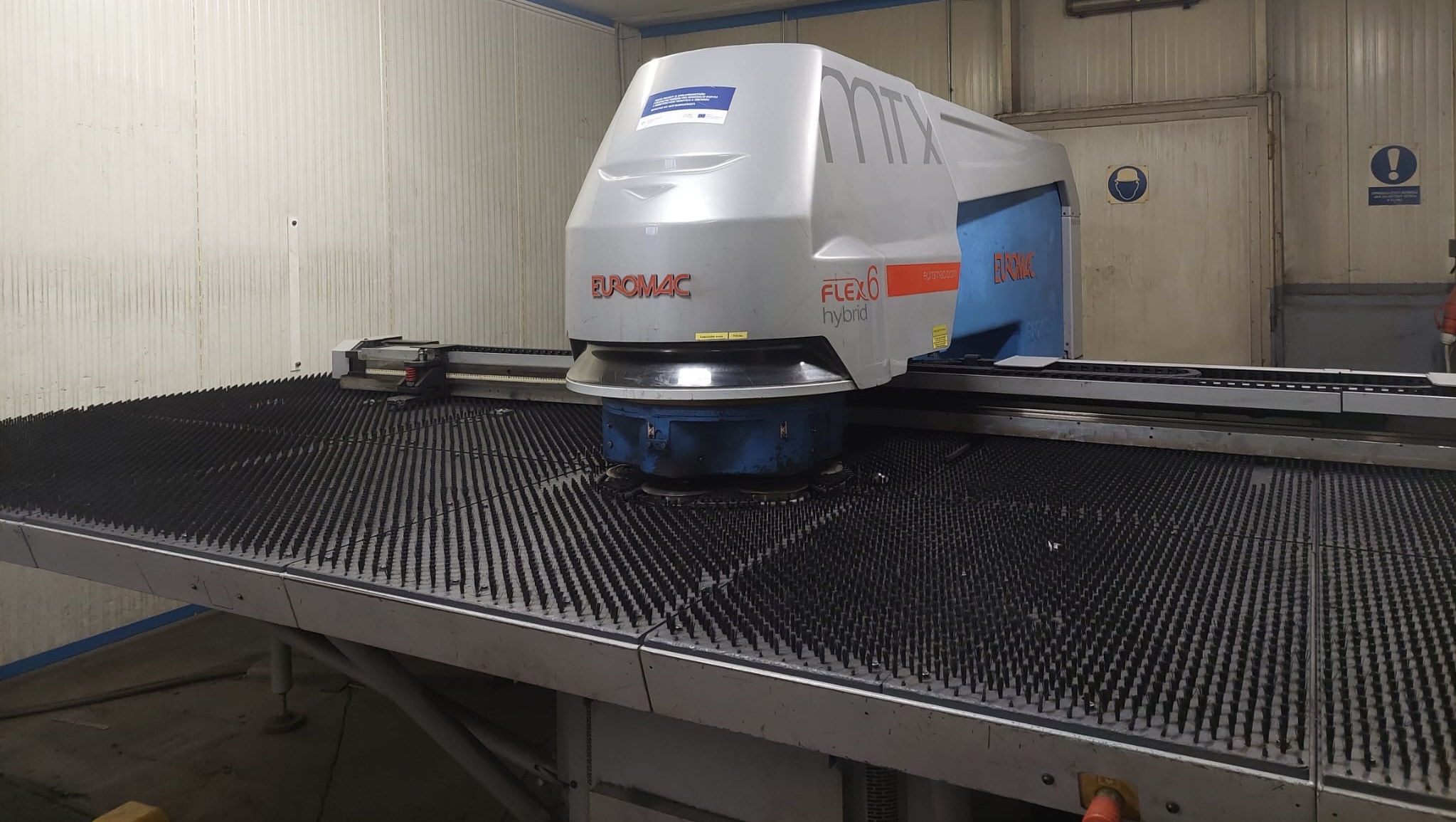

2014 EUROMAC MTX
Punching machine
Type: MTX
Manufacturer: Euromac
Year: 2014
Pressing force 300 kN (30 t)
Tools A, B, C, D

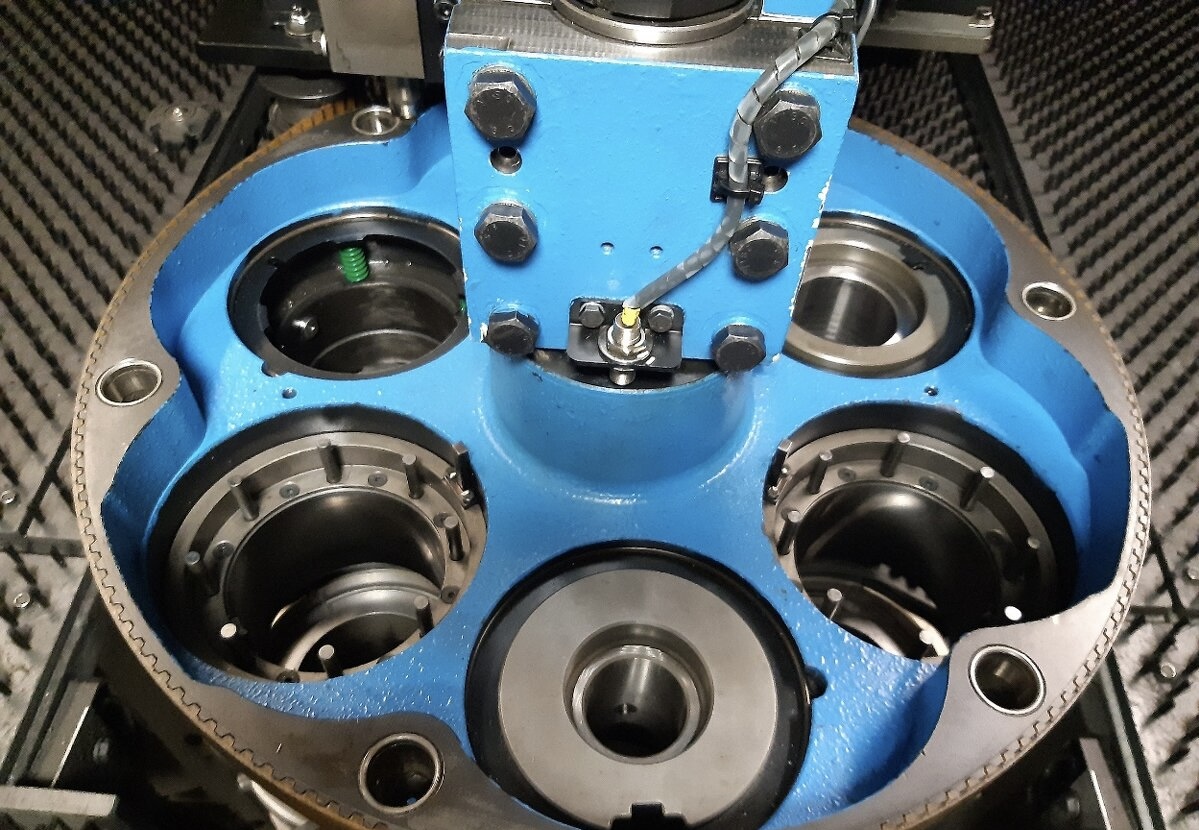

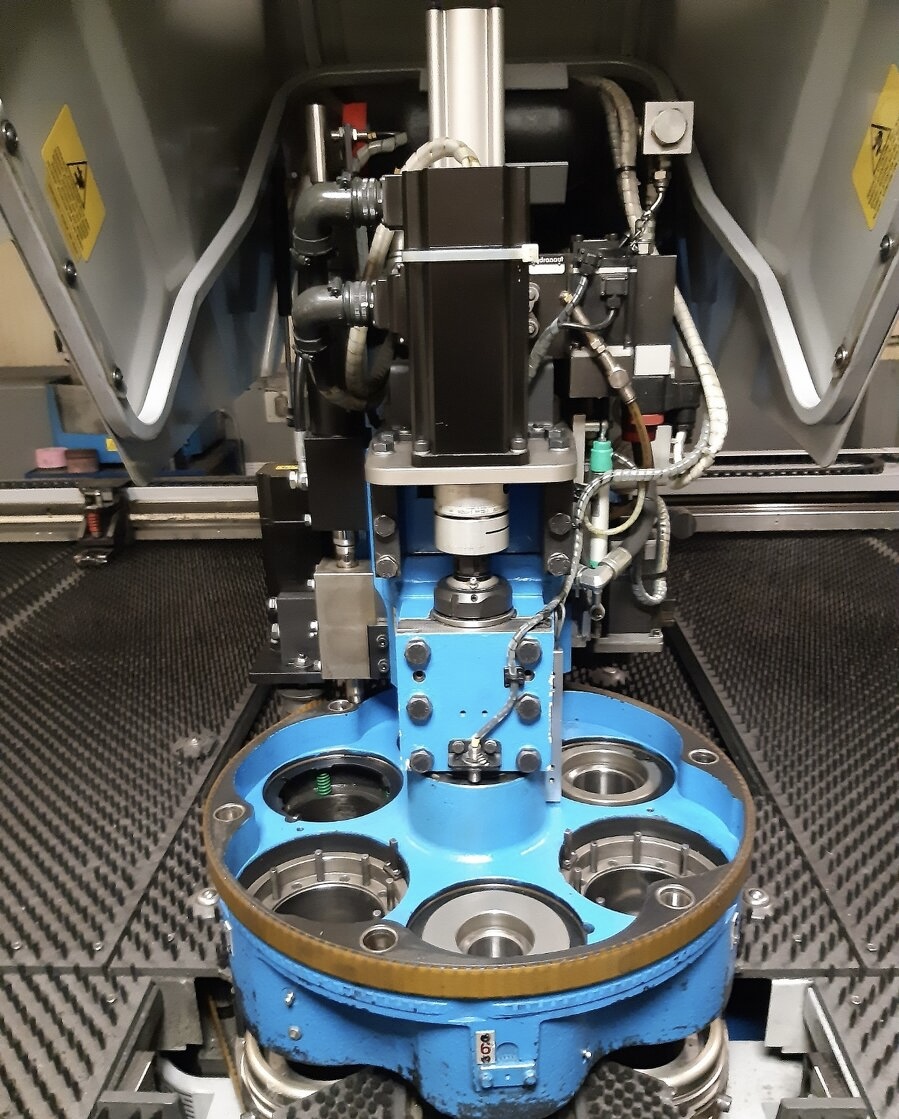

Number of stations in the turret 6 (size D)
Number of rotary stations 3
Max. number of tools 60of which rotary ones - continuously 360° 30
Maximum punch diameter (size D) – separate 81 mm
The maximum diameter of the punch in the magazine XMTE4M 4 x 31.7
mm
The maximum diameter of the punch in the magazine XMTE6M 6 x 24.0
mm
The maximum diameter of the punch in the magazine XMTE10M 2 x 24, 8 x
12.7 mm
Working range in the Y axis (with Multitool) 1300 mm
Working range in the Y axis (single tool) 1250 mm
Working range in the X axis (with Multitool) 2550 mm
Numerically controlled stroke depth 0.1 – 31 mm
Automatic repositioning of clamps in the X axis up to 10,000 mm
Max. positioning speed in the Y+X axis 80 m/min.
Axis acceleration 10 m/sec²
Number of strokes – ( step 1.0mm ) 1000/minUSB port 6
Weight 7800 kg
Max. jaw opening 11 mm
Max. stroke 31 mm
Power supply 3 x 400 V/50 Hz
Machine power 8.5 kW
Average consumption 4.5 kW
Positioning accuracy 0.05 mm
Repetitive accuracy during forming 0.10 mm
Maximum sheet weight 200 kg
The maximum positioning speed can be used up to a board weight of 80
kg.
Speed reduction to 50% for weights from 100 to 200 kg.
Pneumatic connection 6 1 bar
Air consumption 0.1 Nm/h
Oil filling for the hydraulic system - hydraulic oil 135 l
Dimensions of the machine – 3630x4840x1900 mm
The machine also includes SW RADAN for creating NC code, or production
programming directly on the machine.
Rotary heads and various die-cutting tools are also available for the
machine.
In very good condition, under power.
