Manufacturer: Eurotherm
Year of Manufacture: 2019
Type of Machine : Manual Wash Booth with Automatic Spray Ring
Condition: Good, regularly maintained (once per year)
Cabin Dimensions
- Internal Width: 4,000 mm
- Internal Length: 7,000 mm
- Internal Height: 3,500 mm
- External Width: 4,100 mm
- External Depth: 7,100 mm
- External Height: 4,100 mm (double base tray)
Construction
- Cabin Type: Closed
- Exhaust Air: Extraction at end of cabin
- Panel Thickness: 50 mm with polyurethane insulation
- Inner Walls: Stainless steel AISI 304 (V2A)
- Outer Walls: Galvanized sheet metal, painted
- Steel Profiles: Blue RAL 5002
- Access Door: 1 door, manual 4-leaf type, 4,000 x 3,500 mm, Blue RAL
5002
Exhaust and Ventilation
- Air Flow Rate: 10,000 m3/h
- Fan Motor Output: 1.5 kW
- Droplet Separator: Yes

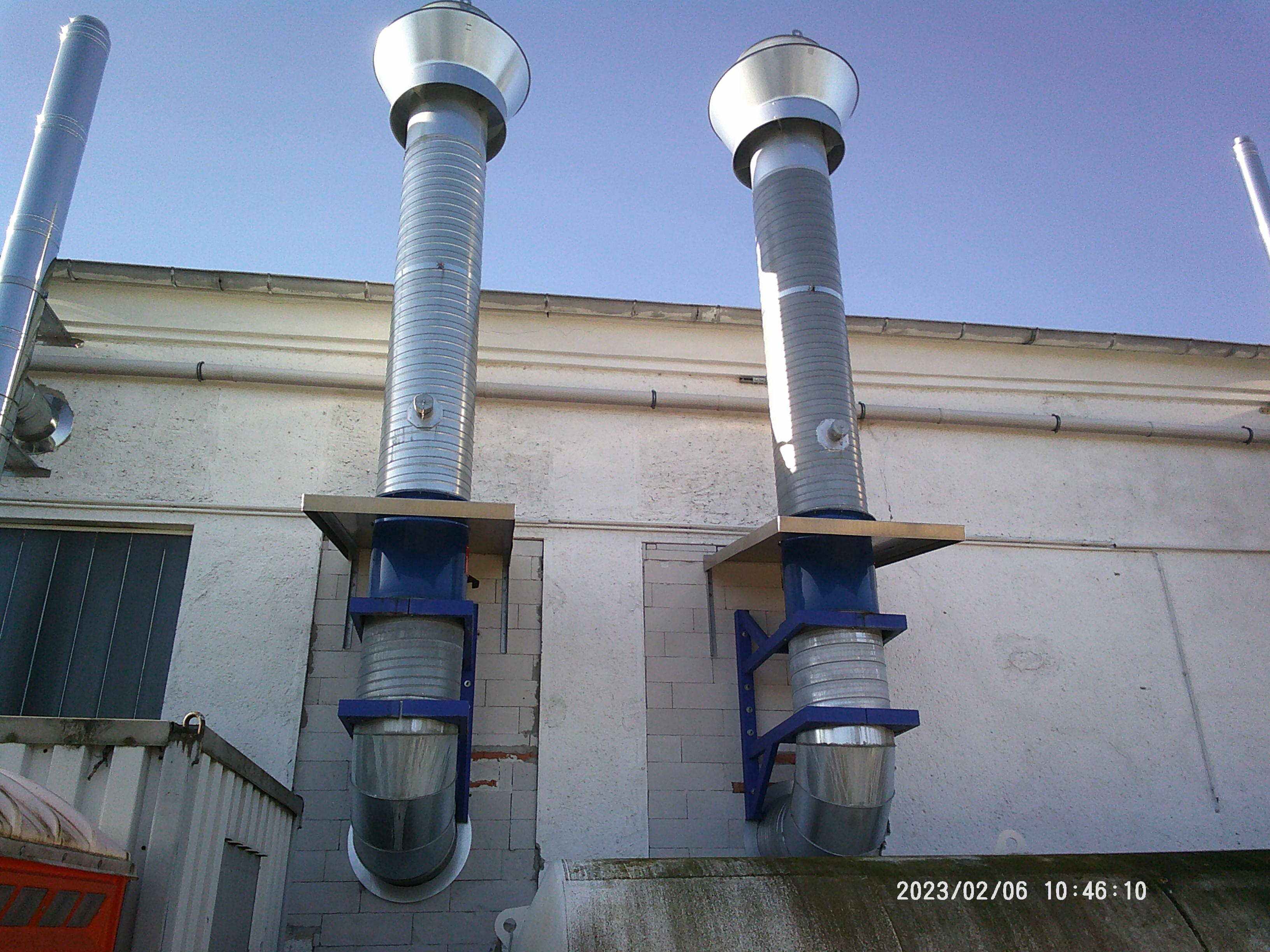

- Chimney: Included, height 6.5 m
- Lighting: 8 LED fixtures
Automatic Spray Ring
- Maximum Workpiece Width: 1,000 mm
- Maximum Workpiece Length: 5,200 mm
- Maximum Workpiece Height: 2,100 mm
- Spray Ring Material: Stainless steel AISI 304 (V2A)
5-Phase Washing Cycle
- Phase 1: Degreasing with alkaline cleaning (manual and automatic
spray ring)
- Phase 2: Rinse 1 with mains water (manual and automatic spray
ring)
- Phase 3: Rinse 2 with osmosis water (manual and automatic spray
ring)
- Phase 4: Rinse 3 with passivation (manual and automatic spray
ring)
- Phase 5: Rinse 4 with osmosis water (manual and automatic spray
ring)

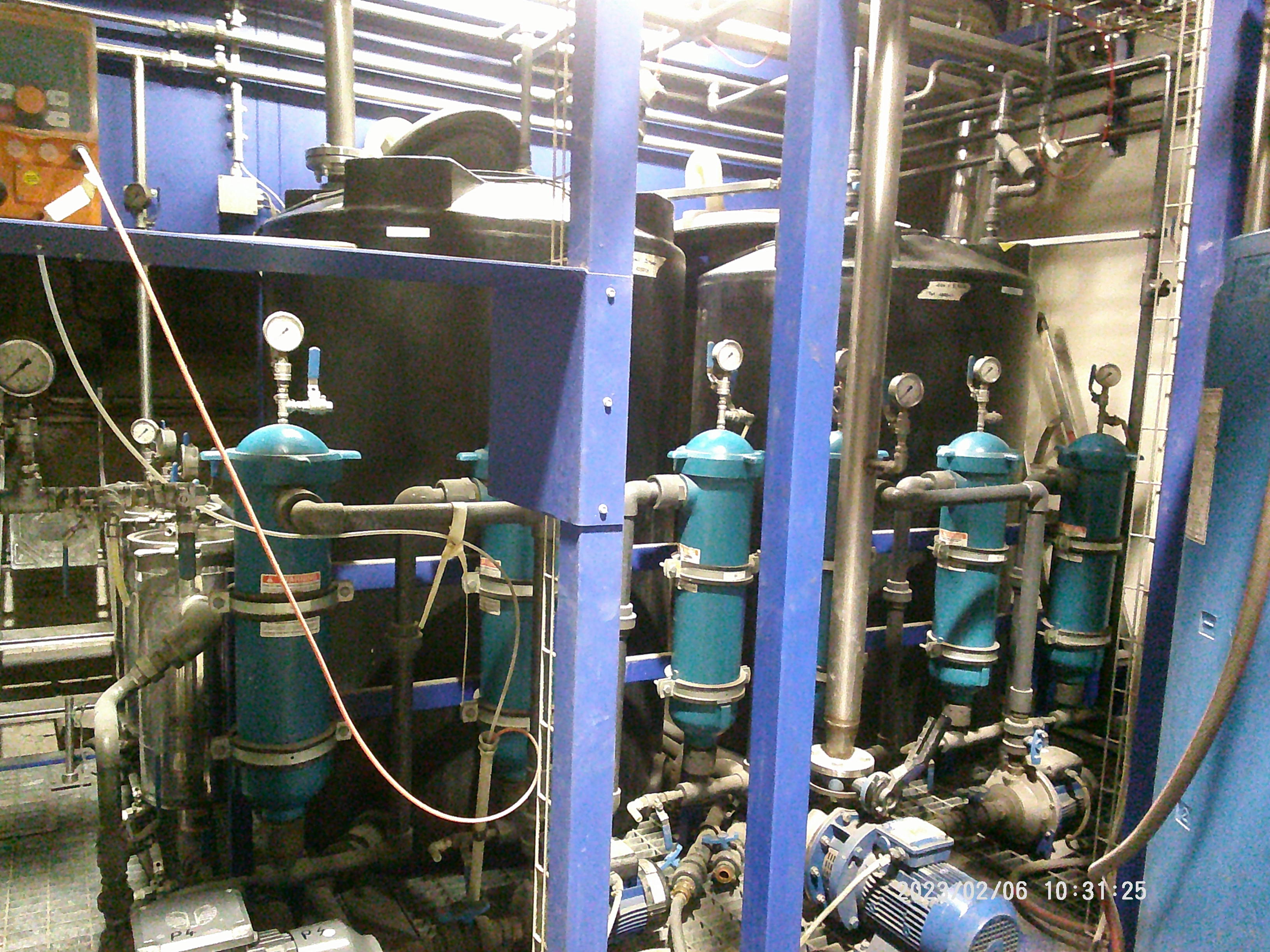

Tank Filter System
- Tank 1: Stainless steel AISI 304 (V2A), heated and insulated, gas
burner heating
- Tanks 2, 3 and 4: Polyethylene
- Filter system: Yes
- Diaphragm pump: Yes
- Circulation pump: Yes
- Storage unit with collection tank: Yes

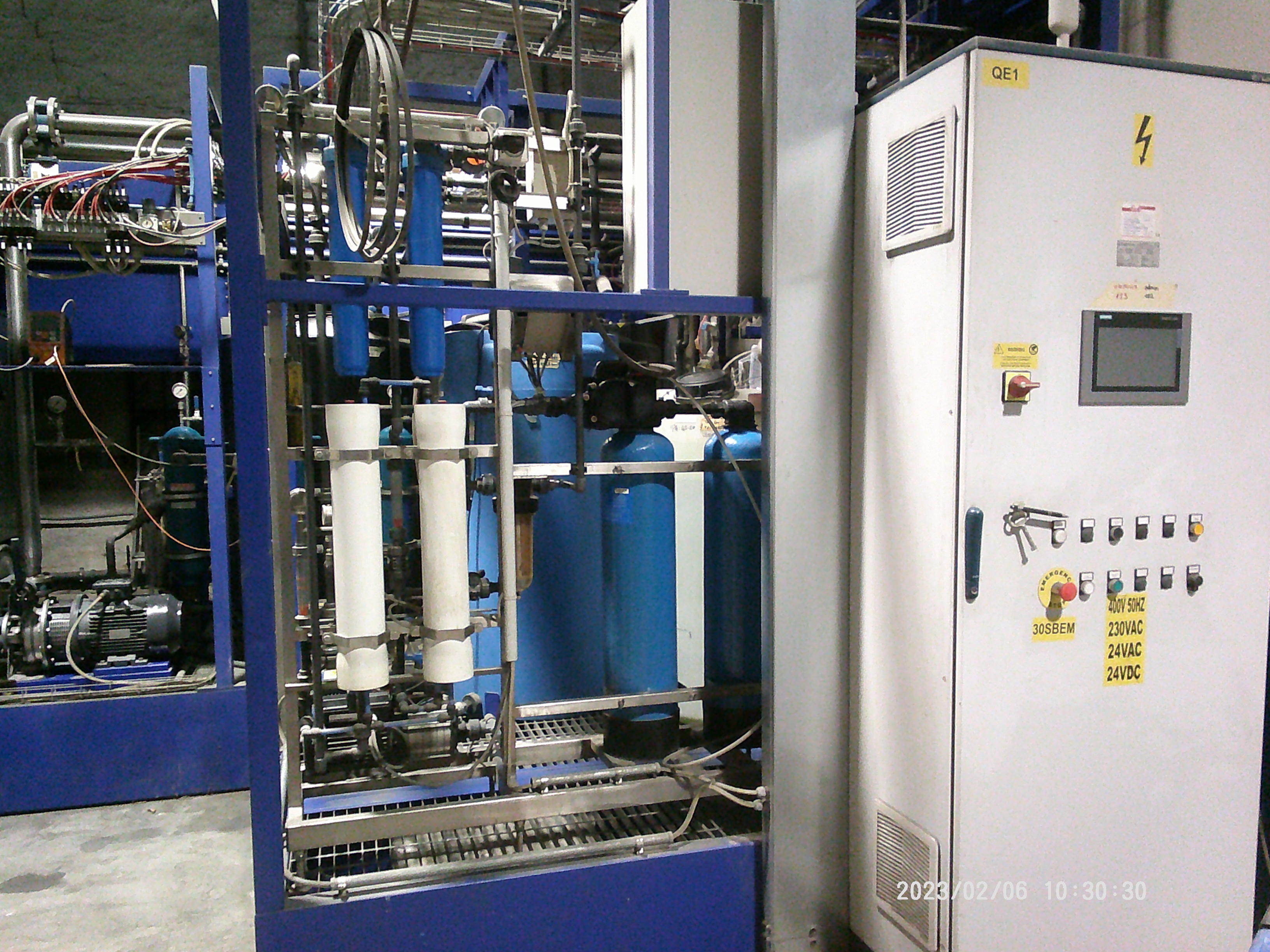

- Control cabinet: Yes
- Electrical circuit: Yes
- Hydraulic circuit: Yes
