Tischlänge:3000 mm
Tischbreite:1500 mm
Laserleistung in Watt:2500 W

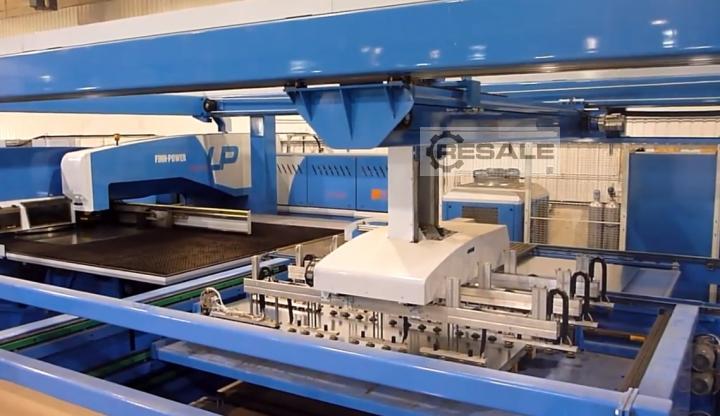

FINN POWER LPe6 laser turret punching machine
FINN-POWER LPe6 laser punching machine
The machine is equipped with a turret with twenty tool stations,
including one Multitool MT24/8 and a laser cutting head. The machine
has an LST unloading and loading device for a sheet with dimensions of
max. 3000x1500 mm. And a UD scrap unloading device.
The machines are in very good technical condition and still work in
their original place. You can do an inspection and tests.
If you are interested, do not hesitate to contact me. I will send
additional information and photos.
Finn-Power LPe6 Laser Punching Machine Equipment:
- Turret: 20 stations
- Sheet metal loading system
- Rofinn DC resonator with 2.5 kW power
- Siemens Sinumerik 840D + Twincat CNC control with touch screen
Finn-Power LP6 Punching Machine Technical Parameters:
- Punching force: 300 kN ram driven by electric motor
- Punching method: mechanical
- Punching depth adjustment: digital - programmable
- Ram speed adjustment: programmable
- Number of stations in the turret: 20 pcs.
- Tools: Thick Turret
- Max. punch diameter: 89 mm
CNC rotary tools:
- Number of standard rotary stations: 5 pcs. (max. 10 pcs.)
- Max. Punch diameter: 89 mm
- Max. rotation speed: 58 rpm
- Max. material thickness punching and laser cutting
- Steel: 8 mm
- Stainless steel: 6 mm
- Aluminum: 6 mm
- Min. material thickness: 0.5 mm
- Max. sheet weight (1): 200 kg
- Pneumatic clamps, 4 pcs. 3 with sheet presence sensors, fourth
without sensor
- Automatically programmable sheet clamps
- Max. sheet size (X x Y): 3061 mm x 1528 mm
- X-axis travel: 2584 mm (X-42 ... X2542)
- Y-axis travel: 1560 mm (Y-25 ... Y1535)
- Max. X-axis feed speed: 80 m/min
- Max. Y-axis feed speed: 60 m/min
- Max. cross speed: 100 m/min
- Max. punch stroke speed (2):
Nibble (1...3 mm) 900 1/min
- Distance between holes: 25 mm 400 1/min
- Distance between holes: 250 mm 150 1/min
Punching accuracy according to LKP-7300 (3):
- Max. hole position deviation (X/Y axes): 0.1 mm
- Max. hole/hole distance deviation (X/Y axes): +/- 0.05 mm
- Max. angular deviation (CNC Index tool): +/- 0.1°
Positioning accuracy according to VDI/DGQ 3441(4):
- Position deviation Pa (X/Y axes): 0.08 mm (+/- 0.04 mm)
- Spread deviation Ps (X/Y axes): 0.04 mm (+/- 0.02 mm)
- Turret rotation: 30 r/min
- Tool change time: 1 ... 3 s
Work chute, max. element size (5):
- Laser cut elements (X x Y): 1. chute 300 mm x 400 mm, 2. chute 800
mm x 800 mm
- chute from the punching machine 350x350mm
CNC control Siemens Sinumerik 840D with touch screen
- Program memory: 1500 kB
- Graphic interface Touch screen, WindowsXP
- Total weight: 13000 kg
- Power supply, total, max.: 90 - 105 kVA
- Fuses: 3 x 100 A
- Average power consumption: 30 kW
- Compressed air consumption: max. 5 Nl/s
- Air pressure: min. 6 bar
