CNC Bearbeitungszentren FORMAT 4 PROFIT H 22

Excellent condition - Fully operational - Loading / Transport possible!

- total connected load 20 kW
- travel X 3550 mm, Y 1680 mm, Z 275 mm
- travel speed X 80 m/min, Y 80 m/min, Z 20 m/min
- 2 pick-up places for aggregates
- 18-fold plate changer

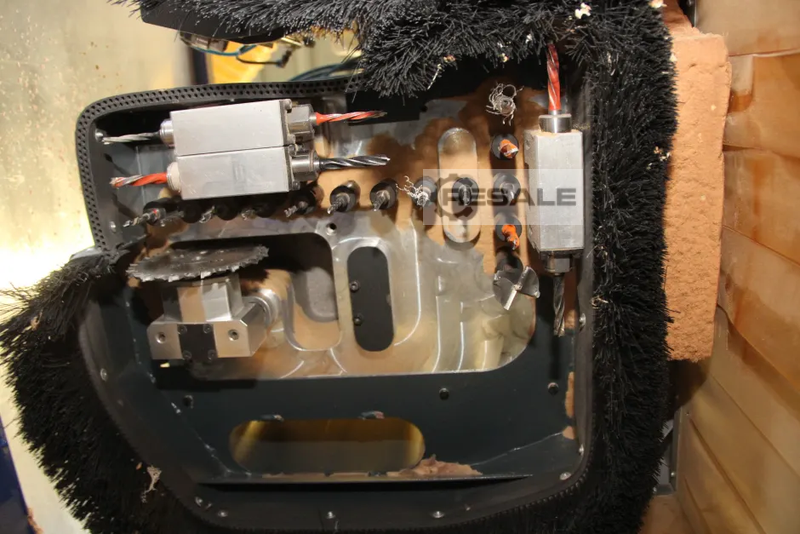

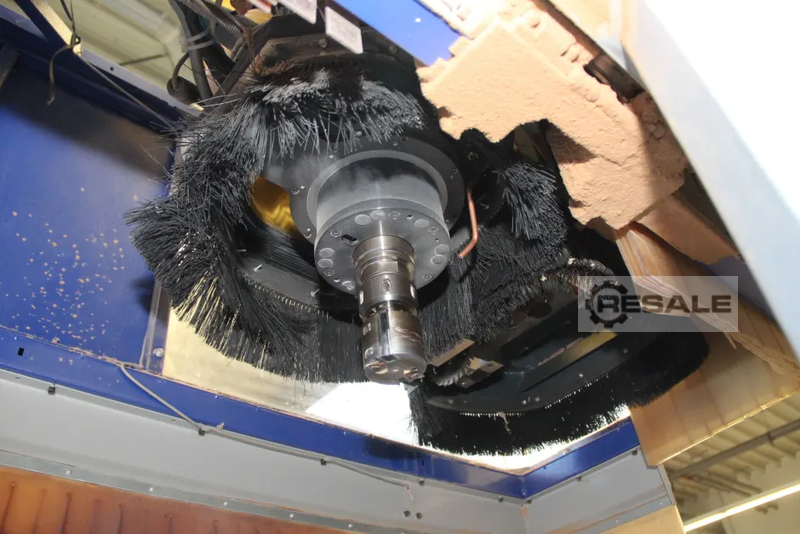

- main milling spindle with C-axis HSK 63 F tool holder
- milling spindle power 9 kW
- additional heavy boring gear horizontal in Y-axis
- swivelling grooving saw
- 5 vertical drilling spindles in Y-axis
- 10 vertical drilling spindles in X-axis
- 2 + 2 horizontal drilling spindles in X-axis
- 1 + 1 horizontal drilling spindles in Y-axis
- safety fence left/right
- 6 consoles depth approx. 1300 mm
- various vacuum clamps
- working area X 3060 mm
- working area Y 1210 mm front fence row
- 1working area 260 mm rear fence row, set 100 mm
- laser positioning for vacuum clamp

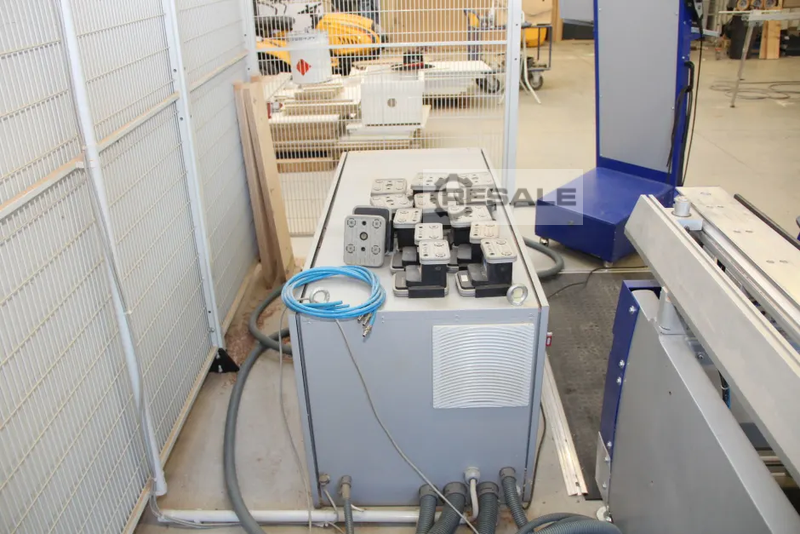

- vacuum pump BECKER PICCHIO 2200
- YOM 2009
- max. vacuum performance 100 m³/h
- motor 1.8/2.5 kW
Verkäufer Angebot Nr. resale 169369520
