Used GAI 3031FE-BIER-003 filling line - 3000 BPHTechnical
Specifications & Performance DataThis used bottling line is an
automatic GAI monoblock filling and labeling solution designed for
beer and craft brewery production. Manufactured in 2017, the line
combines rinsing, isobaric filling, crown capping and self-adhesive
labeling for glass bottle handling in an integrated industrial
packaging configuration.Manufacturer: GAI Macchine Imbottigliatrici
S.p.A.Monoblock model: 3031FE-BIER-003Labeling unit: GAI 6013Year:
2017Production capacity: 3,000 bphFormats: 0.33L, 0.5L and 0.75L glass
bottlesFilling configuration: 12 electropneumatic isobaric filling
valvesRinsing configuration: 12 grippersOperating hours: 730 hours
recorded by the PLC counterThe supplied change parts support 0.75L
long-neck glass bottles in addition to the tested 0.33L and 0.5L
formats. The crown-cap neck tube is configured for 26.5 x 6.65 mm,
with a conversion kit included for 26.5 x 5.9 mm.Advanced Automation &
Control SystemsThe line is equipped with a 10 touch-panel PLC
interface with English HMI, providing centralized operator access to
machine functions. The electrical cabinet is prepared for
teleassistance, supporting remote technical connectivity where
required. Electrical supply is 400V, 3-phase, 50Hz.10 touch-panel PLC
control interfaceEnglish-language HMIControl cabinet prepared for
teleassistance400V / 3-phase / 50Hz electrical supplyCapsule presence
detector at the capping stationProduction Line Integration
CapabilitiesThis second hand bottling equipment integrates the key
bottle-processing stages required for beer production: bottle rinsing,
pressure filling, crown capping, labeling, conveying and accumulation.

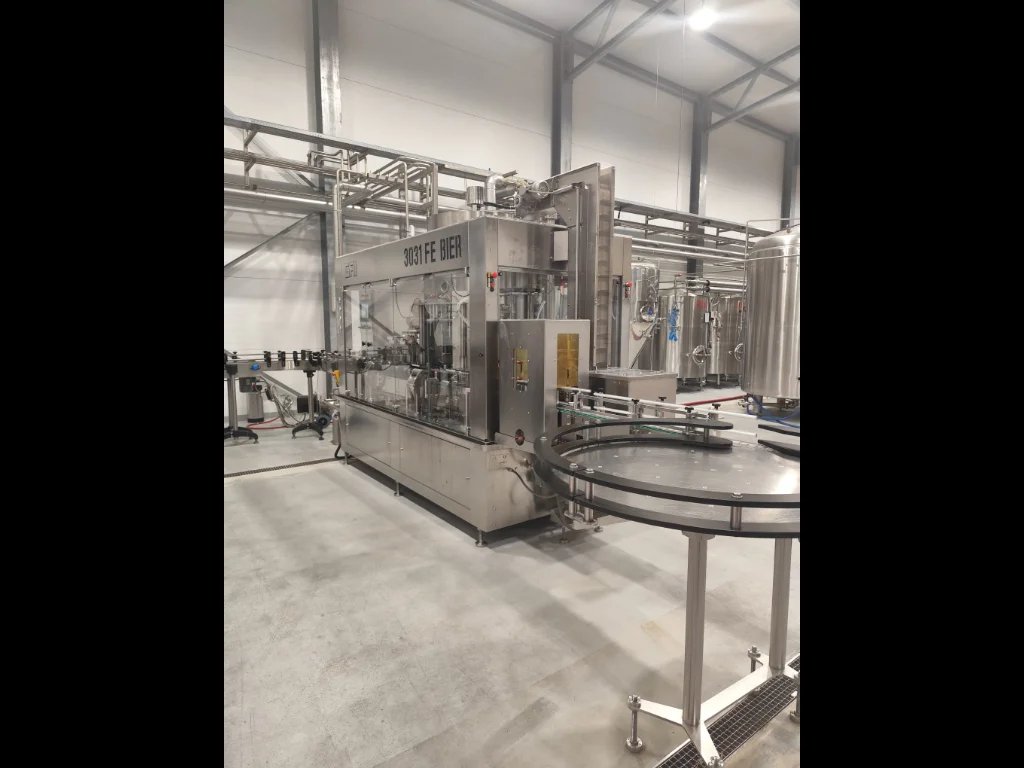

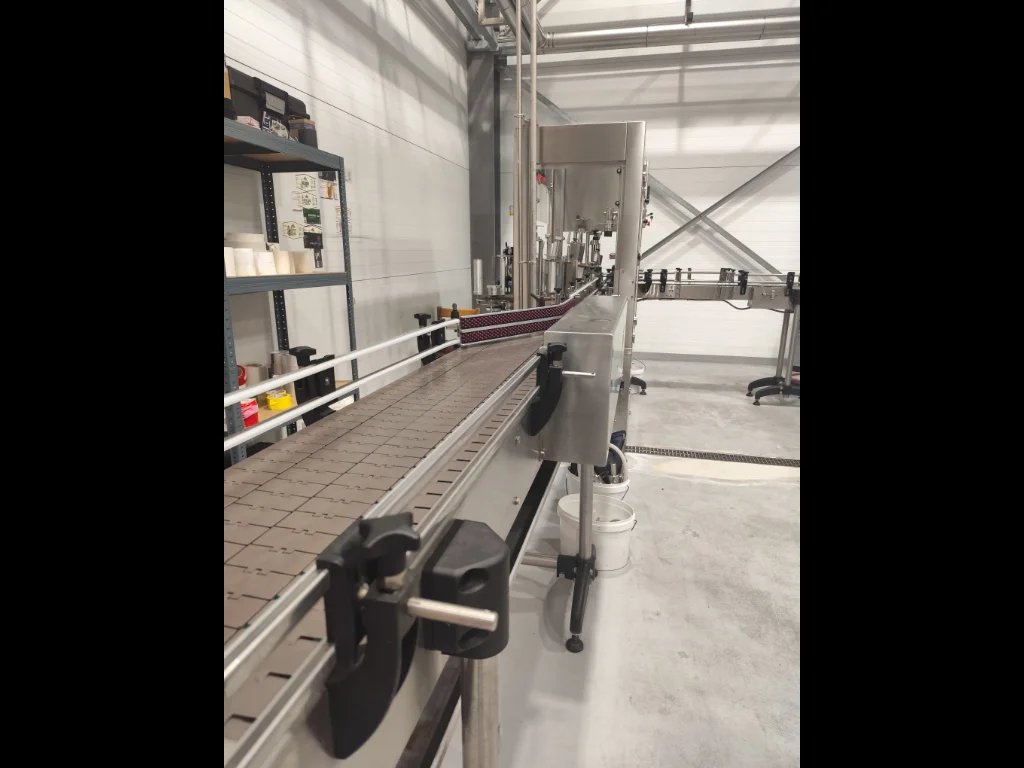

An acetal flex-chain conveyor and Ø1000 mm collection table support
bottle transfer and downstream accumulation. The bottle exit wash
station is fitted with 14 nozzles.Machine typeManufacturer /
modelYearFilling MonoblockGAI Macchine Imbottigliatrici S.p.A. /
3031FE-BIER-0032017Labeling MachineGAI / 60132017Various
EquipmentAcetal flex-chain conveyor and collection tableThe monoblock
can be incorporated into a broader beverage production line with
suitable upstream bottle handling and downstream secondary packaging
equipment.Machine Condition & Maintenance HistoryThe PLC counter
records 730 operating hours and a total bottle count of 1,261,112
bottles. This documented operating data provides a useful basis for
evaluating the machines production history and planning commissioning,
inspection and preventive maintenance activities for continued use in
a brewery bottling operation.Operational Performance & VersatilityThe
rinsing section uses an inverted-bottle process with fluid injection
followed by air or gas expulsion. Separate water and gas circuits,
gravity-assisted and forced draining, an automatic rinsing screw feed
and rinser bypass support flexible bottle preparation. The rinser can

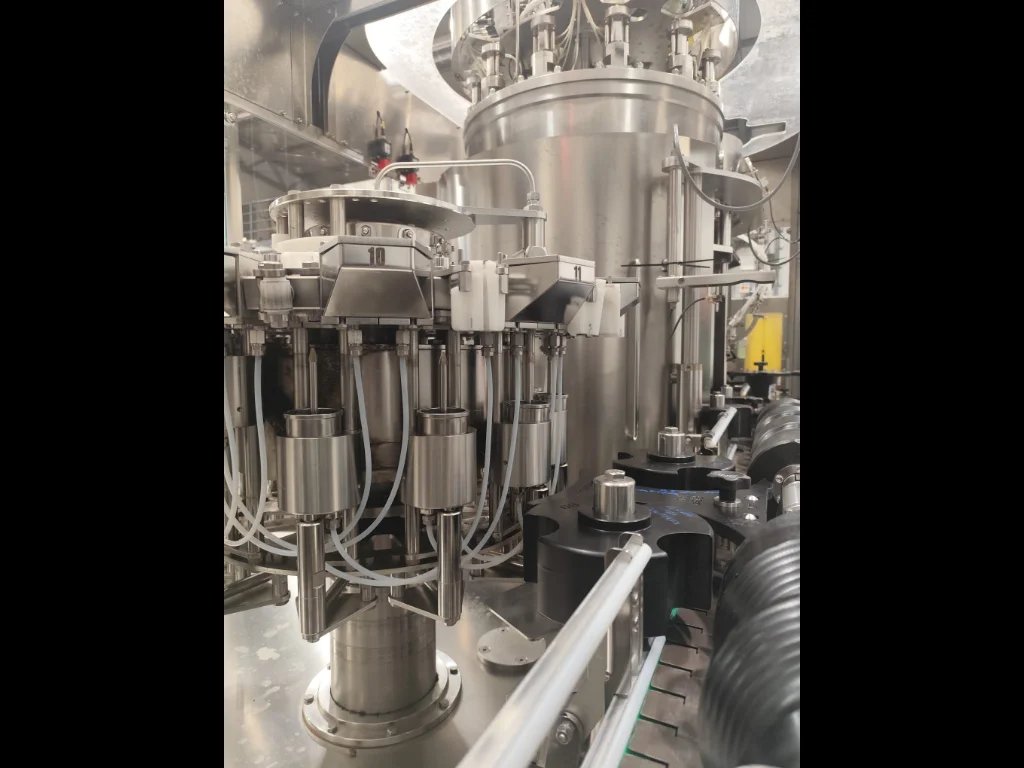

be configured for single-stage or dual-stage operation.The filling
module uses isobaric technology for beer applications, while the
single-head crown capper is supplied with a separate capsule elevator.

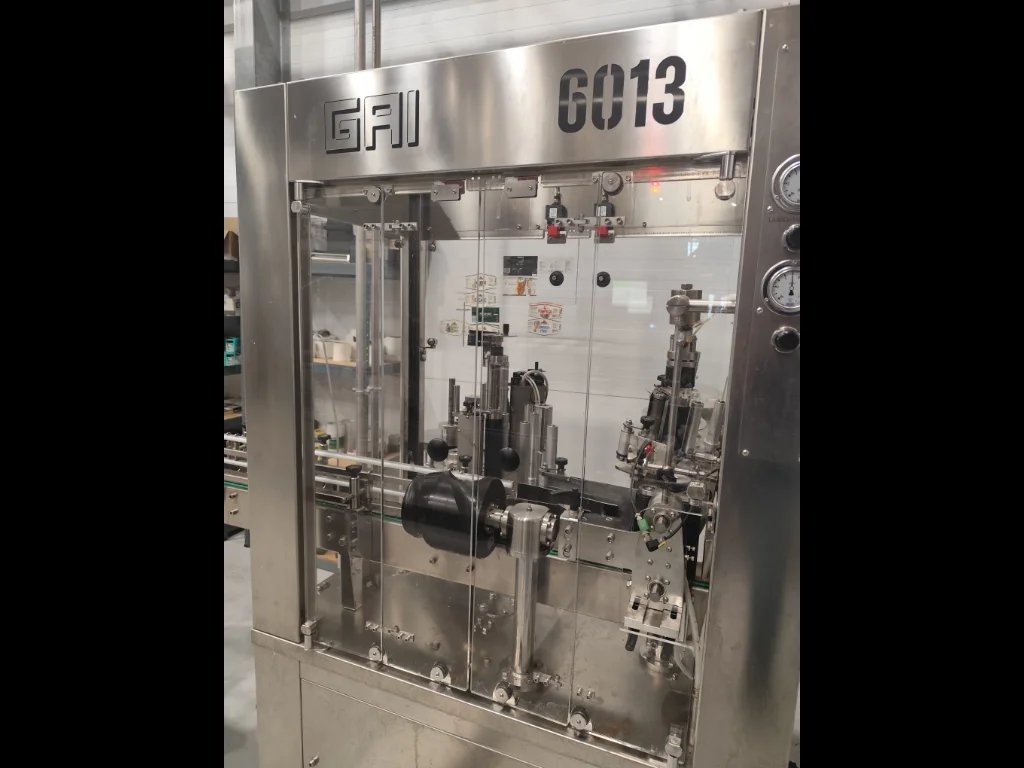

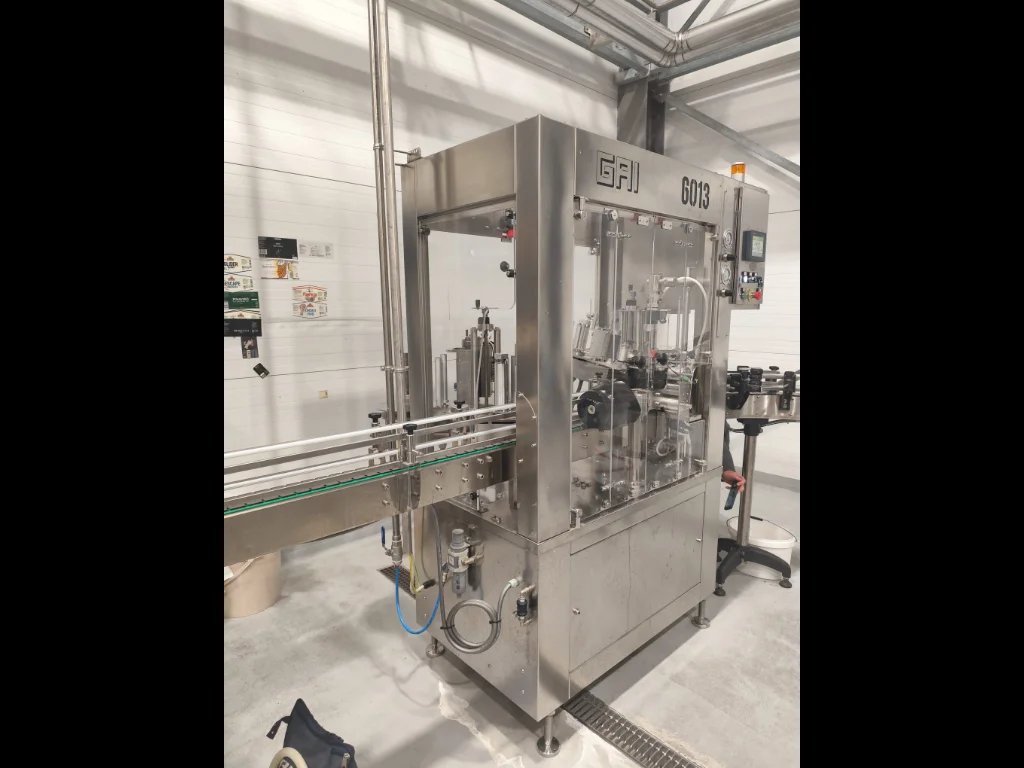

A false-bottle system is included for foam-jet nozzle washing. The
independent GAI 6013 self-adhesive labeling station provides a
dedicated labeling stage within the bottling workflow.Installation
Requirements & Site PreparationInstallation requires a 400V, 3-phase,
50Hz electrical connection. Site preparation should provide suitable
utilities for the rinsing water circuit, air or gas circuit, filling
operation, cleaning procedures and conveyor system. Adequate access
around the monoblock is recommended for format changes, cleaning,
inspection and service work. The included collection table has a
Ø1000 mm diameter.Safety Standards & Compliance CertificationThe line
includes infrared sterilization elements on the rinser, filler and
capper, together with water and air filtration kits that support
hygienic beverage production. A PED-certified rinsing tank is
included. Documentation supplied with the equipment includes the CE
Declaration of Conformity, food-contact materials declaration,
electrical schematics and technical data sheet.
