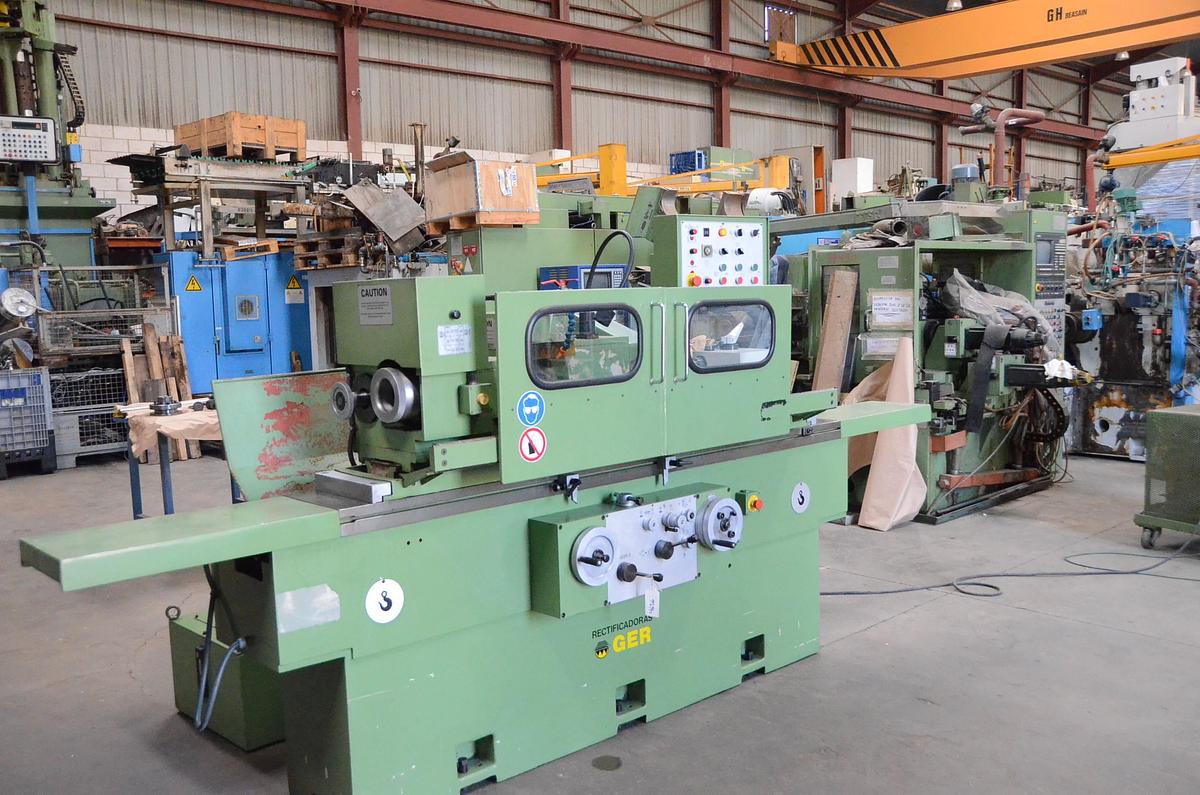

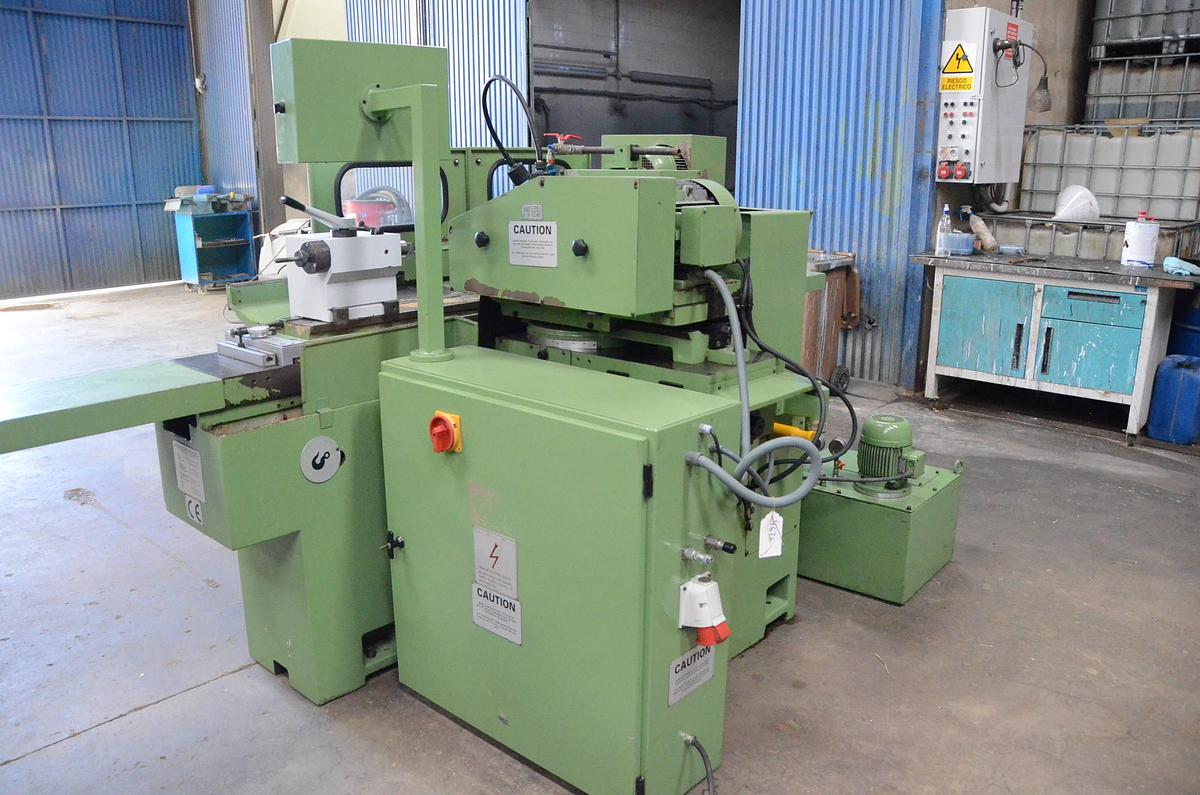

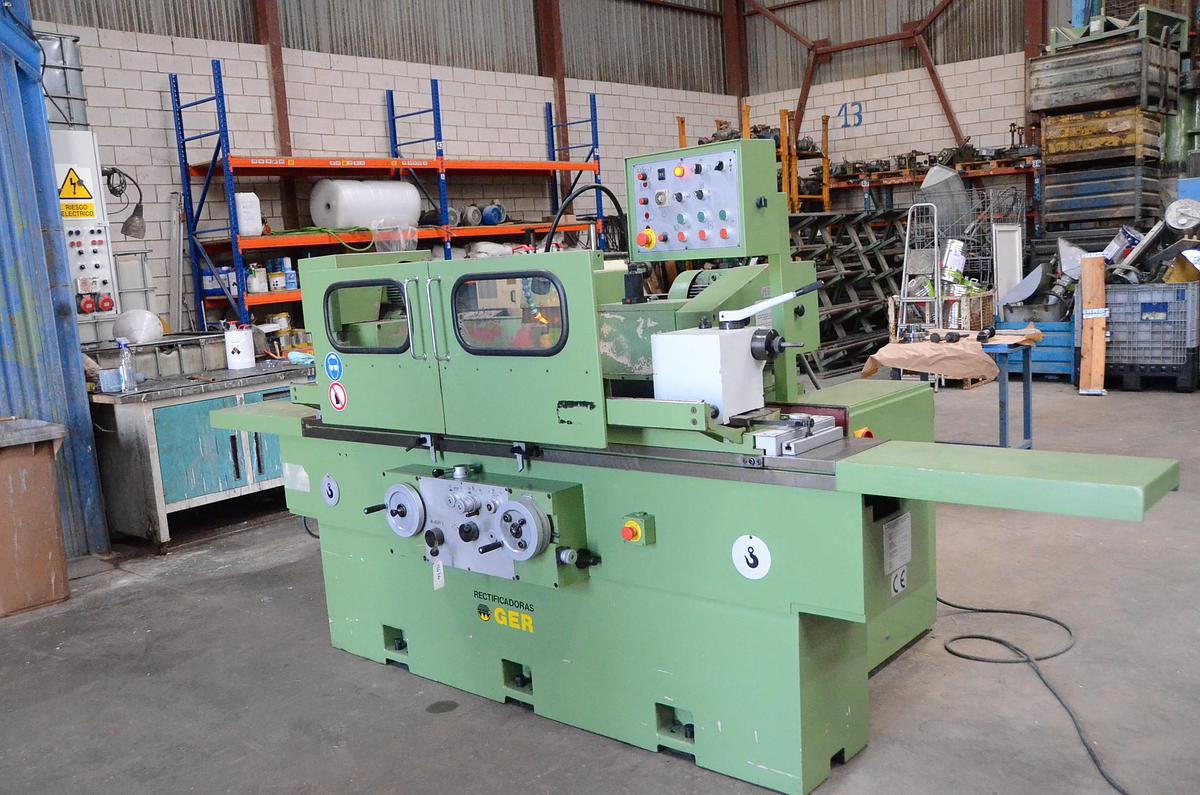

Distance between points: 1000 mm, Height of points: 180 mm, Max.
diameter to be rectified: 355 mm, Max. piece weight between points:
300 Kg, Max. weight with plate: 125 Kg, Transverse travel of the
carriage (X axis): 350 mm, X-axis speed: 0.01 / 6.000 mm/min, X-axis
Resolution: 0.0001 mm, X-axis measurement system: Digital ruler,
Longitudinal travel of the carriage (Z axis): 1.300 mm, Z-axis speed:
0.01 / 15,000 mm/min, Z-axis resolution: 0.0001 mm, Z-axis measurement
system: Digital ruler, Working wheel dimensions (od x id x width):
Ø500 x Ø203 x 80 mm, Main engine power: 7,5 Kw, Angle of rotation of
the grinding head: -30º / +210º, Workhead rotation speed: 10 / 800
rpm, Workpiece holder head cone: MORSE 5, tailstock cone: MORSE 4, Ø
of the tailstock shank: 60 mm, Course of the counterpoint reed: 40 mm,
Dimensions: 4600 mm Length x 2400 mm Width x 2050 mm Height, Weight
approx.: 6.500 Kg
Spanien
