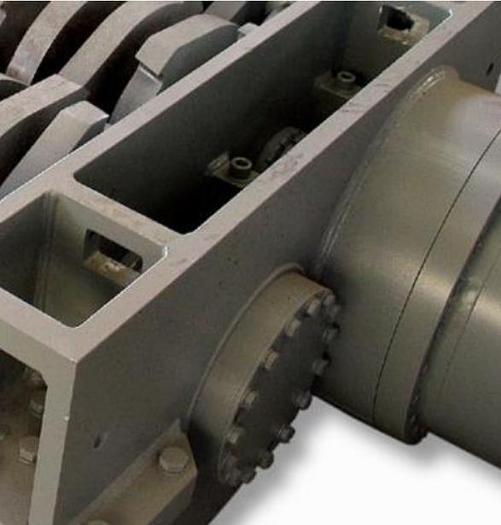

TWIN-SHAFT HYDRAULIC SHREDDER, Customised hopper, construction in
robust high thickness carbon steel, shredding surface 1.500 x 1.100
mm, 2 counter-rotating steel shafts with differentiated speed, Blades
50-75 mm, 4 teeth or bespoke, Very easy blade maintenance, welded
profile connection frame, No. 2 gearboxes, Electric motors 2x37 kW

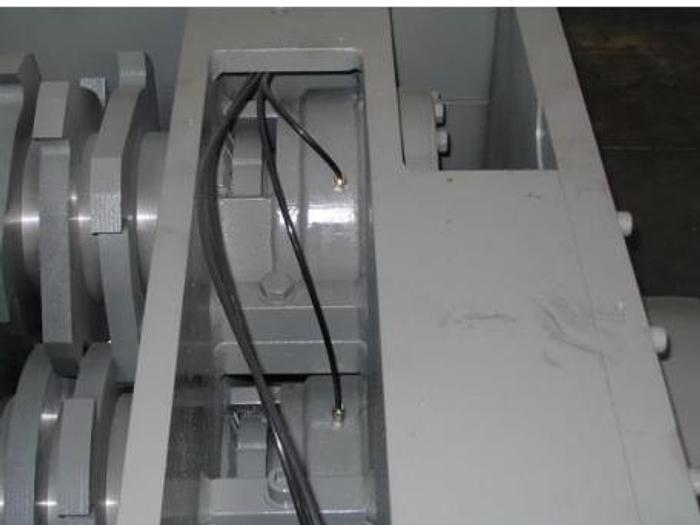

(102Hp) - 400 V/50 Hz, bearings strategically positioned so as not to
be affected by the processed material, the bearings are connected to a
centralised lubrication point that can be connected (as an option)
either to an automatic lubrication system or to a manual greasing
point where the operator can intervene regularly., hydraulic control
unit,, electrical control panel with PLC and machine wiring, automatic
overload reversal with programmable number of reverse cycles, width:
1.500 mm, Power: 75 kw
Italien
