SINGLE SHAFT SHREDDER, V-rotor width 600 mm. diameter 260 mm, Rotor
speed 80 - 125 rpm, Throughput rate 100-150 kg/h depending on material
and screen, Drive power 22 kW, Max. number of knives 28 pcs 40 mm.,
screen size bespoke to project :15 to 40 mm, Hopper 600 x 800 mm,
adjustable counter-knife, off-set rotor bearings (low maintenance),
V-Rotor with knife pockets, Welded knife holders with screwed knives
and covered bold heads, Offset rotor bearings ( low-maintenance /
closed ), Fast hydraulic backwards incl. different settings by PLC
control and anti shock valve, Shredding room unpainted, Movable screen

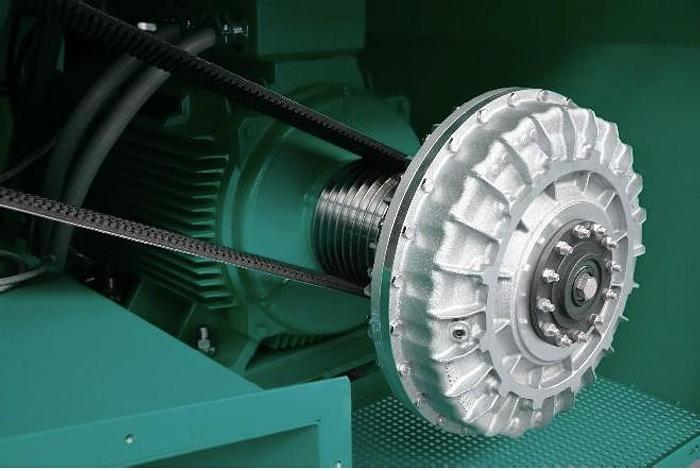

basket (electro-hydraulically), Screen thickness 10mm, Hydrodynamic
starting clutch (energy saving system for machine start),
Electromechanical drive with heavy duty gearbox, Control cabinet incl.
5m cable, Electrical control system Siemens S7 PLC control, Reverse
counter and transmission limit switch (safety package), Star delta
starter, Universal joints for piston with ram impulse and load-related
ram function, Machine frame on anti - vibration foundation, Machine

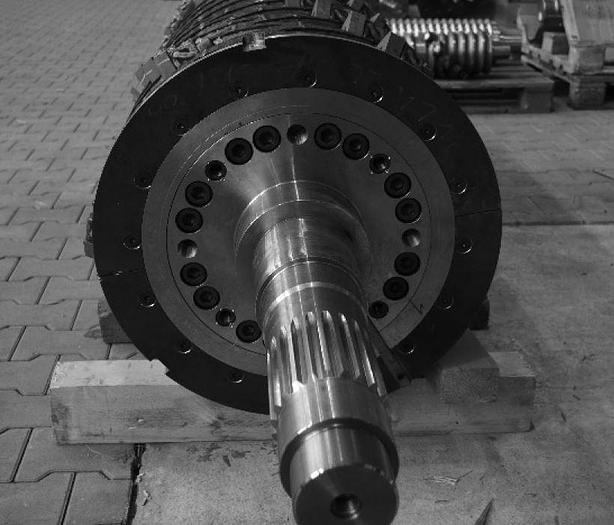

prepared for discharge by conveyor belt, Bolted and hardened rotor
shaft on gear box side (anti-wear execution), 2 sided segmented ram
and floor, Heavy duty version (reinforced ram and machine floor)

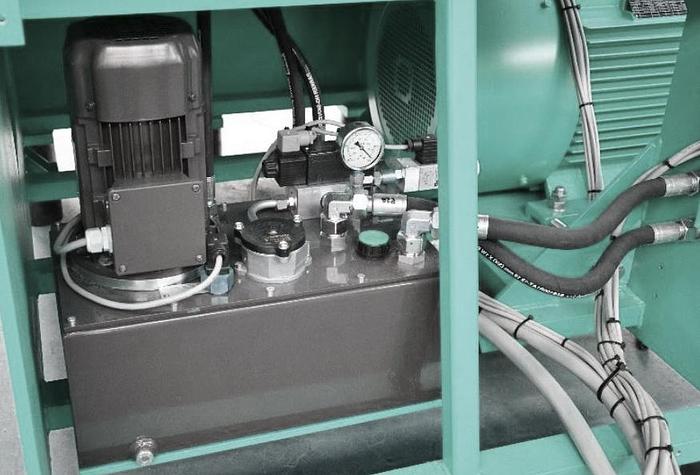

available on request, horizontal hydraulic ram with hydraulic pack,
Control cabinet with PLC control, Available in about 8 weeks, Possible
addition of [conveyor belt, metal
detector](.germanplast.eu/listings/4462316-conveyor-with-metal-detecto
r), [extraction
belt](.germanplast.eu/listings/4115563-used-extraction-belt-450-x-3-50
0-mm-magnetic-drum), etc, installed power - used power in work: about
60-65% : 22
