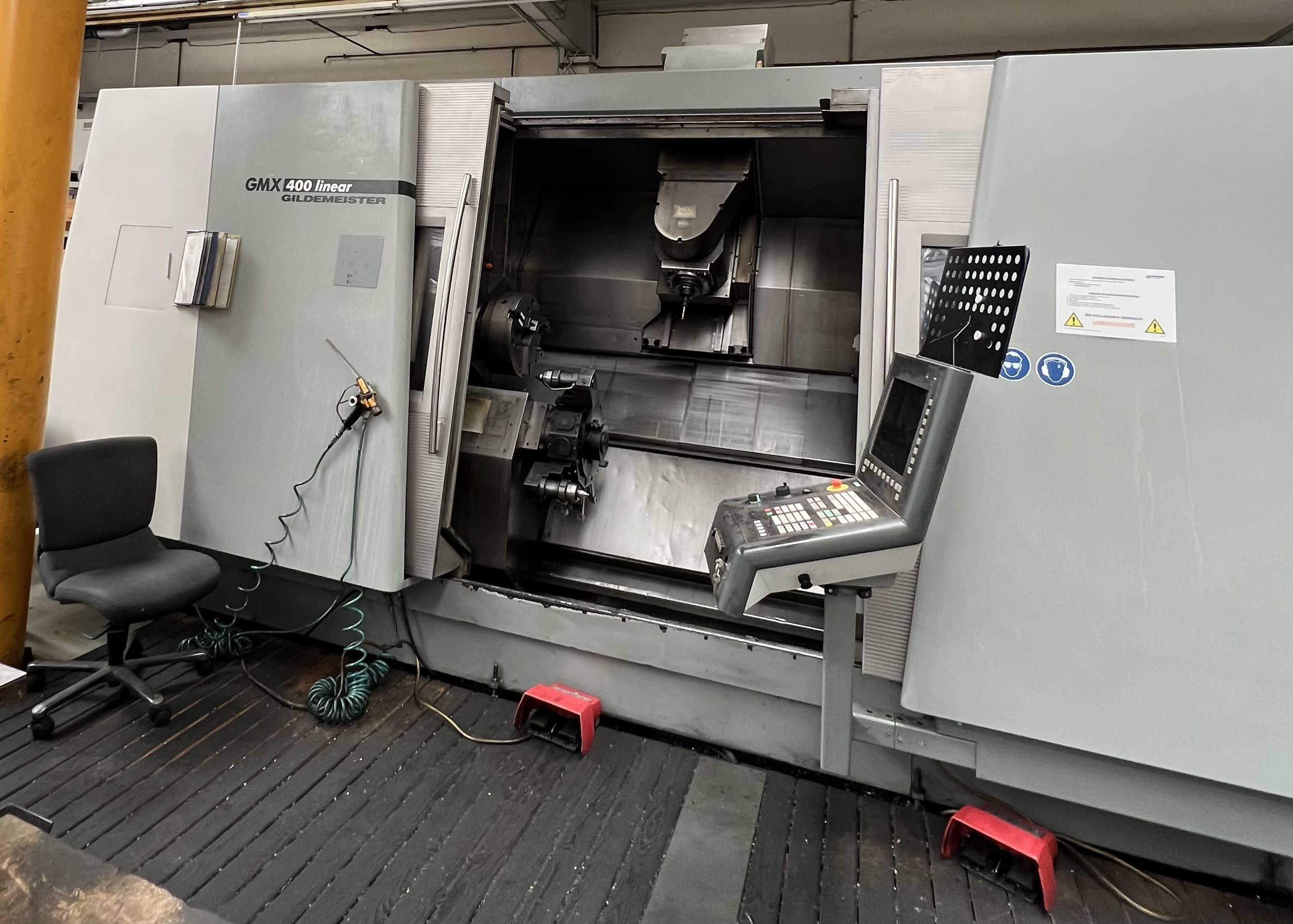

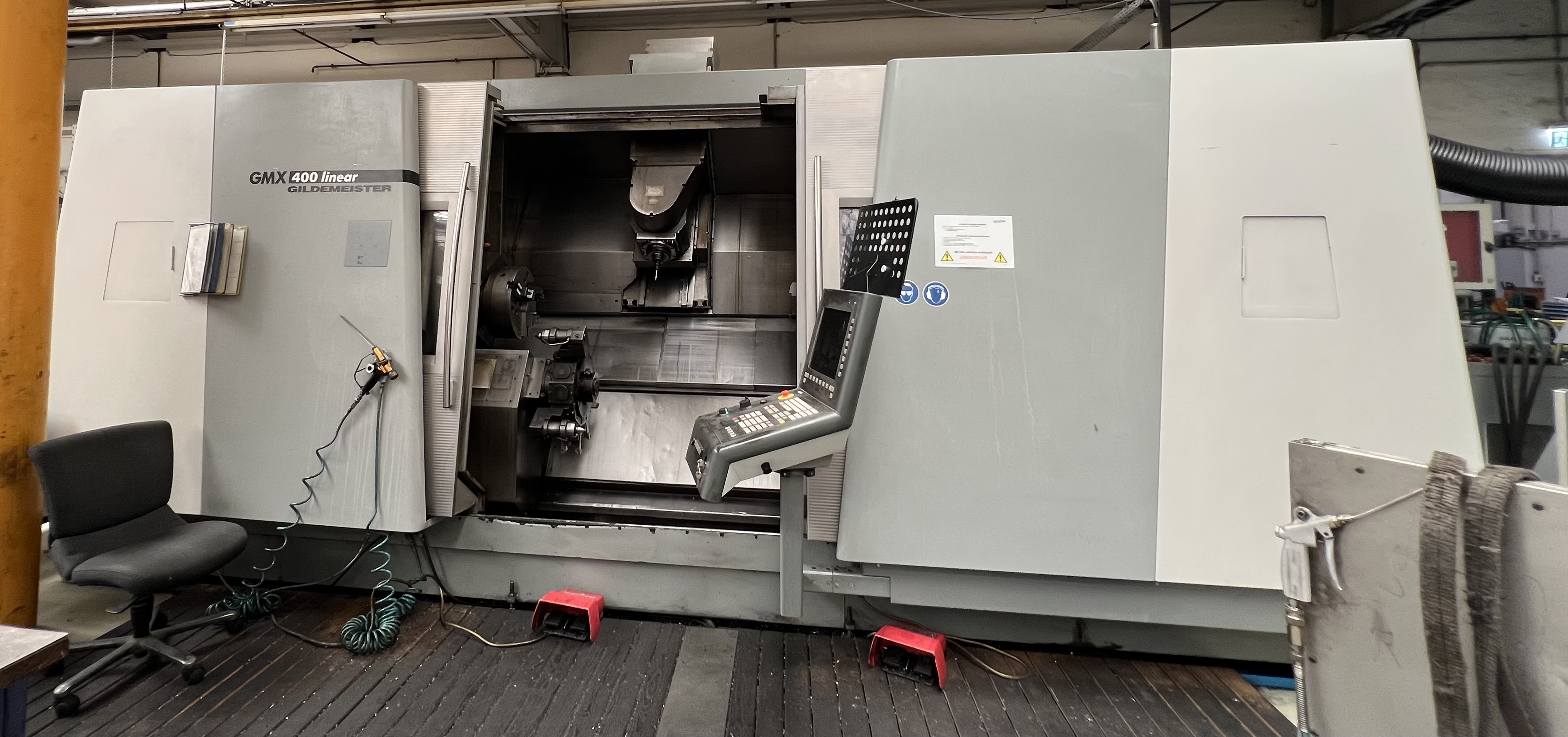

GILDEMEISTER GMX 400 linear

CNC turning-milling center

Type: GMX 400 linear

Manufacturer: Gildemeister

Year: 2006

Control: Siemens

Main and counter spindle

Main Spindle:

Maximum speed: 4,000 rpm

Power: 36/45 kW

Torque: 600/750 Nm

Spindle nose: A8

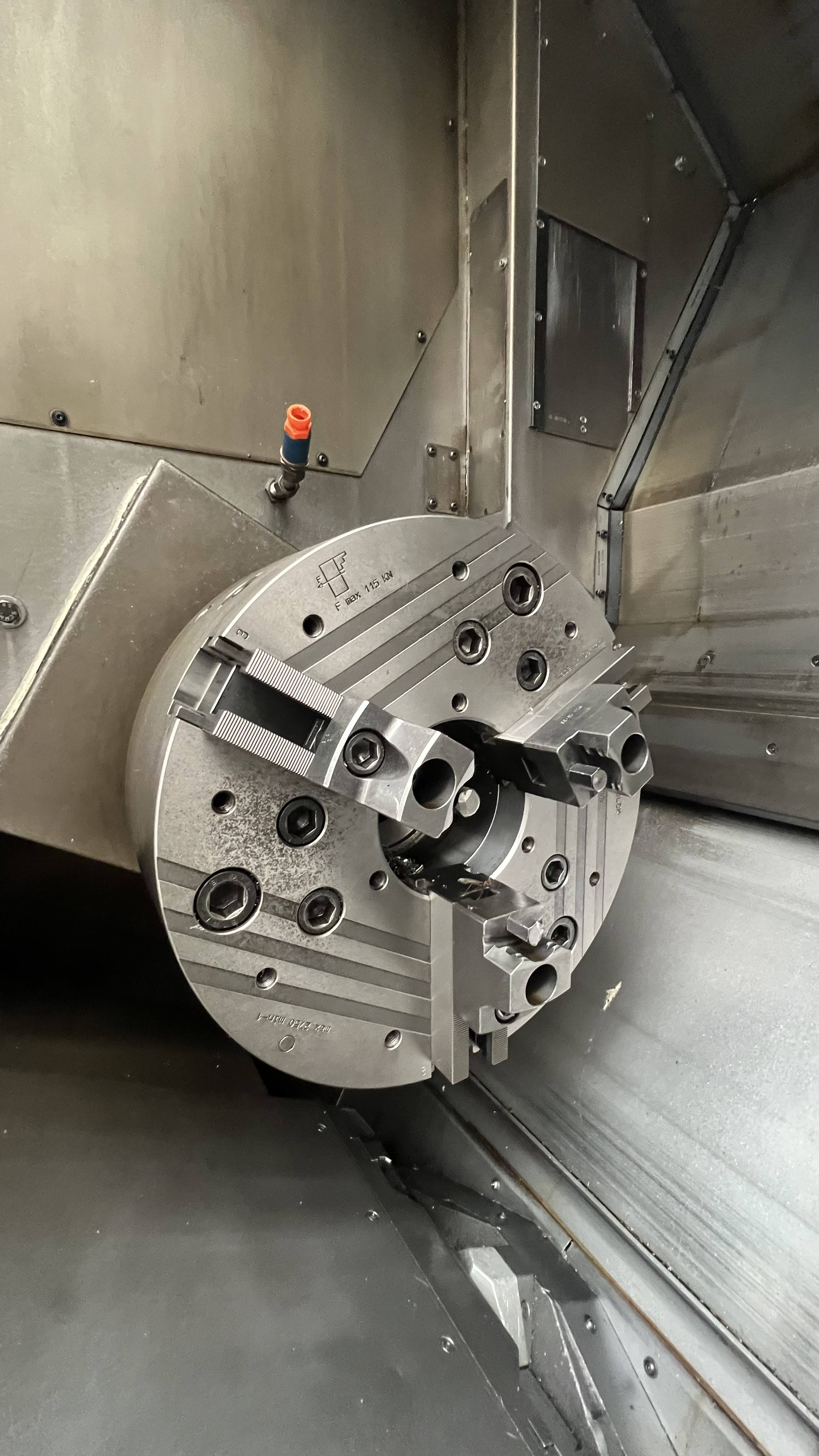

Chuck: SMW Ø400 mm with quick jaw change

Bar capacity: Ø92 mm

Partial hollow clamping length: approx. 900 mm

Counter Spindle:

Maximum speed: 4,000 rpm

Power: 36/45 kW

Torque: 600/750 Nm

Spindle nose: A8

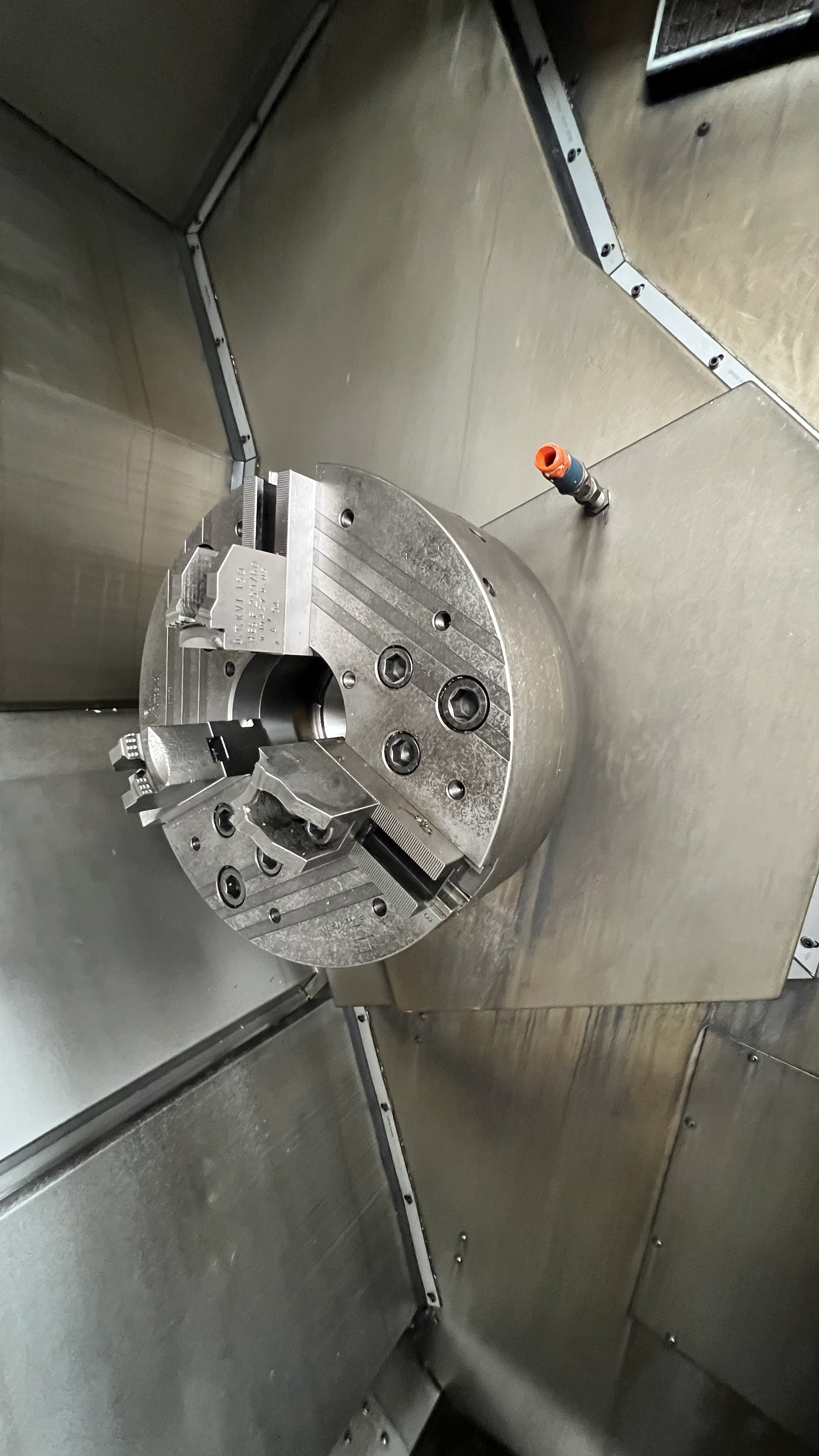

Chuck: SMW Ø400 mm with quick jaw change

Bar capacity: Ø92 mm

Partial hollow clamping length: approx. 400 mm

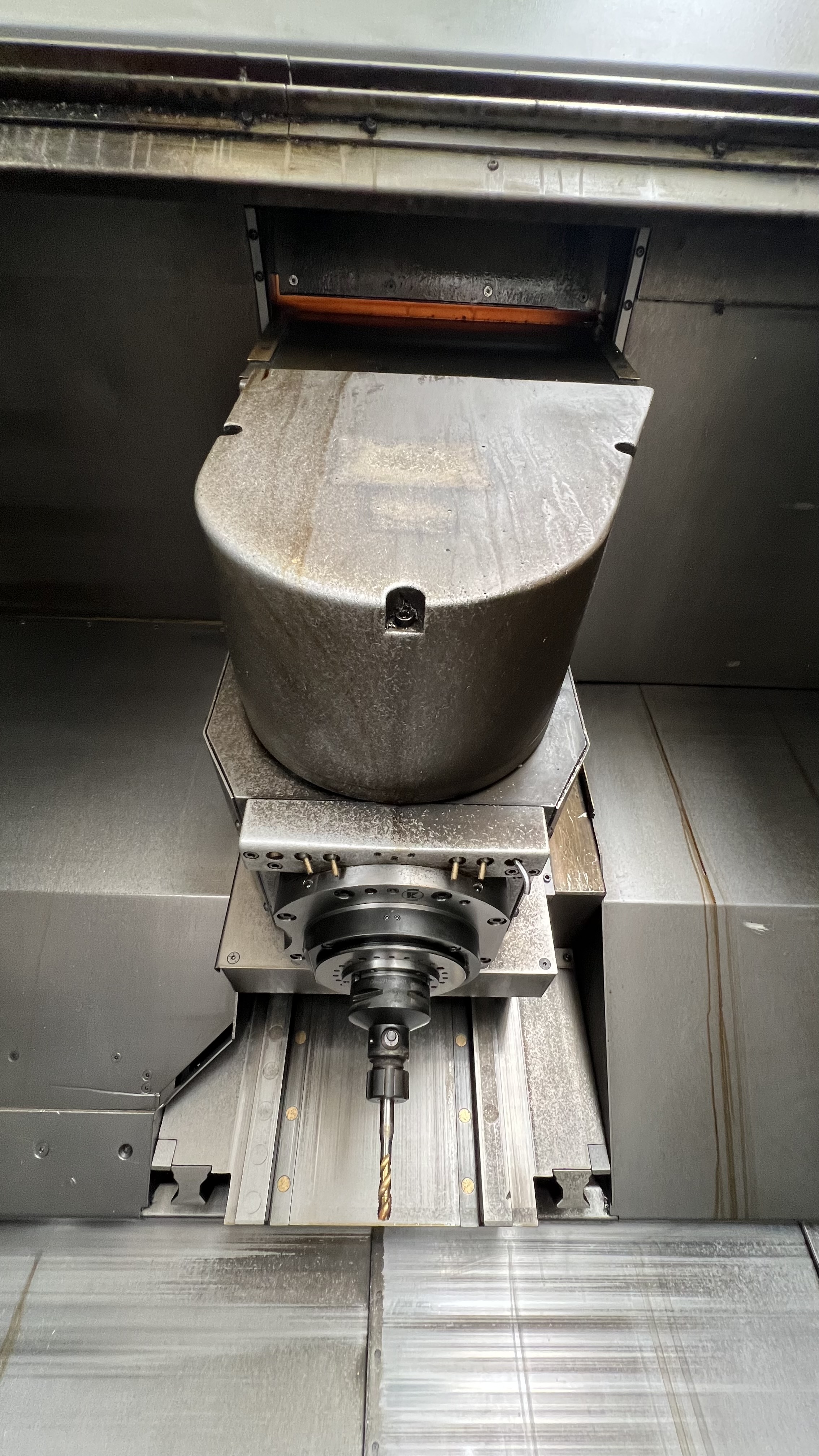

Milling Spindle:

Maximum speed: 12,000 rpm

Power: 13.2/22 kW

Torque: 60/100 Nm; 500 Nm when clamped

Tool interface: Capto C6

Rapid traverse (X/Y/Z): 40/24/70 m/min

Tool magazine: 120 positions

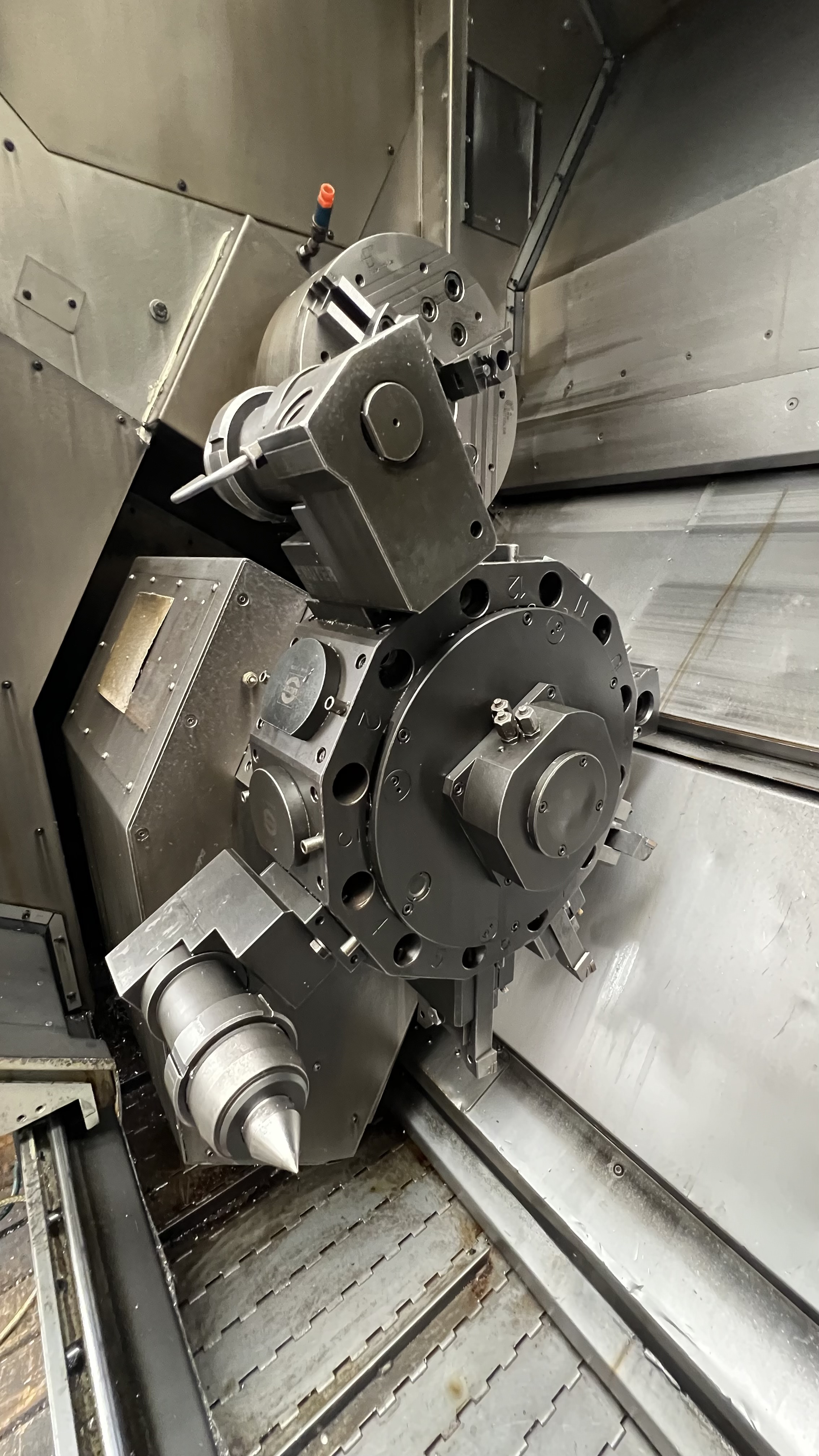

Turret 2:

Maximum speed: 4,000 rpm

Power: 10.7 kW

Torque: 32 Nm

Interface: VDI40

Rapid traverse (X/Z): 24/40 m/min

12 tool stations

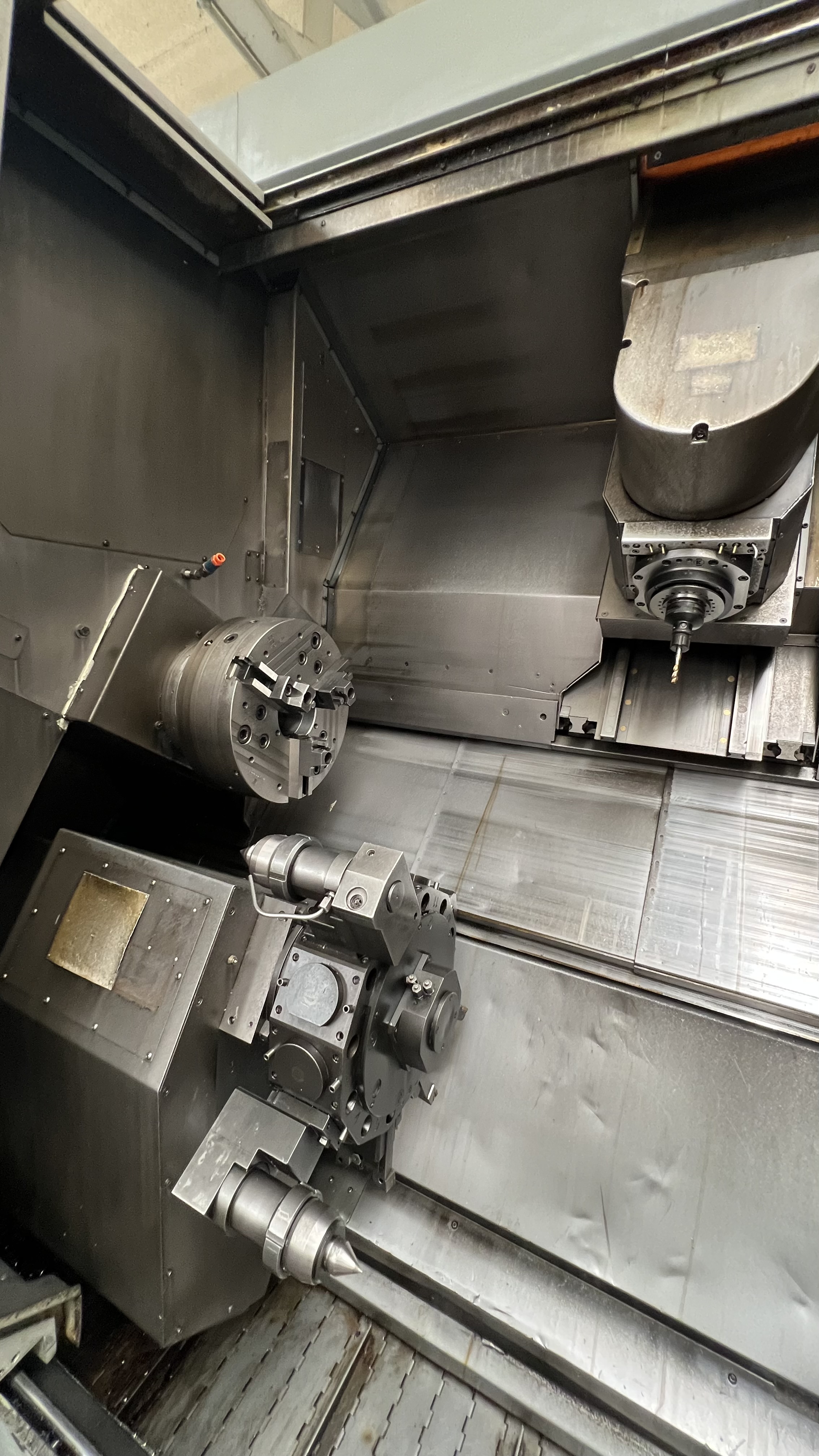

Working Area:

Maximum swing diameter: 640 mm

Maximum turning diameter: 640 mm

Distance between spindles: 1,930 mm

Maximum workpiece weight: 250 kg

General Specifications:

Total machine weight: 24,000 kg

Overall dimensions: 10 × 5 × 3 m

Connected load: 100 kVA

Main fuse: 160 A

Equipment:

Chip conveyor

40-bar high-pressure coolant system

Coolant filtration system with paper band filter

Tailstock function for Slide 2

Steady rest for Slide 2

3D touch probe

Artis tool monitoring system

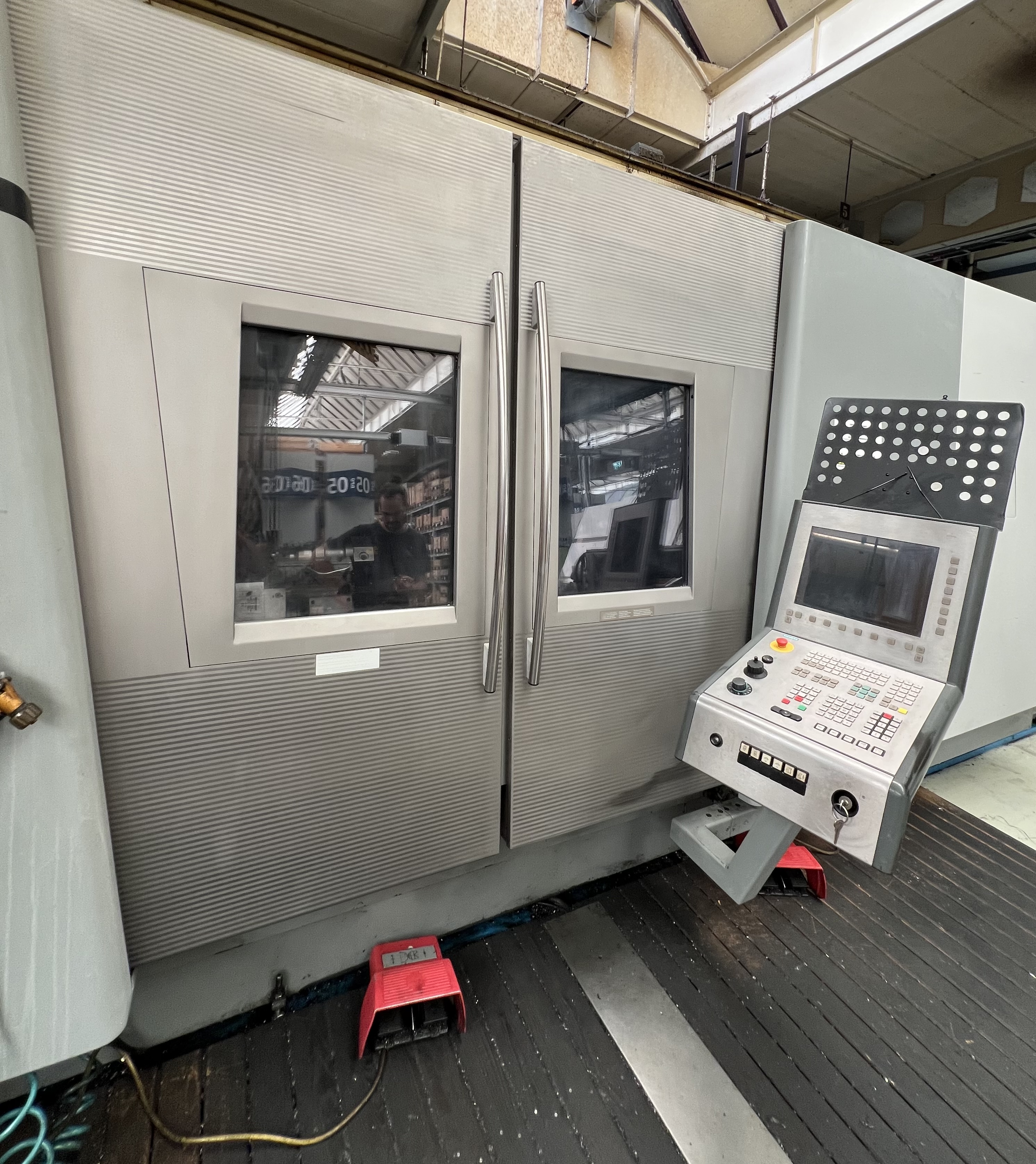

Automatic doors

Machine in good condition, fully functional, under power
