Manufacturer: Global EnerTec
Year of manufacture: 2024 (produced March 2024, commissioned September
2024)
Model / Type: GET Granulierungslinie 3t/h
Type of machine: Tire recycling and rubber recycling line
Operating hours: less than 500 hours
Condition: Fully functional, currently in operation
Input capacity: 3 tons of shredded tires per hour
Input material: Shredded used tires, edge length 50 to 100 mm
Output quality: Rubber granulate 0.8 to 4 mm, free of fiber and
steel
Connected load: 574 kW
Average consumption: 340 kWh per hour
Voltage: 400 V
Plant size (length x width x height): approximately 32,300 x 11,700 x
6,600 mm
Recommended hall size: 40 x 20 meters, minimum height 7 meters,
recommended 8 meters
Operating personnel: 1 plant operator plus 1 production assistant per
shift
Certification: CE certified
Control and electronics: Siemens PLC control, with components from
Siemens, ABB and Schneider Electric

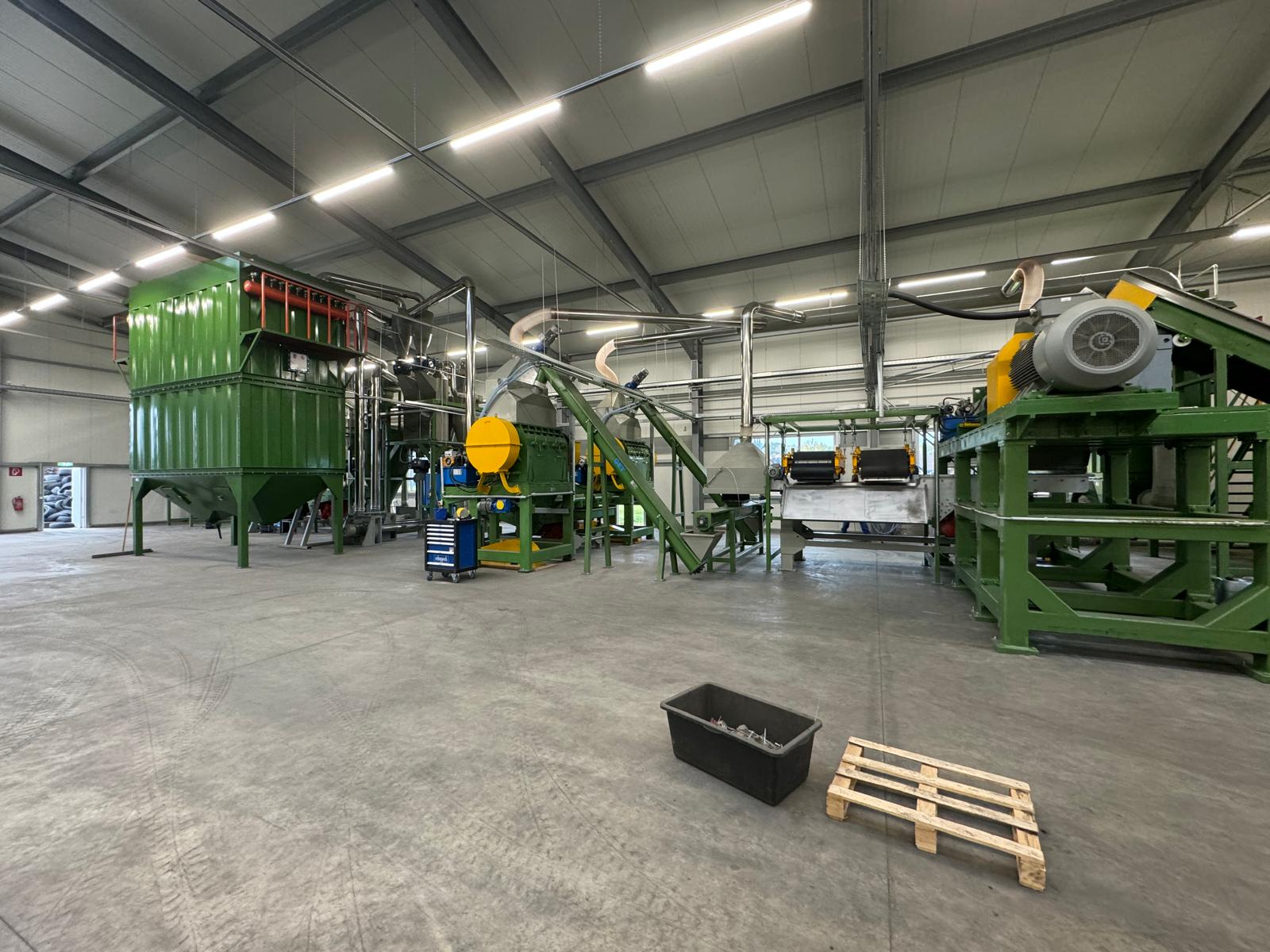

Main components and their function:
- Rasper RR-315: 315 kW Siemens motor, capacity 3 tons per hour,
product size 12 to 25 mm, double-sided usable blades, cooling system,
weight 24,000 kg. Performs pre-shredding of the material.

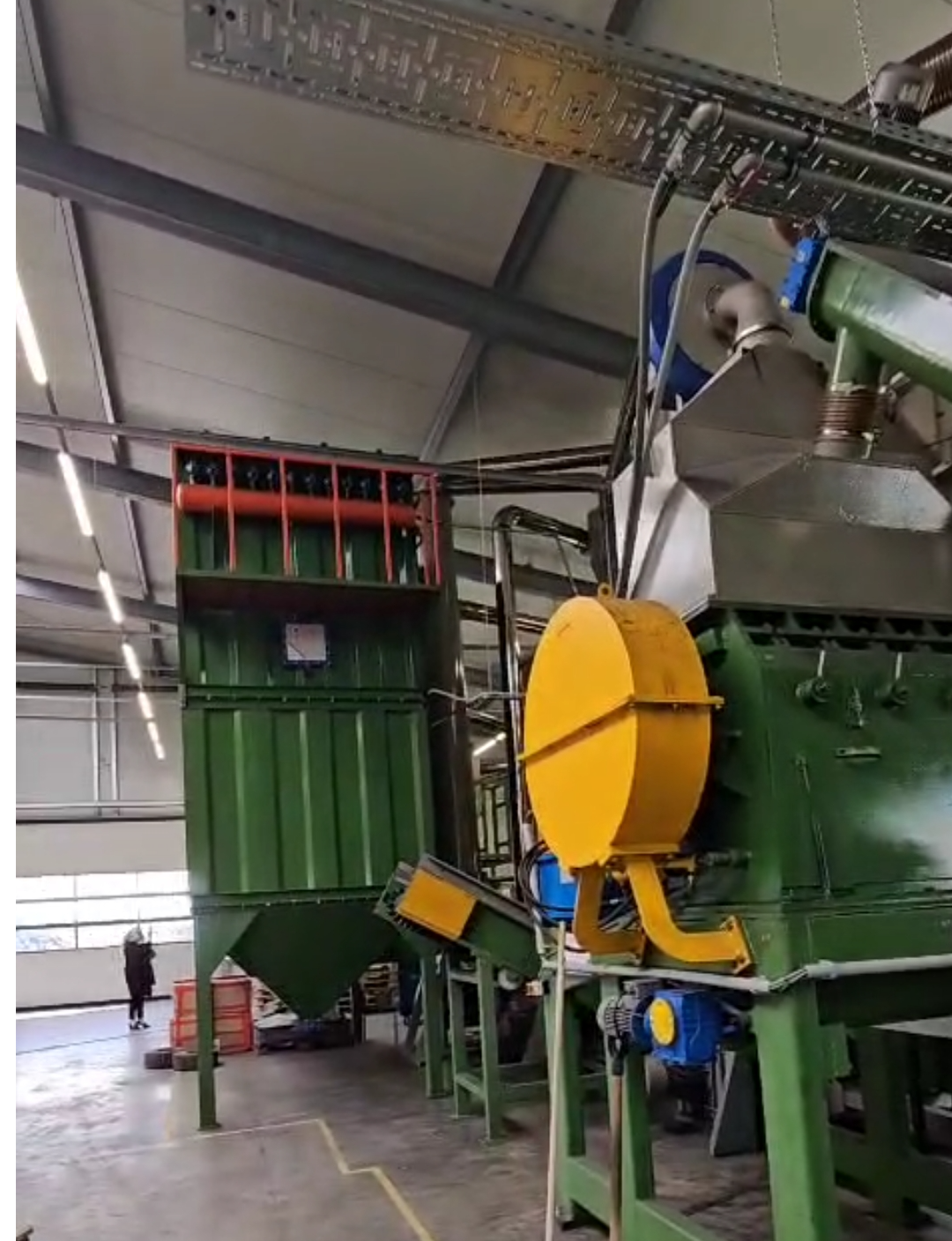

- Granulator RG-90, 2 units: 90 kW Siemens motor each, capacity 1.2
tons per hour each,product size 0.8 to 4 mm, user-friendly screen
change, cooling system, weight 7,600 kg each.Performs fine granulation
of the material.
- Vibration conveyors, 2 units: 1.5 kW each, loosens material and
includes suction connection.
- Permanent magnetic separators, 2 units: 1.5 kW each, extracts steel
from the material.
- Screw conveyors, 3 units: 3 kW each, frequency controlled,
transports material.
- Vibration screens, 2 units: 1.5 kW each, performs coarse and fine
screening.
- Vacuum absorbers, 2 units: 12.5 kW each, extracts fiber and dust.
- Drum magnet: 1.5 kW, removes fine steel residues.

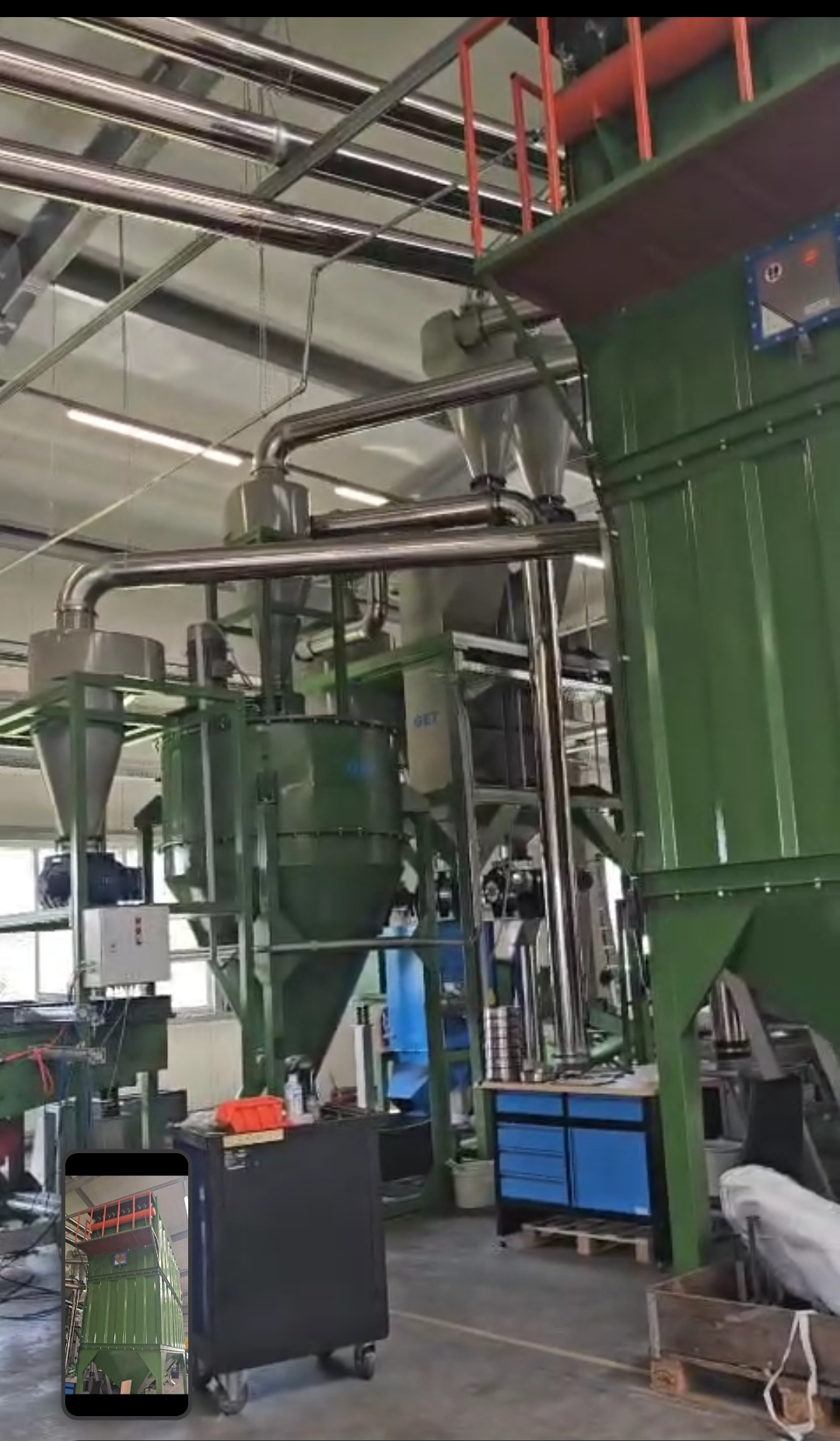

- Vortex absorber: 7.5 kW, removes final fiber residues.

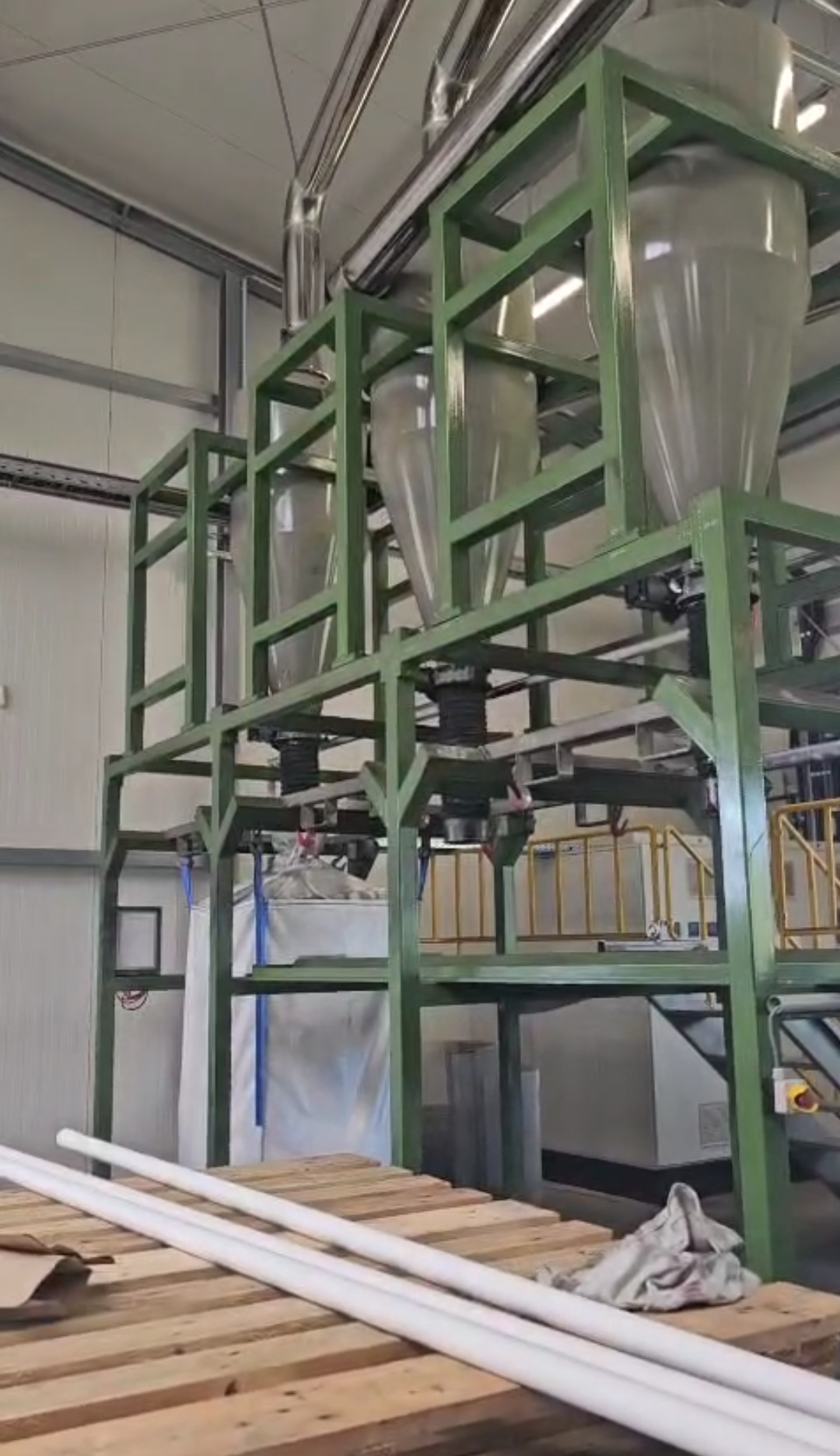

- Filling station: 3 units of 5 kW, fills big bags for three product
fractions.
- Central cooling system: 7.5 kW, cools the rasper and granulators.

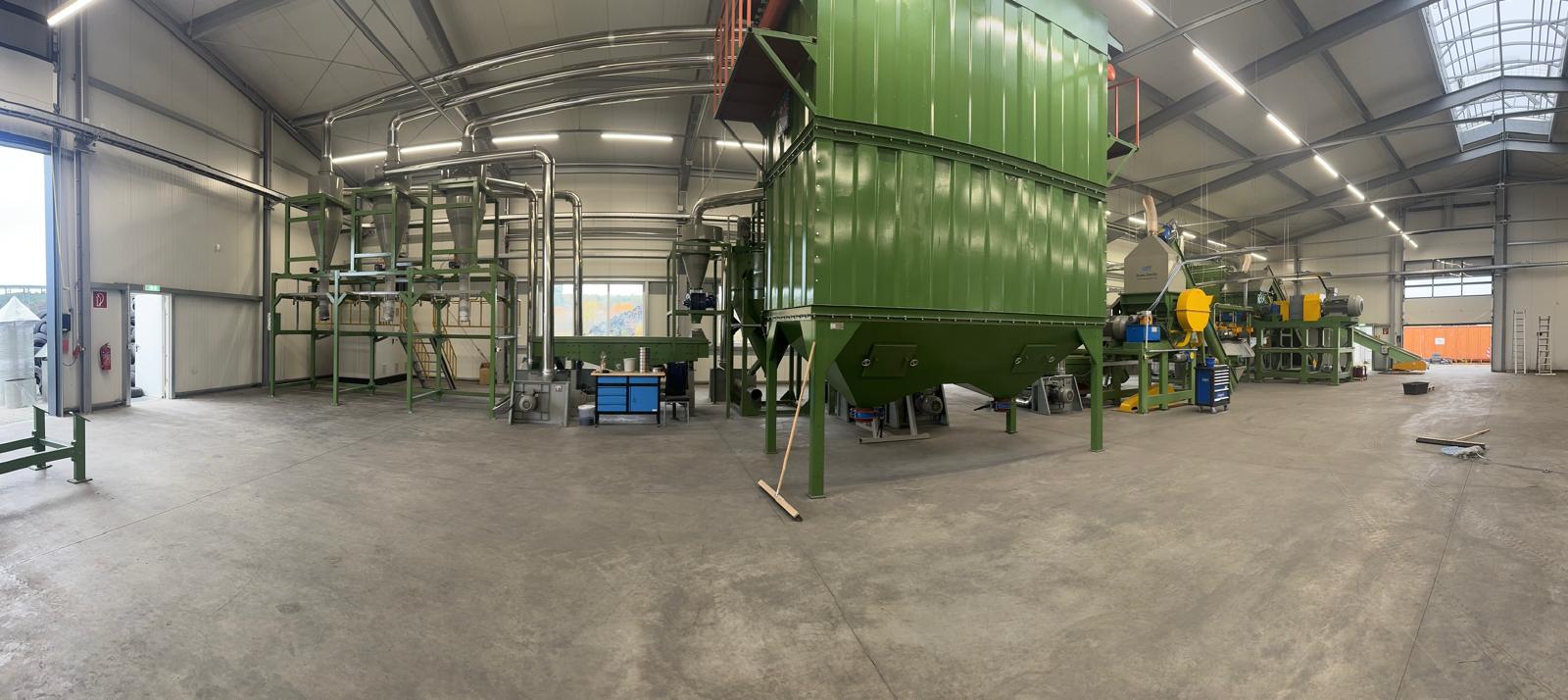

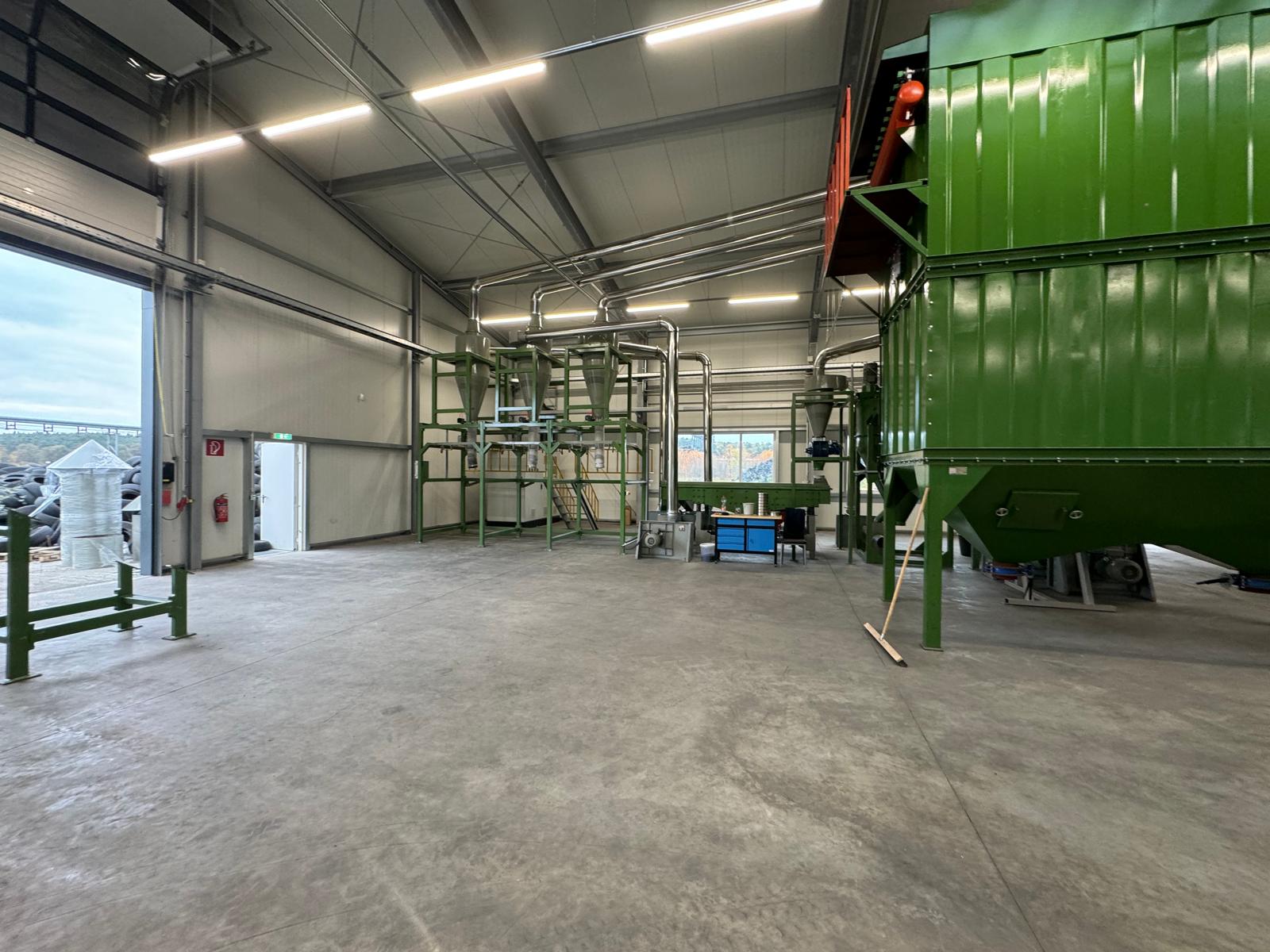

- Central exhaust and filter station: reduces dust and fiber and cools
the air.
- Control cabinet: Siemens PLC control system.
