Arbeitsbreite:1300 mm

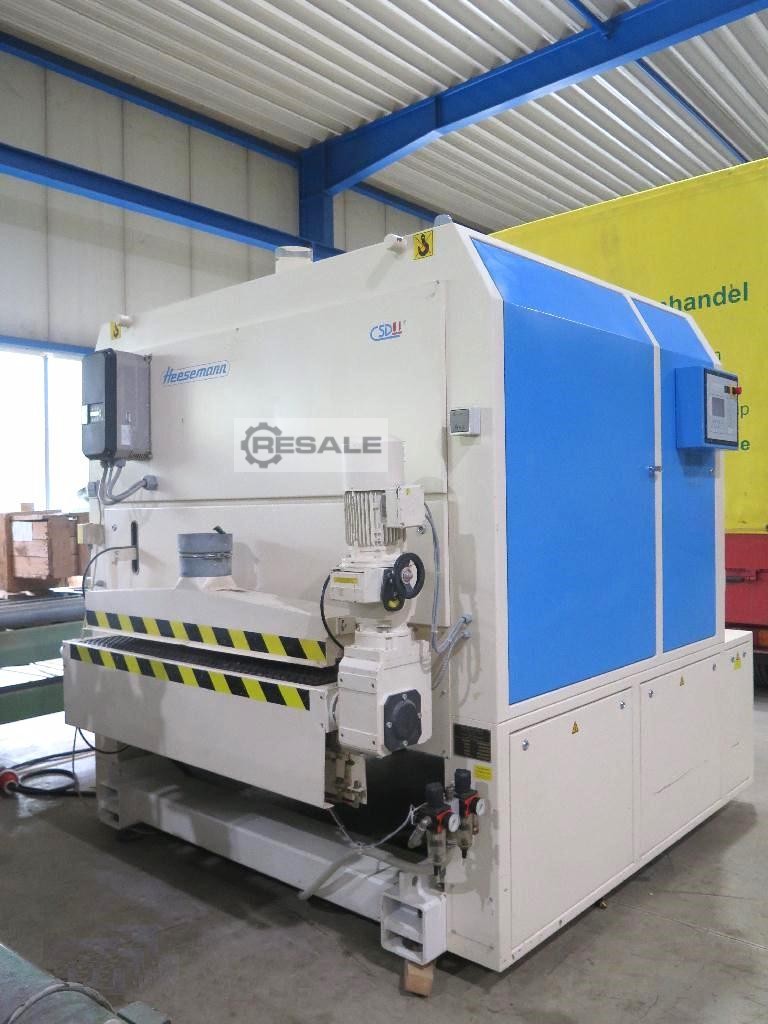

Heesemann Wide Belt Sander
Heesemann Multi-Purpose Surface Sander
Type MFA 8
Machine No. 97.11.261
Year of Manufacture 1997 CE
For sanding flat wood materials and/or flat painted wood materials
Sanding width 1300 mm
Sanding belt width 1350 mm
Sanding belt speed 12/24, 0.5 – 12 / 20 m/sec.
2 sanding units. Unit arrangement: QLBw1300
Cross belt
Longitudinal belt via sanding pad
Brush unit
Ionization and workpiece blasting
CSD 16 mm/48 mm
CSD pressure bar system with variable pressure control
Machine control with graphical control panel with
program memory for various types of wood and paint.
With ionization device and workpiece blasting
Ionization reduces the adhesion of grinding dust to the workpiece by
neutralizing electrostatic charge,
thus ensuring optimal workpiece cleaning.
Cross belt, 13/17 kW motor power
Longitudinal belt, 11/17 kW motor power, 11 kW frequency-controlled
Free space for brush 1
Brush 2, diameter 150 mm, motor 1.5 kW
Ionization and workpiece blasting
Height adjustment: 0.75 kW
Feed: 2.2 kW
Cross belt dimensions: 150 mm x 4800 mm
Longitudinal belt dimensions: 1350 mm x 2620 mm
Maximum workpiece height: approx. 140 mm
Feed speed: 3 – 15 m/min.
Berges ACP 6000 11 kW frequency converter
Total connected load approx. 40 kW
Machine dimensions: L 2.52 m x W 2.26 m x H 2.45 m
Weight: 5,400 kg
