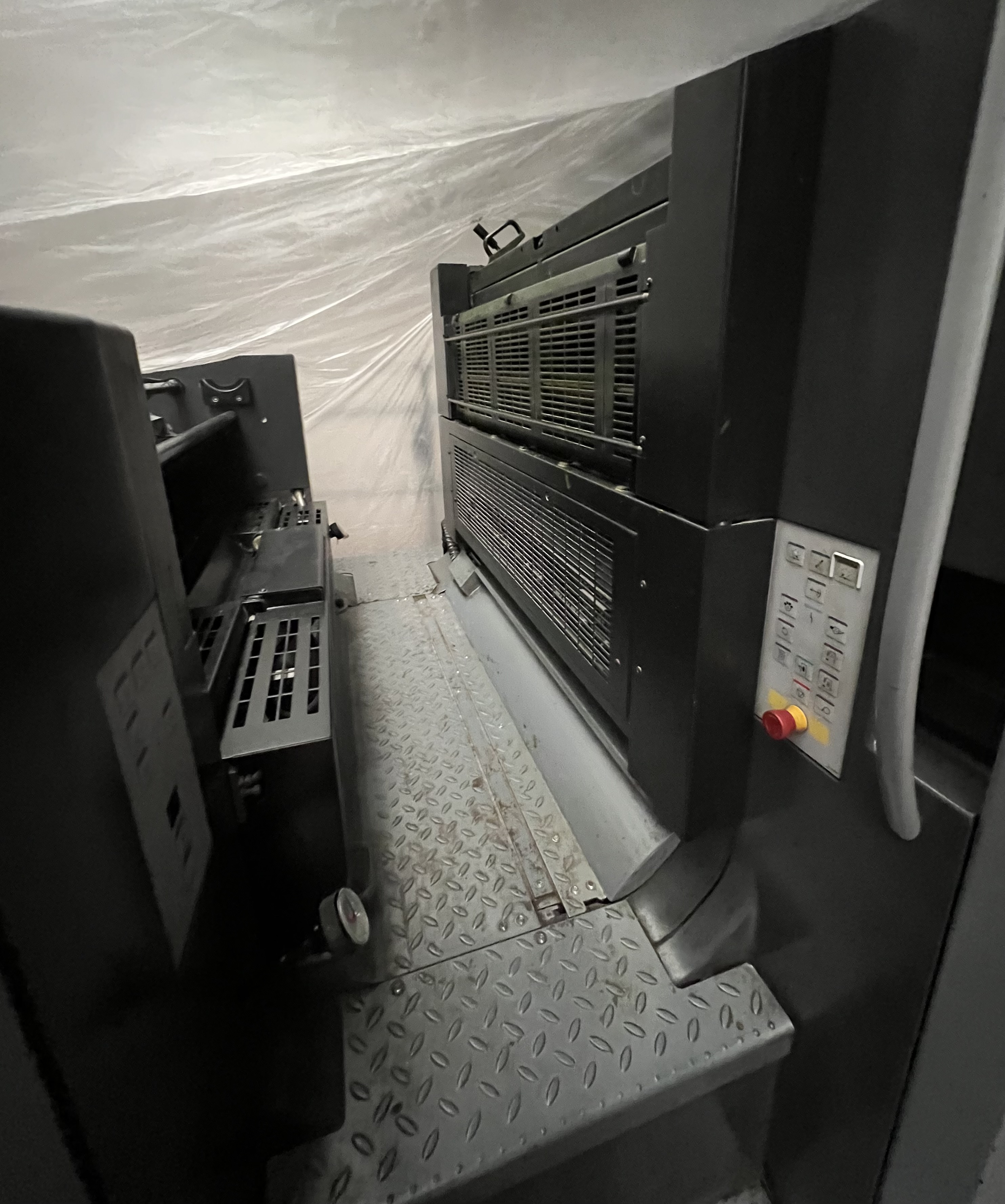

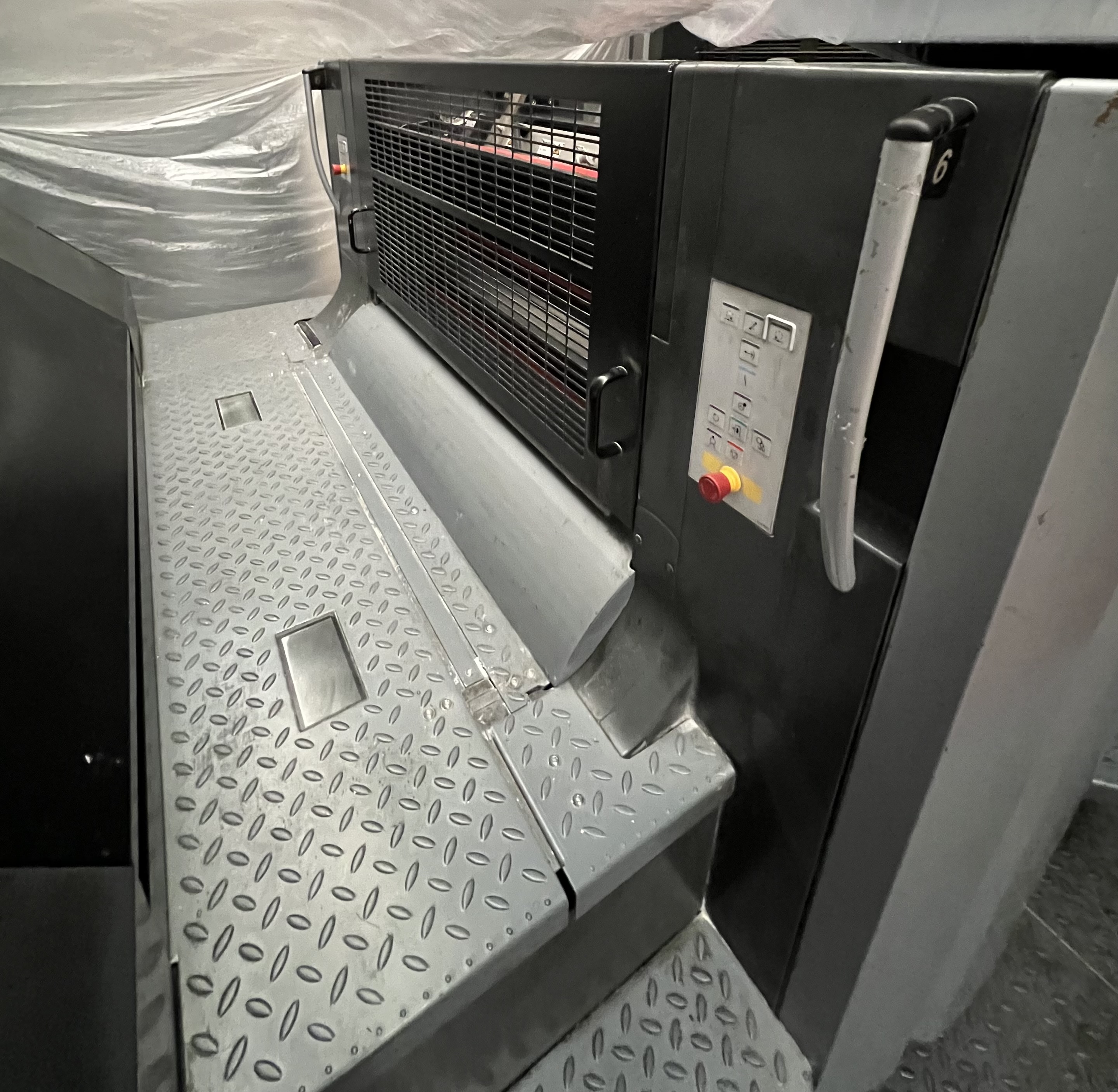

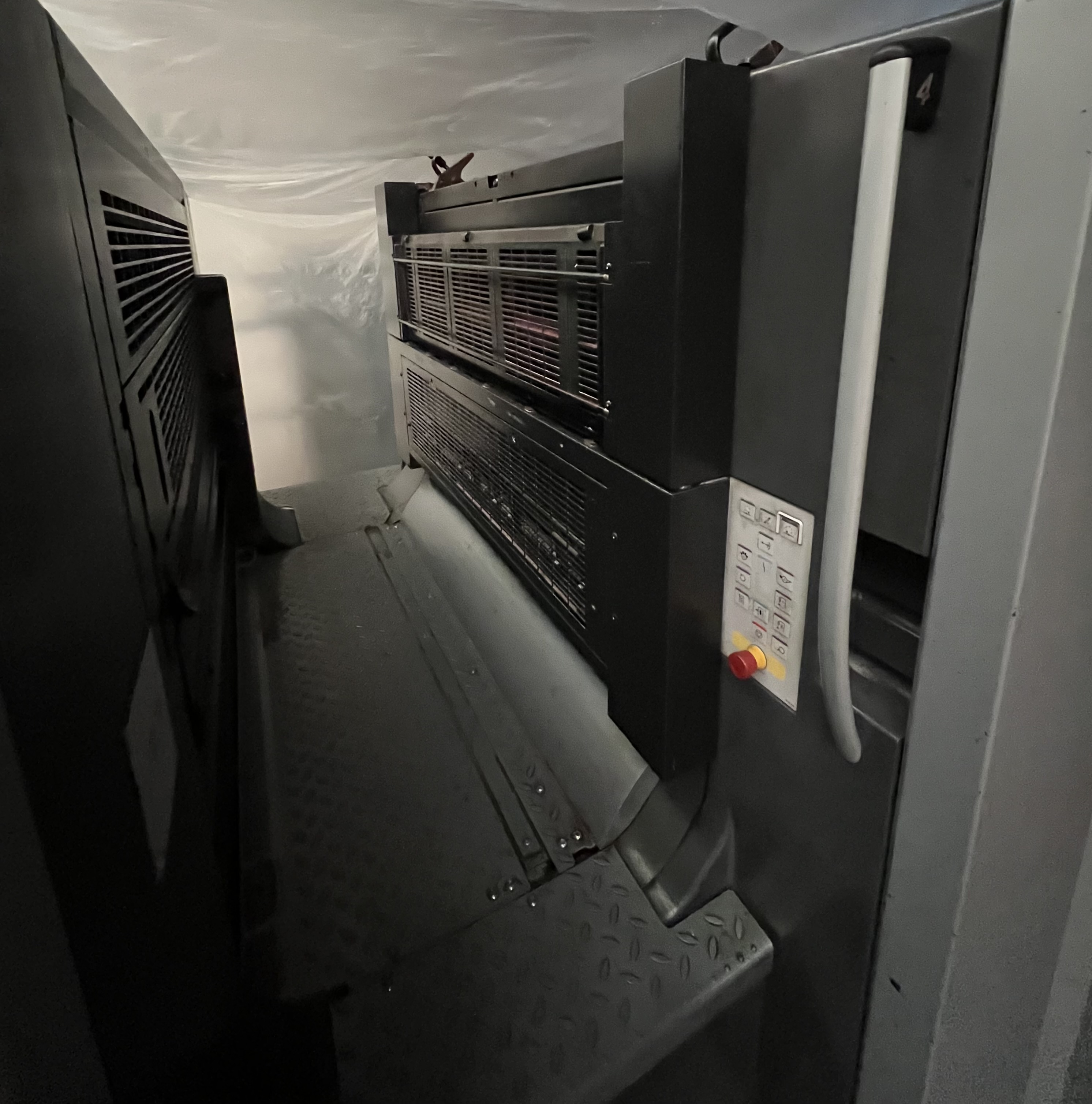

Offsetdruckmaschine HEIDELBERG CX 102-5+L

offset printing machine

Type: CX 102-5+L

Manufacturer: Heidelberg

Year: 2017

Impressions approx. 265.585.360

Printing Sheet

Max. sheet format: 720 × 1,020 mm

Min. sheet format: 340 × 480 mm

Max. printed area: 710 × 1,020 mm

Max. coated area: 710 × 1,020 mm

Gripper margin width: 10 – 12 mm

Printable materials: 0.03 – 1.0 mm

AutoPlate Printing Plates

Plate size (L × W): 790 × 1,030 mm

Thickness: 0.2 – 0.3 mm

Plate cylinder undercut: 0.12 mm

Distance from plate edge to start of printing: 43 / 52 mm

Offset Blankets

Reinforced offset blanket

Size: 840 × 1,052 mm

Thickness: 1.95 mm

Blanket cylinder undercut: 2.3 mm

Packing: 735 × 1,030 mm

Coating Plates

Size (L × W): 780 × 1,030 mm

Thickness: according to type 1.14 / 1.16 mm

Distance from plate edge to start of coating: 43 mm

Coating Blankets

Reinforced coating blanket

Size: 800 × 1,048 mm

Thickness: 1.95 mm

Blanket cylinder undercut: 3.2 mm

Packing: 735 × 1,030 mm

Printing Performance

Maximum printing speed: 16,500 sheets/hour

Minimum printing speed: 3,000 sheets/hour

Crawl speed: 5 revolutions/min

Pile Height (Gross)

Feeder: 1,320 mm

Delivery: 1,295 mm

Inking Unit

Number of rollers: 20 including ductor

Number of form rollers: 4

Diameters: 60 – 72 – 66 – 80 mm

Noise Emissions (according to EN 13023)

Noise level at feeder control panel: 80 dB(A)

Noise level at delivery: 80 dB(A)

In very good condition, fully functional
